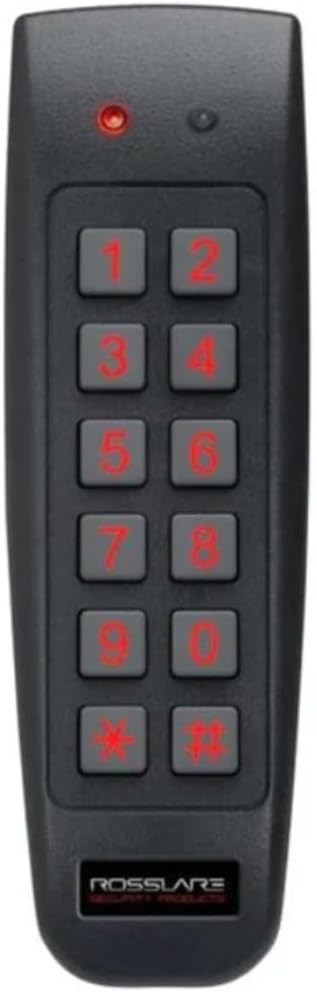

Rosslare AC-G44 Outdoor Mullion Backlit PIN & Proximity Standalone Controller, Up to 500 Users, 2x6 Keys, 4- to 8-digit PIN Code Entry, Three Access Levels, 16 to 24 VAC/12 to 24 VDC, IP65

KEY FEATURES
- Up to 500 users can be coded using Smart enroll and delete technology
- Mounting template and installation kit are provided
- Three user levels (Normal, Secure, Master)
- Three access levels (Normal, Bypass, Secure)
- Suitable for Gang Box installations
- Programmable PIN code length of 4 digits to 8 digits
- Powered either by transformer (AC) or regulated power supply (DC)
- Water-resistant and UV-resistant, meets IP65
- Internal buzzer
- Two inputs: REX and Auxiliary
- Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
- Two tri-colored status/programming LEDs
- 10 auxiliary modes including: Door Ajar, Forced Door, Alarm Shunt, and Door Monitor
- Programmable chime and siren when using BL-D40 and '*' bell button
- Built-in optical back tamper detection

SPECIFICATIONS
- Capacity: 500 users, dual code/card or code + card each
- Keypad: 2x6 keys for local programming and 4- to 8-digit PIN code entry
- Operating Voltage Range: 12 to 24 VDC, from a regulated power supply; 16 to 24 VAC, from a transformer
- Input Current: Standby: 95 mA at 12 VDC, Maximum: 160 mA at 12 VDC
- Relay Outputs: Lock Strike: 2 A Form C, N.O. and N.C.; Auxiliary: 2 A Form C, N.O. and N.C.
- Tamper: Optical back tamper sensor
- Proximity Card Reader: Maximum read range: 80mm (3.15"), Modulation: ASK at 125 kHz, Compatible cards: All 26-bit EM cards
- Operating Temperature: -30°C to 65°C
- Operating Humidity: 0 to 95% (non-condensing)
- RFI Protection: > 20 V/m up to 1000 MHz
- Dimensions: 5.33"L x 1.74"W x 1.12"H
- Weight: 0.39 lbs
