Description:
It can measure capacitance(1pF-100mF) and inductance(1uH-100H).
Adds precise measurement of high-speed micro-controller, suitable for microwave and switching mode power supply transformer.
It has advantage over small value testing with precision minimum resolution.
Flexible online calibration can always maintain measurement accuracy.
The calibrated parameters are completely stored in the FLASH inside of micro-controller, wouldn't lost when power-off.
Specifications:
Color: Green.
Capacitance Measurement(C): Accuracy: 1pF~1uF 1%; 1uF~10uF 5%.
Resolution: 0.01pF.
Inductance Measurement(L): Accuracy: 1uH~100mH 1%.
Resolution: 0.001uH.
Large Inductance Measurement(Hi.L): Accuracy: 100mH~1H 1%; 1H~100H 5%.
Resolution: 0.001mH.
Large Capacitance Measurement(Hi.C): Accuracy: 1uF~100mF 5%.
Resolution: 0.01uF.
Test Frequency: L/C: 500KHz; Hi.L: 500Hz~50KHz.
Measurement Mode of Inductance/Capacitance/Large Inductance: LC Resonance.
Measurement Mode of Large Capacitance: Charging and Discharging.
Display: 1602 LCD.
Effective Display Digits: 4.
Power Supply: Mini USB Interface and Dia. 5.5 DC Plug.
Power Voltage: 5V.
Material: metal.

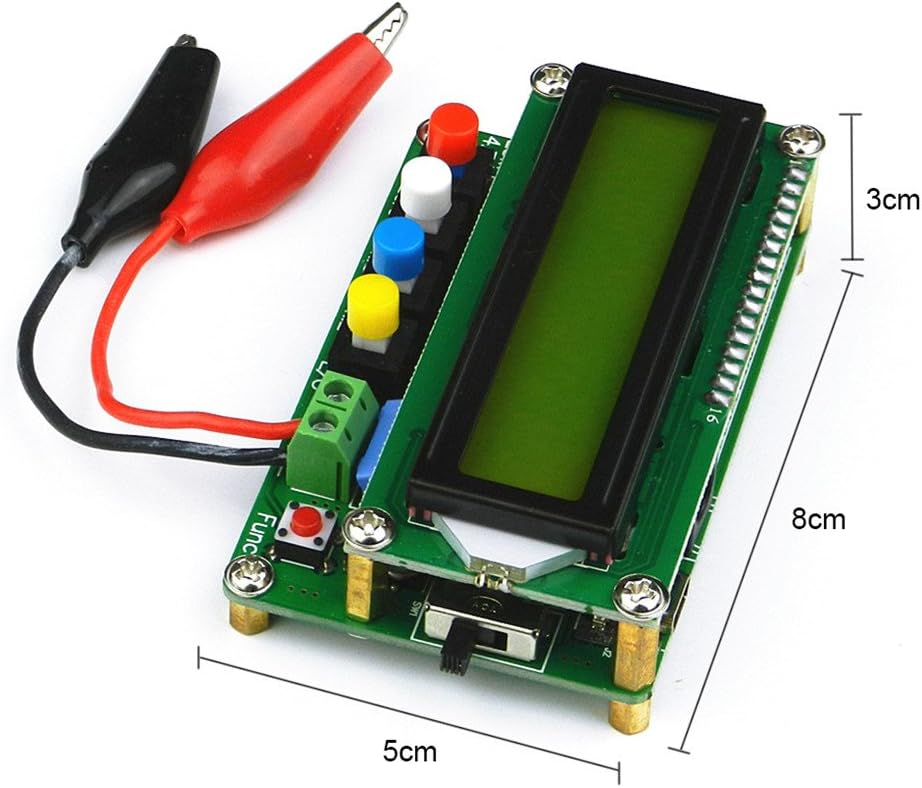

Size: 80*50*30mm.

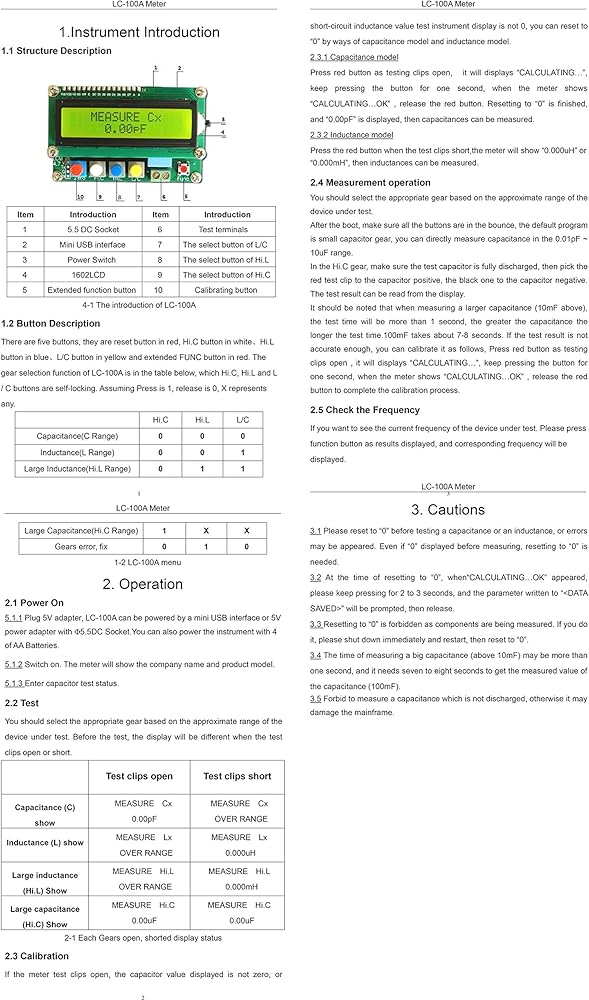

Note: User Manual(English) is included in the picture.
Package include:

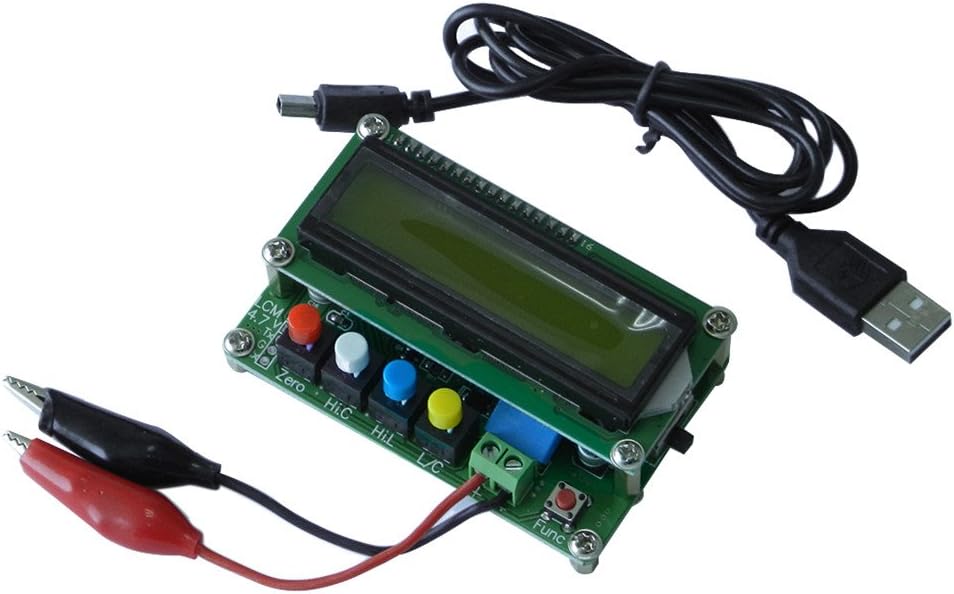

1 * High Precision L/C Meter.
1 * USB Cable.
