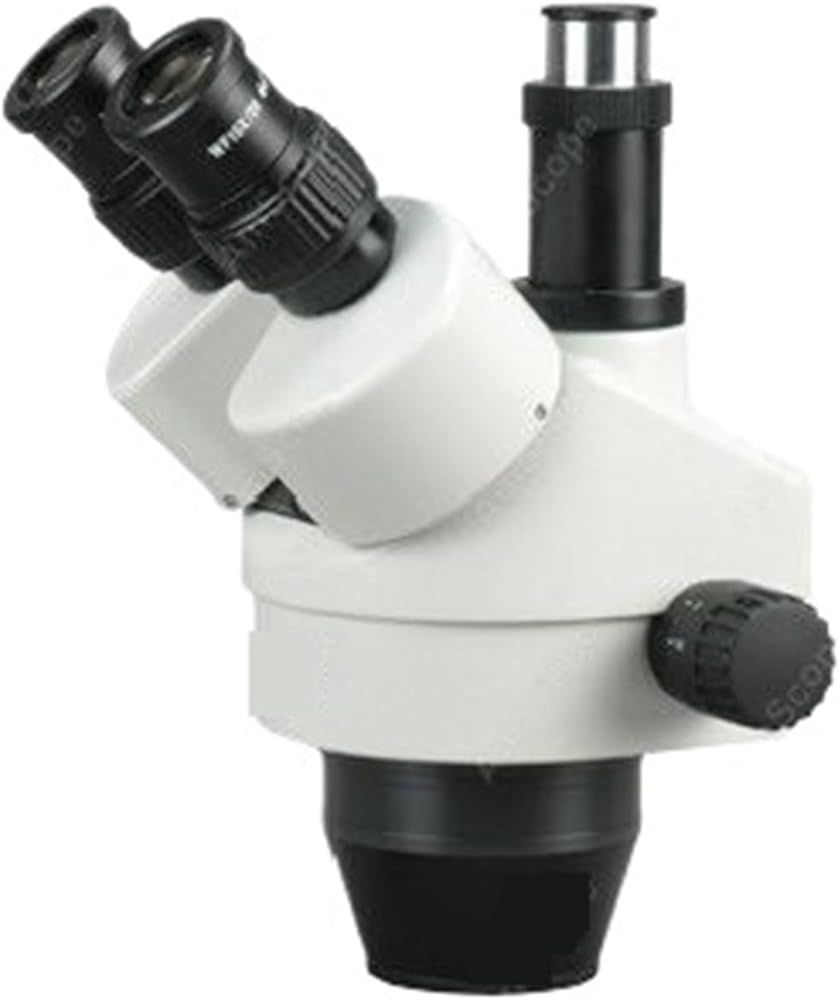

This is a 3.5X-180X zoom magnification trinocular stereo microscope head. It includes two Barlow lenses (0.5X & 20x), two pairs of super widefield high-eyepoint eyepieces (10X & 20X and foldable eyeguards. It comes with 45-degree inclined 30mm eyetubes with diopter. Its trinocular port enables to add photo or video capability. The microscope provides sharp clear erect stereo images over a large zoom magnification range. Its super widefield optics and high-eyepiont design ensure an easy and comfortable observation. This microscope head fits all the stands with a 3" (76mm in diameter) O-ring holder. It is made by the same technicians and on the same production line that makes optical instruments for Leica, Zeiss, Nikon and Olympus. It is brand new in factory box. Its retail value is $1250.
Features:
3.5X to 180X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Both Ocular-Tubes with Adjustable Diopter
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Rubber Eyeguards Included
Manufactured under ISO 9001 Quality Control Standard
Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: 30mm super widefield high-eyepoint WF10X/20 and WF20/10
Barlow Lens: 0.5X and 2.0X
Objective: 0.35-9.0X
Zoom Range: 51:1
Trinocular Port: 23mm photo port
Diopter Adjustment: ±5dp
Interpupillary Distance: 2-3/4" - 2-15/16"(47-75mm)
Field of View: 2-1/2" (65mm)
Working Distance: 8" (200mm)
Head Mounting Size: 3" (76mm) in diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) in diameter
Packing List:
One Trinocular Stereo Zoom Head
One Pair of SUPER Widefield 10X Eyepieces
One Pair of SUPER Widefield 20X Eyepieces
One 0.5X Barlow Lens
One 2.0X Barlow Lens
One Pair of Foldable Eye-Guards
User's Manual
Shipping Weight: 10 lbs
Hign-concerned Chemical : None
Model Number : SM35180T
DIY Supplies : Metalworking
Origin : Mainland China
