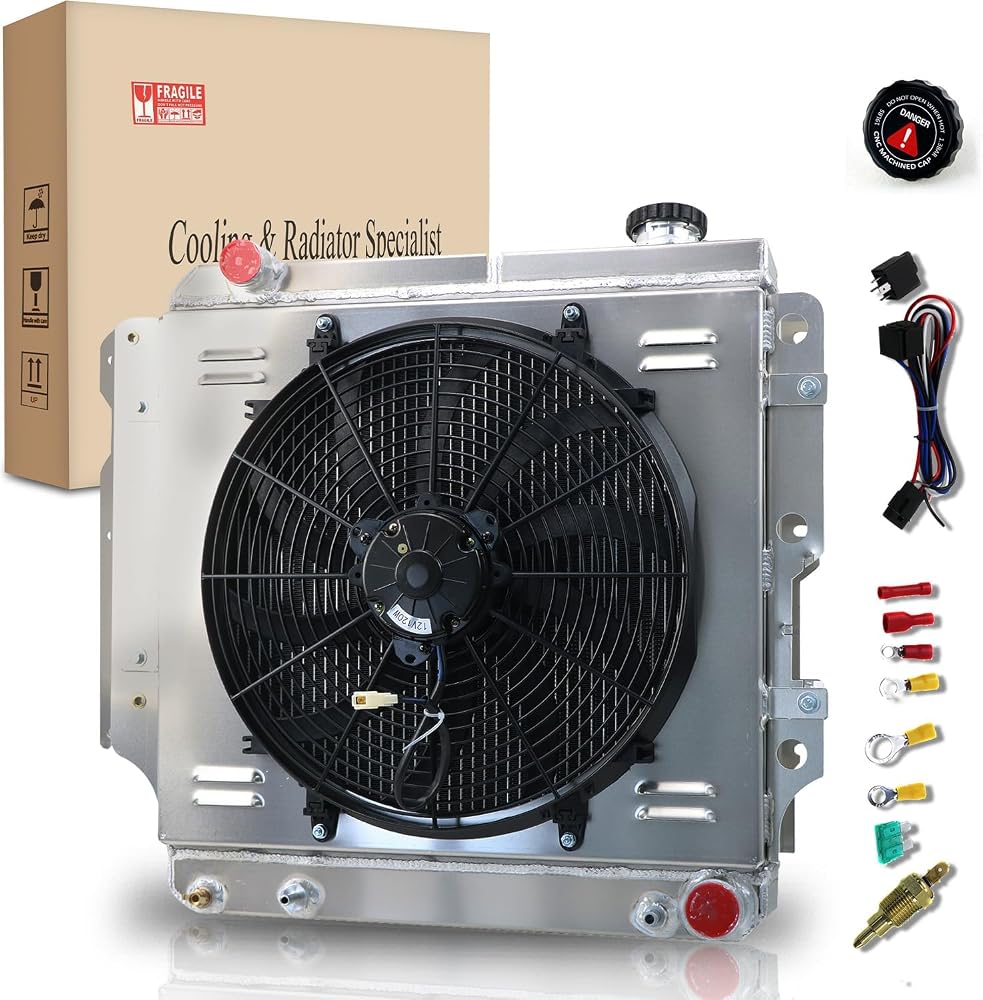

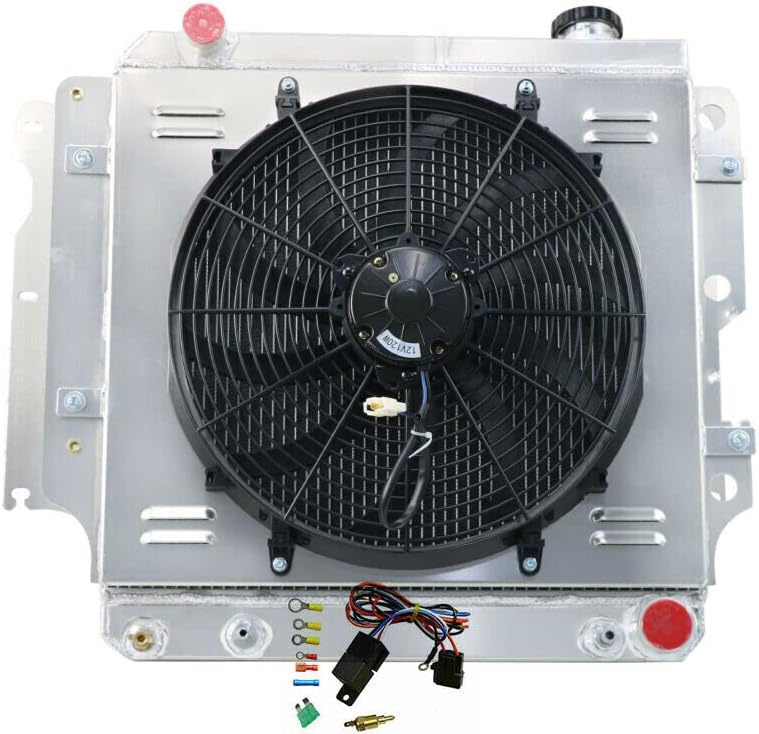

Package Include:

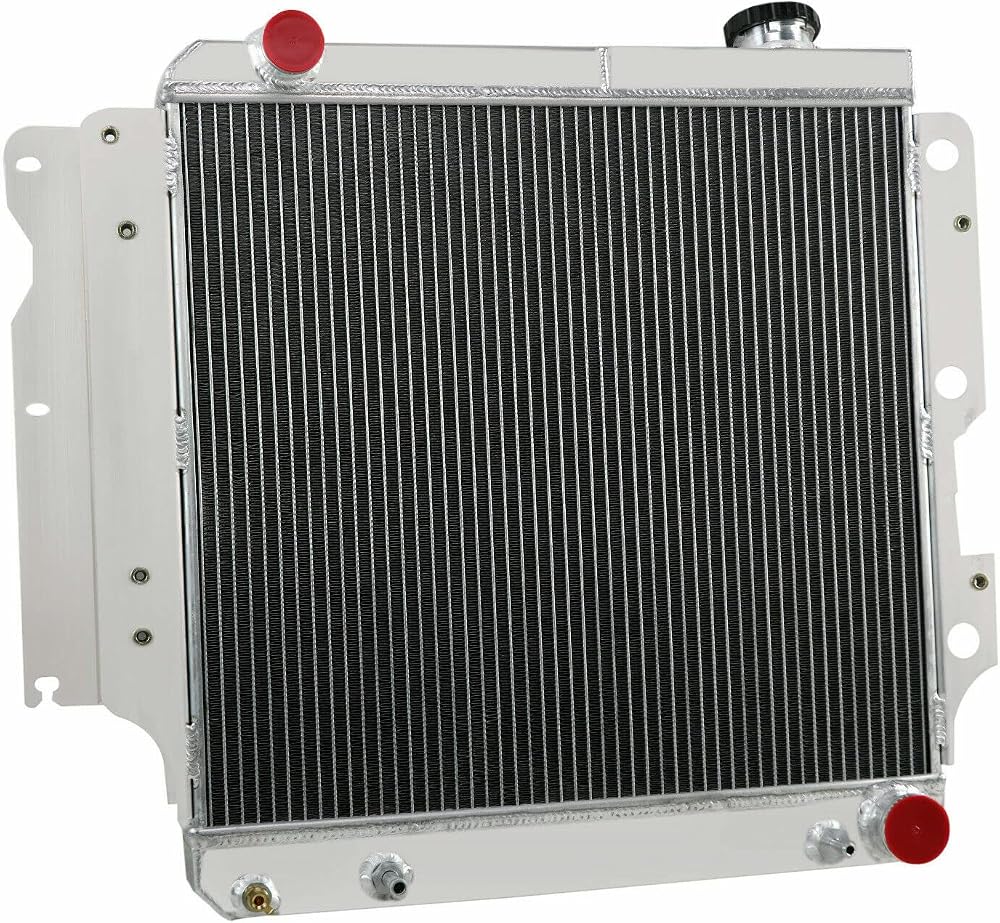

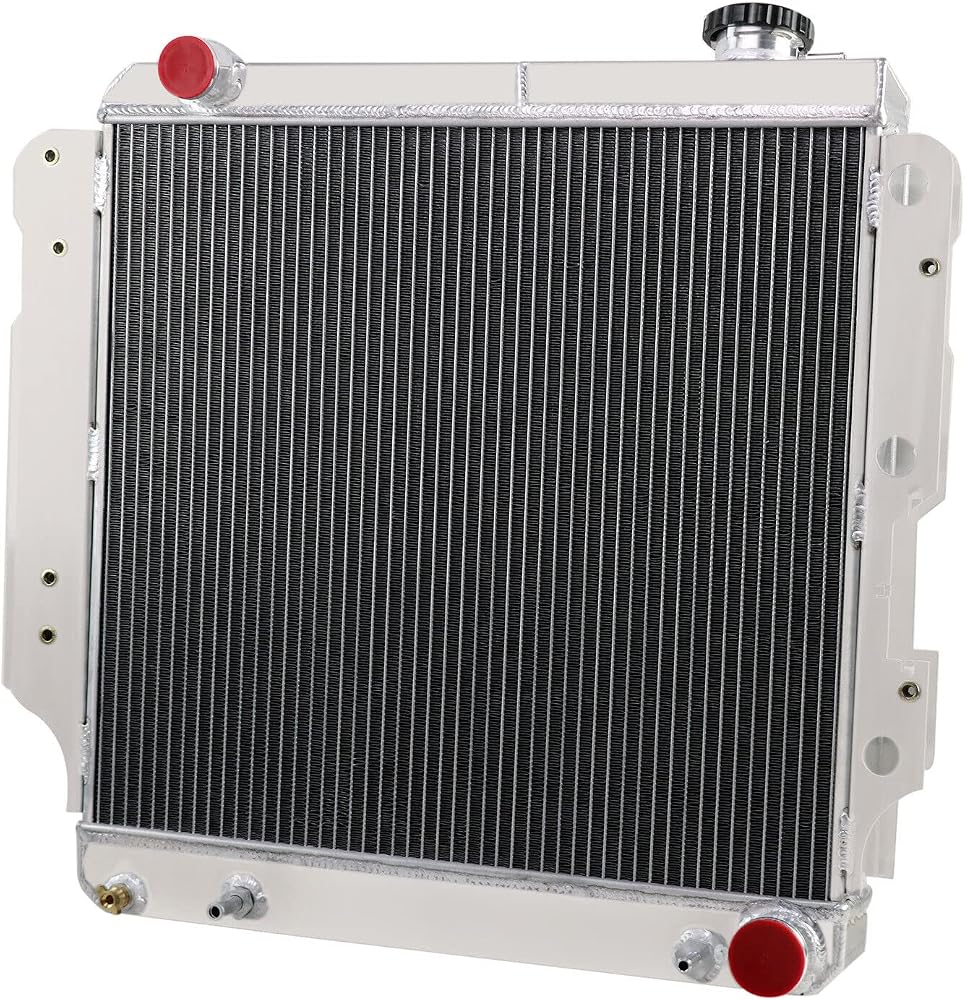

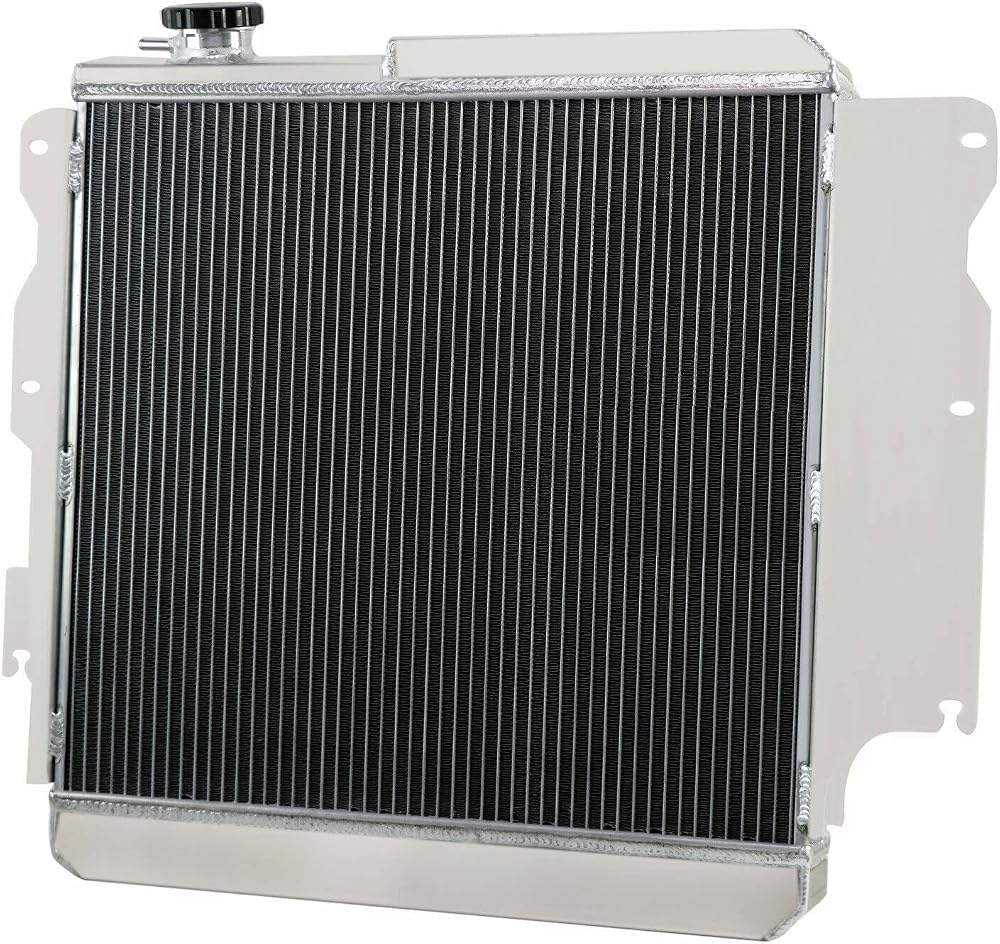

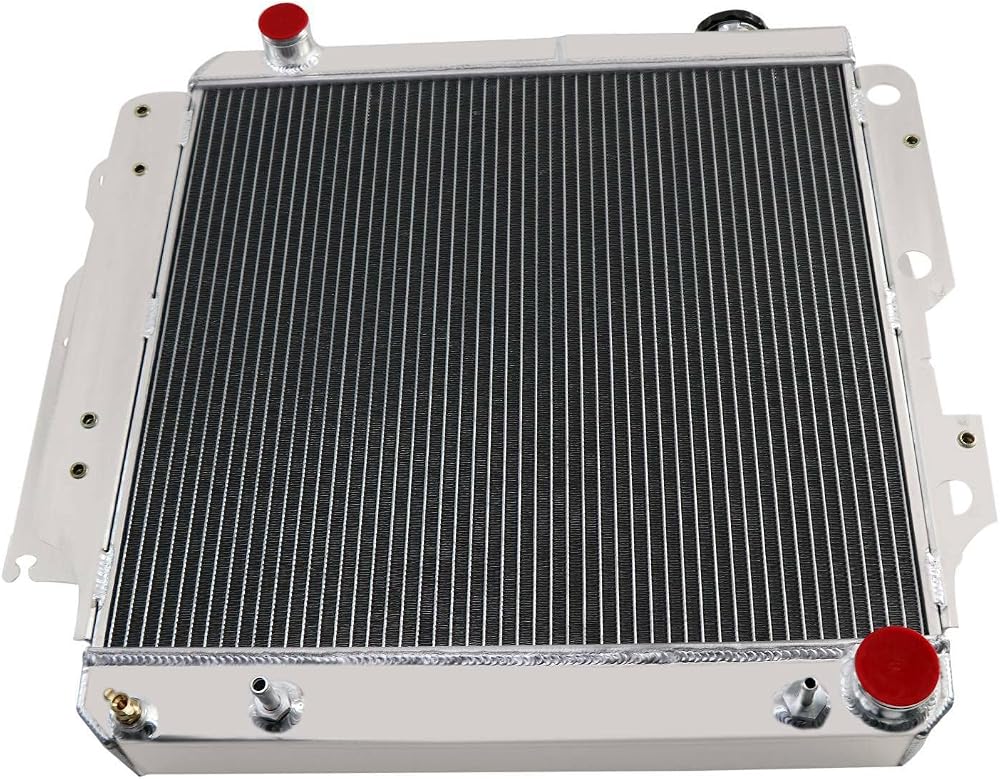

1 X4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Fitment:
For Jeep Wrangler TJ/YJ With Chevy V8 Conversion 1987-2006
This radiator is designed for a Chevy V8 Engine

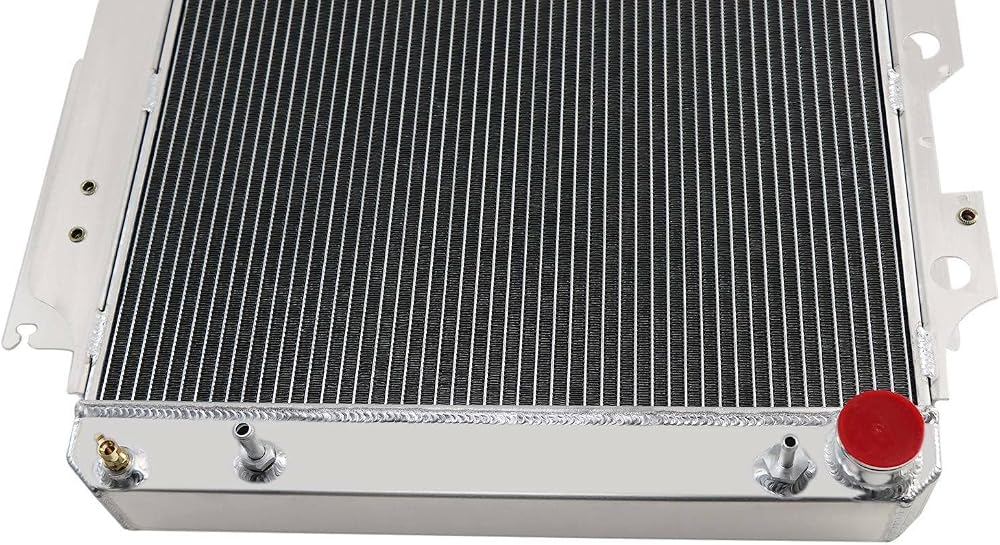

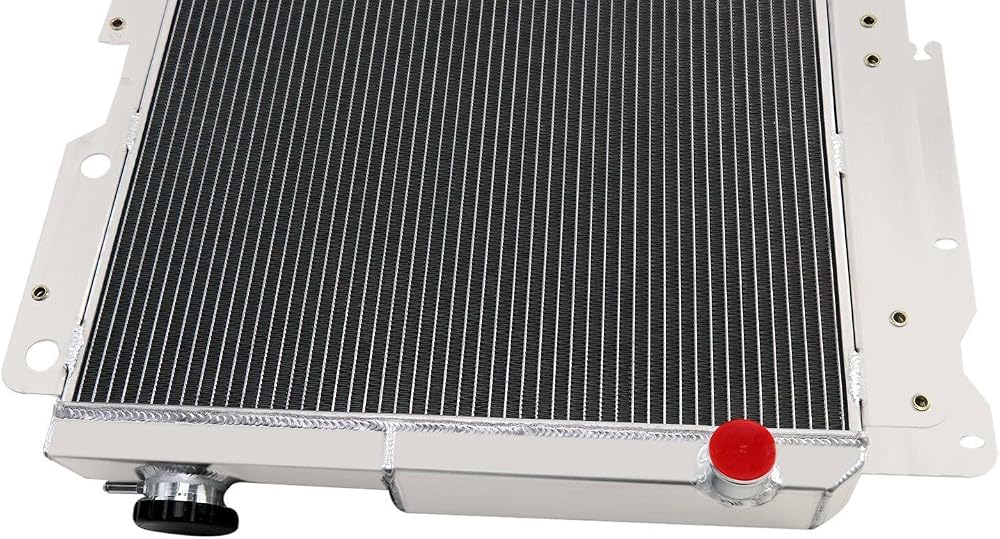

Radiator Specifications:
High Performance Racing Spec.

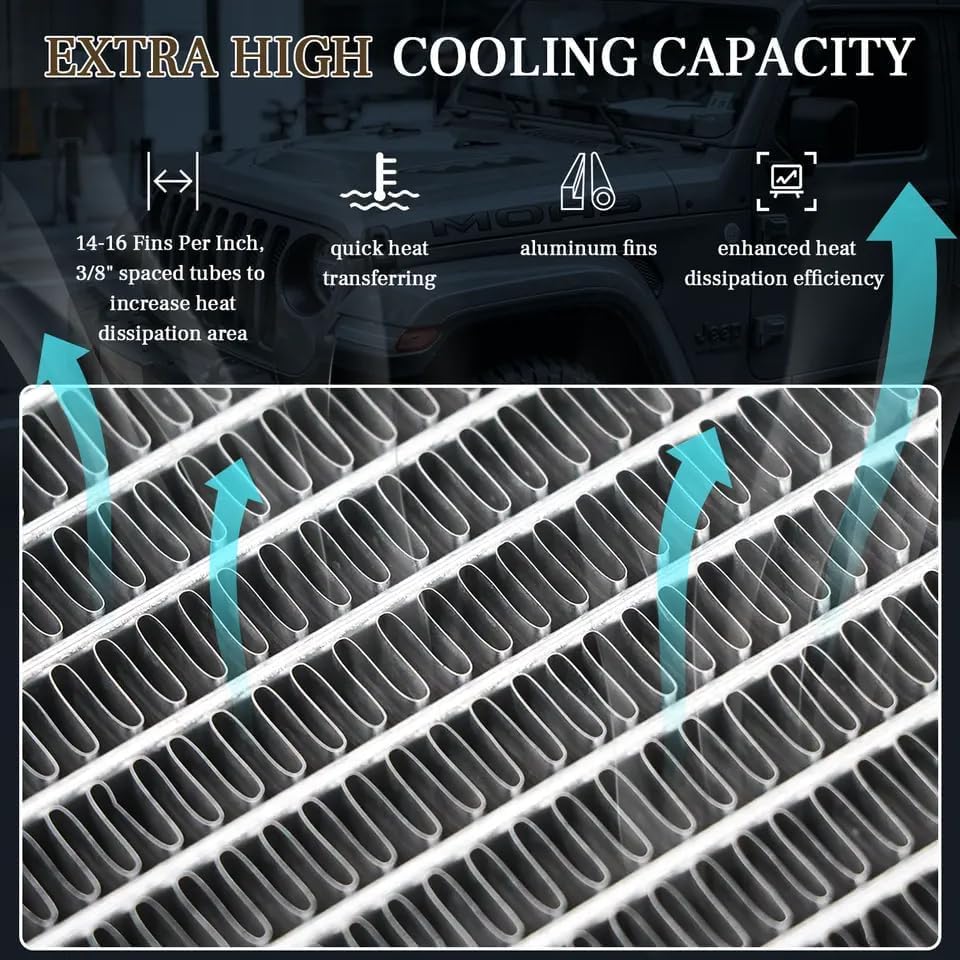

4-Row of tubes Core Racing Design
Core Material: All Aluminum
Tank Material: AA5052 Aircraft Grade Aluminum
Surface Finish: Aircraft Grade Raw Aluminum
Includes CNC machined filler neck and cap
OEM Style Brass Petcock Drain.
Overall Height: 23 3/8 X Width: 25 3/4
Core Height: 18 1/2 X Width: 20 1/8
Inlet Diameter: 1 1/2"Driver Side
Outlet Diameter: 1 3/4"Passenger Side
Transmission Oil Cooler Fitting Type: 1/2-20 Straight Thread, Inverted Flare
Internal Transmission Oil Cooler: Yes
Filler Neck Attached: Yes
Please Check the Size Before You Buy!

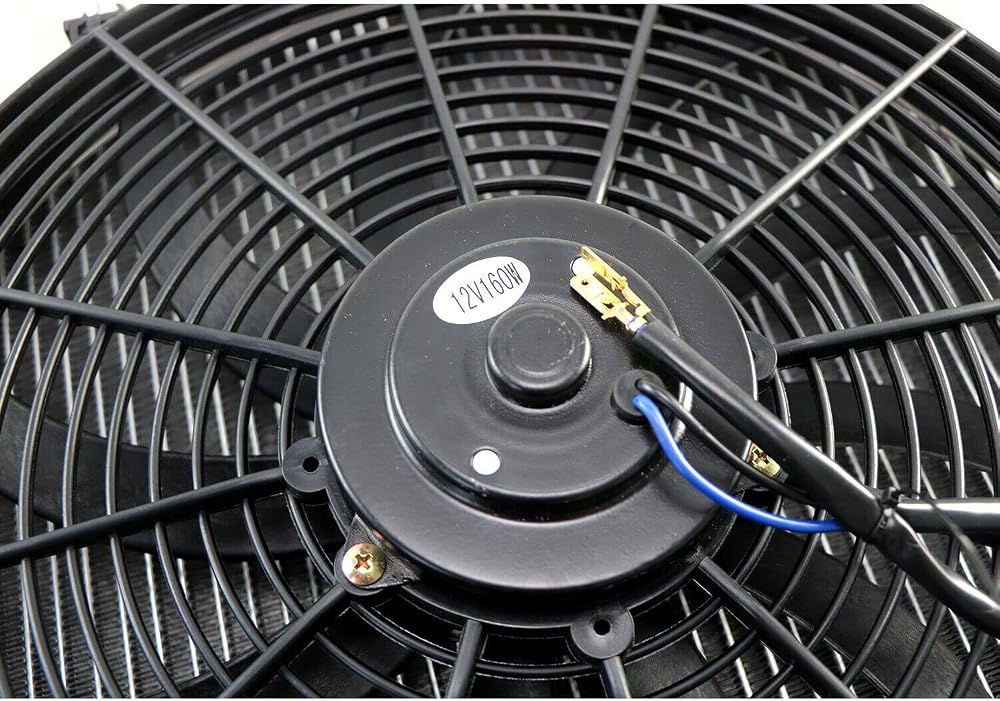

Fans Details:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 16.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.

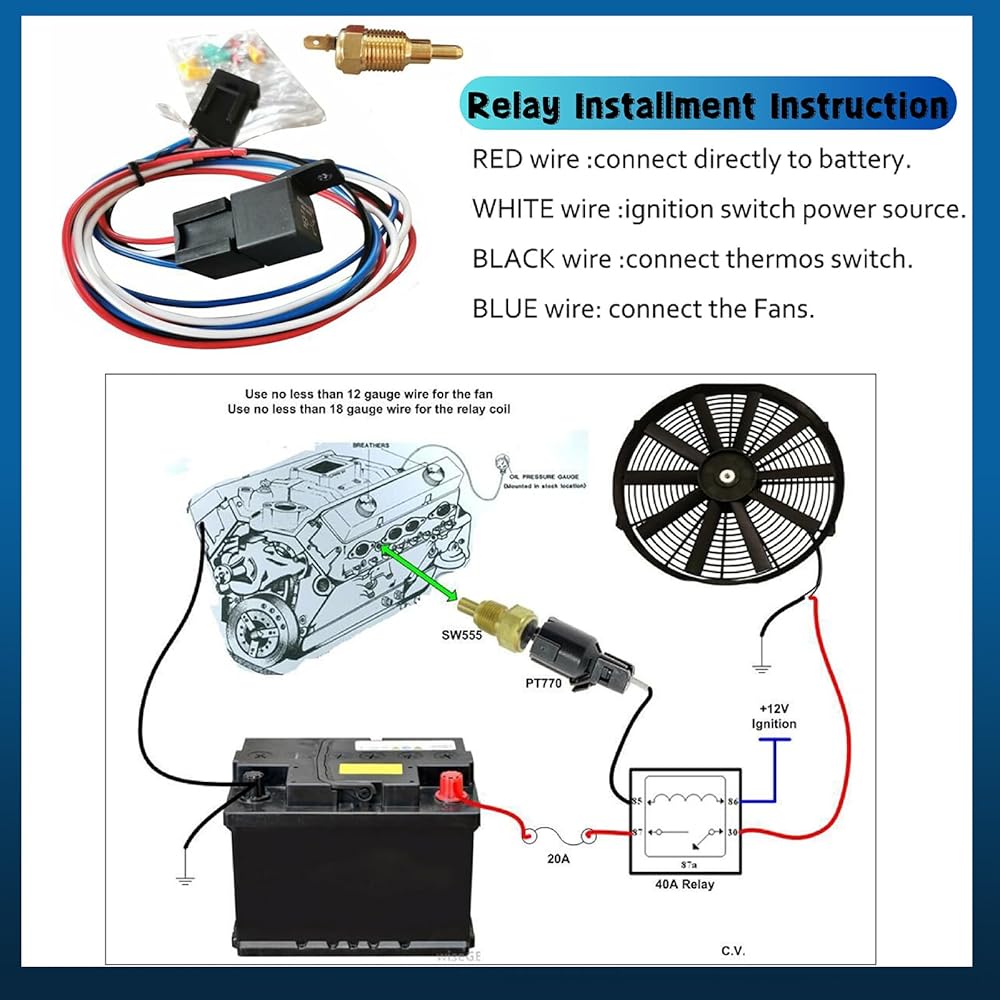

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This setup will run Fans & pull air in through radiator.
