Deluxe ignition turn up kit for the Honda CT70 with Hitachi ignitions from 1969 to 1982. Built to meet or exceed OEM specifications. Get your bike back up and running like a champ!
Note: Kit is for Hitachi type ignitions NOT Mitsubishi type. Please check which type ignition you have before ordering.
The coil is self grounding. If adapting it to work with other models, in some cases you would have to mount the coil to ground, and in some cases you would have to isolate it from ground (it should NOT be mounted to metal). It depends on how you will be wiring in your condenser.
6 volt power source connects to the black wire coming off the coil (male bullet connector). The wire from the points should connect to ground, where the coil is mounted.
Deluxe ignition turn up kit for the Honda CT70 with Hitachi ignitions from 1969 to 1982. Built to meet or exceed OEM specifications. Get your bike back up and running like a champ!
Note: Kit is for Hitachi type ignitions NOT Mitsubishi type. Please check which type ignition you have before ordering.
Note: The coil is self grounding. If adapting it to work with other models, in some cases you would have to mount the coil to ground, and in some cases you would have to isolate it from ground (it should NOT be mounted to metal). It depends on how you will be wiring in your condenser.
Note: 6 volt power source connects to the black wire coming off the coil (male bullet connector). The wire from the points should connect to ground, where the coil is mounted.

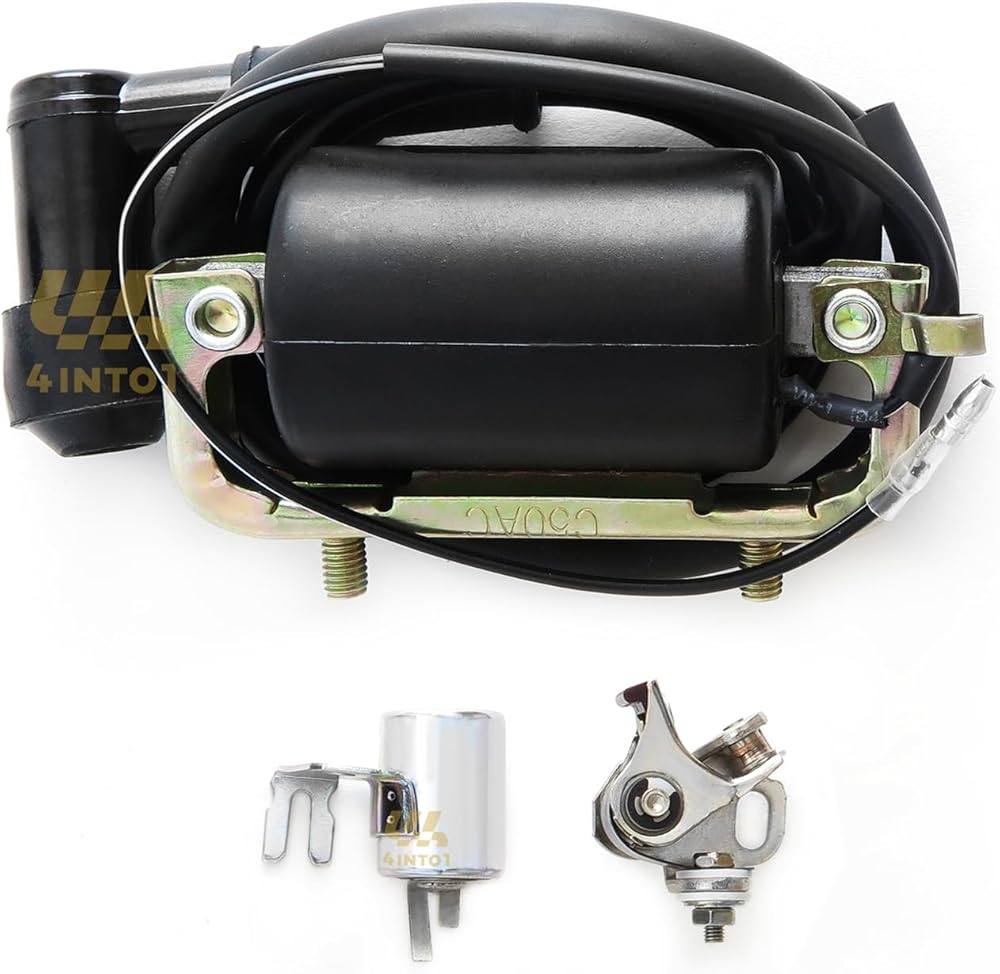

Kit Includes points, condenser and ignition coil.
Honda part numbers: 30202-041-015 (points), 30250-041-015(condenser), 30250-035-005 (condenser), 30530-126-921(Coil)
Fits Honda:
CT70 Trail - 1976-1982
CT70HK Trail - 1970-1973
CT70K Trail - 1969-1975
