Selector Switch

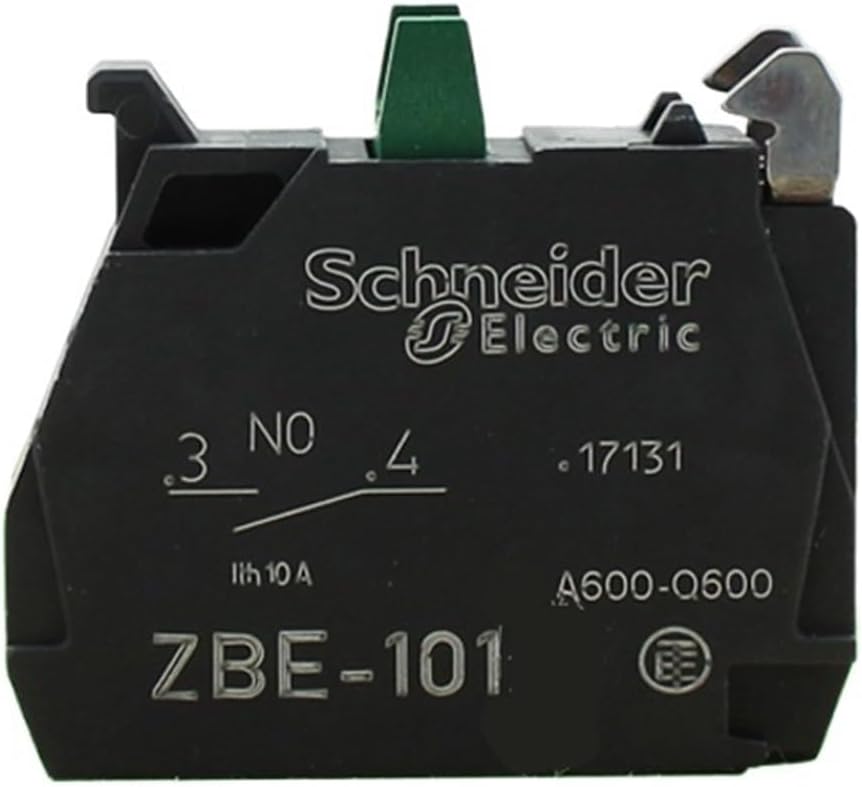

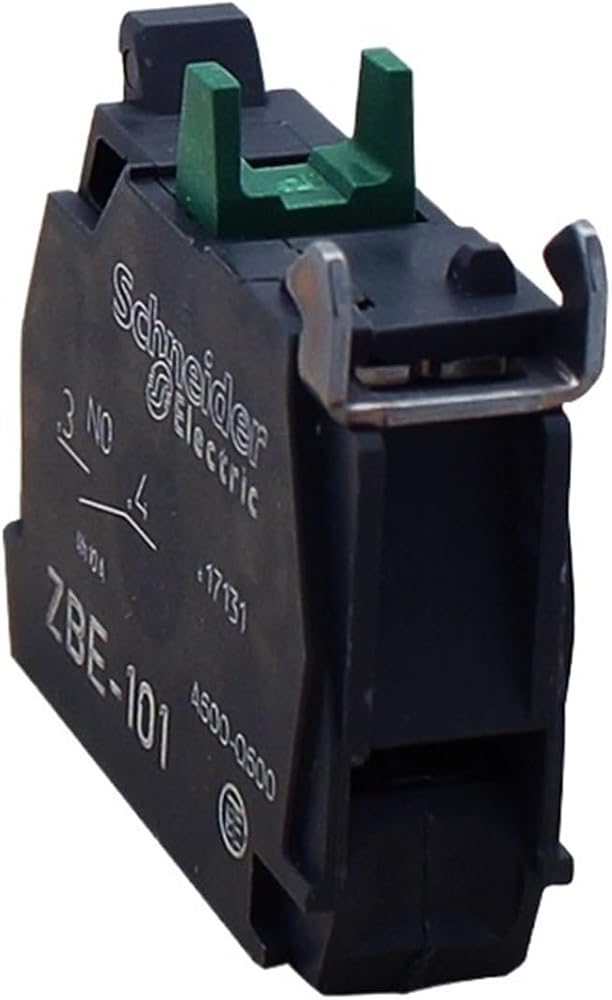

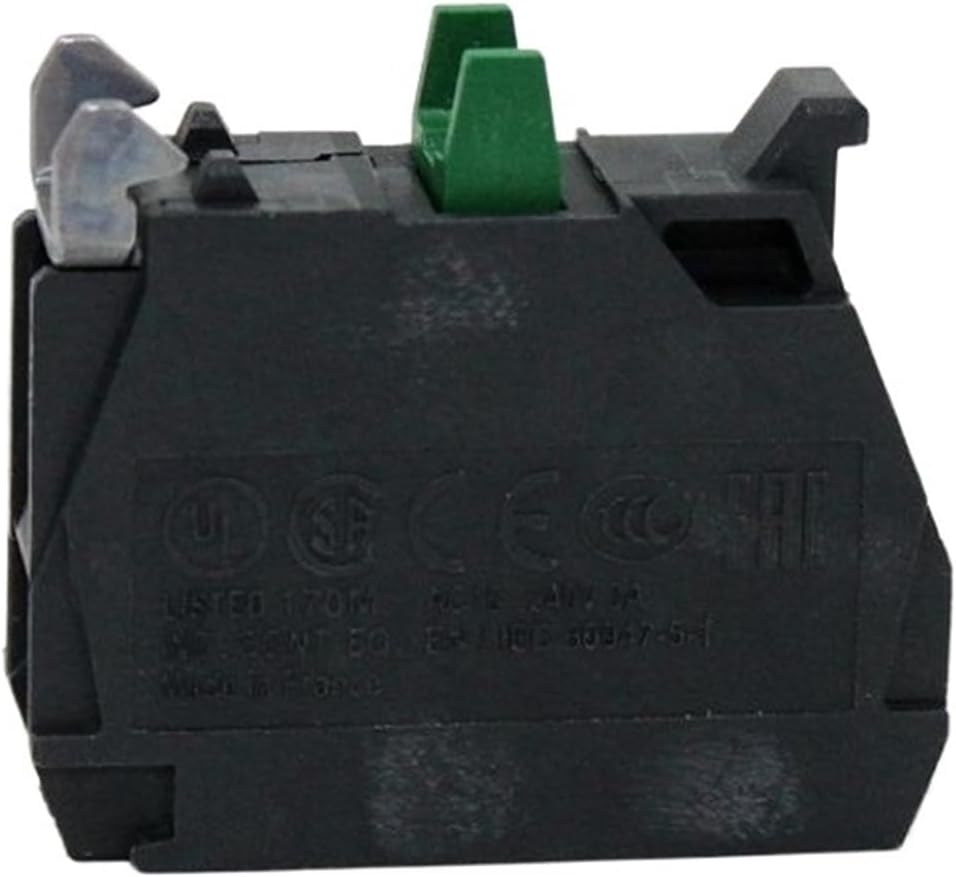

ZBE101
main information
Product Series
Harmony XB5
Harmony XB4
product type
Contact module
Product short name
ZBE
Individual sales quantity
5
IP protection level
IP20 according to IEC 60529
Contact type
1 NO
Contact action
Slow break
Contact type
single
Touch line use
Standard contacts
Wiring capacity
Bolt tightening,> = 1 x 0.22 mm² without ferrule terminal in accordance with EN 60947-1
Additional information
product weight
0.011 kg
Force open
no
Operational Communication
2.6 mm (NO changes electrical state)
4.3 mm (total stroke)
Control
2.3 N NO changes electrical state
Mechanical life
10000000 times
Tightening
0.8 1.2 Nm conforming to EN 60947-1
Screw head shape
Cross-compatible pozidriv No 1 screwdriver
slotted slot compatible flat Ø 4 mm screwdriver
slotted slot compatible flat Ø 5.5 mm screwdriver
Contact material
Silver alloy (silver / nickel)
Short circuit protection
10 A fuse type gG conforming to EN / IEC 60947-5-1
Conventional heating current [Ith]
10 A conforming to EN / IEC 60947-5-1
Rated insulation voltage [Ui]
600 V (pollution degree 3) conforming to EN 60947-1
Rated impulse withstand voltage [Uimp]
6 kV conforming to EN 60947-1
Rated operating current [Ie]
3 A at 240 V, AC-15, A600 conforming to EN / IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN / IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
0.55 A at 126 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN / IEC 60947-5-1
Electrical life
Electrical reliability
Function block installation
Front-end installation
Operating conditions
Mounted on the button ring
Electrical composition code
model
ZBE
surroundings
Protective treatment
TH
Ambient storage temperature
-40 70 ° C
Operating temperature
-40 70 ° C
Standards compliant
CSA C22.2 No 14
EN / IEC 60947-5-1
UL 508
EN / IEC 60947-1
JIS C8201-5-1
EN / IEC 60947-5-4
JIS C8201-1
Anti-vibration
5 gn (f = 2 500 Hz) conforming to IEC 60068-2-6
Impact resistance
30 gn (duration = 18 ms) for half-sine impact according to IEC 60068-2-27
50 gn (duration = 11 ms) for half-sine impact according to IEC 60068-2-27

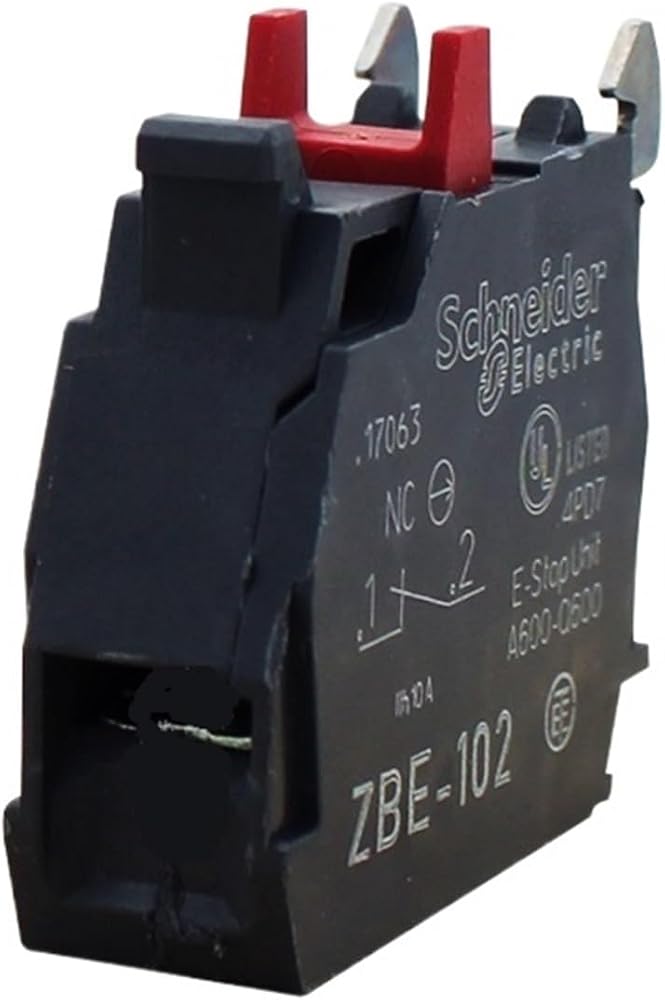

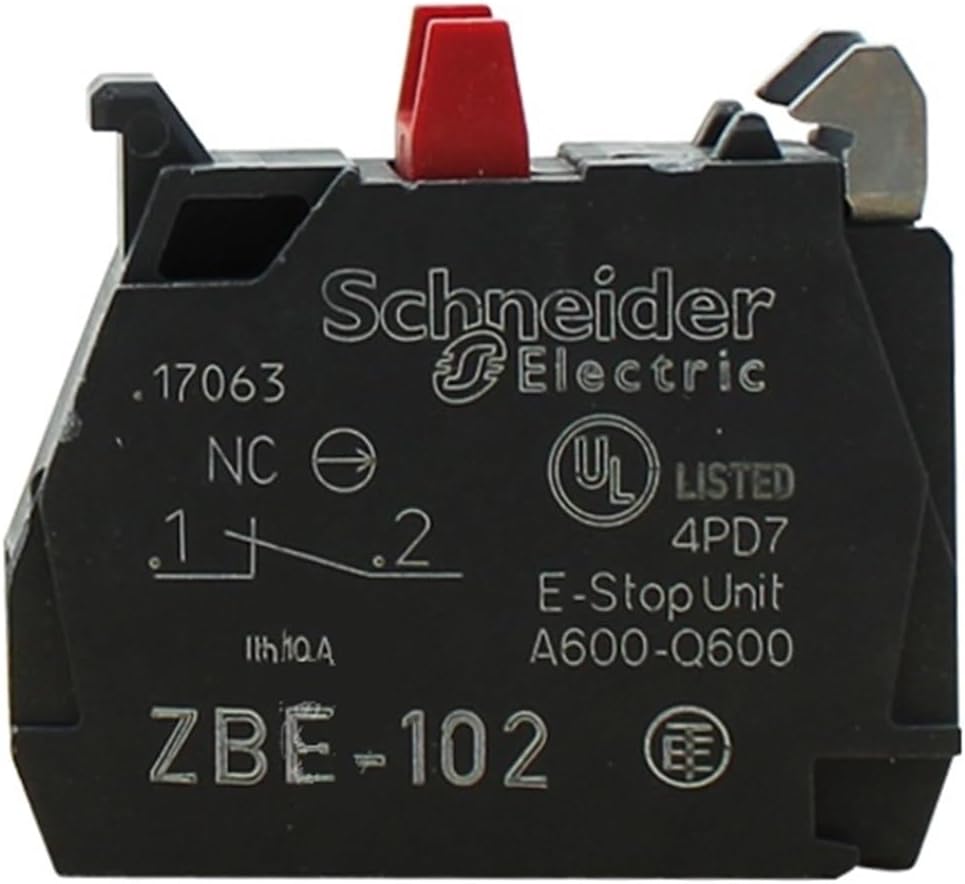

ZBE102
main information
Product Series
Harmony XB4
Harmony XB5
product type
Contact module
Product short name
ZBE
Individual sales quantity
5
IP protection level
IP20 according to IEC 60529
Contact type
1NC
Contact action
Slow break
Contact type
single
Touch line use
Standard contacts
Wiring capacity
Bolt tightening,> = 1 x 0.22 mm² without ferrule terminal in accordance with EN 60947-1
Additional information
product weight
0.011 kg
Force open
With Annex K in accordance with EN / IEC 60947-5-1
Operational Communication
1.5 mm (NC changed electrical status)
4.3 mm (total stroke)
Control
2 N NC change electrical status
Mechanical life
10000000 times
Tightening
0.8 1.2 Nm conforming to EN 60947-1
Screw head shape
Cross-compatible pozidriv No 1 screwdriver
slotted slot compatible flat Ø 4 mm screwdriver
slotted slot compatible flat Ø 5.5 mm screwdriver
Contact material
Silver alloy (silver / nickel)
Short circuit protection
10 A fuse type gG conforming to EN / IEC 60947-5-1
Conventional heating current [Ith]
10 A conforming to EN / IEC 60947-5-1
Rated insulation voltage [Ui]
600 V (pollution degree 3) conforming to EN 60947-1
Rated impulse withstand voltage [Uimp]
6 kV conforming to EN 60947-1
Rated operating current [Ie]
3 A at 240 V, AC-15, A600 conforming to EN / IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN / IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
0.55 A at 126 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN / IEC 60947-5-1
Electrical life
Electrical reliability
Function block installation
Front-end installation
Operating conditions
Mounted on the button ring
Electrical composition code
model
ZBE
surroundings
Protective treatment
TH
Ambient storage temperature
-40 70 ° C
Operating temperature
-40 70 ° C
Standards compliant
EN / IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
EN / IEC 60947-1
UL 508
EN / IEC 60947-5-4
JIS C8201-1
certified product
CSA
RINA
GOST
BV
DNV
GL
LROS (Lloyds register of shipping)
CCC
UL
Anti-vibration
5 gn (f = 2 500 Hz) conforming to IEC 60068-2-6
Impact resistance
30 gn (duration = 18 ms) for half-sine impact according to IEC 60068-2-27
50 gn (duration = 11 ms) for half-sine impact according to IEC 60068-2-27
==========
Current : 10A
Material : plastic
Switch Type : Push Button Switch
Model Number : ZBE-101/ZBE-102
Features : Contact block
Item Type : SWITCHES
