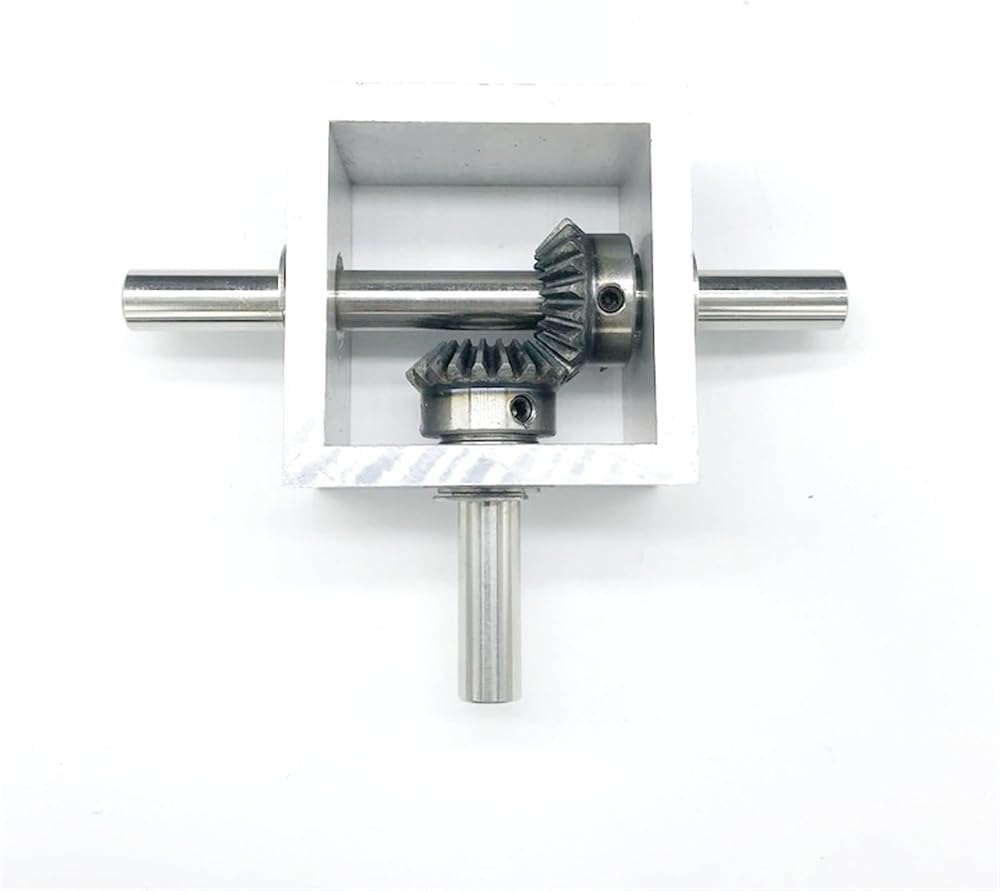

Type A: 1:1 bevel gear reversing angle device 10mm shaft

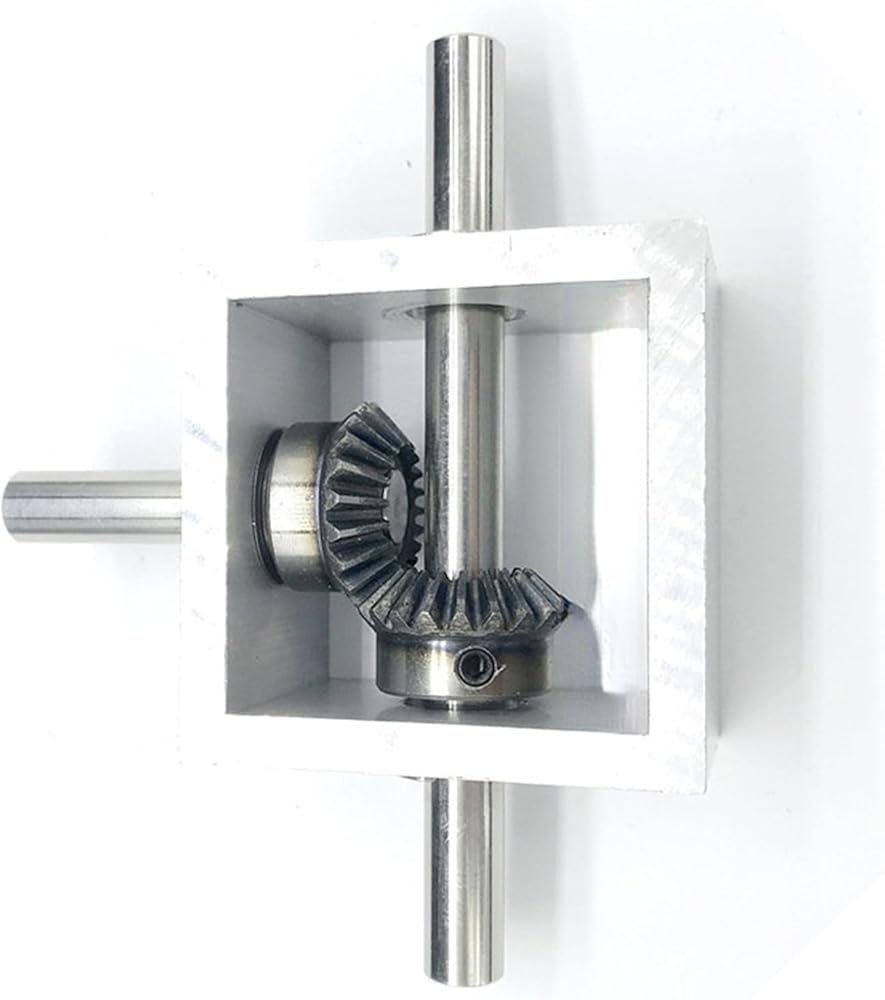

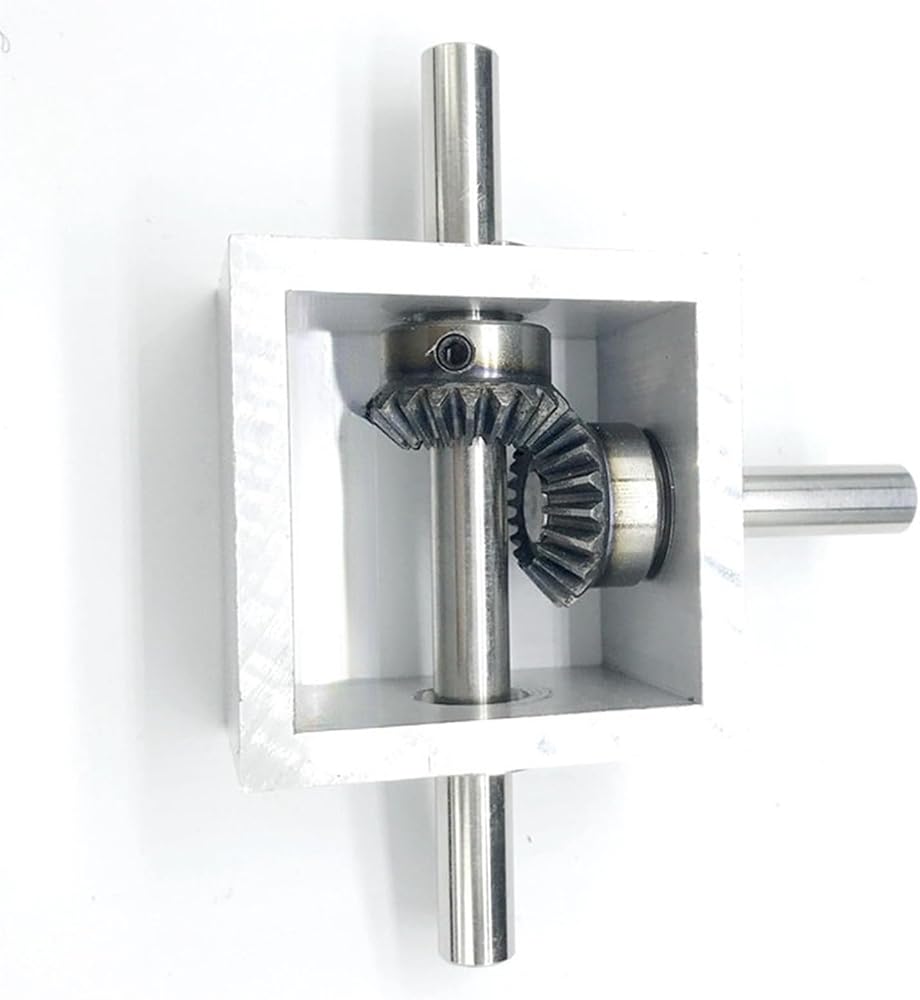

Type B: 1:1 commutator, one input and two output forward and reverse 10mm shaft
Parameters of bevel gear
modulus:1.25Model
Number of teeth:20 tooth
Inner hole:10mm
external diameter:27mm
Outer diameter of step:22mm
Tooth length:7 .8mm
Total thickness:15 mm
Fixing screw hole:M5*2Fixing screw hole
texture of material:45No.1 Steel
1 than 1 Overall weight of bevel gear box0.31kg
Overall weight of one in two out forward and reverse rotation gearbox0.37kg

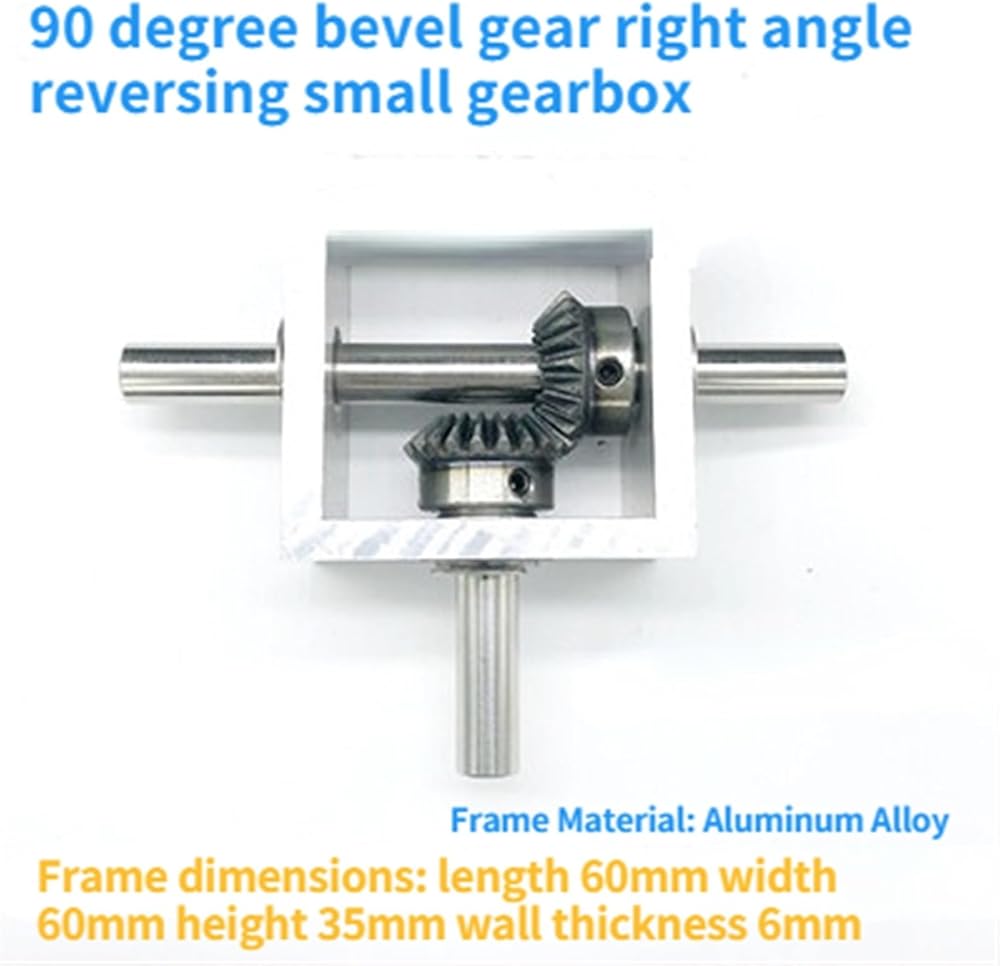

Frame material: aluminum alloy
: Aluminum alloy processing, punching and cutting process may produce scratches and will not affect the use.
The product has no fixed mounting holes, and the buyer needs to drill and fix it by himself, and there is no cover on the top and bottom.
This product is a simple model and cannot be used for high-speed operation, and is used where accuracy is not required.
Highly demanding and careful purchase! Gear 45 steel tooth surface is high-frequency hardened and hardened. There will be noise in operation, so be cautious with high requirements for sound!
