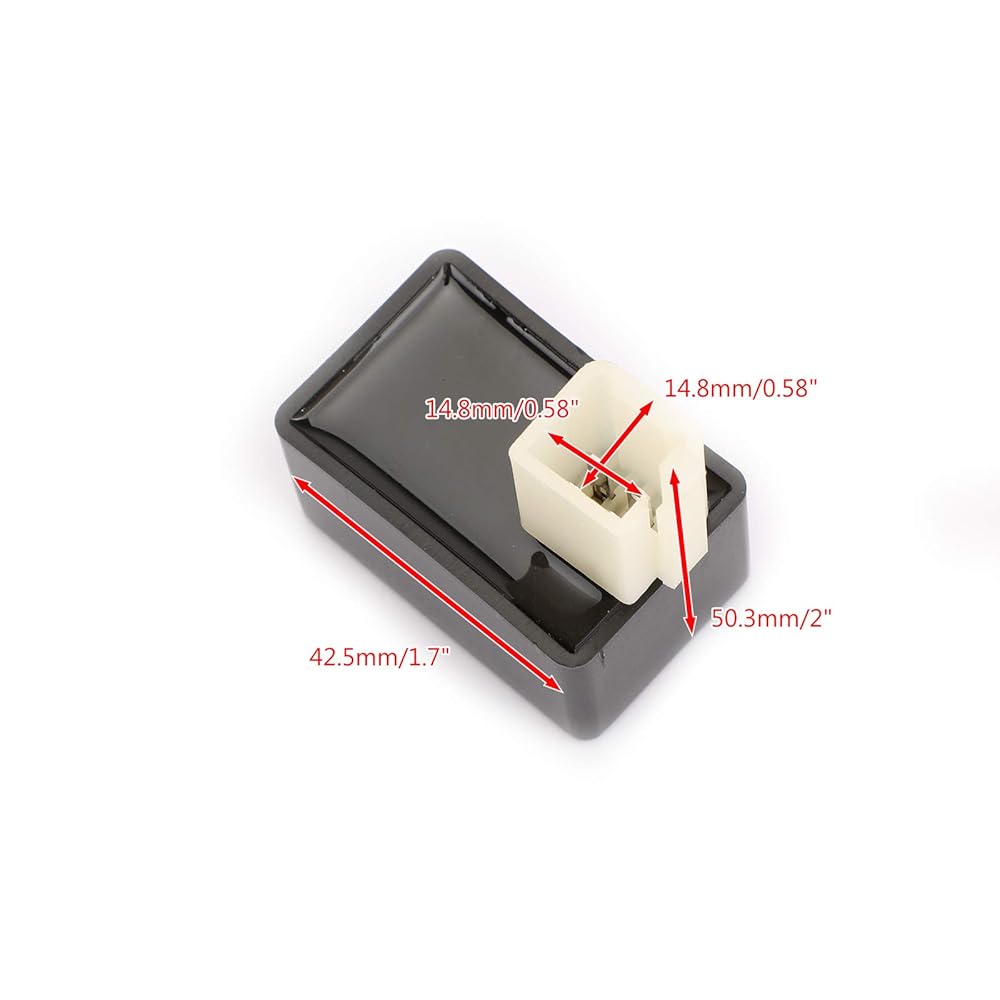

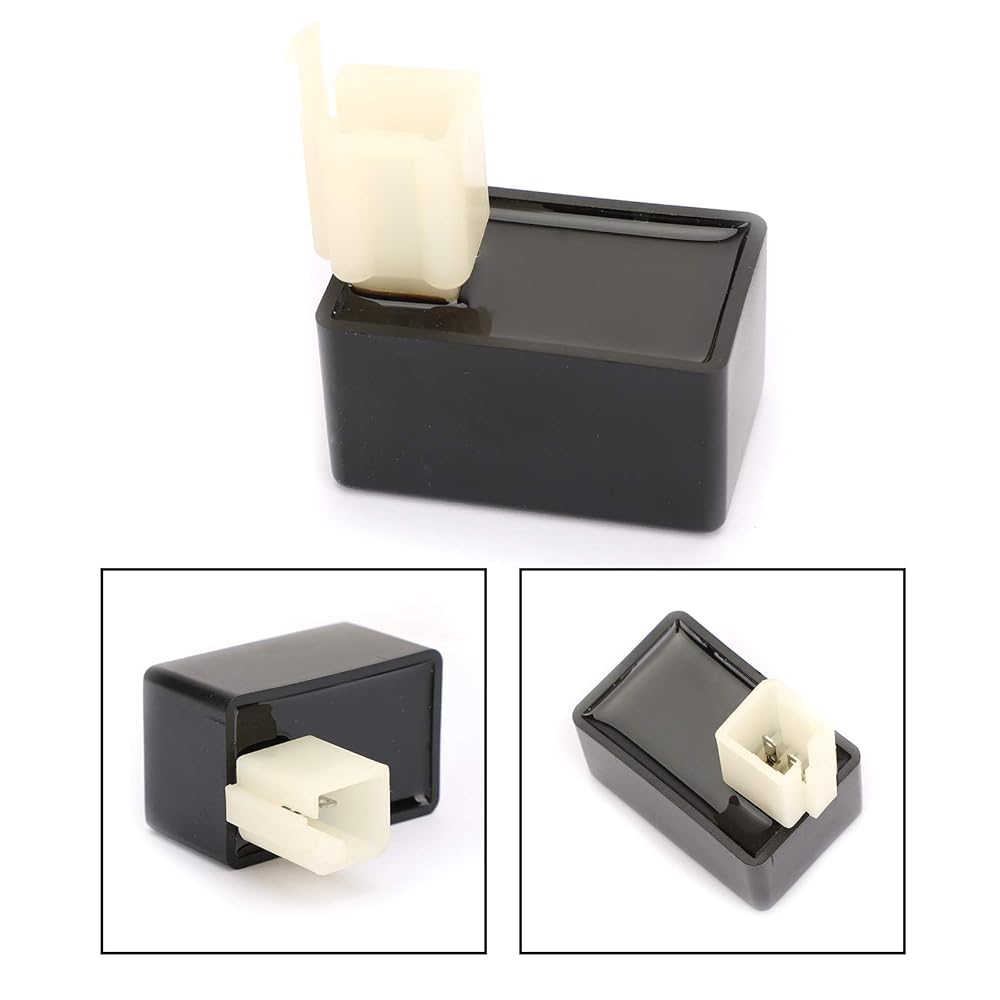

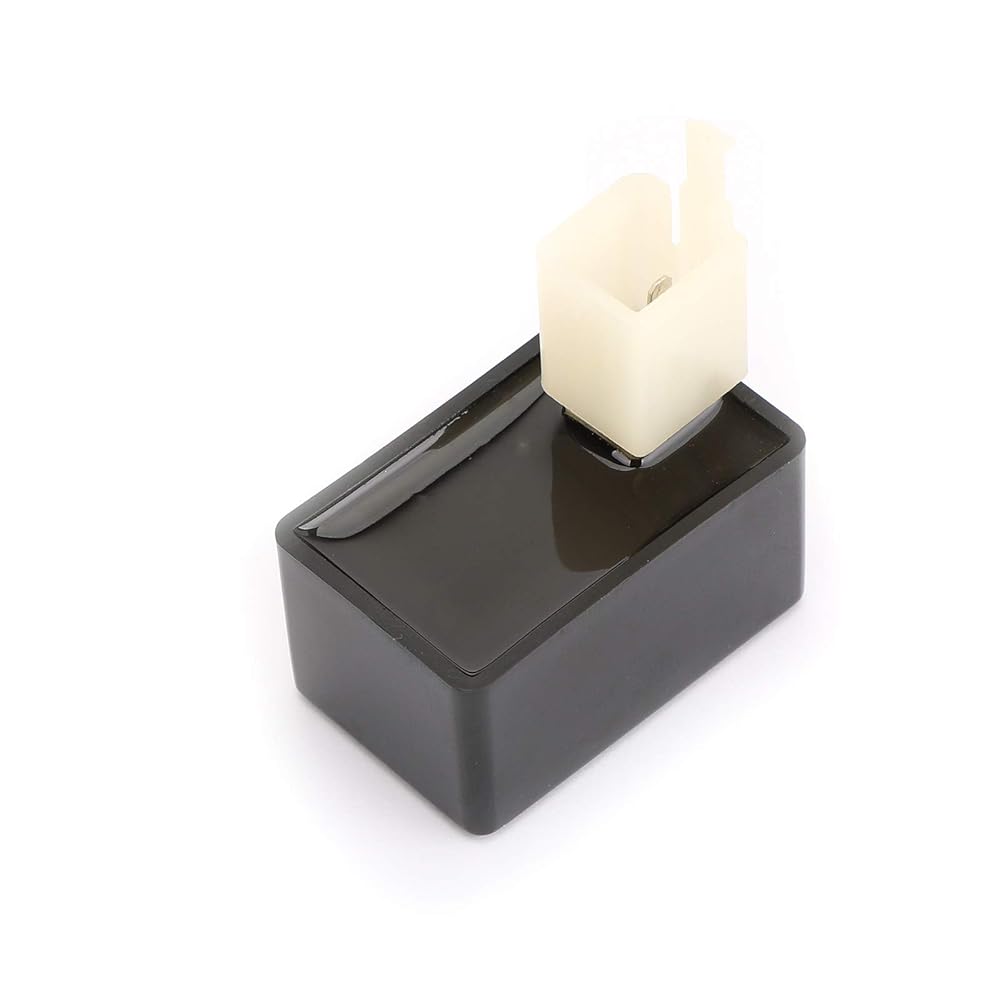

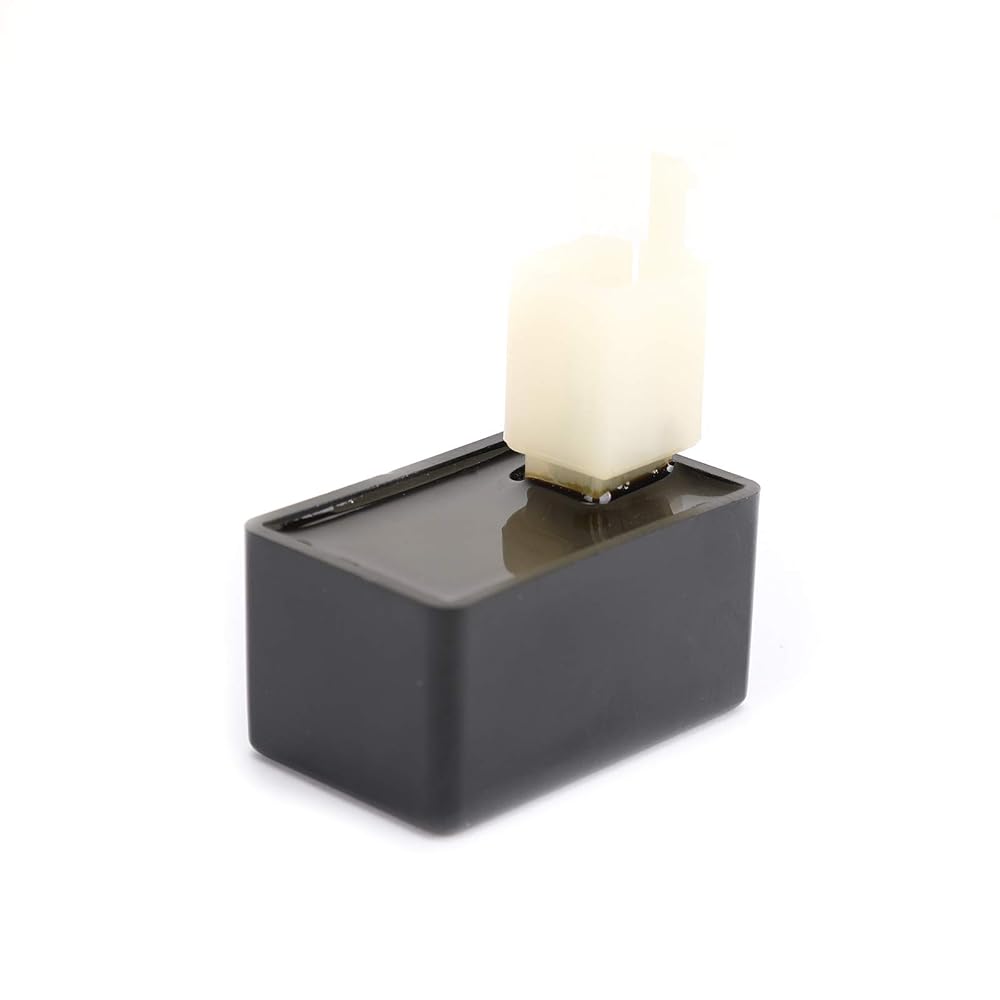

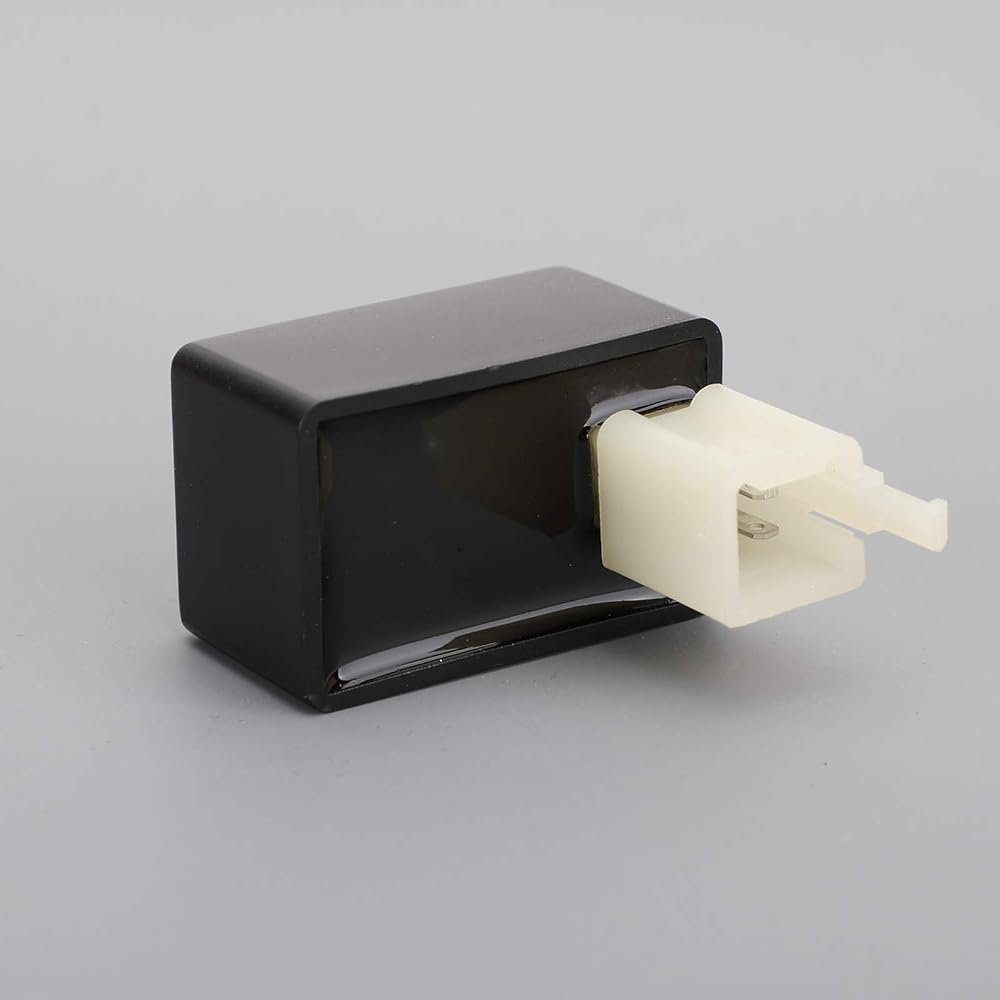

4 PIN Fuel Gas Cut Off Relay For CBR VFR VT NT PC VTX 400 600 650 750 1100 36100-MN4-008 FEATURES:
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycles.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included. SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
OEM Replacement Part Number: 36100-MM5-008 FITMENT:
for Honda 36100-MM5-008
for Honda CBR250 RJ/RK/RK2 MC19 1988-1989
for Honda CBR400 NC23 1987-1989
for Honda CBR400 1990-1994
for Honda CB400F CB-1 1989-1990
for Honda CBR900RR 1993-1995
for Honda CBR1000F 1987-1991
for Honda CBR1000F Hurricane 1987-1988
for Honda CBR900RR Fireblade 1992-1995 PACKAGE INCLUDED:
1x Fuel Gas Cut Off Relay
Installation Instruction NOT Included TESTING PROCEDURE:
Make SURE the Motorcycles is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycles, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
