*** Brushless Sensored Power System with 3.17mm Shaft Motor for Losi 1/18 Mini LMT
Furitek, a trusted pioneer in the mini RC electronics world, is breaking new ground by bringing its cutting-edge technology to the monster truck scene.
We proudly present the Furitek VORTEX-X Brushless Sensored Power System, designed specifically for the Losi 1/18 Mini LMT. Combining the powerful PASO PRO sensored ESC with the all-new IMPULSE 2835 5600KV motor featuring a reinforced 3.17mm shaft, this combo delivers incredible torque, smooth throttle response, and unmatched reliability — all in a true plug play system.
To further enhance tuning flexibility, the system also includes two pinion gears (14T, 15T, 0.5M, 3.17mm shaft), allowing you to easily fine-tune gear ratios based on terrain and driving style.

*** Key Features:
- Plug & Play Ready – Direct-fit for Losi Mini LMT with no soldering required
Note: Requires aftermarket TX/RX system (not compatible with stock radio)
- Full Waterproof Design – Built to perform in wet and muddy conditions without compromise
- 3.17mm Hardened Shaft Motor – Built to handle extreme torque and eliminate flex or breakage under load
- Supports Sensored & Sensorless Operation – ESC handles 60A continuous / 100A burst current
- Built-in Wireless Setup Module – Tweak settings in real time with the Furicar App (iOS & Android)
- Live Tuning & Real-Time Telemetry – Make adjustments on the fly and monitor performance up to 10Hz
- Smooth Throttle Control – Precision-crafted for consistent power delivery during jumps, launches, and wheelies
- Free Lifetime Firmware Updates – Always stay up-to-date with the latest features

*** ESC Specifications (Furitek PASO PRO):
- Battery Support: 2–3S LiPo batteries
- BEC Output: 5.5V / 7.4V @ 5A
- Constant Current: 60A
-  Burst Current: 100A
- Built-in Power Switch: Integrated for convenience
- Built-in Wireless Setup Module
- Dimensions: 0.86 x 1.26 x 0.62 in (21.9 x 32 x 15.7 mm)
- Weight: 28.5g (1.0 oz)

*** Motor Specifications (Furitek IMPULSE 2835 – 3.17mm Shaft):
- Motor Type: Sensored Waterproof
- KV Rating: 5600KV
- Power Output: 450W
- Battery Support: 2–3S LiPo
- Resistance: 0.035 Ohm
- Max Current: 50A
- Slot / Pole: 12 slot / 4 pole
- Motor Size: 28 x 35mm
- Shaft: 3.17 x 12mm hardened steel shaft
-  Weight: 60g
- Pinion Gears Included: 14T and 15T (0.5M, 3.17mm shaft) – allows tuning gear ratio for different driving styles

*** Motor Features:
- 3.17mm Reinforced Shaft – Handles more torque, better durability under high-load monster truck use
- Sensored 4-Pole Hi-Torque Design
- Aerodynamic Cooling System – Turbo airflow slots enhance heat dissipation
- Pre-soldered Gold Bullet Connectors – Plug & play, no soldering needed
- CNC-Machined 7075 Aluminum Housing – Lightweight and thermally efficient
- 0.2mm Silicon Steel Laminations – Maximizes energy efficiency (94%)
- Magnetic Force Control System (M.F.C.S) – Fine-tune torque response
- Oversized Bearings & High-Temp Rotor – Rated for up to 200°C
- Midnight Purple Edition – Aggressive styling with premium finish
- Includes 14T & 15T Pinion Gears (0.5M, 3.17mm shaft) – Easily swap gears to match your terrain or driving style

*** Package Includes:

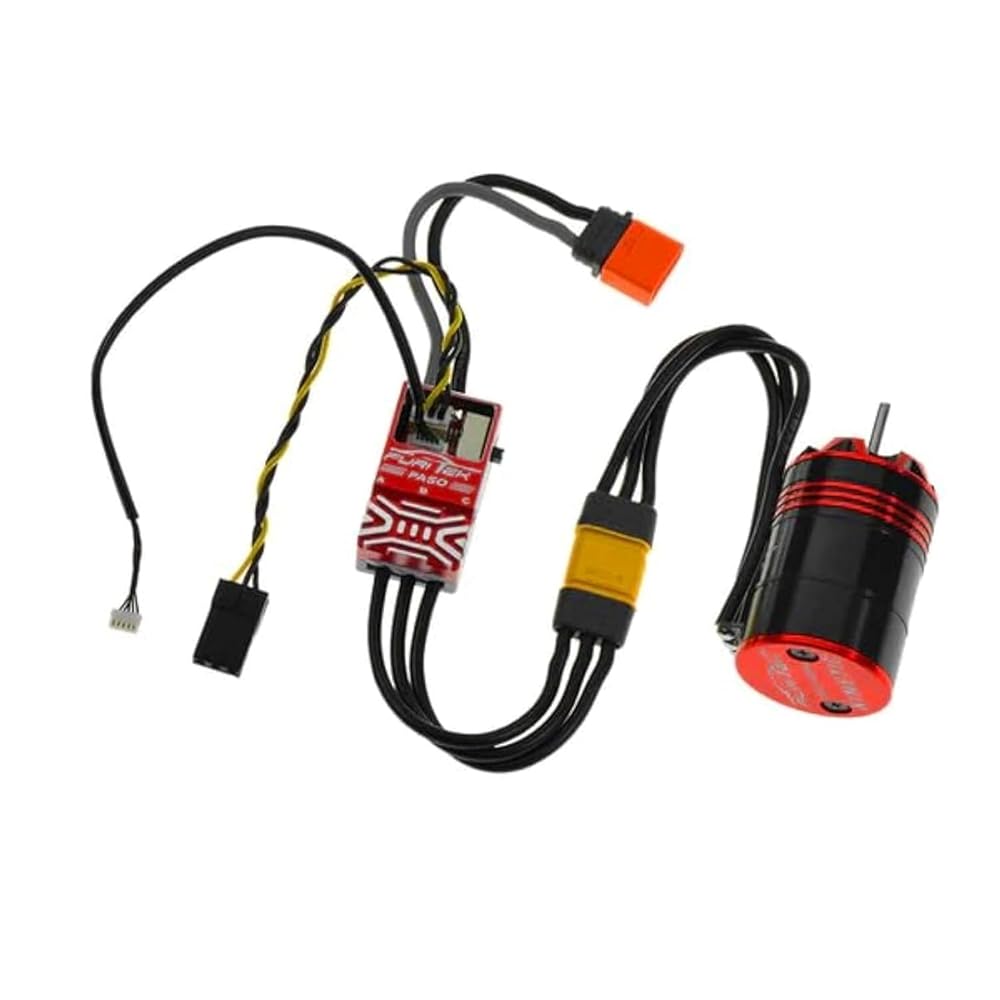

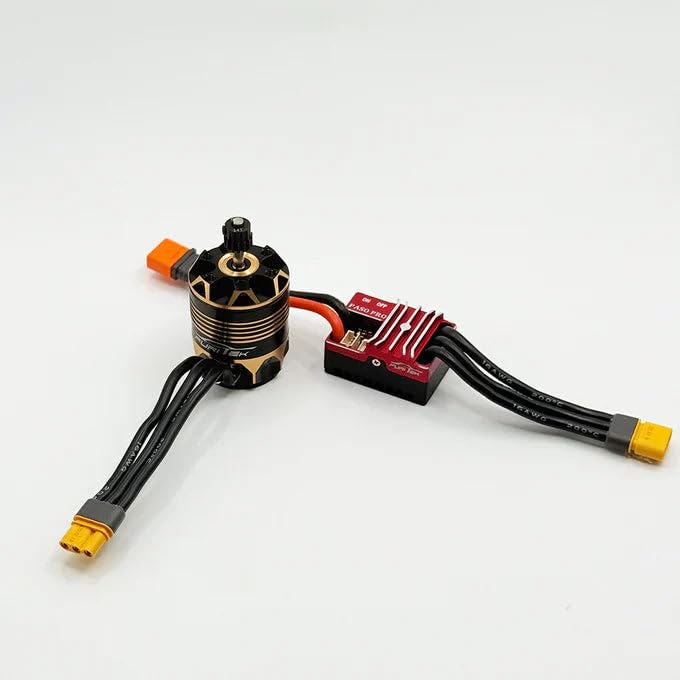

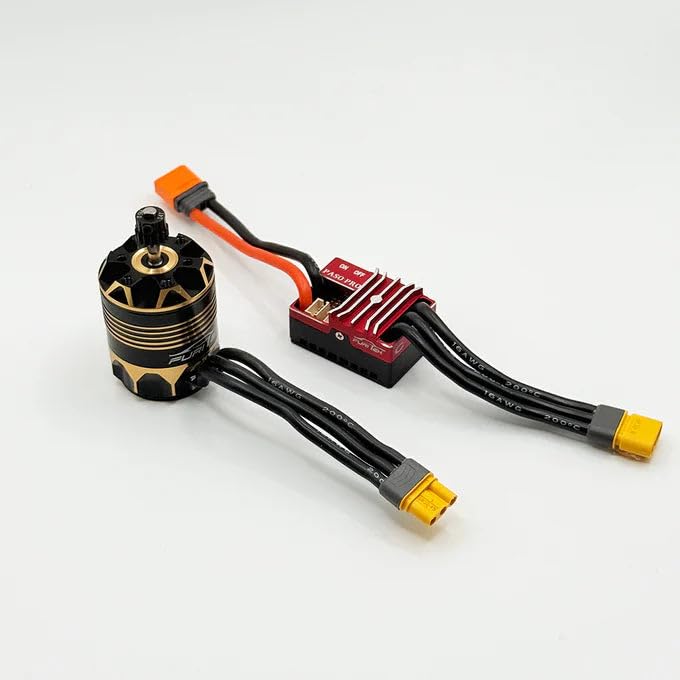

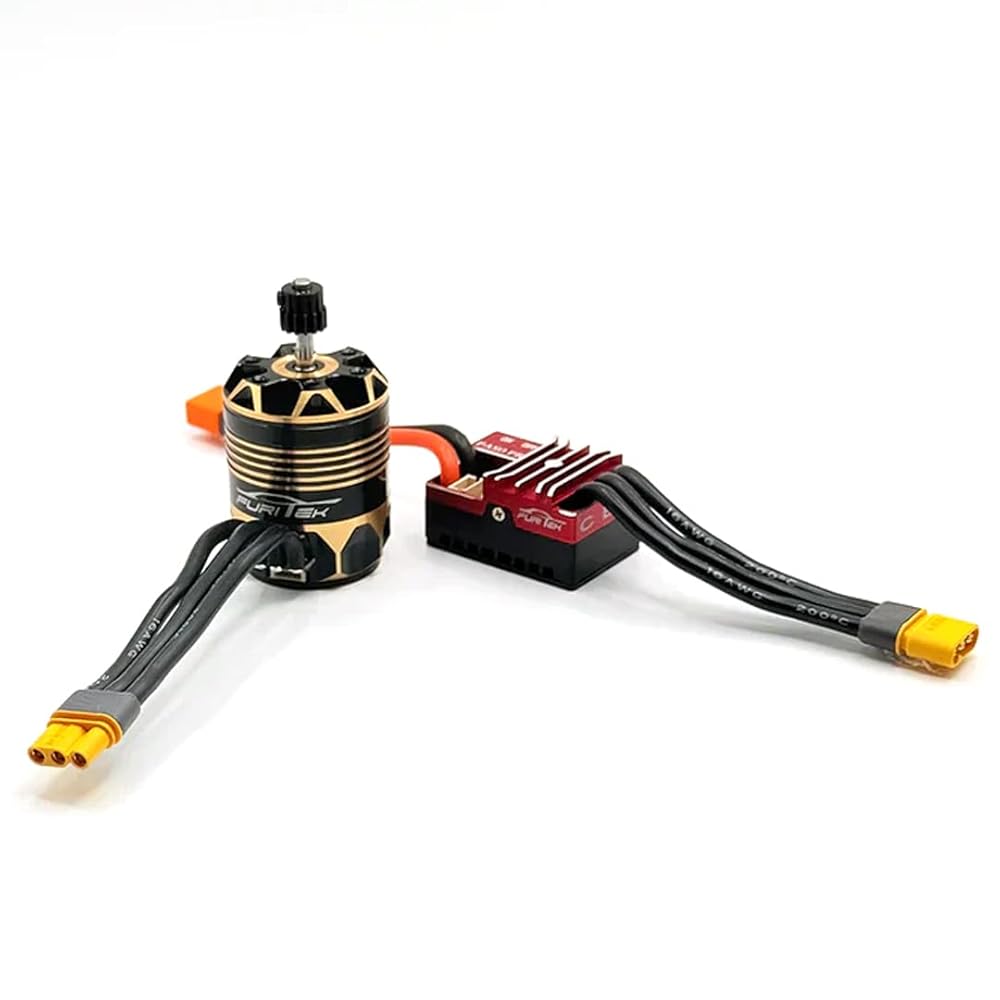

1x Furitek PASO PRO 60/100A Sensored/Sensorless ESC with built-in wireless module
1x Furitek IMPULSE 2835 5600KV Sensored Motor with 3.17mm Shaft
2x Pinion Gears – 14T & 15T (0.5M, 3.17mm shaft)
1x Sensored Cables
1x Signal Cable
1x User Manual

*** Why Upgrade to VORTEX-X?
- The stock Losi Mini LMT setup is fun, but the VORTEX-X system unleashes its full beast mode.
- The ESC + 3.17mm shaft motor combo offers better throttle precision, more torque, and far greater durability.
- With included 14T & 15T pinions, you can easily fine-tune your gear ratio for different driving styles.
- Whether you're bashing, backflipping, or wheelie-popping — this system keeps up and begs for more.
