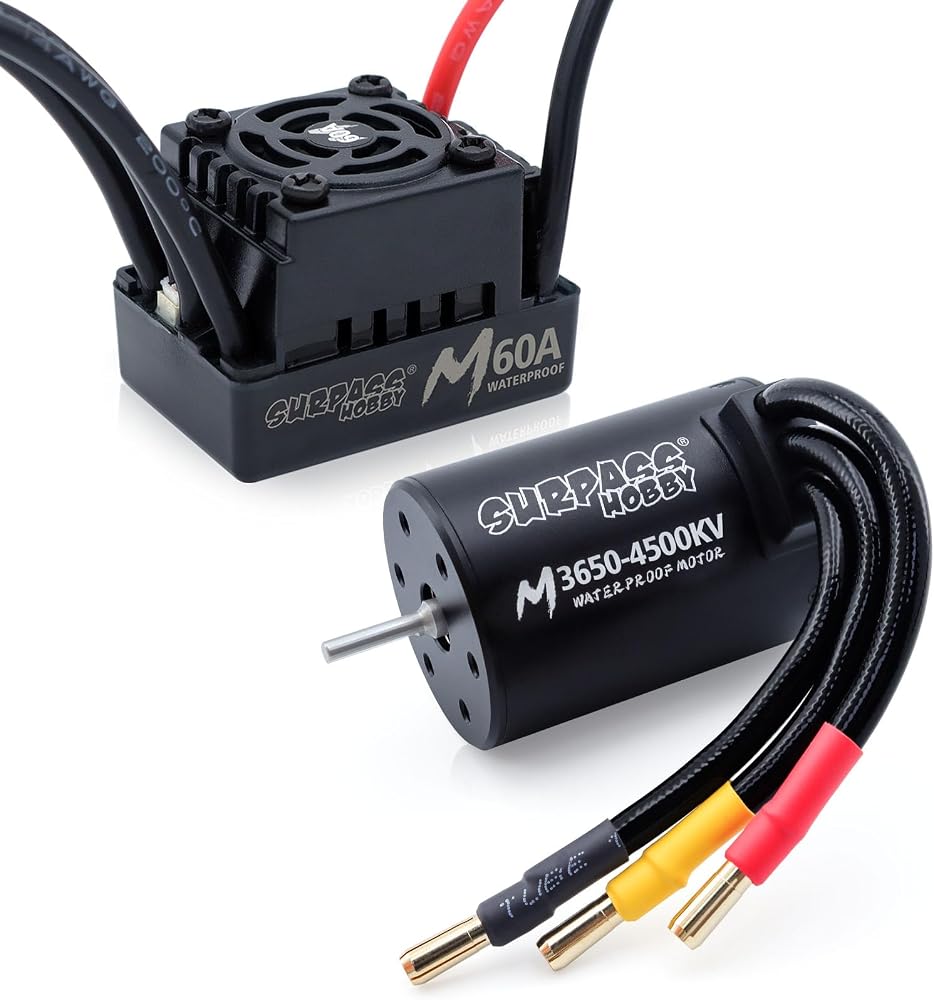

Surpass Hobby RC Brushless Motor ESC Combo Waterproof M3650 4500KV Brushless Motor and 60 A ESC Combo Set for 1/10 Remote Control Cars Trucks Off-Road Vehicle

FEATURE:

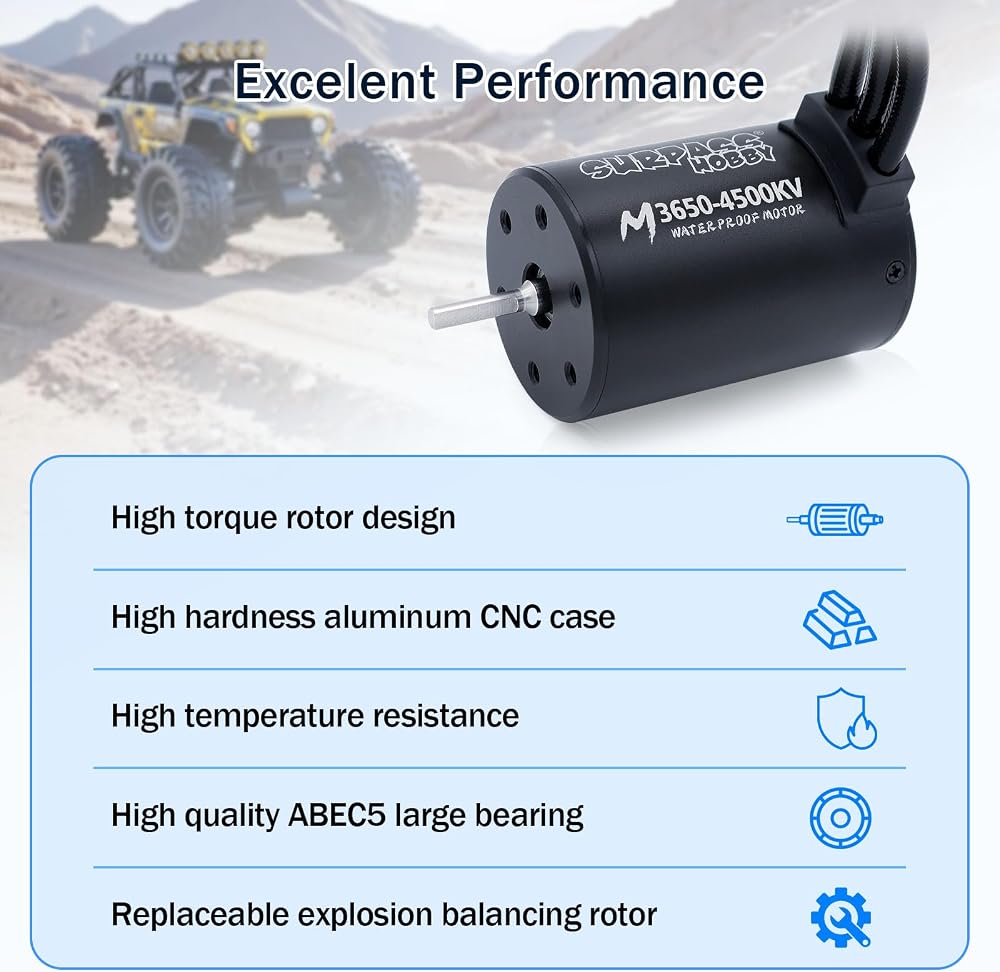

M3650 Brushless Motor

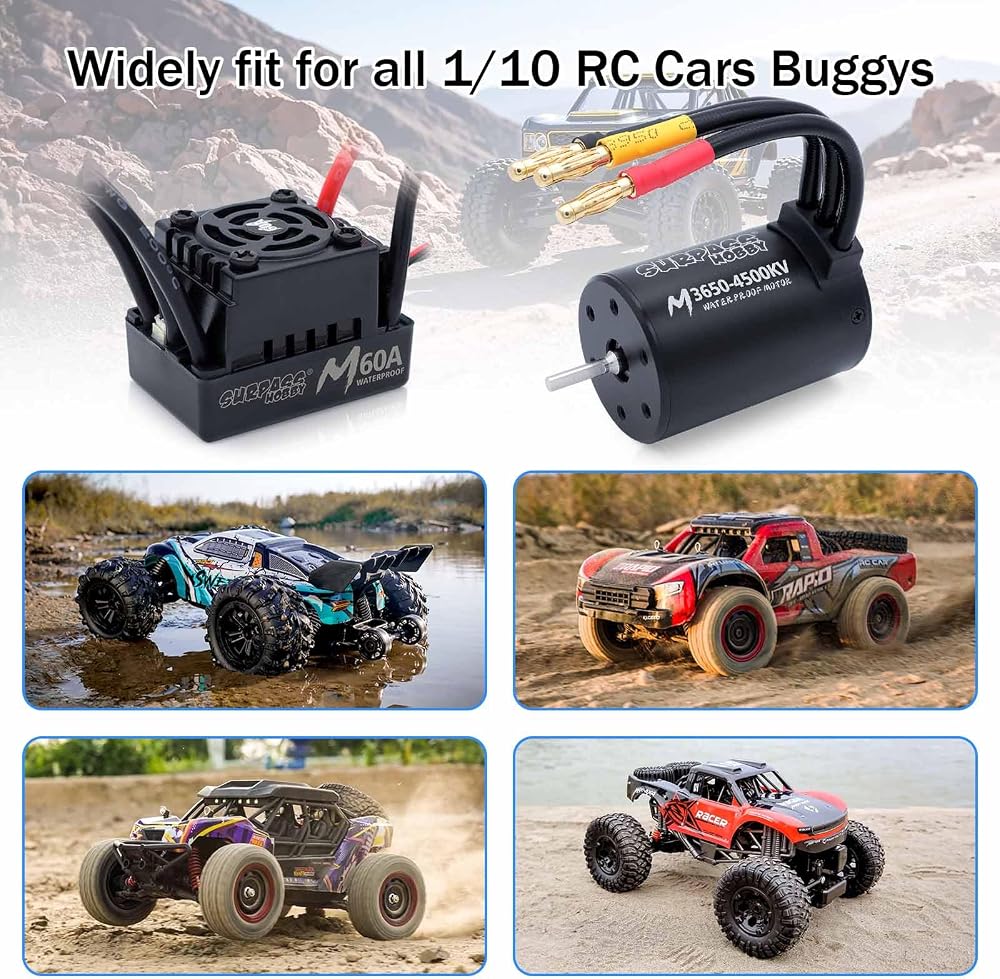

1. Fits all 1/10th scale RC cars,motor mounting screws are 6 of 3 screw holes
2.High hardness aluminum CNC case,0.35mm stator.
3.High Purity High temperature resistance Copper Windings Maximizes Efficiency .
4.High precision and high quality ABEC5 large bearing, smooth and wear-resistant.
5.Removable/replaceable explosion-proof high-precision balancing rotor.
6.4 Pole 12 Slot Hi-torque rotor design,stable output power.

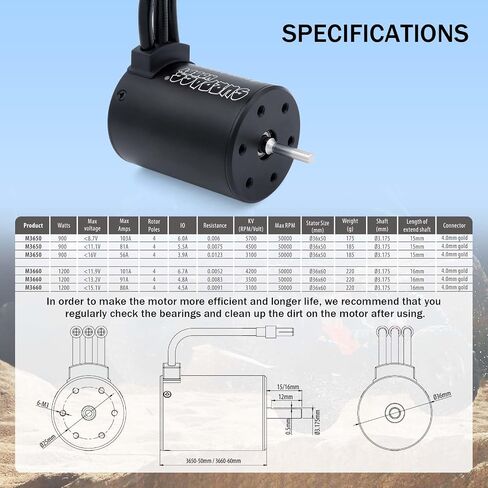

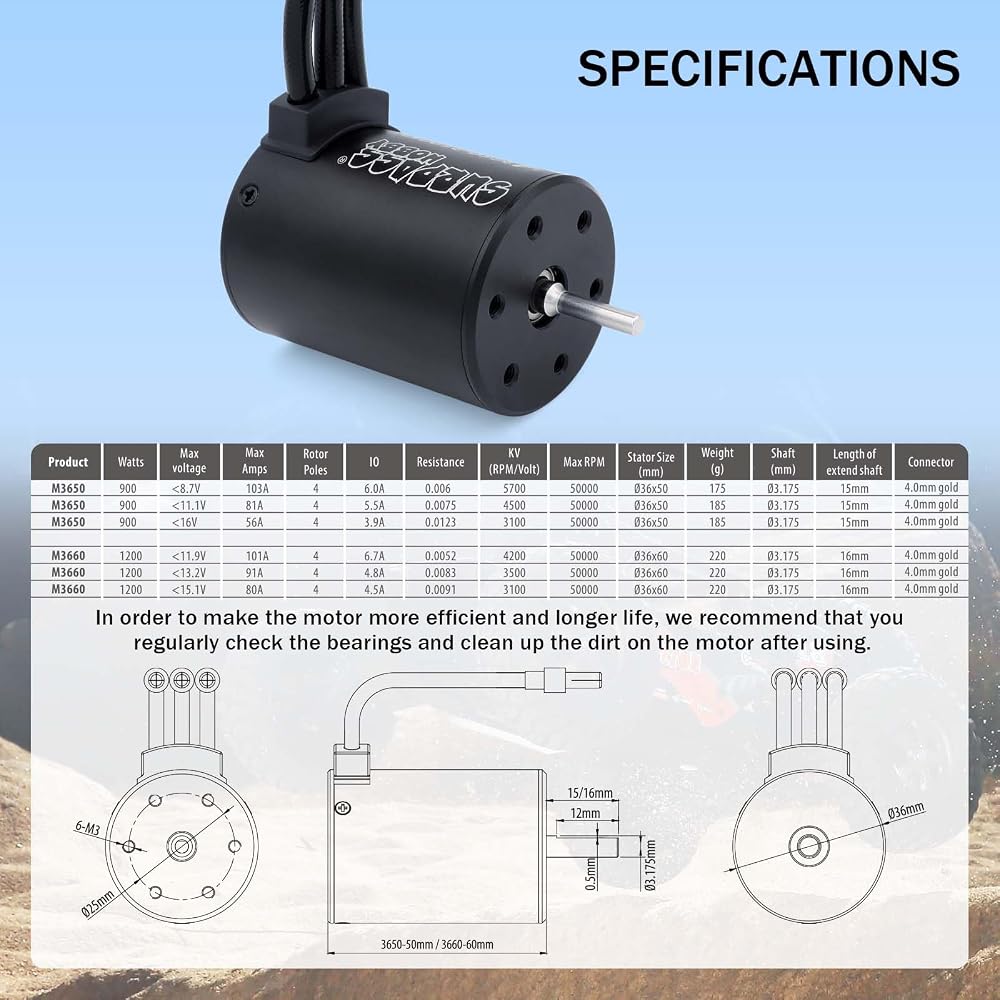

Specifications:
Watts: 900W

Max voltage:
KV(RPM/Volt): 4500KV
Max RPM: 50000
Plug type: 4mm golden banana plug
Shaft length: 15mm
Shaft diameter: 3.175mm
Diameter: 36mm
Length: 50mm
Weight: 185g

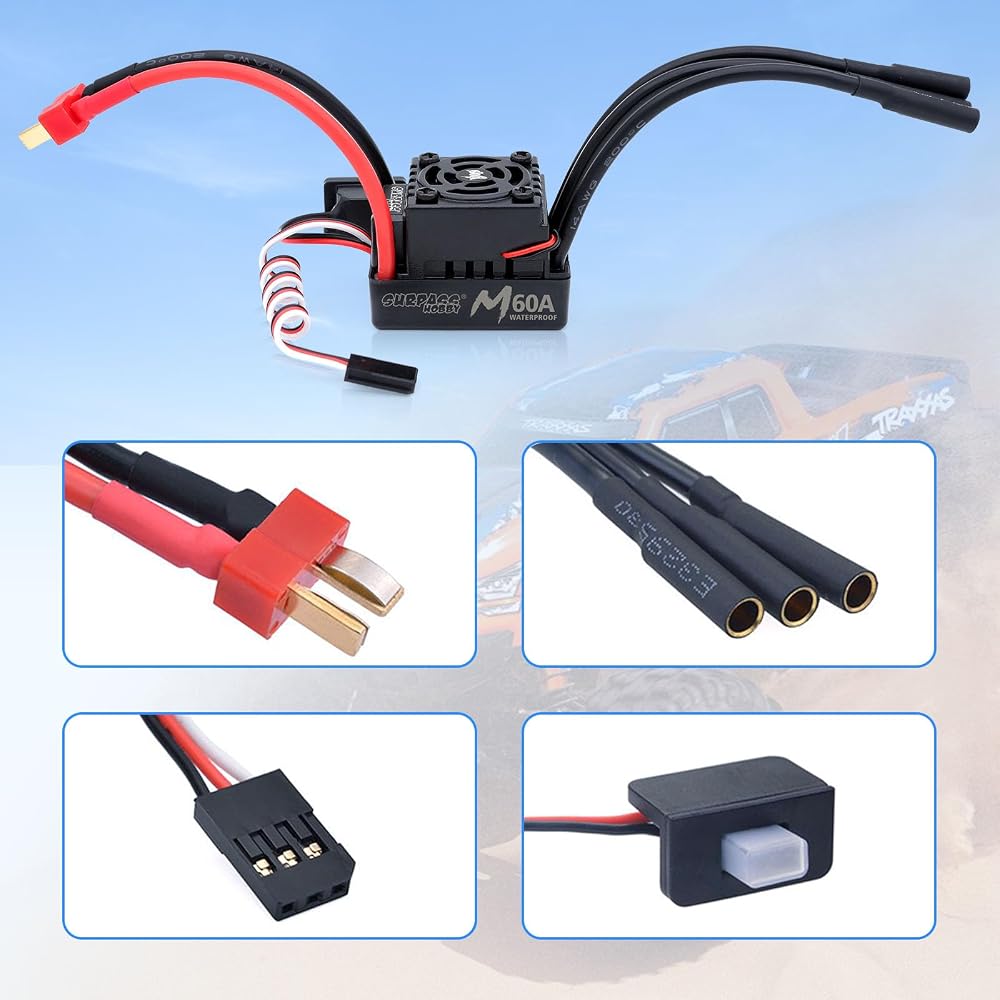

60A Brushless ESC

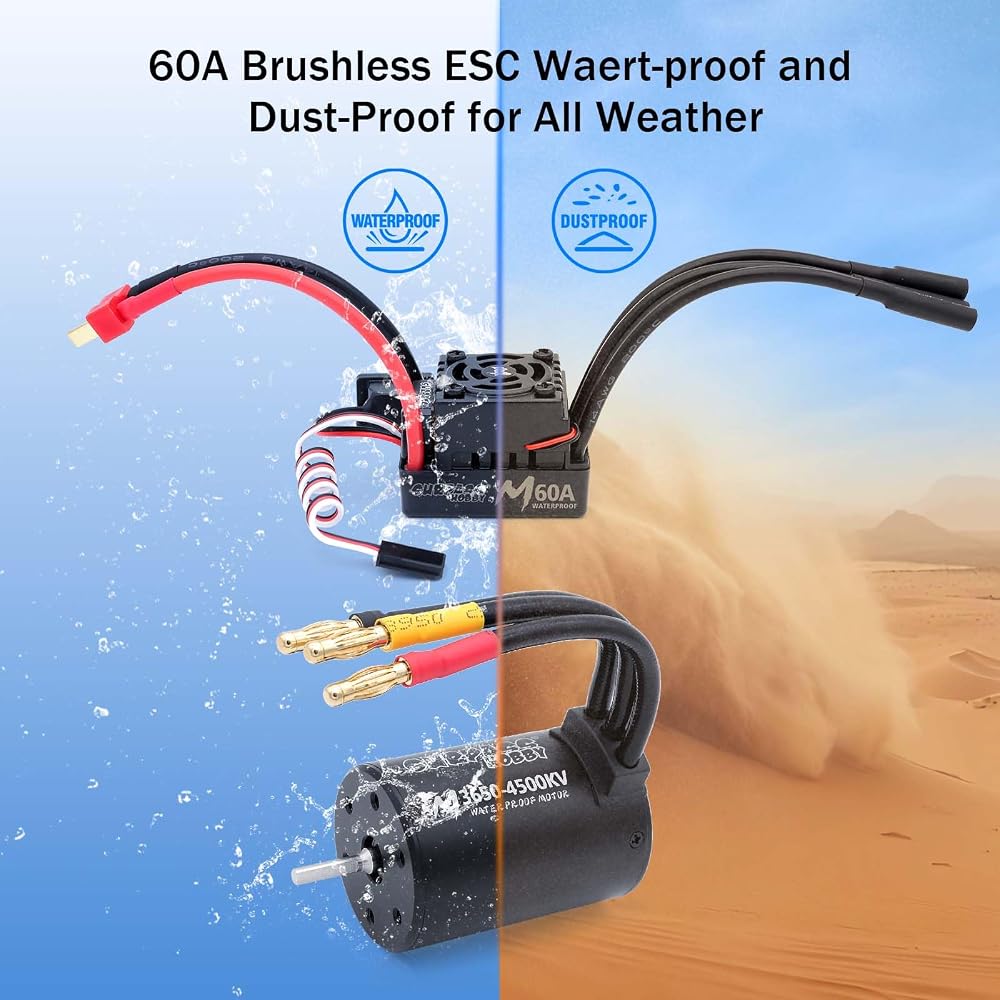

1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.Specially designed for RC car with excellent start-up, acceleration and linearity features.
3.Compatible with sensorless brushless motor.
4.The strong resistant current capability,excellent heat dissipation.

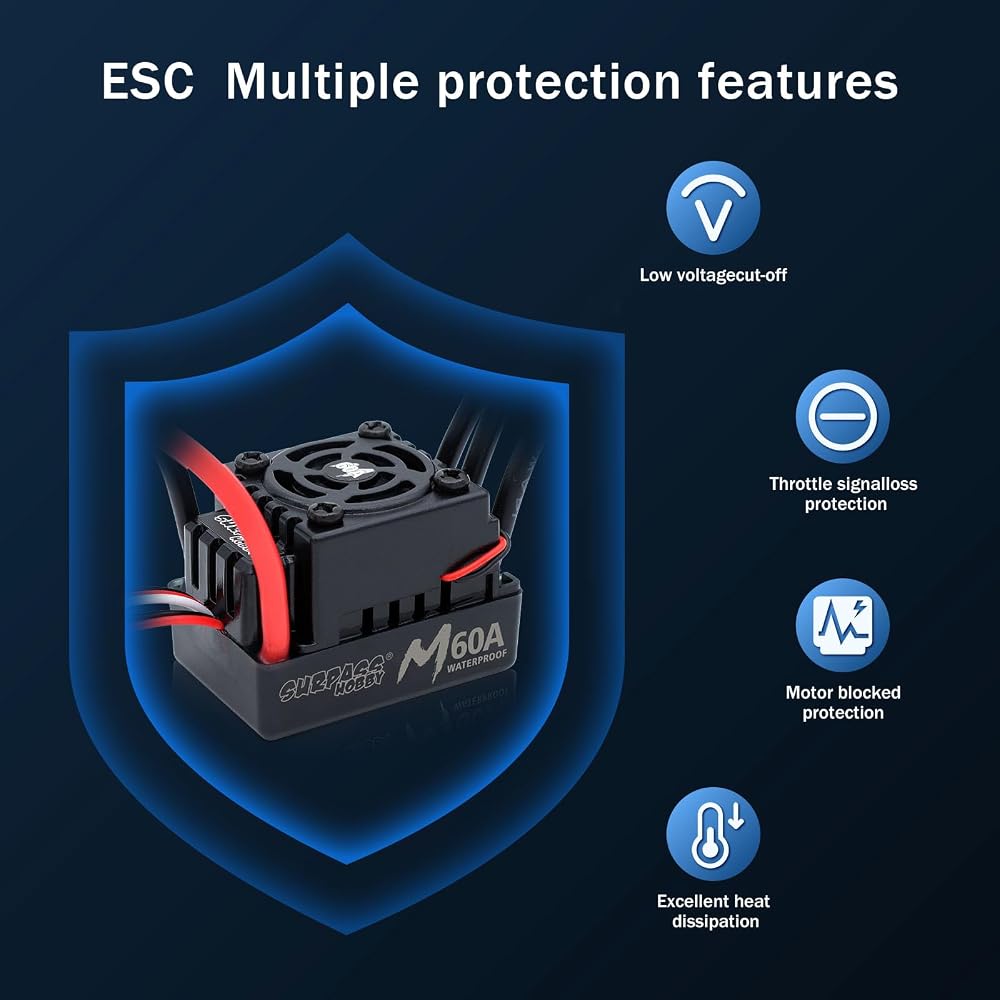

5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery /Throttle signal loss protection / Motor blocked protection.
6.Low voltage cut-off protection the motor emits"Beep-Beep" and the LED flashes.
7.Built-in switch-mode BEC 5.3V/2A (M35A Built-in analog-mode BEC 5V/2A) for usage with high torque and high voltage servos.
8. Easily programmed and compatible with pocket-sized program card.
Specifications:
Cont/Burst Current: 35A/320A
Motor Type: Sensorless brushless motor
Resistance: 0.0007ohm
Battery: 2-3cells Lipo/ 4-9cells NiMH
BEC Output: 5.3V/2A(Switch mode)

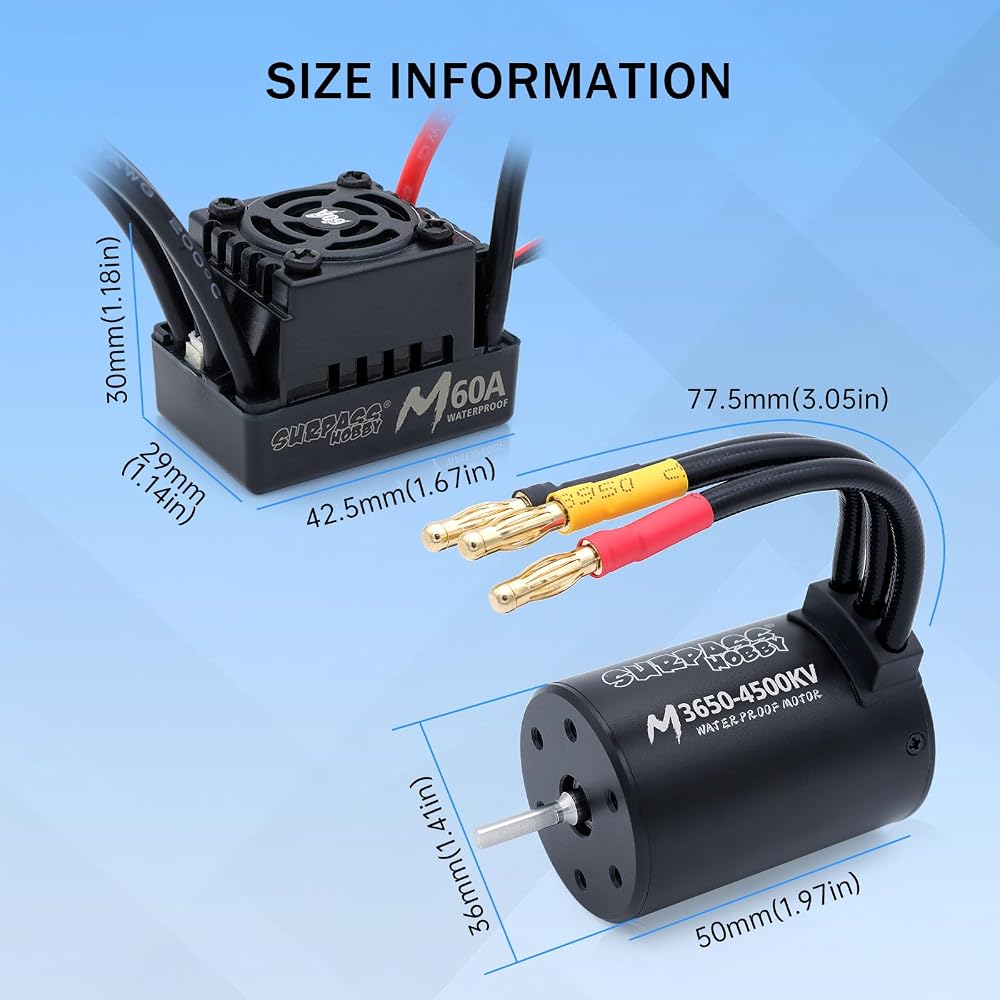

Diamension:42.5X 29 X 30mm (1.67 x 1.14 x 1.18in)
WARNINGS:
1.Before using , Ensure that the power system is reasonable. Unreasonable power matching will cause the motor to be damaged due to overload.
2.Do not over tighten the screws when installing the motor. Be sure to use the appropriate mountings crews.
3.Before connecting the motor, Ensure that The insulated parts are well treated, Short circuit will destroy the product.
