مميزات خاصة

MG90S micro servo motor operating torque: 2.0kg/cm, Response Speed: 0.11s/60 degree, Rotation Angle: Max 360 degree, Working Voltage: 4.8V, Dead Band Width: 5 microseconds

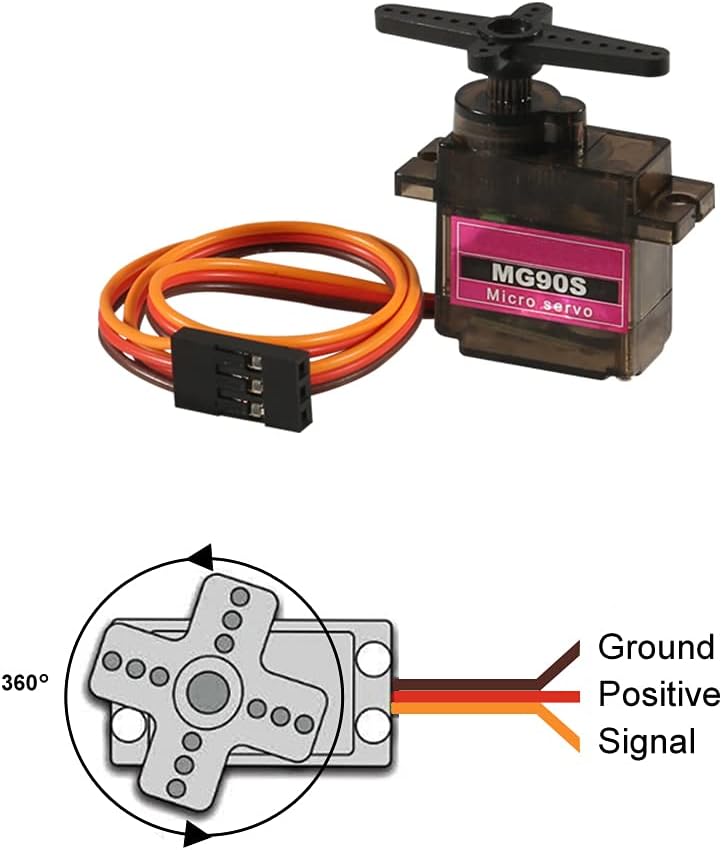

SG90 digital micro servos wiring, Dark Gray: GND, Red: VCC 4.8-7.2V, Orange: Pulse Input
MG90S micro servo gear with less noise,the gears help with the movement, these will rotate the proper direction
The servo pwm signal range is 500 to 2500. Set the pulse signal value according to the angle you need. The factory setting signal is 1500 and the angle is centered at 90 degrees
MG90S 9g gear micro servo application for swash plate servo, fixed wing, helicopters, fluttering, gliding, small robots, and other models of mini car, mini ship, helicopter and airplane

وصف

Maximum Angle :360 degrees
Operating Voltage : 4.8V
Operating Speed : 0.11 seconds / 60 degrees
Temperature Range : 0 ℃ -- 55 ℃
The dead-band setting : 5 microseconds
Line Length : 300MM
Plug Type : JR, FUTABA general

The factory setting of the valve is 90 degrees, the pulse signal value is 1500, 500-2500 signal range, and then rotate from 90 degrees, if you need to adjust according to the signal range of its pulse setting

Servo working principle: the signal is aborted, the servo stops, and then the signal is output to the servo again at zero degree, and then start the second round of 360 degrees

Package includes:

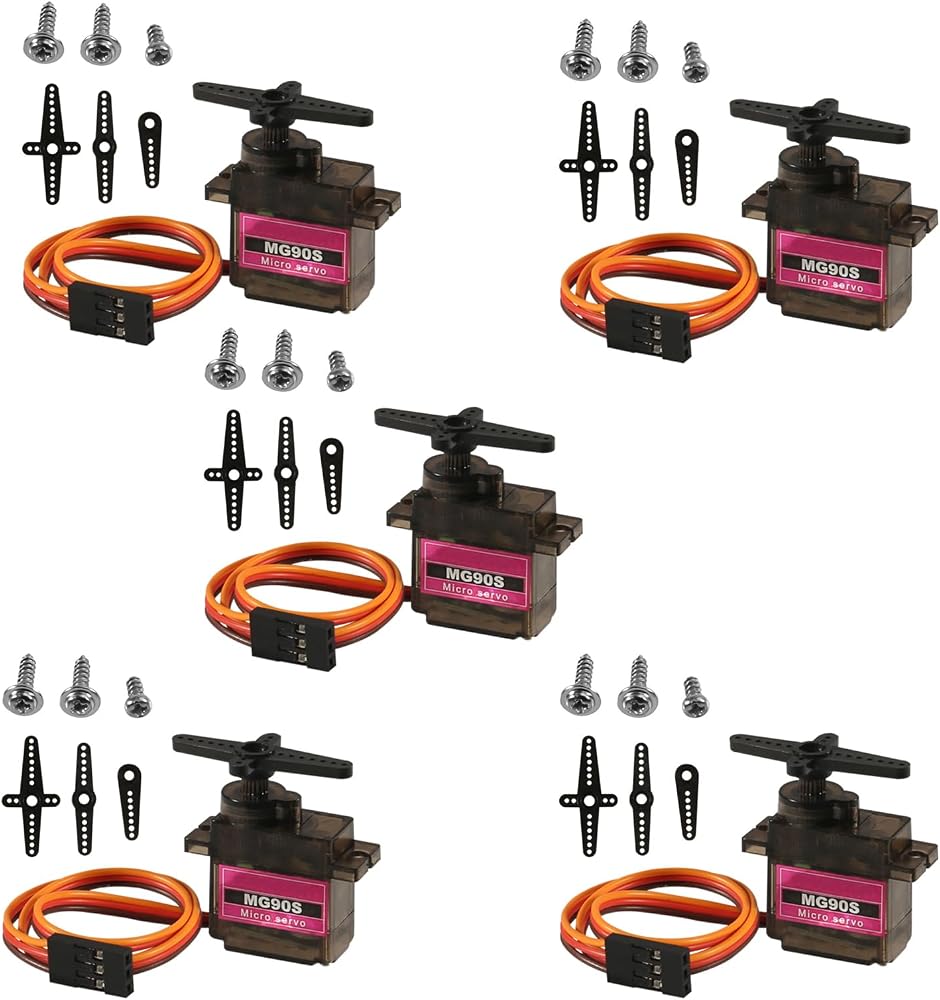

5 x MG90S 360 degrees micro servo
5 x Servo arms and screws set
