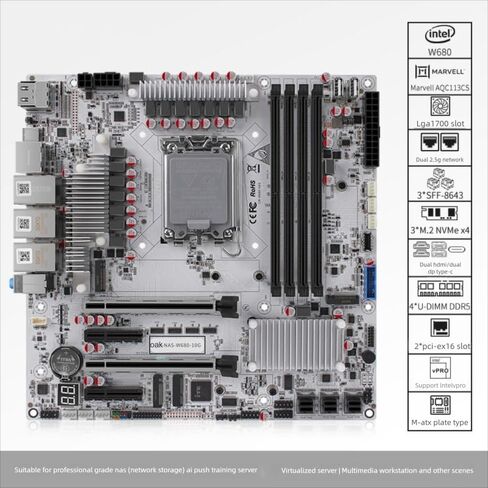

PCI-Ex16 signal support automatically split into 2 Gen4x8 signals + Gen4x8 signals support Intel 12/13/14 generation LGA1700 desktop CPU Note: vPro function requires i5-1X500 processor can be used F-series does not support the need for nuclear display to support Note: the default support for 125WTDP processor is not recommended to use the K-series processor Note: It is recommended to use 13500T and other processors with T processor, power saving and low power consumption for long-term use Support 4 ordinary desktop UDIMM-DDR5 memory Support Pure ECC Server Memory Error Correction Technology 4*U-DIMM DDR5 four-channel memory slots DDR5 default support 5600MHz (Note: 12-generation processors only support 4800MHz) Maximum capacity of single memory 32GB Quad Memory Maximum 128GB 2*M.2 NVMe PCle4.0x4 signals/1*M.2 NVMe PCle3.0x4 Total 3 M.23*SFF-8643 sockets SFF-8643-1 and 2 sockets are native signals SFF-8643-3 is ASM1164 expansion signals -1*MARVELLAOC113CS 10G RJ45 electrical port 1*Intel i226-V 2.5G RJ45 electrical port 1*Inteli226-LM 2.5GRJ45 electrical port (support vPro) Remote Management Function CPU decides to integrate the core display 2 HDMI2.0 interface support 4K4096x2160 @ 60HZ 2 DP1.4 interface support 8K7680x4320 @ 60HZ 1 Type-C interface support 8K7680x4320 @ 60Hz 2 PCI-Ex16 slots support Array Card/Graphics Card/Network Card Single Slot PCle5.0x16 signal 2 Plug and Change PCle4.0 x8 signals 2 PCle3.0 x4 slots support x4 signals for network card and Expansion Cards ATX24Pin(motherboard power supply)/ATX8Pin+ATX4Pin(CPU enhanced power supply) 1*CPU Fan Power Dock 1*ATX-24Pin Motherboard Power Dock 1*Type-E Female Socket -1*USB3.0 Female Dock 1* M.2 NVMe PCle3.0 x4 1*TPM Pin Header -1*BUZZER 1*RGB Pin 3*SFF-8643 1*JCOM Pin 1*USB2.0 Pin 1*M.2 E Key CNVi WiFi 1*GPIO Pin -1*F PANEL Switch Pin 2*HDMI2.0 1*GPIO Key 1*Type-C (USB3.2 Gen2 10Gbps theoretical rate) -2*DP1.4a -1*10G RJ45 network port 2*2.5G RJ45 network port 2*USB3.2 red(Gen2 10Gbps theoretical rate) 2*USB3.2 blue(Gen2 10Gbps theoretical rate) 2*USB2.0 blue 1*Blue(Linein audio input)/1*Green(Line out audio output)/1*Red( MICin Microphone
