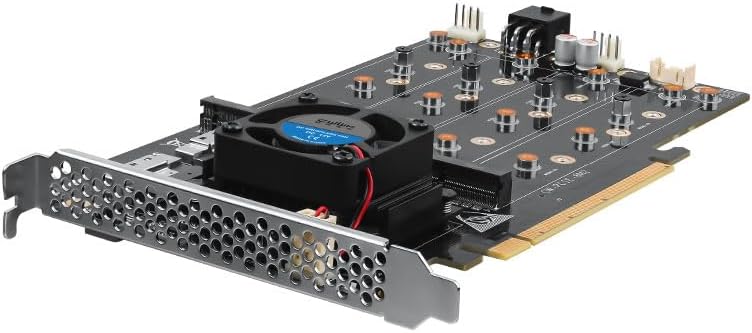

8-slot M.2 NVMe to PCIe 4.0 x16 Adapter (OS boot not supported) - Expands 8 M.2 NVMe Key M ports via PCIe 4.0 x16 interface to provide up to 256Gb/s bandwidth. Supports M.2 NVMe SSDs in 2230/2260/2280/22110 sizes.
Powered by the PEX88048 controller with PCIe switching technology – works with all motherboards, including Mac Pro, no need for motherboard/CPU PCIe bifurcation support.

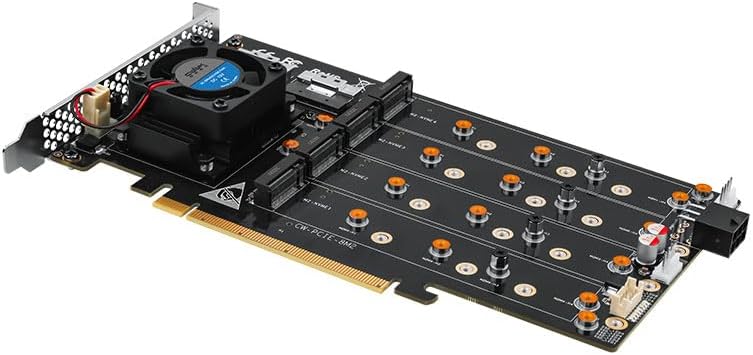

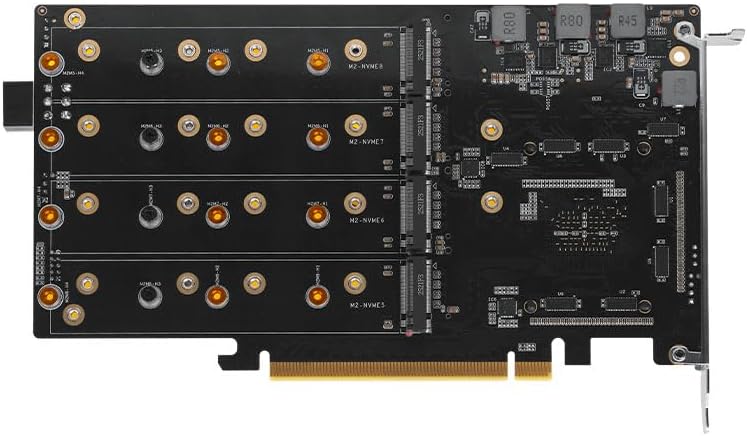

The CW-PCIE-8M2 Expansion Card provides high-capacity SSD storage and a high-performance switching engine with eight independent M.2 slots and Broadcom's 4th generation switching chip providing PCle4.0x4 signaling on each M.2 port while supporting up to 64TB of storage.
The use of expansion cards for the PCI-Ex16 slot interface on the motherboard enables each M.2VNMe SSD to interface directly with the CPU without the need for BIOS splitting of signals, ensuring maximum transfer performance and near-instant response times.

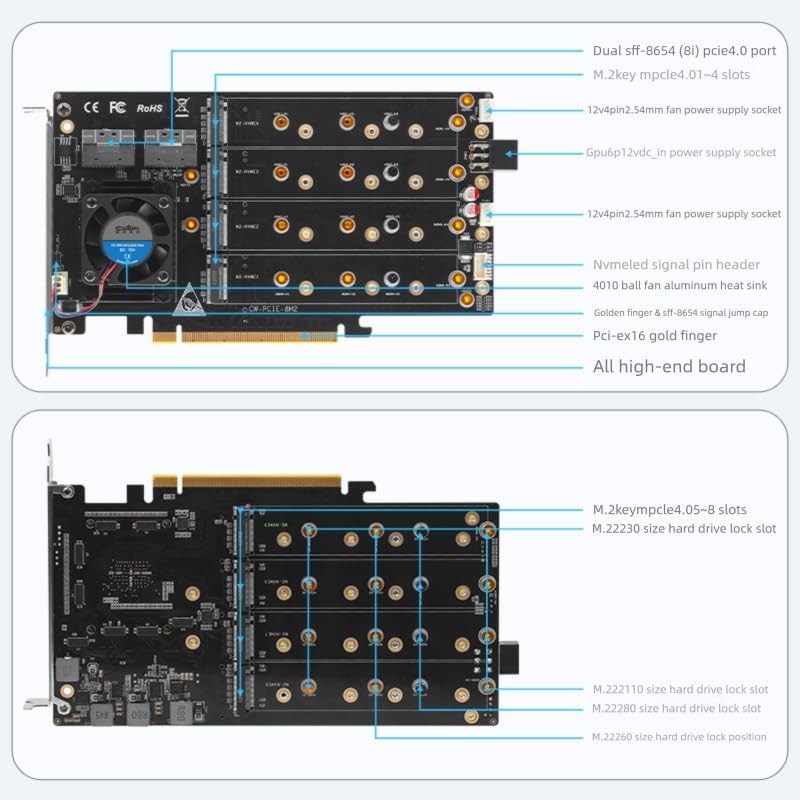

Two SFF-8654 (8i) port inputs, each port supports PCIE4.0X8 signal input, two ports with a total of 16 signals, providing two kinds of signal access, SFF-8654 port signals and CoLay signals with PCI-E x16 gold finger, the OPCI-E gold finger using the gold transition process, in line with the PCIExpress4.0 specification and SFF-8654 port CoLay signals, two kinds of access, one or the other. 8654 port CoLay signal, two kinds of access methods, choose one.
وصف

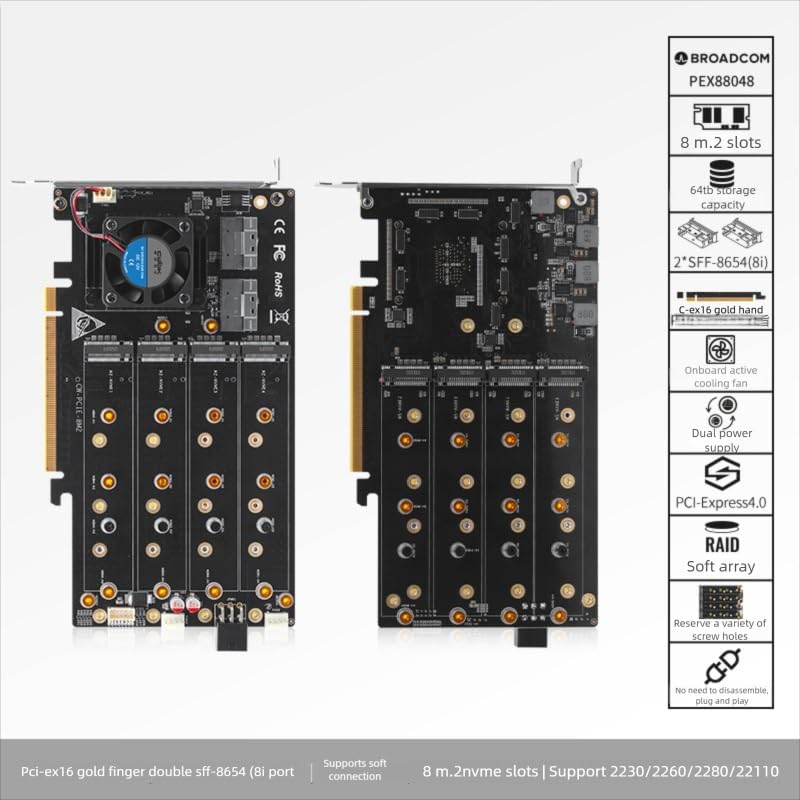

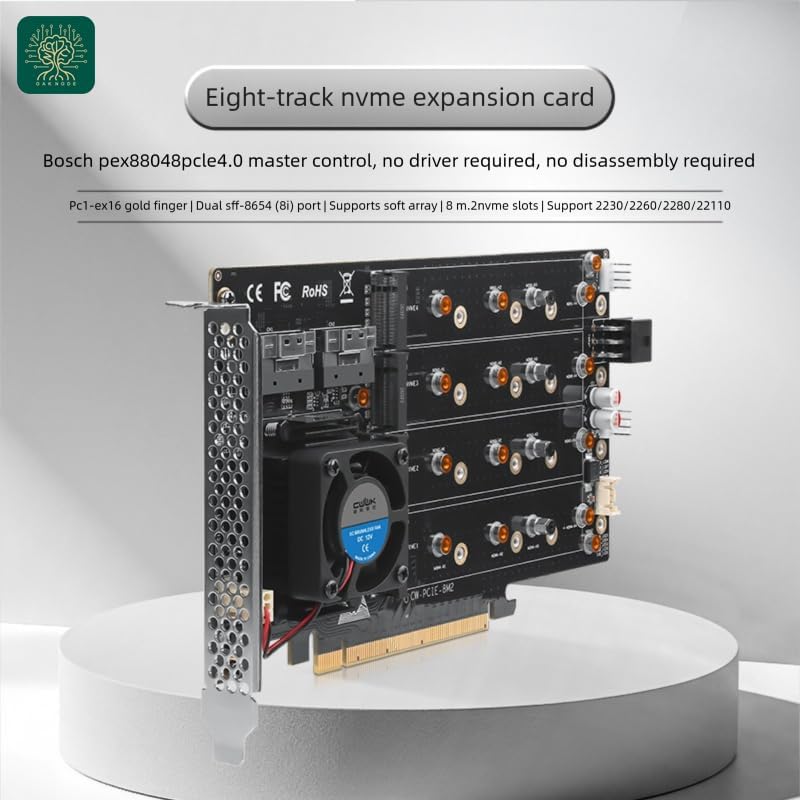

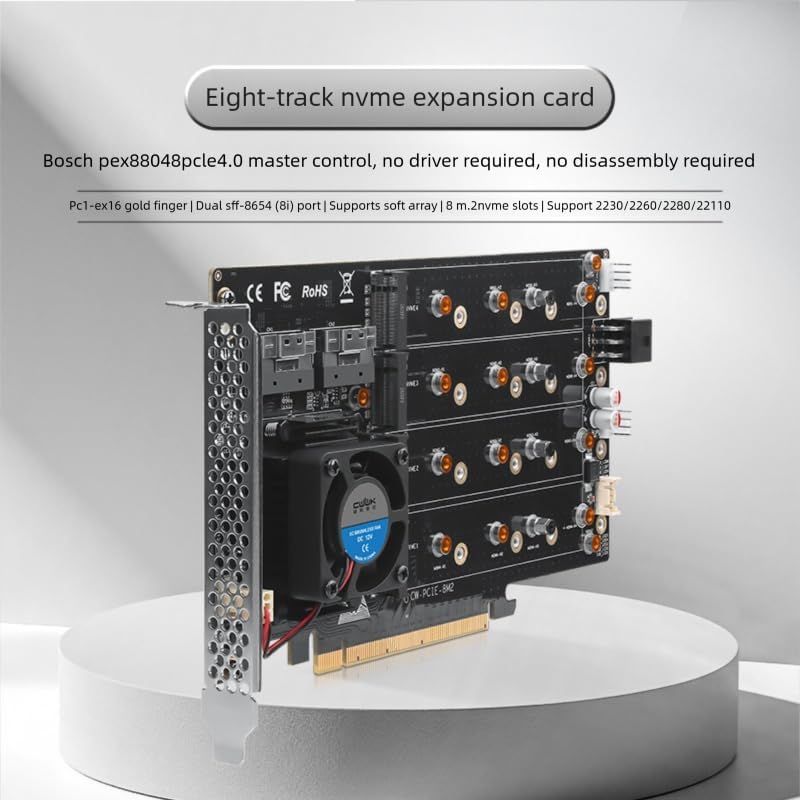

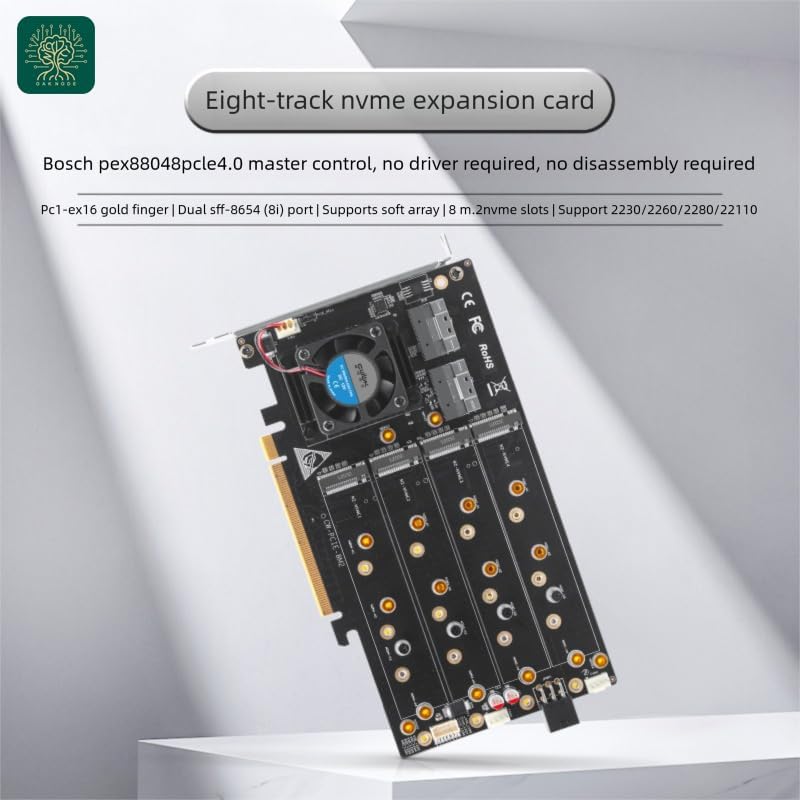

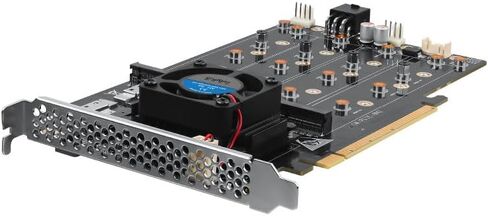

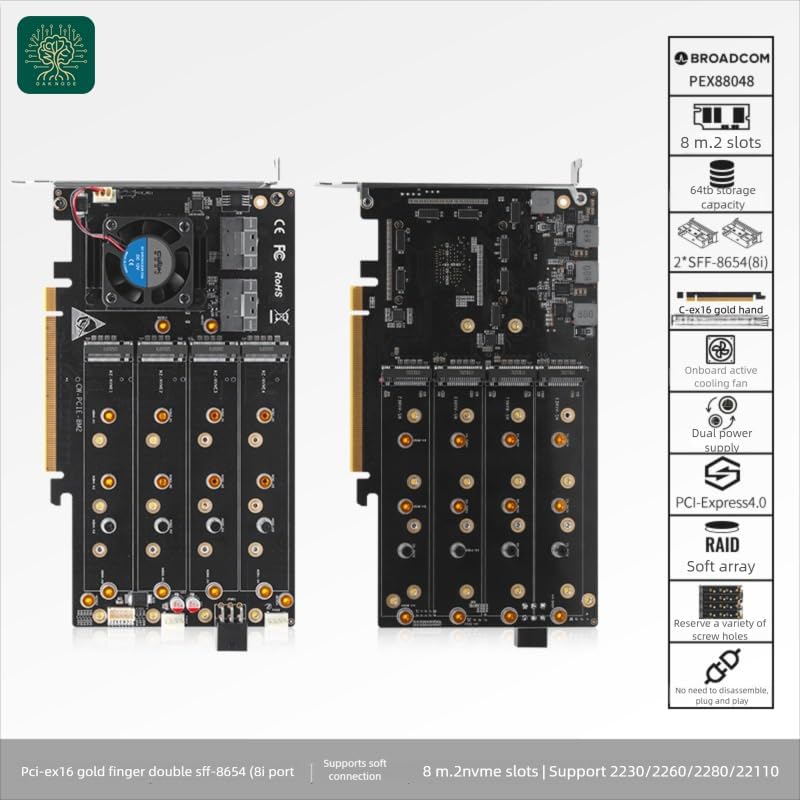

Broadcom's advanced Gen4 switching chip (PEX88048) Up to 8 M.2 NVMe PCIe4.0 x4 slots Up to 64TB of storage capacity Supports soft RAID (Soft Array) for NAS systems Dual enhanced power supply modes for PCI-E gold finger and 6PIN simultaneous power supply 1 PCI-E x16 gold finger with gold ferrying process 2 SFF- 8654(8i) PCIe4.0 x8 signal ports PCI-Express4.0 backward compatible with PCIe3.0/2.0/1.0 Onboard active 4010 ball heat sink or Pro version of the four-fan NVMe full-coverage enhancement of the heat dissipation Reserve a variety of screws and locking holes Support for 2230/2260/2280/22110 hard disk No need for driver software Plug-and-play No need for Motherboard PCI-E Translated with DeepL.com (free version)
