Specification:
Output: 5V/9V/12V/15V/20V
Output Current: 5A(MAX)
Operating Temperature: -40 ° C to +85 ° C

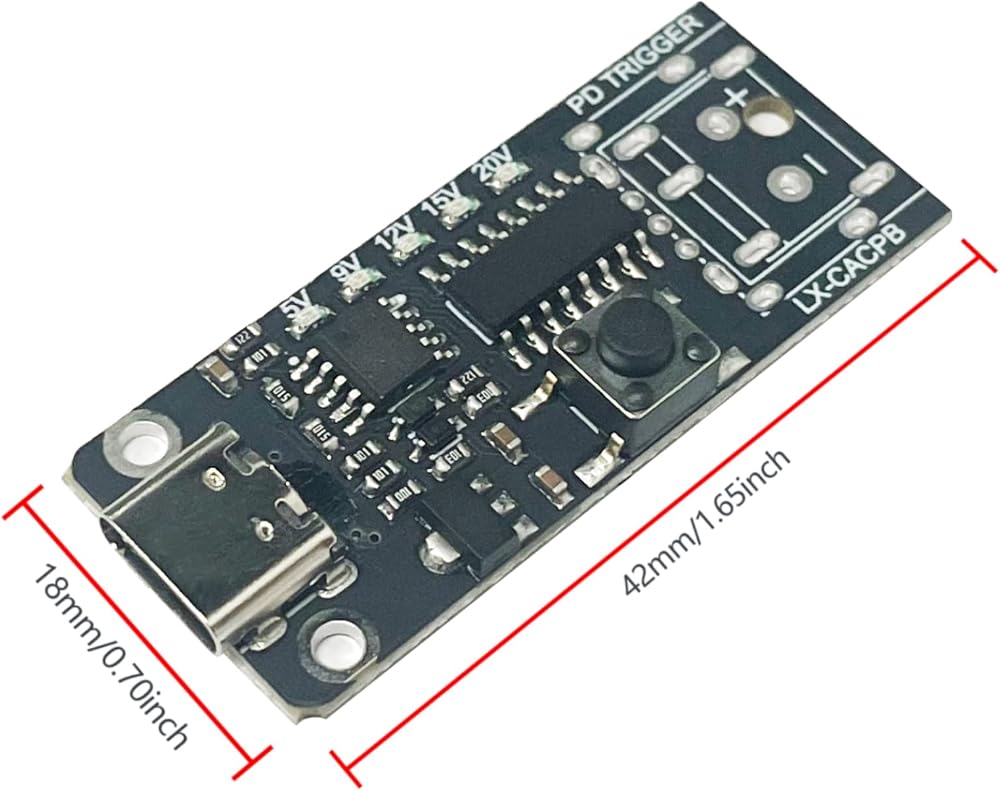

Size: 42x6x18mm
Features:

Support PD3.0, PD2.0, QC, FCP, AFC voltage deception output,mode free switching, or can be set to only support PD.
Support 5V/9V/12V/20V deception output (specific range depends on your power supply).

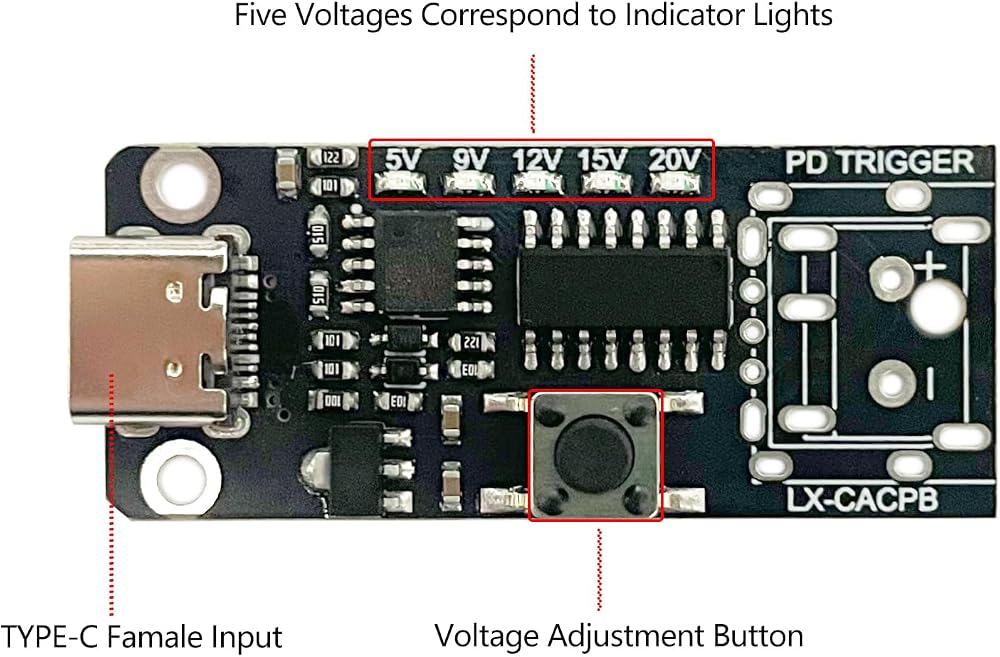

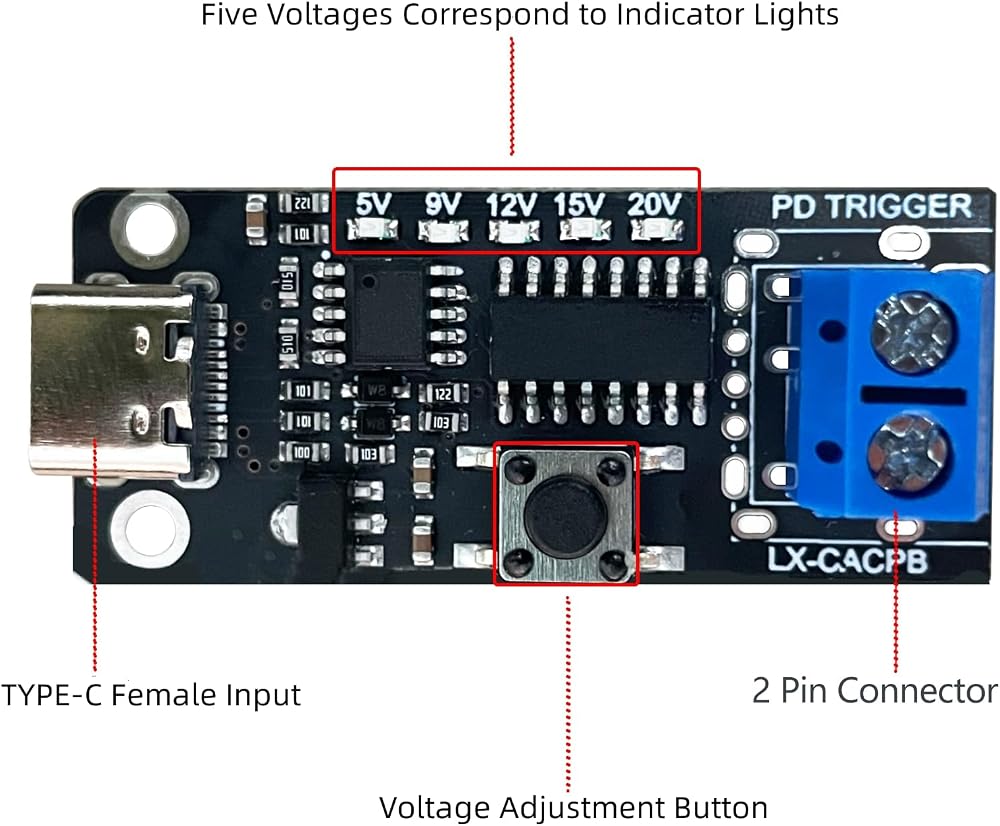

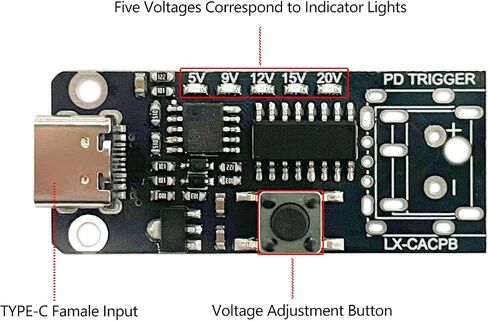

Equipped with button lock function to prevent misoperation (to avoid voltage damage to load equipment).
Quick setting of 5V/9V/12V/20V.
LED indication output.Parameter braking is saved, and the last deception setting is executed when powered on again.
UItra low power consumption, high current,supporting 100W output. Maximum 20V5A output (actual value depends on your power supply).
Type-c integrated molding, sturdy and durable.

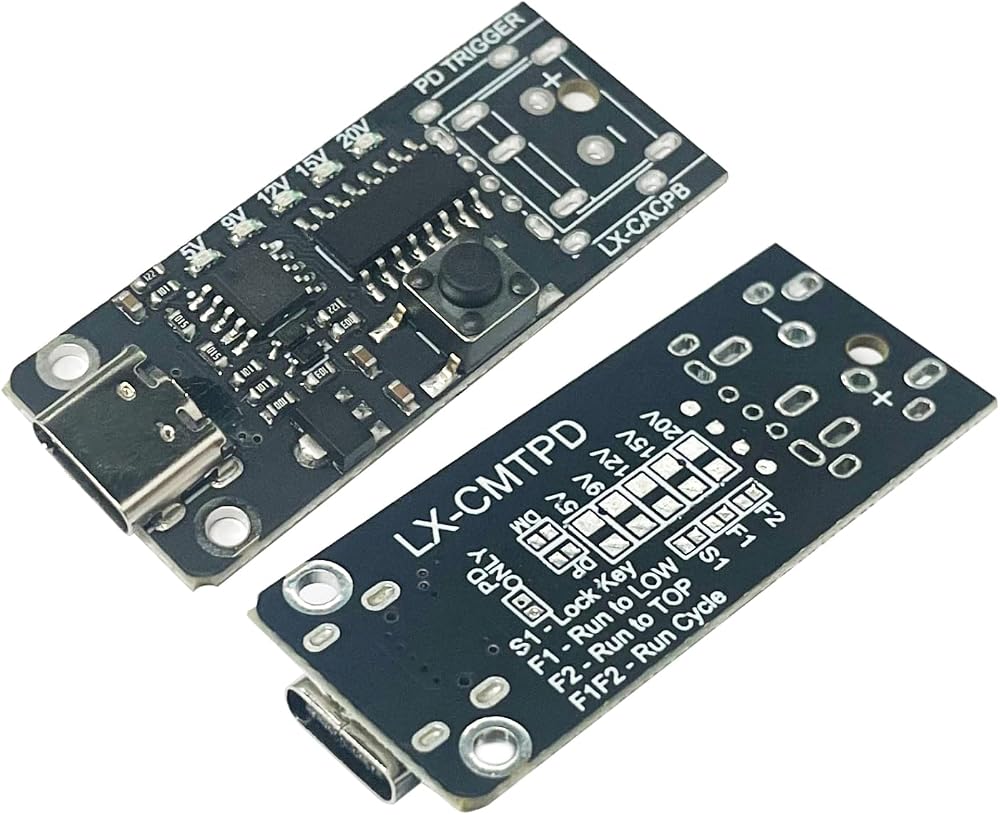

Support testing functions such as automatic polling to the highest voltage and holding,
automatic polling to the highest voltage and holding to 5V, infinite cycling, etc.
Suitable for aging testing, the module can withstand voltage above 30V.

Attentions:
1. The trigger board can't boost buck, it can be induce power module output only.
2. Please know that there are not all USB-C power supplies can support all voltages.
3. If the power supply is not support the requested voltage, it will be provided the next lowest voltage or the voltage indicator light flashes.

Package Included:

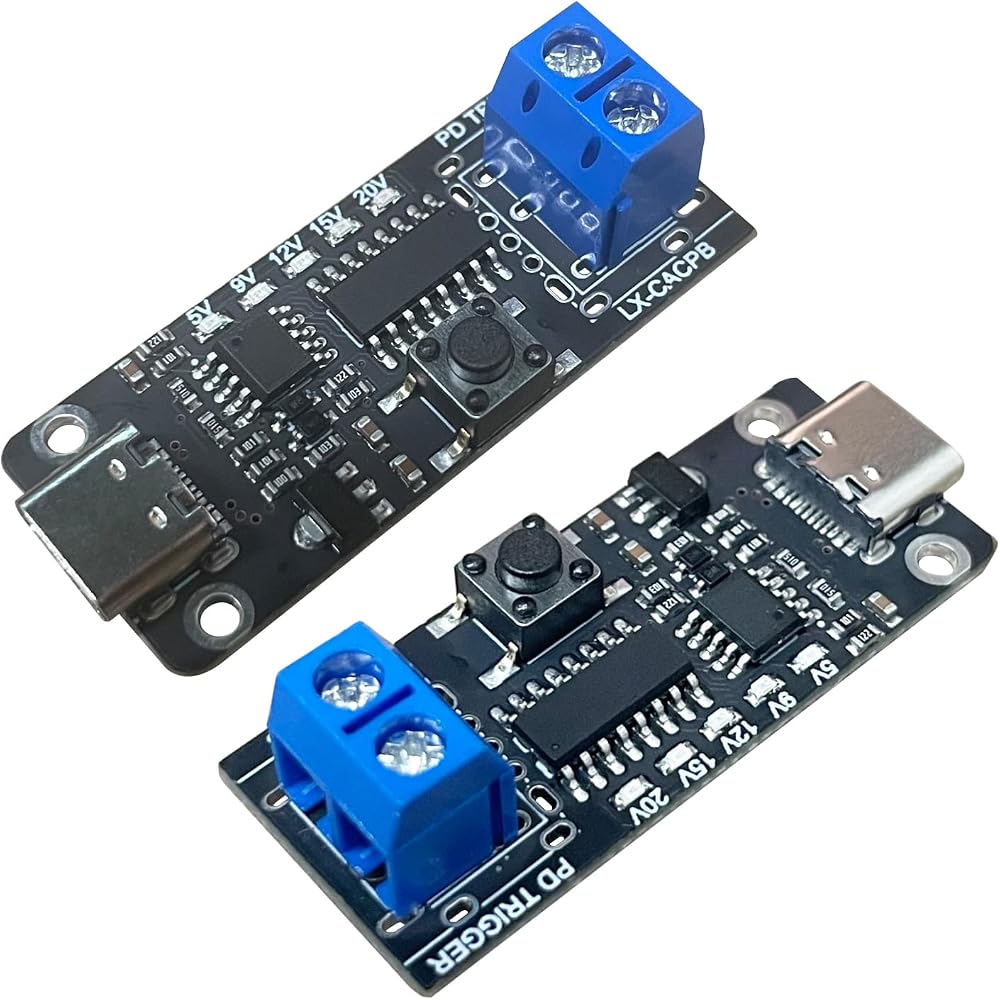

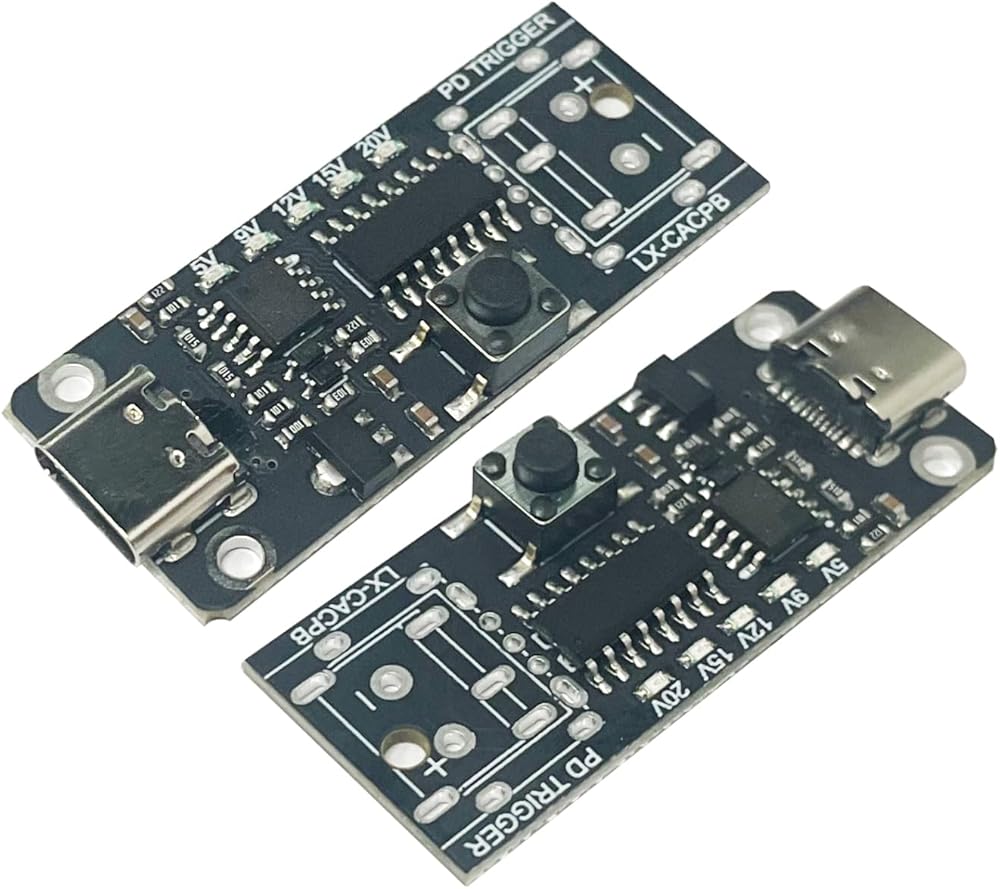

2*PD/QC trigger module female
