Product Specifications:
Model: M109

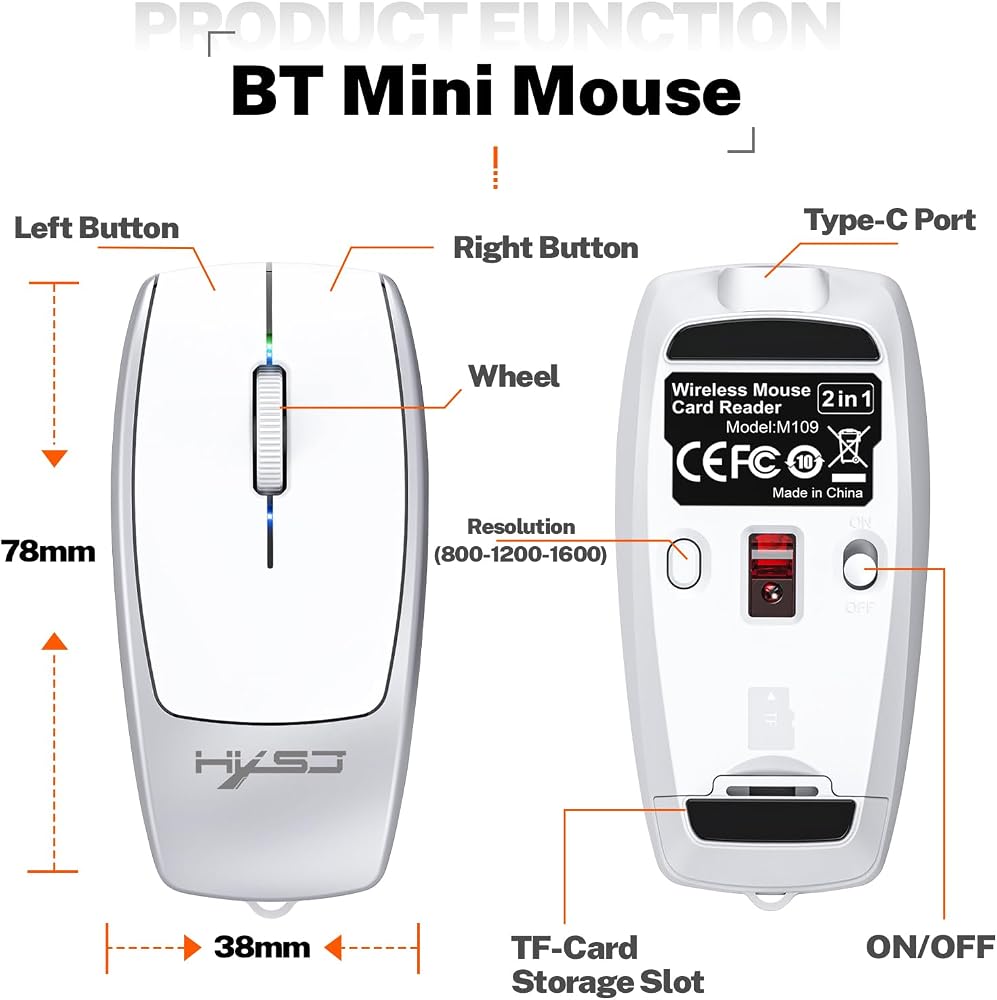

Product size: 7.8x3.8x2.2cm
Product weight: 27 g
Package size: 11x7x3cm
Package weight: 61g
Product color: White/Black/Green
Product parameters:
Operating mode: BT 5.1 connection
Polling rate: 250 Hz
Speed: 28 IPS/S
Refresh rate: 3000FPS
Acceleration rate: 10G
DPI: 800/1200/1600
Number of Keys: 4 Key
Voltage/Current: 5V/500mA
Operating distance: 10 meters
Battery capacity: 120mAh
Charging cable length: 20 cm

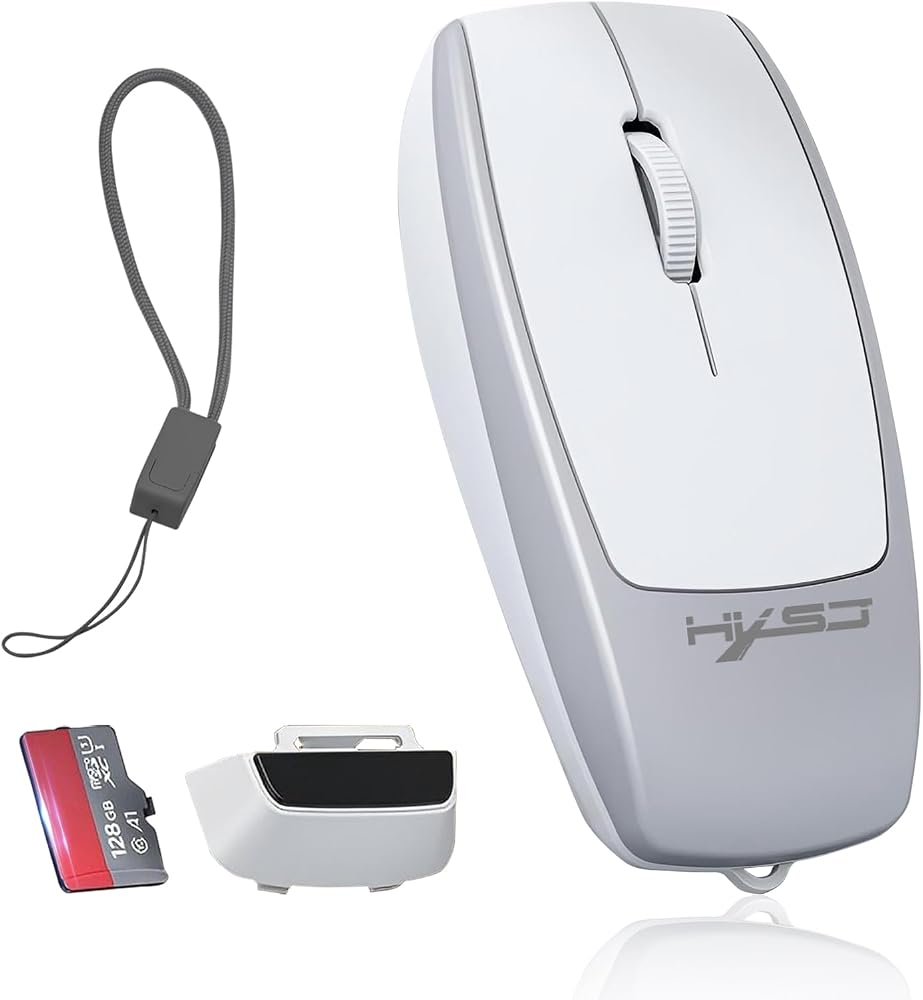

Package Includes:
1* Mini wireless mouse
1* USB-C charging cable (20 cm)
1* Instruction manual
Compatible Systems:
Windows, MacOS, Linux, iOS, Android
Operation guide and notes:
1.Wireless connection:
Step 1: Slide the power switch on the bottom of the mouse to “ON”.
The Bluetooth indicator will light up blue and blink to enter pairing mode.
Step 2: Enable Bluetooth on your device (tablet/computer/phone).
Navigate to “BT” settings and connect to “BT5.1Mouse”. Once paired successfully, the blue light will turn off.
Step 3: Move the mouse or click the button to start using it.
Caution:
If the device cannot detect “BT5.1Mouse”,
please press and hold the sensitivity switch for 2 seconds to restart pairing.

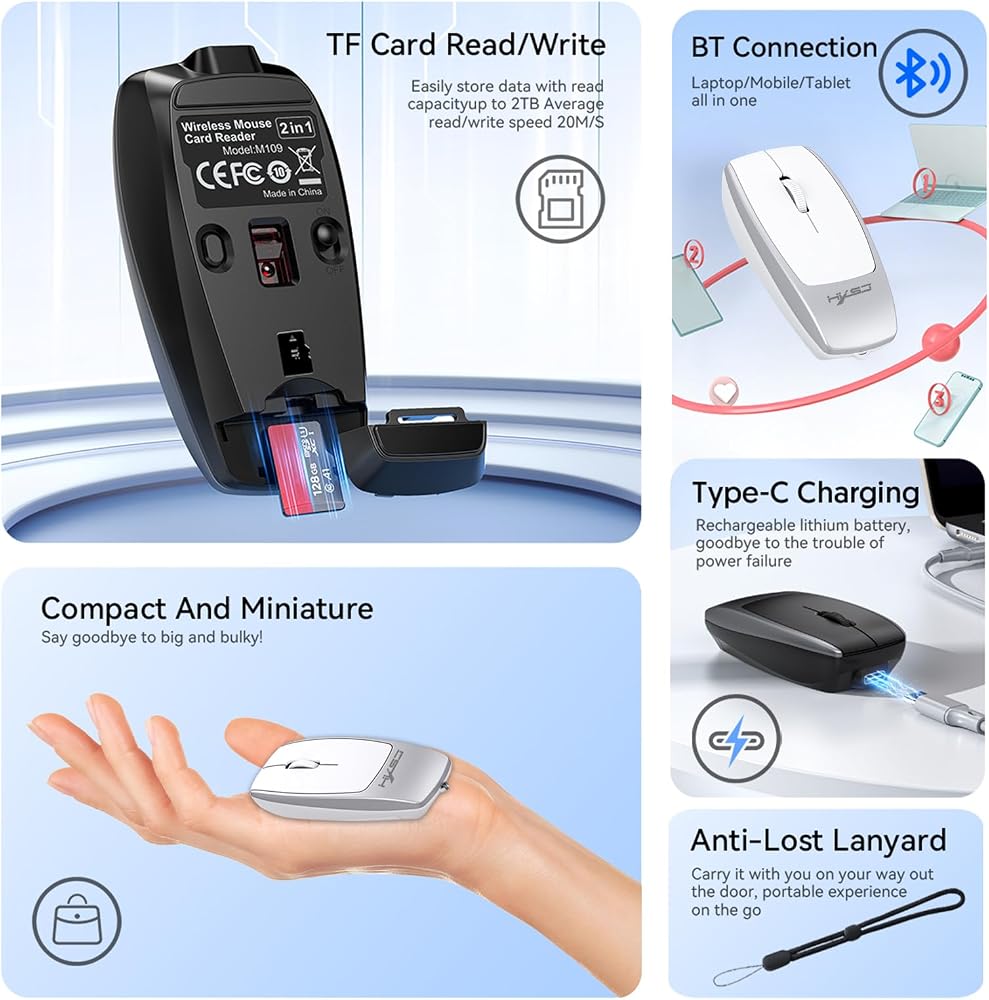

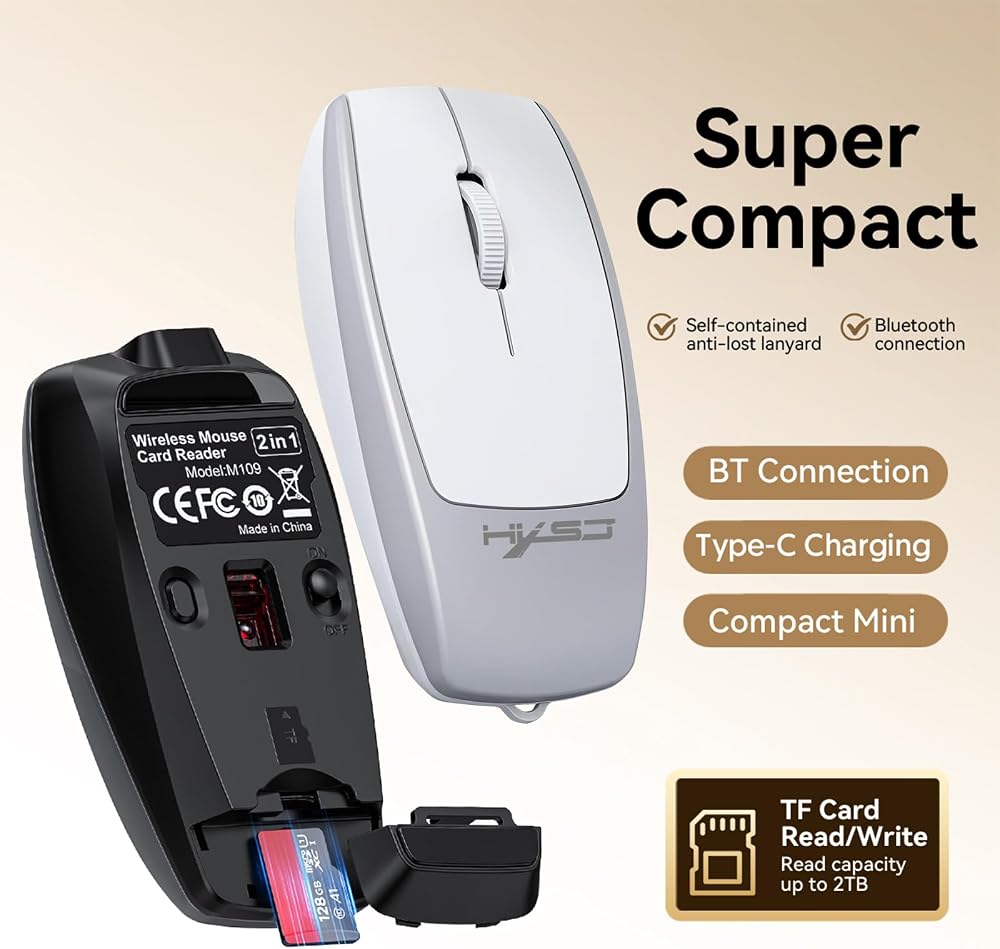

2. TF card reading and writing:
Step 1: Open the TF card slot cover at the end of the mouse.
Step 2: Insert the TF card into the slot according to the direction guide.
Step 3: Connect the mouse to the device (PC/tablet/phone) using a Type-C cable that supports data transfer.
Step 4: The TF card indicator light blinks rapidly during data transfer and will remain lit when ready.
Step 5: Access the TF card as a removable disk in the device's file browser.
Step 6: Read/write files freely - the indicator light blinks during transfer.
Step 7: Eject the disk via device security, then press TF Card Eject.
Maximum capacity: 2TB | Read/write speed: 20MB/s.
Notes:
1: Charging:
Please use the USB port of your computer for charging.
The green light turns on when charging and goes off when fully charged.
2: Low Battery Alarm:
If the cursor moves sluggishly, please check the battery level and charge it promptly.
3: Connection problem:
Make sure the power switch is “ON” or restart the pairing mode by sensitivity switch.
