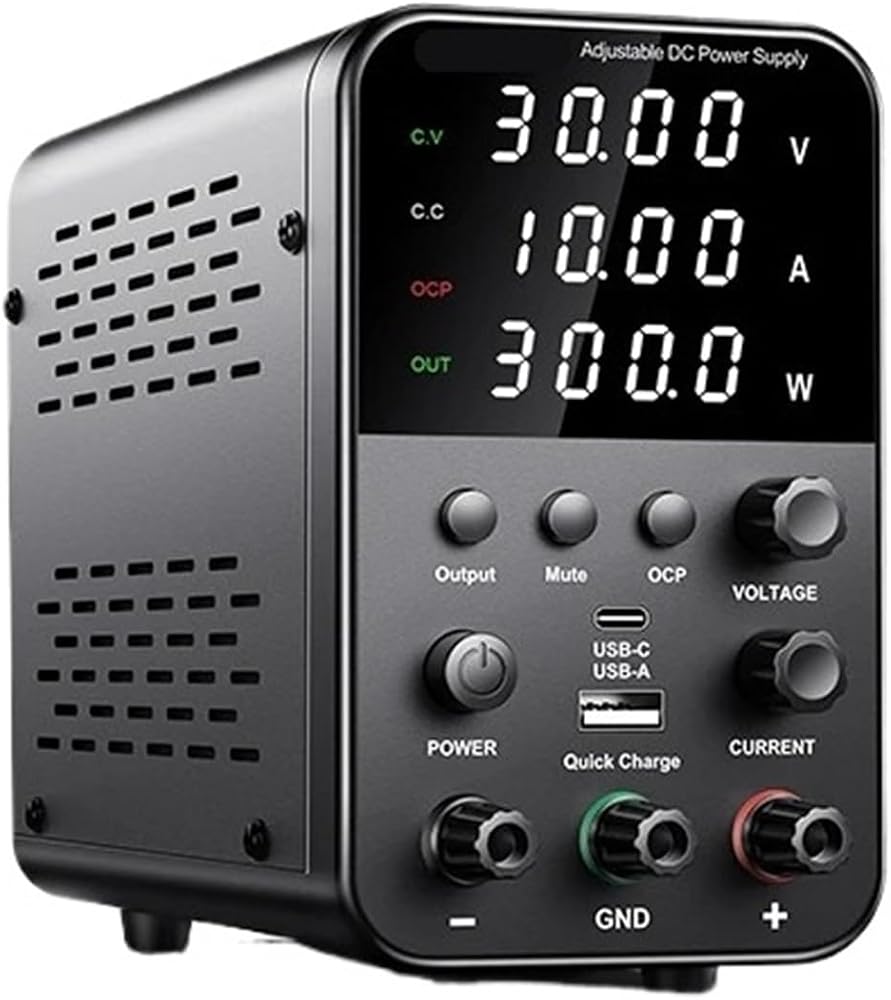

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current output voltage and output current can be continuously
5adjusted between 0 and nominal value with fine regulating and coarse regulating
6it has over voltage protectionOVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220v can work , rest assured to choose.
12. Programmable DC power supply
Output Power
150W/300W/320W/360W
Output voltage
0~30V/60V/120V/160V
Output current
0~2A/3A/5A/10A
working environment
input voltage:AC230V/115V±10%;50Hz/60Hz
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0.5%Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability:0.1%±3mA
Load stability:0.2%±3mA
Ripple current:0.5%Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current continuously adjustable
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.
Packing List
1x DC power supply
1x power cord (EU,US,UK,AU)We will configure the correct plugS according to your country (you can consult customer service)
1x Test line
1x Instructio
Origin : Mainland China
Models : BPS3010
Output Frequenc : 50/60Hz
Output Power : 150 - 300W
Origin : Mainland China
Certification : CE FCC
Features1 : Switching power supply
Features2 : power supply
Features3 : laboratory power supply
