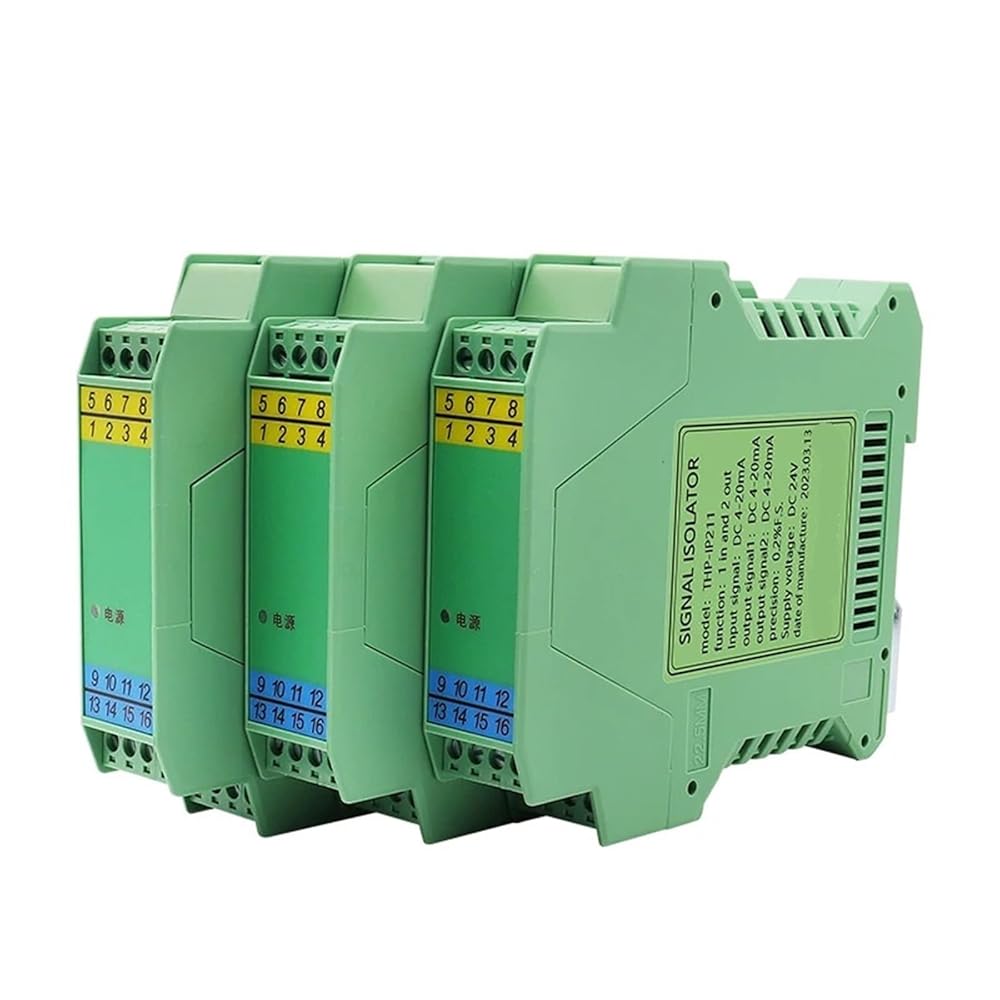

Analog Signal Converter Isolator Signal Isolator 35MM Din Rail 4-20ma to 0-10V 0-5V Voltage Current Signal Splitter Conditioner
DC24V or AC220V power supply provides isolated distribution power for on-site transmitters, while achieving conversion of various signals such as voltage, current, and mv.
The input interface current source is universal for two wire and three wire transmitters, and efficient magnetoelectric isolation technology is used internally. The input, output, and power supply are isolated from each other, featuring high accuracy, high linearity, and low temperature drift.
The THP-IP series passive isolator is used to connect to on-site two wire transmitters, provide power to them, and receive 4-20mA current signals from the two wire equipment output. After isolation, it outputs a 4-20mA current signal. Adopting a two wire loop power supply method, there is no need for external power supply.
The THP-I/U series passive isolator receives DC current or DC voltage signals from the site, and after interference suppression, isolates and outputs a 4-20mA current signal. Adopting a two wire loop power supply method, there is no need for external power supply.
DC24V power supply provides isolated distribution power for on-site transmitters, while achieving conversion of various signals such as voltage, current, and mV, and has signal distribution function. It has various output types such as one in three out, one in four out, and two in four out.
Input
Input Signal
4-20mA;0-20mA;0-75mA,0-5V;0-10V etc
Distribution Voltage
24V(Max driving current 30mA)
Input Impedance
Current input:50;voltage input:300K
Output
Output Signal
4-20mA;0-20mA;0-5V;0-10V
Output Load Resistance
RL500(Output is current signal)
RL10K(Output is voltage signal)
General Technical Parameters
Power Supply
DC 24V±10% or AC85-265V
Current Consumption
50mA(1 IN/1 OUT,24V,20mA Output)
70mA(1 IN/2 OUT,24V,20mA Output)
100mA(2 IN/2 OUT,24V,20mA Output)
Basic Accuracy
0.1%F.S
Temperature Drift
0.005FS/(-20~+55)
Respond Time
10mS(0-90%)(TYP)
Insulation Strength
1500VAC/1min(Among input,output and power)
Insulation Resistance
100M(Among input,output and power)
Operating Temperature Range
-20~+55
Electromagnetic Compatibility
In with GB/T 18268(IEC61326-1)
Suit for Field Equipment
Two wire,three wire transmitter,Current source,Voltage source
Input
Input Signal
4-20mA;0-20mA
Voltage Drop
3V,TYP(Output is 20mA)
Input Impedance
150±Output load resistance
Output
Output Signal
4-20mA;0-20mA
Output Load Resistance
RL350
General Technical Parameters
Power Supply
NONE
Basic Accuracy
0.2%F.S
Temperature Drift
0.005FS/(-20~+55)
Respond Time
10mS(0-90%)(TYP)
Insulation Strength
1500VAC/1min(Among input,output and power)
Insulation Resistance
100M(Among input,output and power)
Operating Temperature Range
-20~+55
Electromagnetic Compatibility
In with GB/T 18268(IEC61326-1)
Suit for Field Equipment
Two wire,three wire transmitter,Current source,Voltage source
Input
Input Signal
4-20mA;0-20mA;0-75mA,0-5;0-10V etc
Distribution Voltage
24V(Max driving current 30mA)
Input Impedance
Current input:50;voltage input:300K
Output
Output Signal
4-20mA;0-20mA;0-5V;0-10V
Output Load Resistance
RL500(Output is current signal)
RL10K(Output is voltage signal)
General Technical Parameters
Power Supply
DC 24V±10% or AC85-265V
Current Consumption
120mA(1 IN/3OUT,24V,20mA Output)
140mA(1 IN/4OUT,24V,20mA Output)
160mA(2 IN/4OUT,24V,20mA Output)
Basic Accuracy
0.1%F.S
Temperature Drift
0.005FS/(-20~+55)
Respond Time
10mS(0-90%)(TYP)
Insulation Strength
1500VAC/1min(Among input,output and power)
Insulation Resistance
100M(Among input,output and power)
Operating Temperature Range
-20~+55
Electromagnetic Compatibility
In with GB/T 18268(IEC61326-1)
Suit for Field Equipment
Two wire,three wire transmitter,Current source,Voltage source
Dimensions : 99*114.5*22.5mm
Operating Temperature : -20~+55℃
Supply Voltage : DC24V/AC220V
Accuracy Class : 0.2%F.S
Model Number : THP-IP/IU
Display Type : Analog and Digital
DIY Supplies : Electrical
Response time : 10mS
Insulation strength : 1500V AC/1min
Insulation resistance : 100M
Temperature drift : 0.005%F.S
