Product Introduction
High Precision, Low Ripple, LED Display, Auto Switch C.C/C.V 30V 10A DC power supply is a professional power supply regulator with high accuracy of 0.01V and 0.001A, low ripple of DC power supply. The backlit 4-digits LED display has the advantage of high resolution, which can be easily viewed even if you are in low-light conditions . Adjustable power supply has C.V/C.C indicator, constant voltage and constant current mode can automatically complete the switch.
CE & FCC Certification Multiple Protection Various ApplicationLab power supplies have passed CE FCC Certification 30V DC power supply has multiple protections overvoltage protection overcurrent protection overheating protection over power Type
SPS305
Output Voltage
0-30V
Output current
0-5A
Power
150W
Voltage/current display
Four display
Input Voltage
230V±10% 50Hz or 115V±10% 60Hz
Working Temperature
Storage temperature
Constant voltage State
Voltage stability:0.1%±3mV
Low Voltage:0.2-0.3%+3mV
Load stability: 0.2%±3mV
Ripple noise 30mVrms
0 to rated voltage continuously adjustable
Constant Current State
Current stability:0.2%+3mA
Load stability: 0.2%±3mA
Ripple noise 20mArms(Valid Value)
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current continuously adjustable

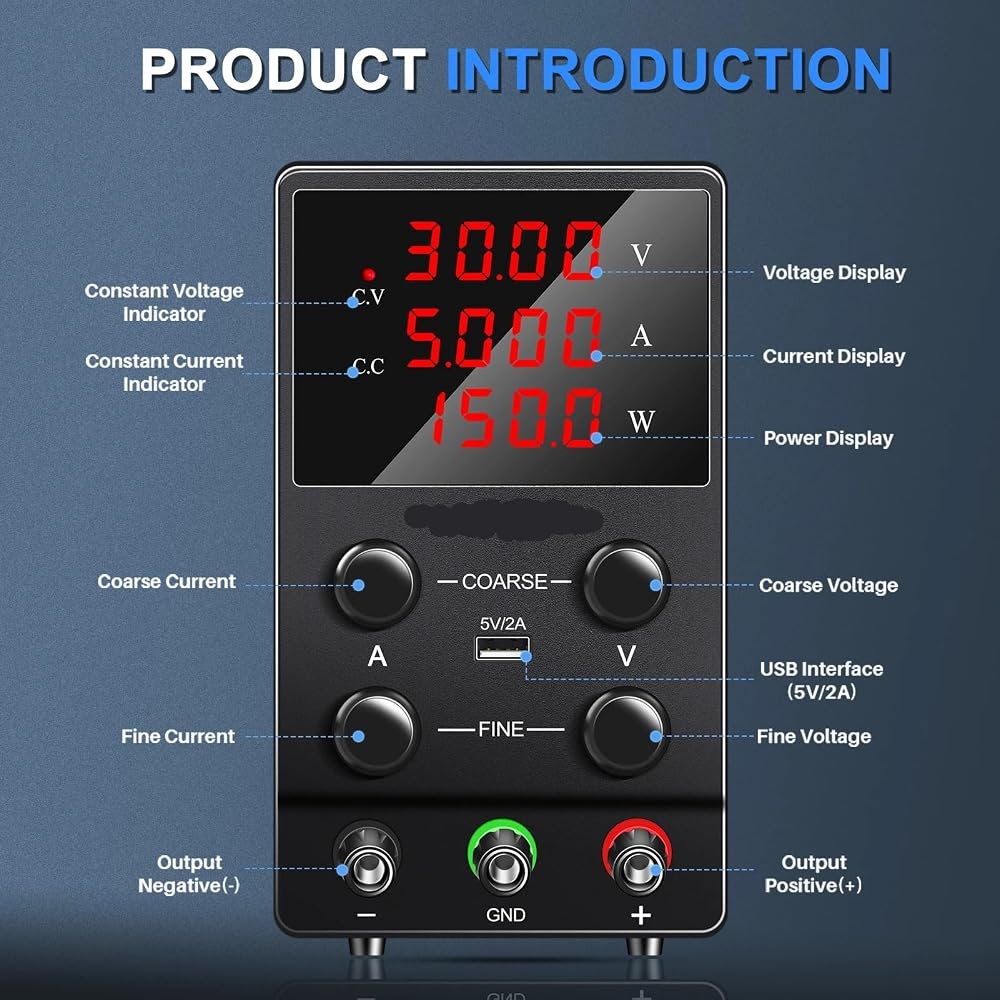

Display
Display size:5.3cm*4.8cm
Screen type:LCD Screen (Protect eyes 24hours working)
Display accuracy:0.5%±2digits
Display resolution voltage :0.01V
Display resolution Current :0.001A

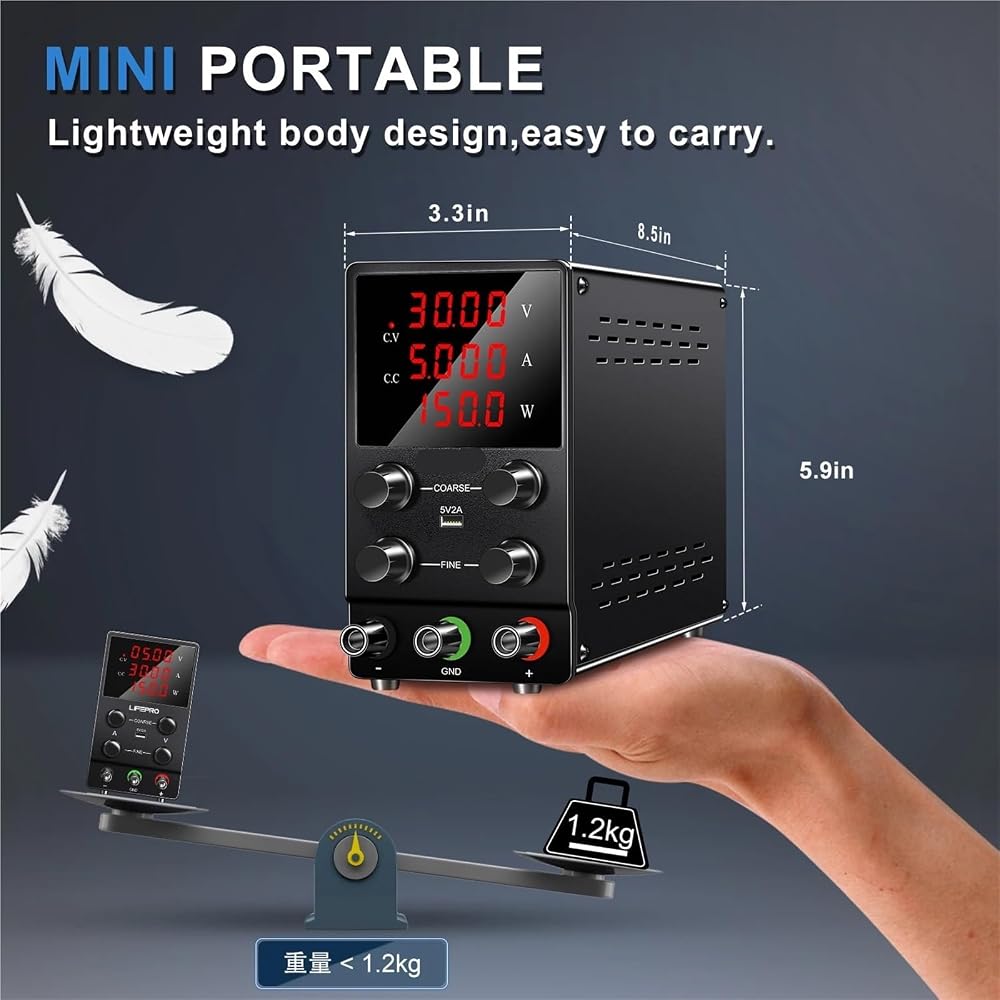

Product size
Long 24cm x Wide 8.5cm x High 15.5
USB interface
5V 2A for mobile phone repair and charging
Fuse standard
3A(AC 220V inpute) ,5A (AC 110V inpute)
Product color
Black and White for optional

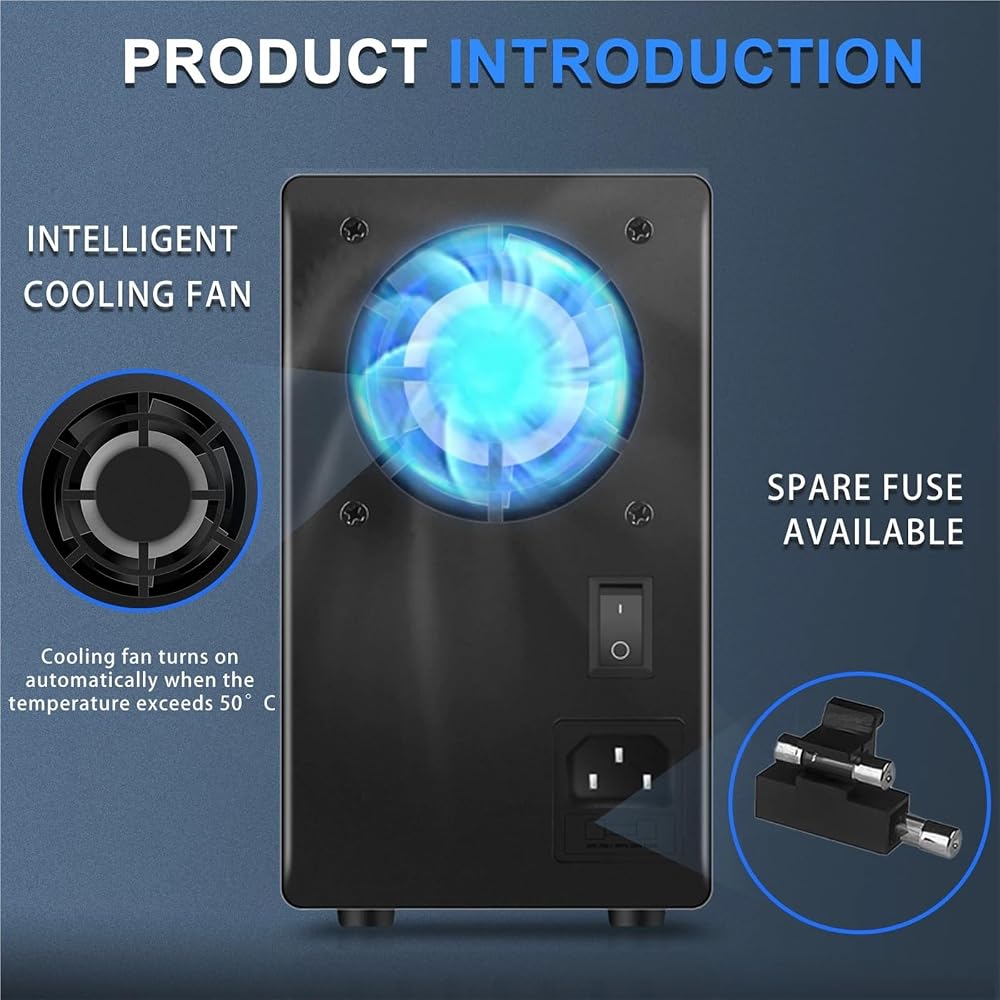

Built-in cooling fan
Smart turn on when temperature over 50
Packaging List
1X Power supply
1X Power cable(EU/AU/UK/US)
1X 10A output line
1X 3A output line
1X Box
Output Power : 301 - 400W
is_customized : Yes
Output Current : 0-5A
Model Number : NCIE-SPS305
Output Frequenc : 50/60HZ
Output Type : SINGLE
Origin : Mainland China
Certification : CE,FCC
