YB27 Three Wires LED Digital Voltage Meter Voltmeter 0-10V 0-30V 0-100V 0-300V 0-600V 1000V Voltage Detector Volt Panel MeterTester
Attention:
The power supply voltage of the instrument should not exceed 30V, and enough safety voltage space should be reserved;
Due to the limited space of the sticker, some infrequent ranges will be manually rewritten on the sticker, please do not order if you mind it.
DC0- 100V, DC0-300V: When the measured value is less than 9.9V, only two digits will be displayed; when the measured value is greater than 9.9V, only three digits will be displayed.
DC0-600V: When the measured value is less than 99V, only two digits are displayed; when the measured value is greater than 99V, only three digits are displayed.
Technical Parameters:
Dimension:48*29*21 mm
Mounting hole:45.5*26.5mm
Power Supply:DC3.3-30V
Testvoltage:DC0~10V/30V/100V/300V/600V/1000V

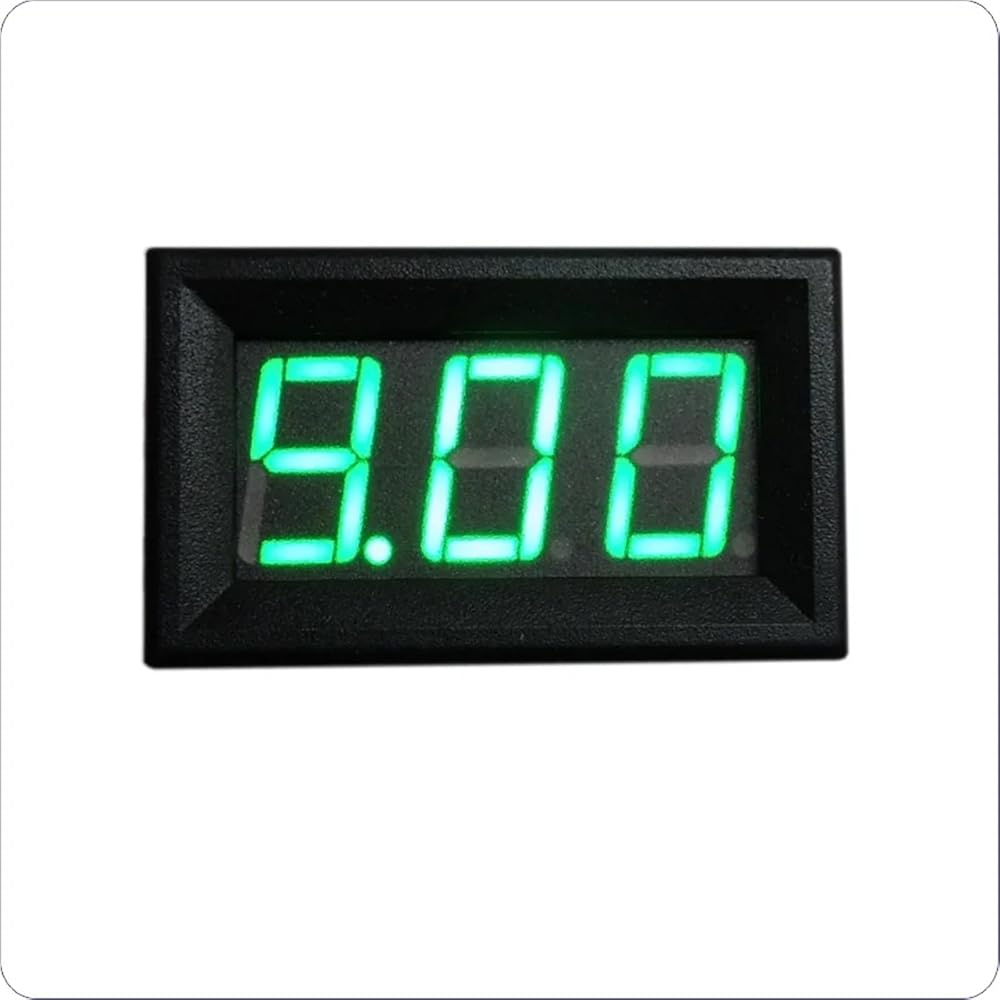

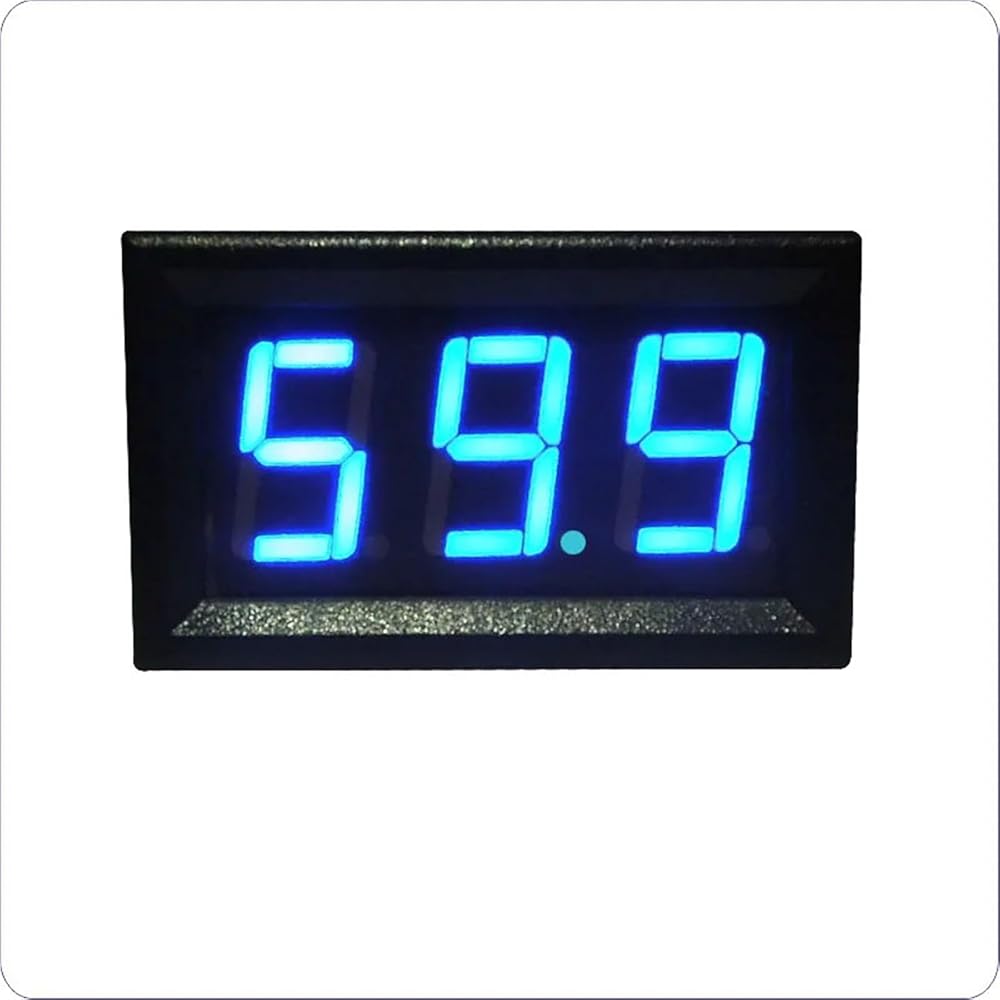

Display mode: 0.56 "LED with red/blue/green digits
Measurement accuracy: 1% (± 2 digits)
Measurement rate: 500mS / time
Features:
With three wires,the wiring is simple, the installation is convenient.
When there is a small tolerance, you can calibrate by the potentiometer on the circuit board.
With polarity protection function for meter power supply.
Connection Method:
With three wires, can be connected to cars,e-bikes or motorcycles.
Red wire
: Power supply Positive terminal
Black wire: Public Negative terminal(Power supply and test negative terminal)
Yellow wire: Testing terminal
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB27
DIY Supplies : ELECTRICAL
Dimensions : 48*29*21mm
Operating Temperature : -10~50 degree
Accuracy Class : 1%+/-2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 45.5*26.5mm
Display type : 0.56''LED with red/blue/green
Range : DC0-10V/30V/100V/300V/600V/1000V
Cover color : Black/White
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Feature : Three wires
