Model number
Type
Range
Related product
SO-45
Voltmeter
Direct Connection()
1V,2V,3V,5V,10V,15V,20V,30V,50V,100V,150V, 200V,250V,300V,400V,450V,500V,600V
Order
Special specifications can be customizedand Please contact me.
Parameter

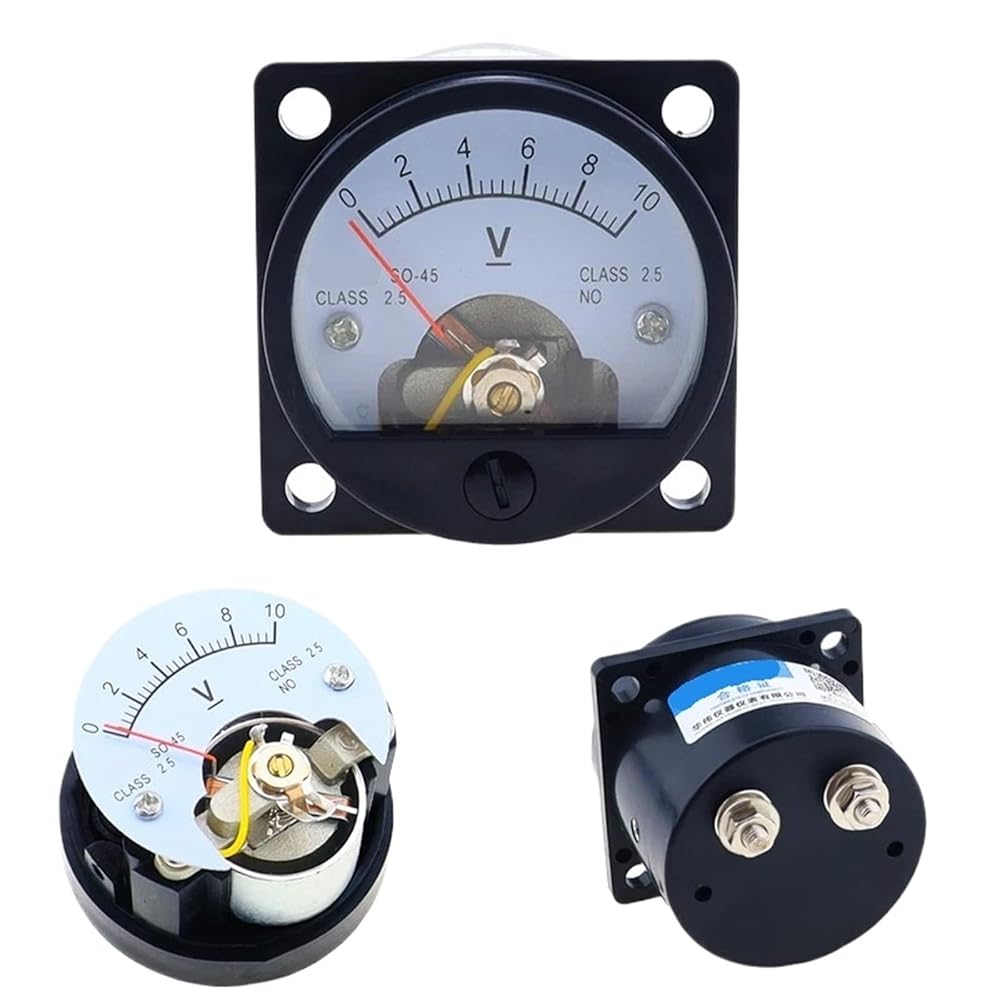

Product model:SO-45
Accuracy grade: class 2.5
Overall dimension:47mm*47mm
Hole size: see the following figure
Measuring range: 1V-600V(direct access),450V-450kV*/1mA/5mA(Use with external connection device)
Working position: vertical
Operating temperature :-20c-50c
Working humidity: 80% RHmax non-condensing
==========
Hign-concerned Chemical : None
Dimensions : 47X47mm
Operating Temperature : -20-50
Supply Voltage :
Accuracy Class : class 2.5
Model Number : SO-45
Display Type : Analog and Digital
DIY Supplies : ELECTRICAL
