Features:

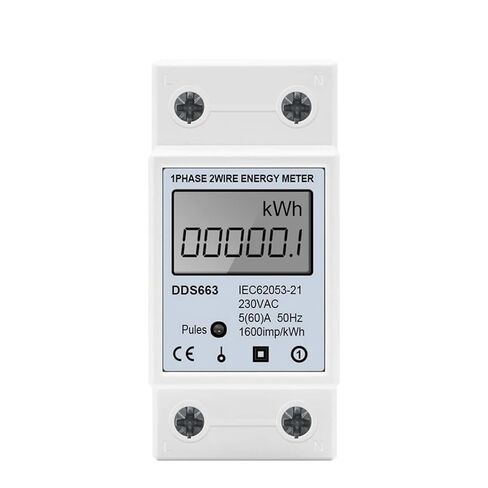

DDS663 AC230V/50Hz
Maximum Current:60A
Pulse Frequency:1600imp/kWh
Pulse LED indicates working of meter.
35MM Din Rail Installation

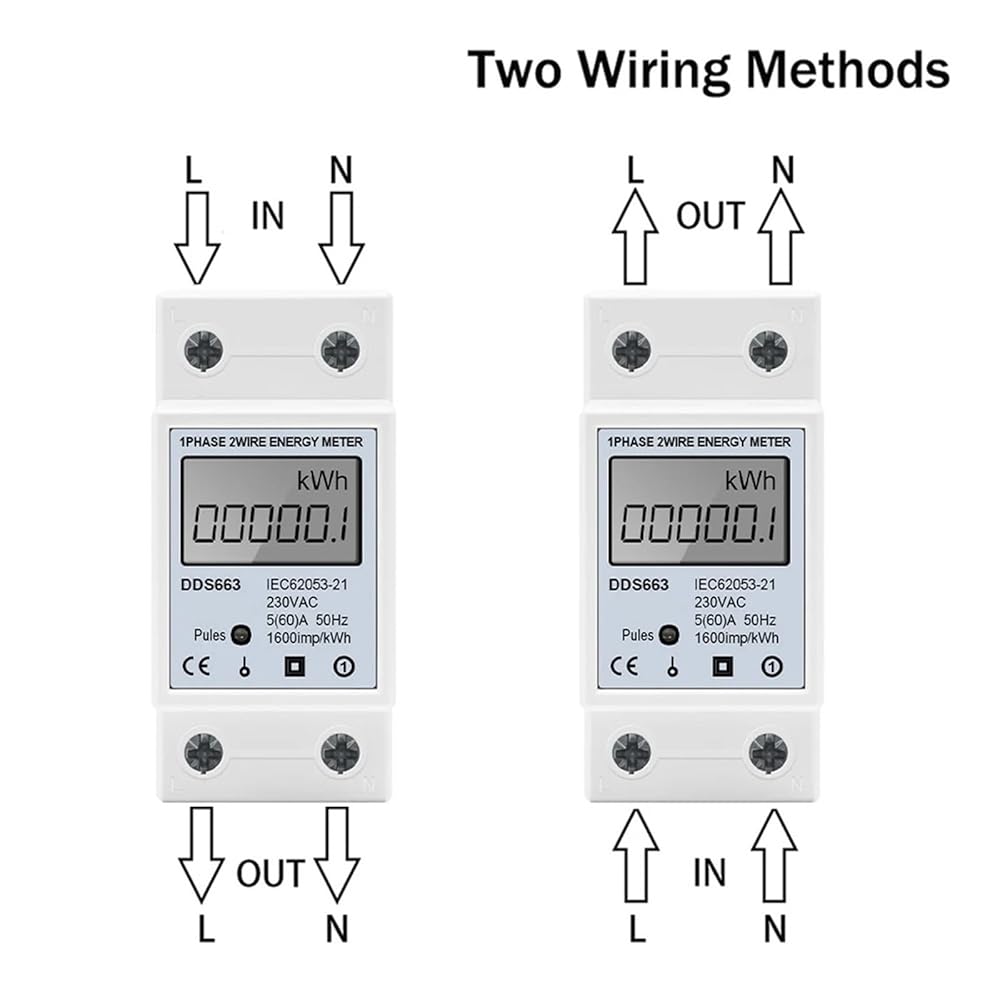

Wiring method: top input and bottom output or top output bottom input
NOTE:This Temporary kWh is not available RESET to be Zero . The Total kWh can not be Reset.
==========
Hign-concerned Chemical : None

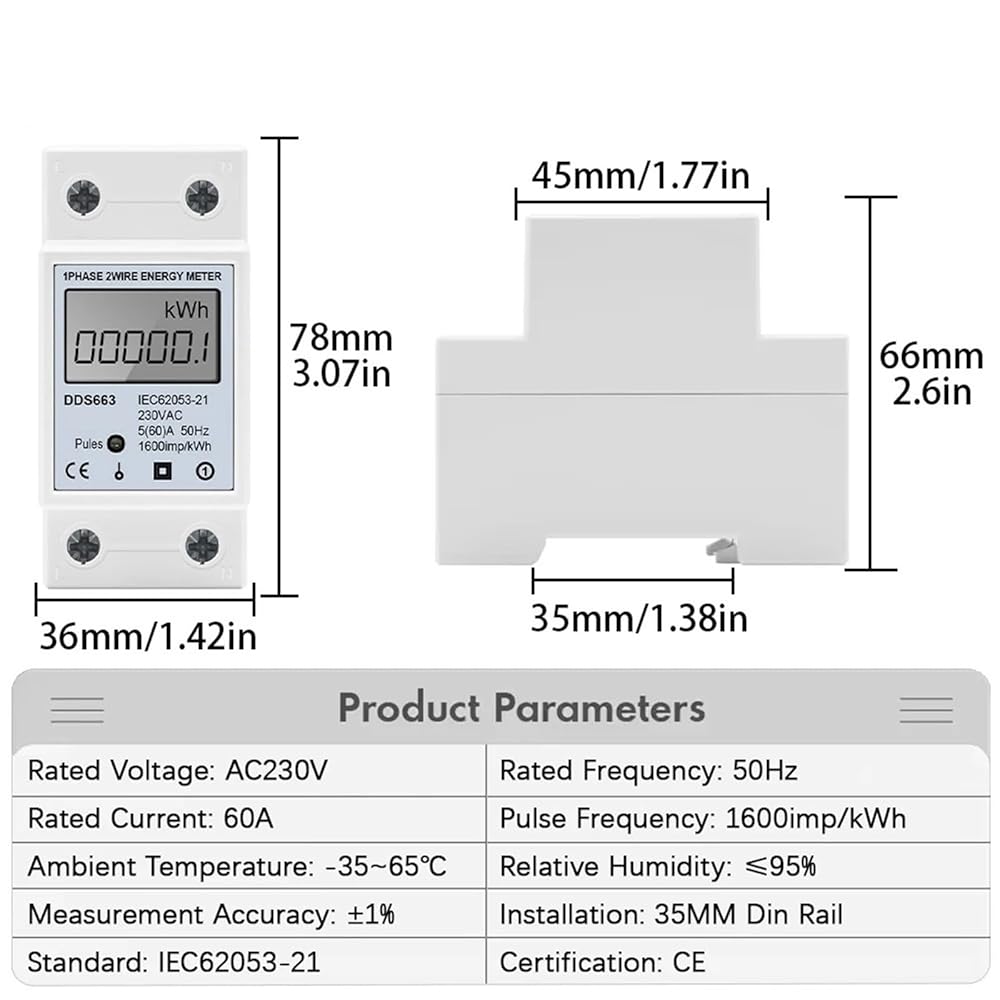

Dimensions : 78*65*35mm
Operating Temperature : -10 to 50C
Output Voltage : AC 220V
Accuracy Class : ±1%
Measuring Energy Range : 99999.9
Phase : single phase
Model Number : DDS663
Max Operating Current : 50A - 79A
Rated Voltage : 220V
Power Supply : AC
Display Type :
DIY Supplies : ELECTRICAL
Rated Current : 60A
Pulse Frequency : 1600imp/kWh
Operating Voltage : AC220V/230V
Frequency : 50Hz
