10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(40db,6GHZ) in Kuwait 10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(40db,6GHZ) in Kuwait 10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(40db,6GHZ) in Kuwait 10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(40db,6GHZ) in Kuwait 10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(40db,6GHZ) in Kuwait 10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(40db,6GHZ) in Kuwait

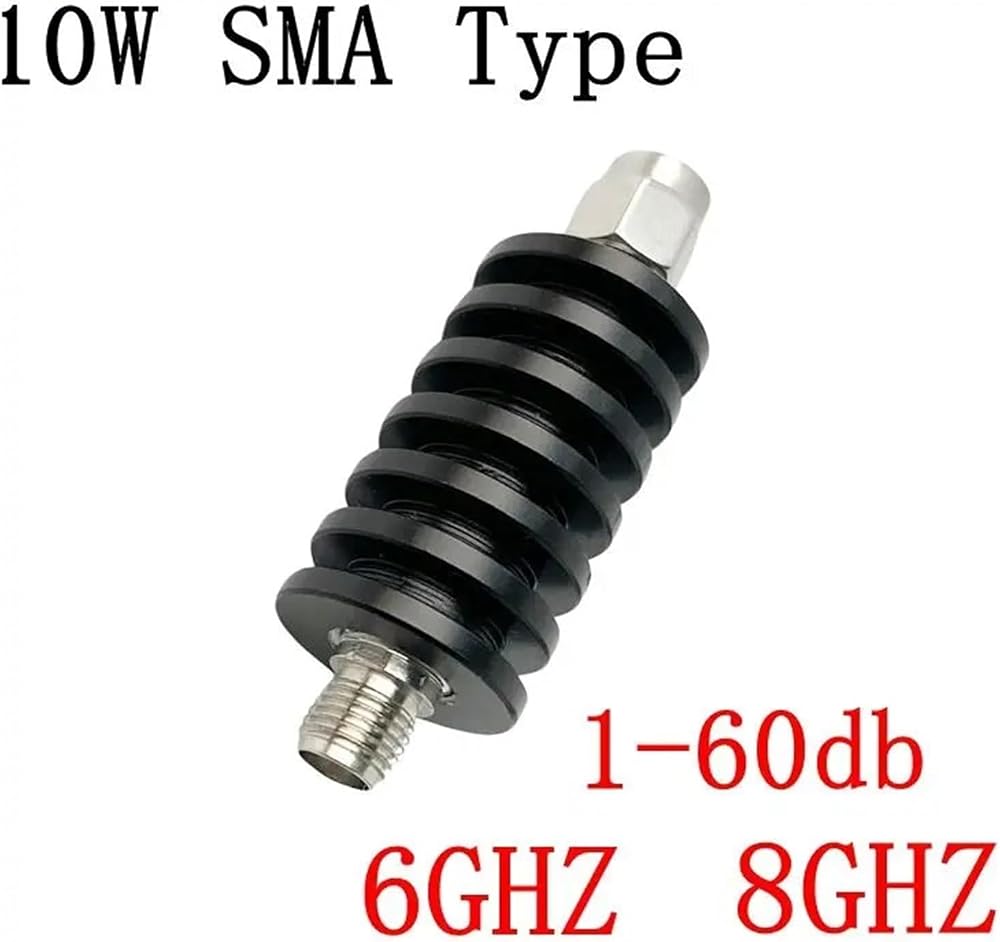

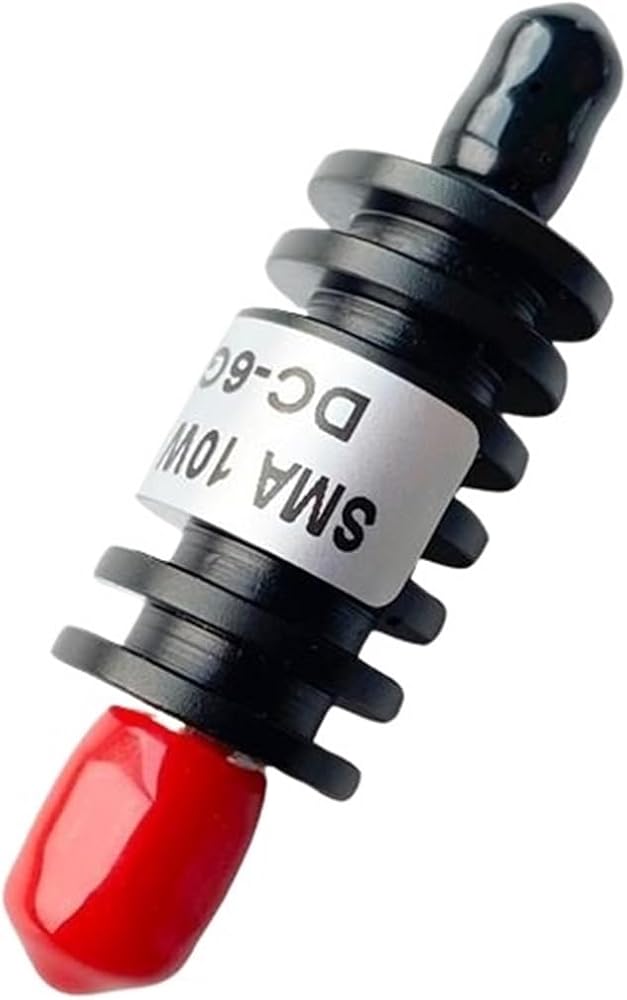

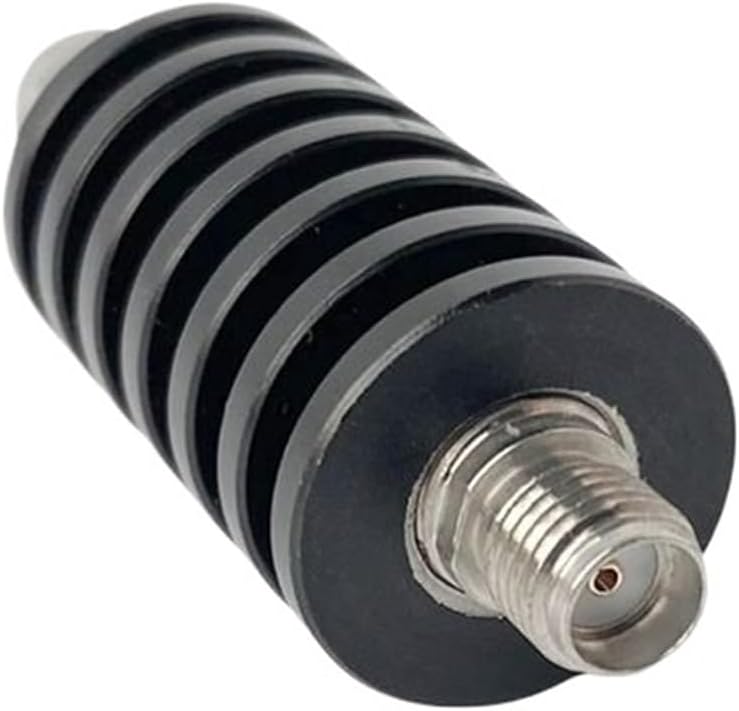

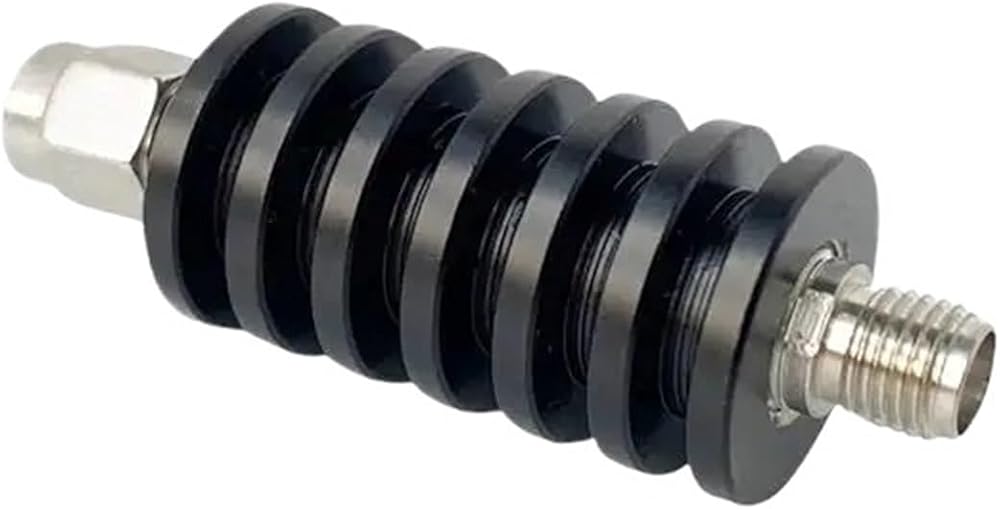

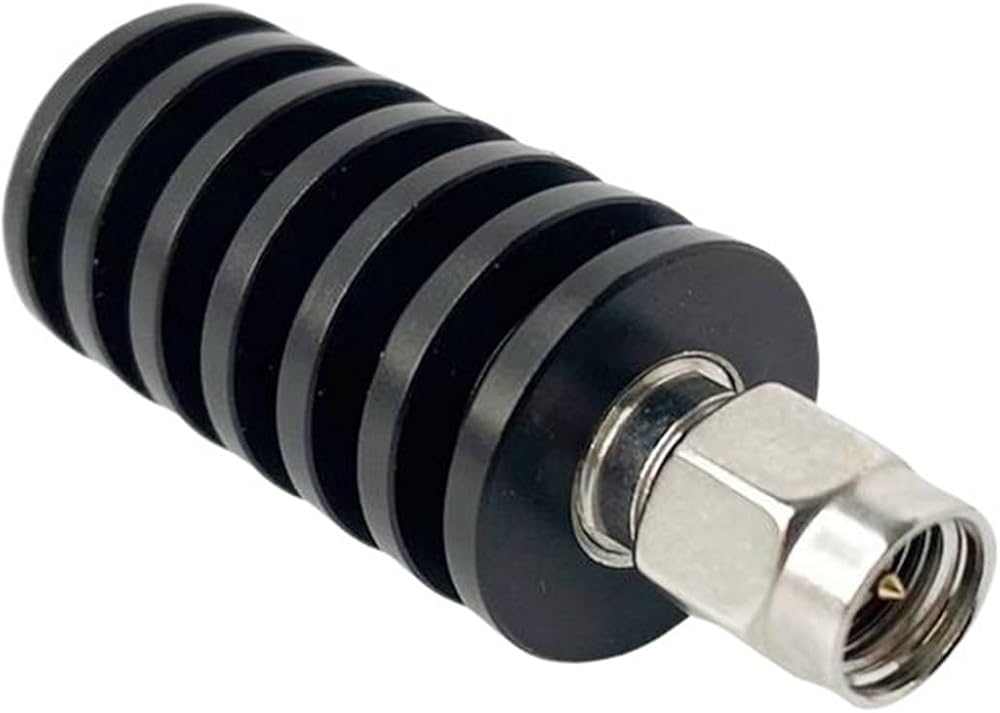

10W SMA-JK RF Attenuator 1dB-60dB, 50 Ohm DC-8GHz Blessing(10db,6GHZ)

KWD 26.500
Brand
NPASDHOIW
Weight
50 g
Color10dB
Size6GHz
– 1 +

Special Features

  • High frequency wide coverage - supports ultra wide operating frequency range from DC to 8GHz, meeting high-frequency applications such as 5G/WiFi 6
  • Precision attenuation gradient - provides 12 precise attenuation values ranging from 1dB to 60dB (including 1/2/3/5/6/10/15/20/30/40/50/60dB) to choose from
  • Enhanced power design -10W power processing capability, surpassing the load level of conventional SMA attenuators
  • Military grade interface - SMA-JK female connector, using gold-plated contacts to ensure a lifespan of>500 insertions and removals
  • Laboratory grade accuracy -50 Ω± 0.5 Ω impedance matching, full frequency VSWR

Description

Specification:
1. Power: 10w
2. Frequency Range: DC-6GHz/8GHz
4. Connector Type: SMA Male/SMA Female
5. Impedance: 50
6. Attenuation: 1-60dB available, and 1-30dB.
±1.5dB,40dB±2dB,50db±3db,60db±4db

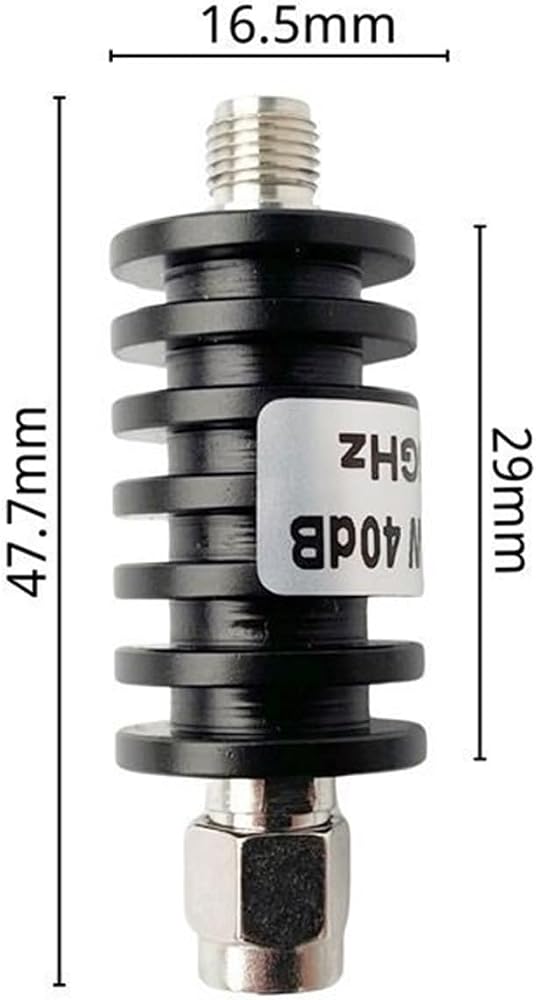

7. Dimension: 47.7mm*16.5mm
8. Operating Temperature: -55°C~125°
We prioritize customer satisfaction.
Our responsive customer service team is always ready to assist you with any questions or concerns.
