Pitman Shaft
- Number of H-shaped steel connecting rods: 4 per set
Bolts: Includes ARP 2000 bolts
- Bolt Size: 3/8" ARP 2000 bolts
- Tolerance: Balanced to +/- 1 gram
Piston bolt hole: +4/1000mm
- Power: 600 hp ~ 800 hp / unit
- Fastening Strength (PSI): 220,000/230,000 PSI Torque: 48 ft 65 NM
Maximum acceleration: 9000rpm
aspect
Center to center length: 144mm
Large end diameter: 52mm
Small end diameter: 22mm
Large end width: 24mm
Small end width: 24mm
Large end diameter: 52mm
Bolts: 3/8 in. ARP 2000 bolts
Package includes: 4 pieces + 8 bolts
Pin Type: Bronze Bushing Floating Pin
Product Description: Due to different light and screen display, the picture and product may be slightly different
- Rod length: 144mm
Small end diameter: 22mm

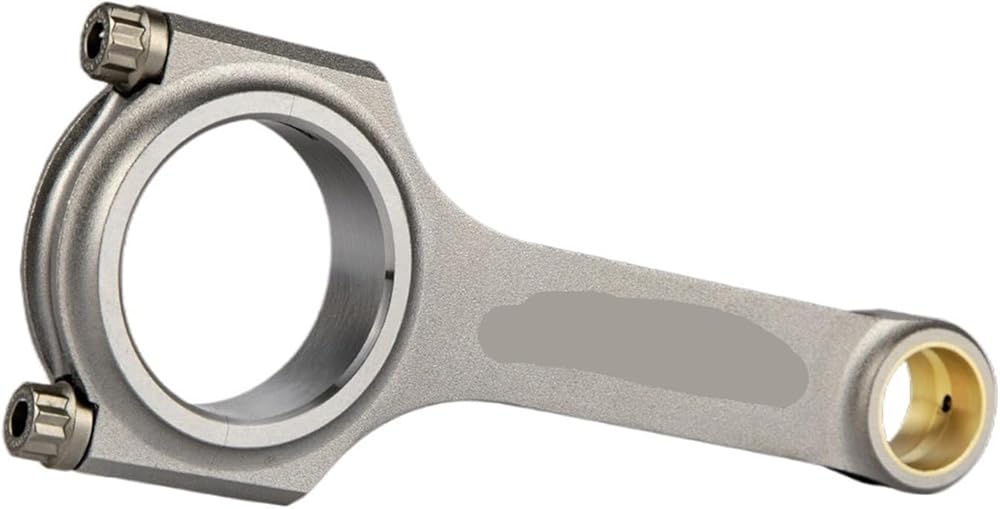

Type: H-beam connecting rod
Weight Tolerance: Balanced to +/- 1 gram
