Model: ADS1115
Input voltage: 2.0V-5.5V
Channel input voltage: 0-VDD
Interface type: I2C
Number of channels: 4 channels (AN0 AN1 AN2 AN3)
ADC bit rate: 16 bits
Continuous mode: only 150μA
Single mode: automatic shutdown
Programmable data rate: 8sps-860sps
Input range programmable control, 7 input ranges:
-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit address 0x48-0x4B
Features:
ADS1115 can be controlled through I2C The chip is controlled by an I2C interface that provides 16-bit accuracy and a sampling rate of 3300 times/second. The chip can be configured as 4 single-ended input channels or 2 differential channels. In addition, it has a built-in programmable gain amplifier (up to 16 times) to amplify small single-ended/differential signals to the full range.

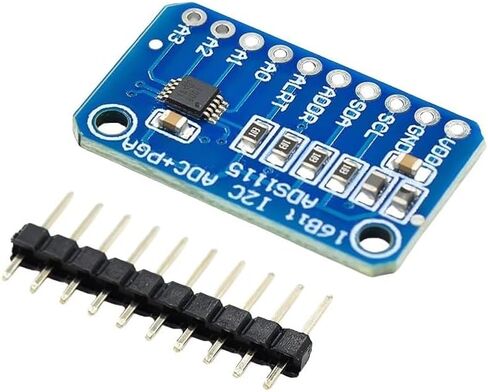

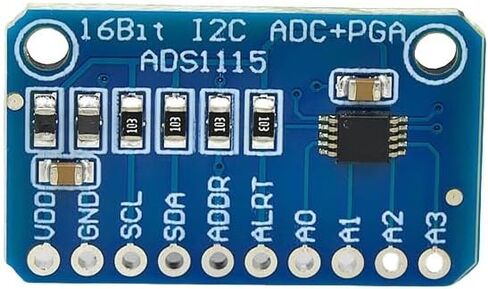

The chip is small, so it is mounted on a breakout board with a ferrite core to keep AVDD and AGND quiet and connected via an I2C interface.

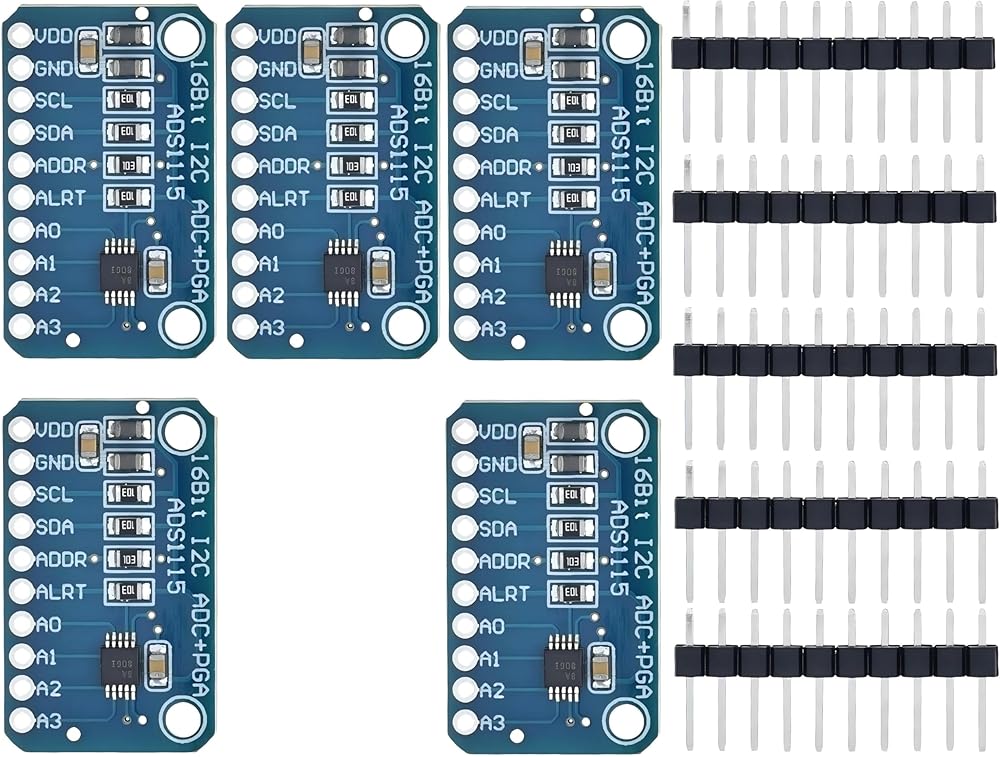

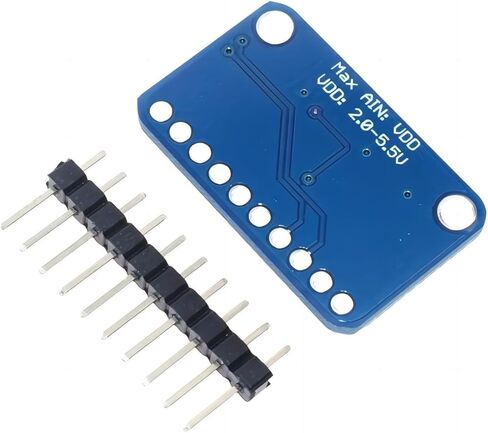

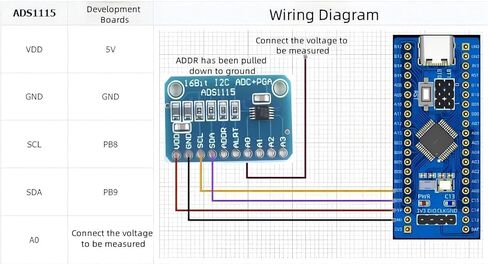

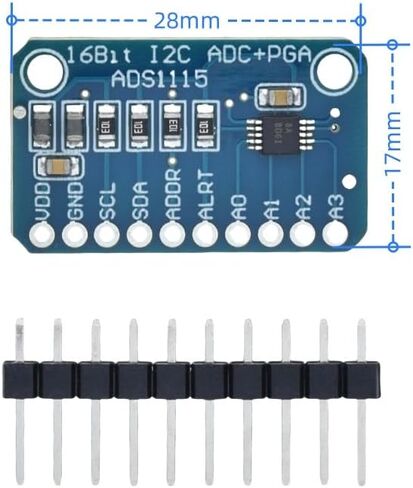

Just connect GND to ground, VDD to logic power, and SCL/SDA to the I2C port of the microcontroller, then run the example code to start reading data.
