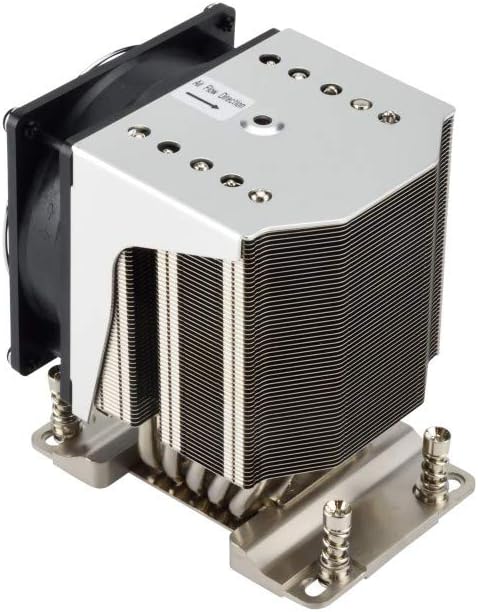

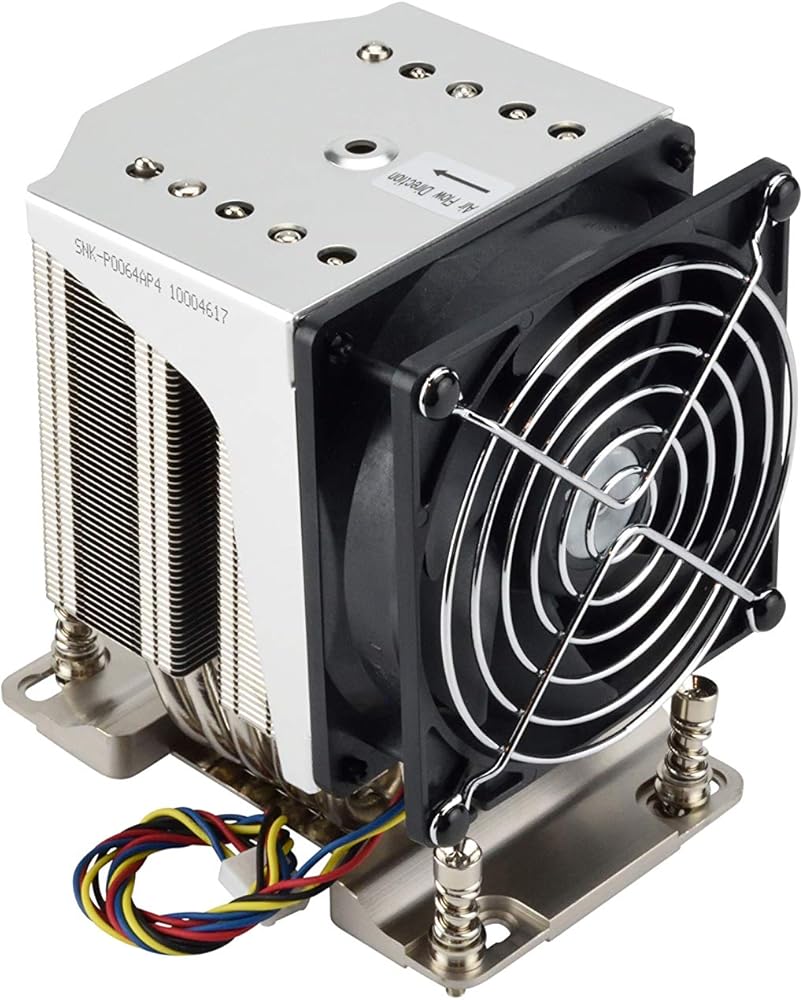

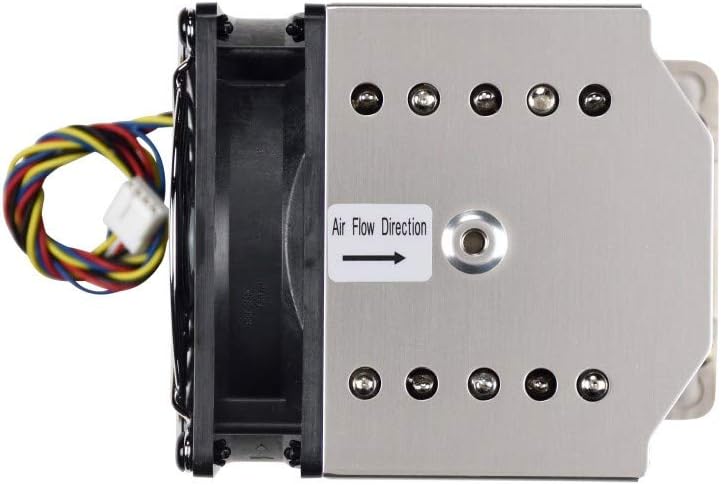

This CPU heat sink is designed for Supermicro H11 generation 4U servers and workstations equipped with AMD EPYC 7000 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
4U Active CPU Heat Sink
AMD EPYC 7000 Series Processors
Socket OLGA4094 (Socket SP3)
Supermicro Certified
Server Form FactorC
4UCooling TypeC
ActiveCPU ConfigurationC
Uni Processor, Dual ProcessorSupported CPU SKUC
AMD EPYC 7000 SeriesSupported CPU SocketC
OLGA4094 (Socket SP3)Supported CPU TDPC
Up to 180 WattsAttached Cooling FanC
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Acoustic Noise: 38.0 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25D mm
Position: Front Side
MTBF / MTTF: 108,798 Hours at 40 C AmbientProduct Environmental ComplianceC
RoHS and REACH compliant, details available upon requestItem Dimension ( L inch x W inch x H inch) C
NAWeightC
1.00 lbWarranty InformationC
1 Year
