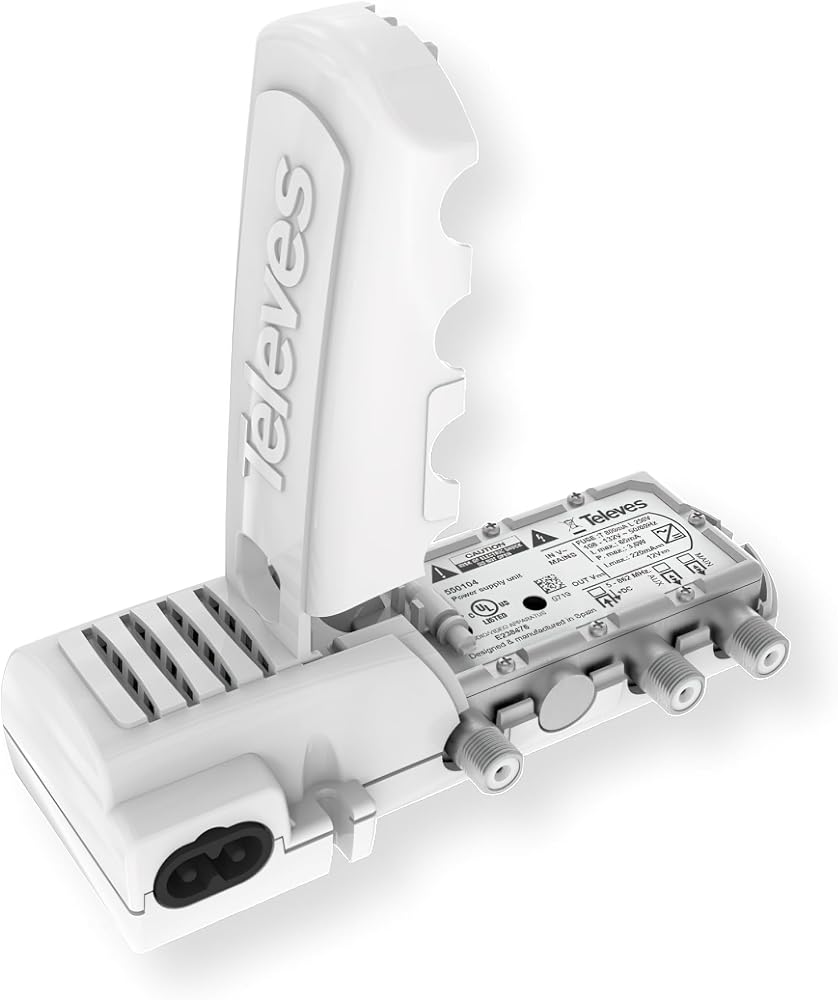

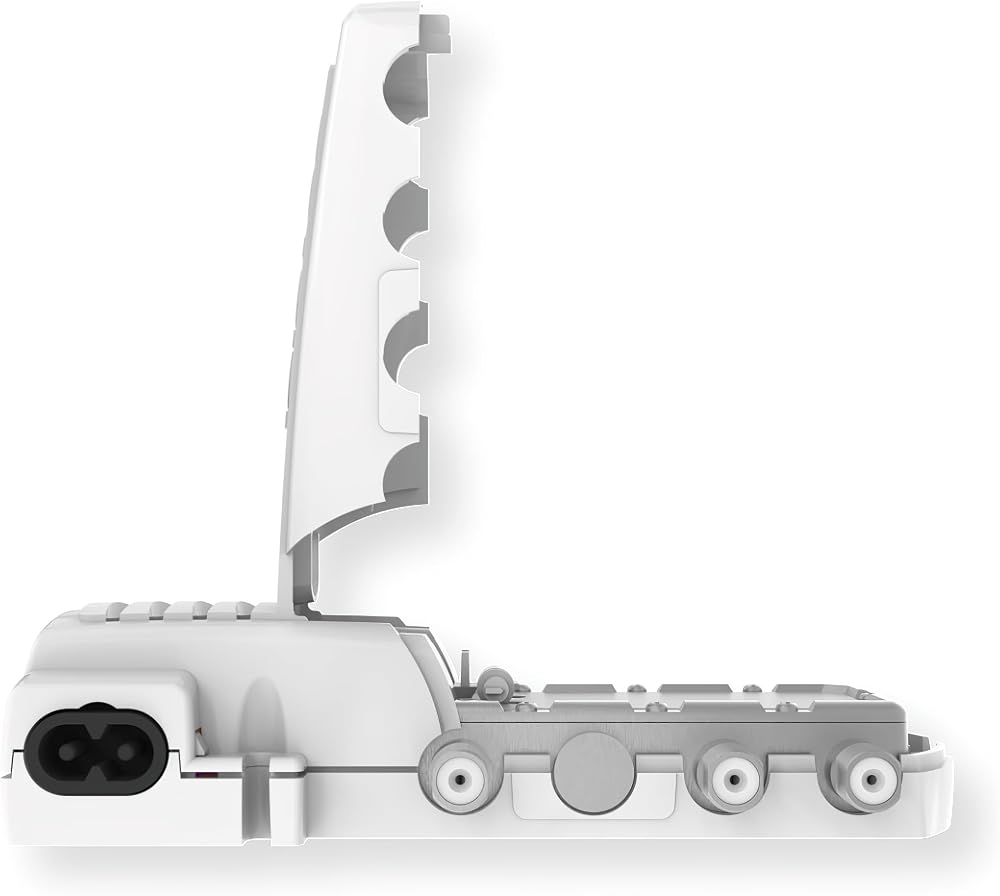

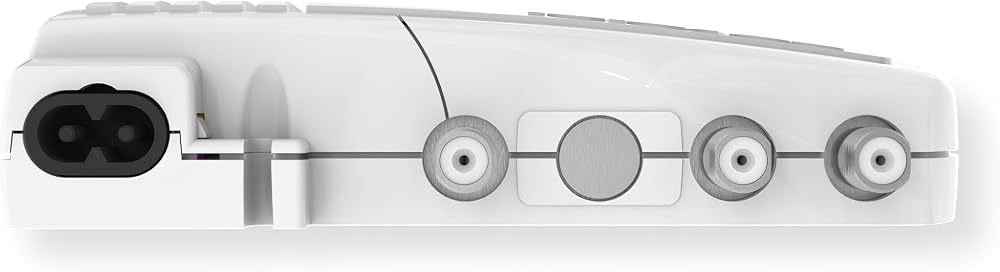

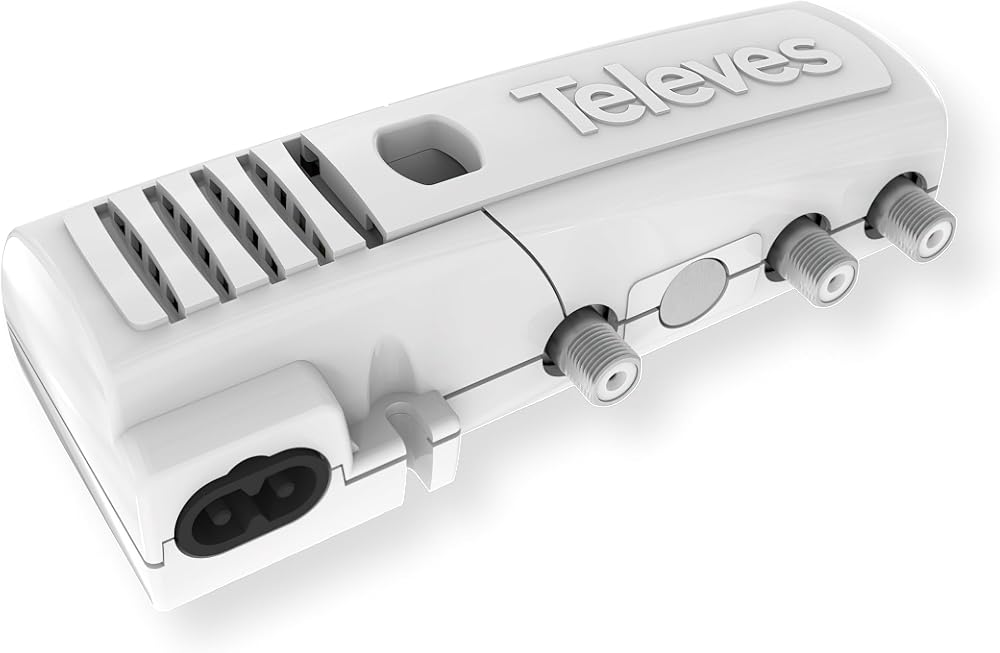

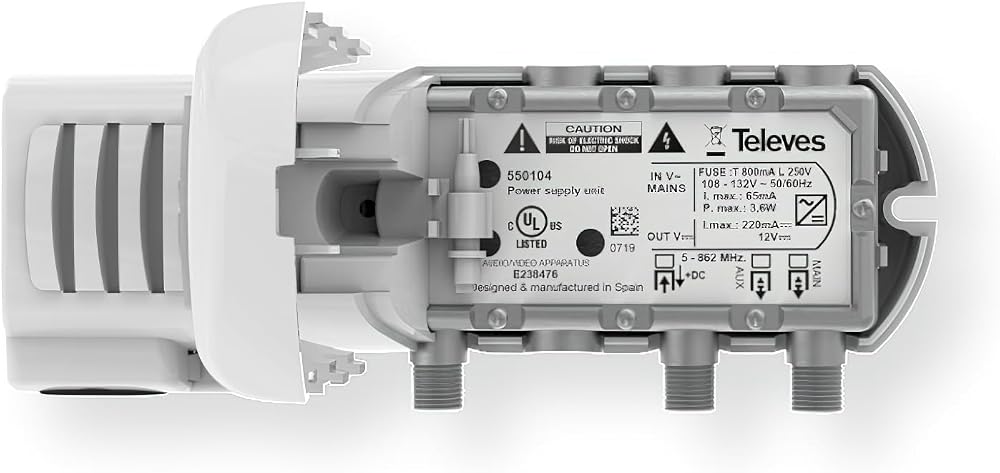

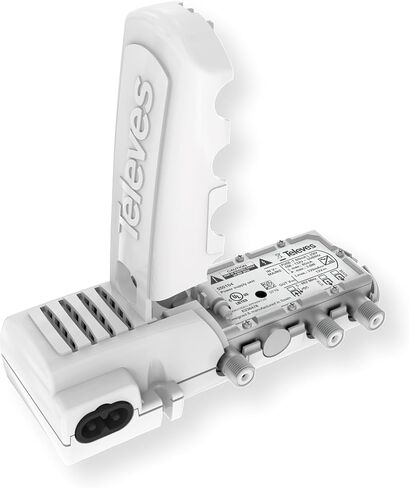

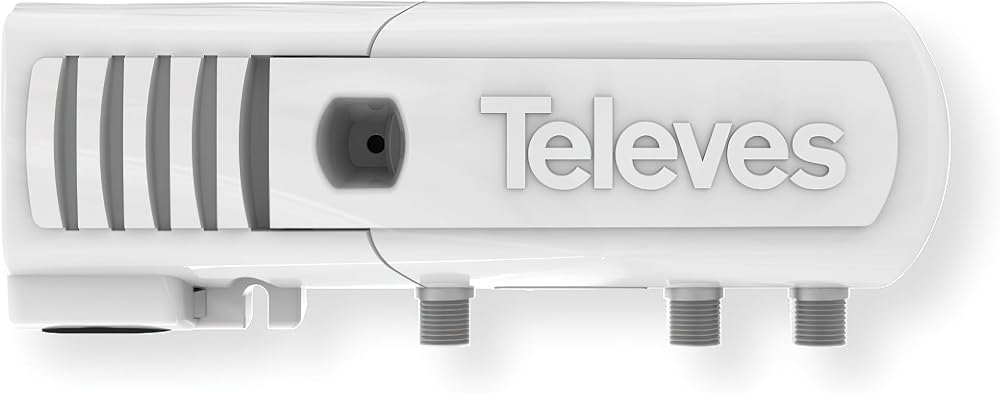

Televes 550104 Power Supply Unit, UL Listed, Built-In 2-ways Splitter, 12V 220mA, F-Connector, Antenna Power Inserter
Domestic 12 V power supply designed to feed antennas and mast amplifiers through coax while allowing TV signal passage. UL listed for indoor use and fitted with two F-connector outputs for easy distribution.

KeyFeatures:
- UL listed for indoor use
- 12 Vdc output
- 220 mA maximum output current

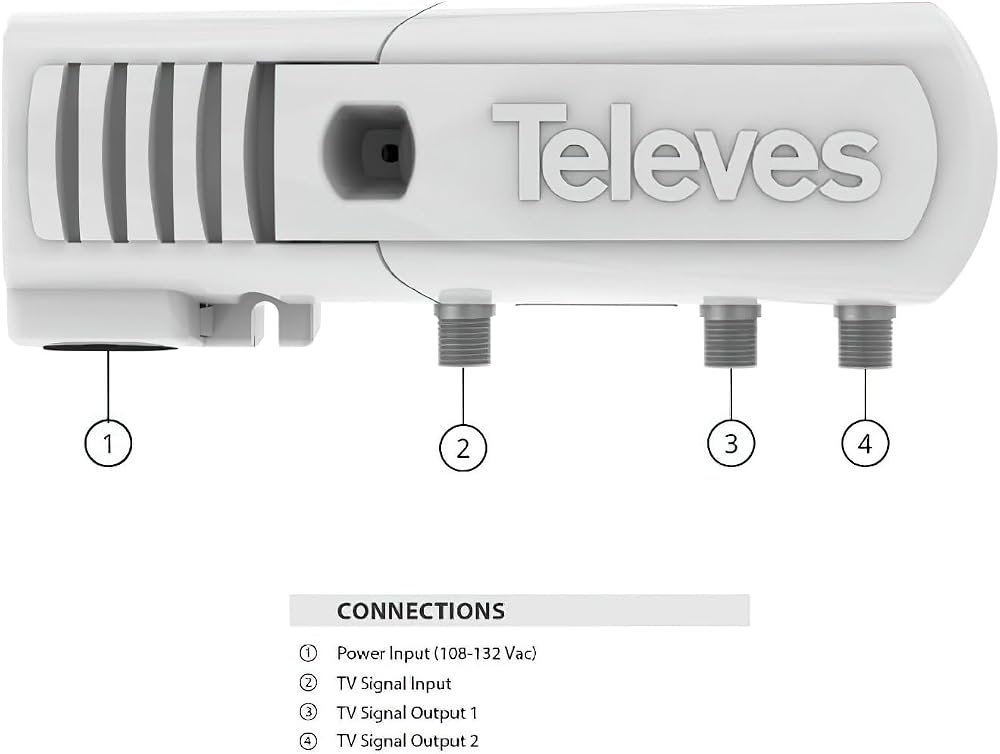

- Two F-connector outputs
- Frequency range 5-862 MHz
- Low insertion loss single output 1.5 dB
- Insertion loss two outputs 4 dB
- Input voltage 108-132 Vac
- Max power consumption 3.6 W

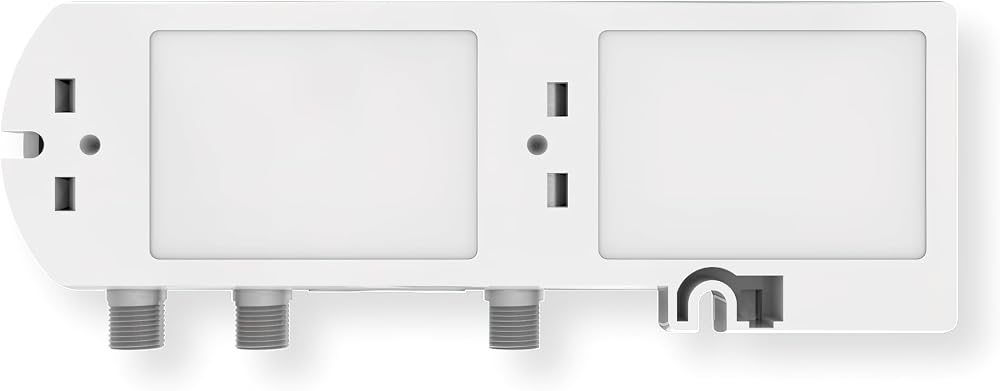

- Wall-mountable compact design
- Operating temperature 14-113 F

Specifications:
- Output voltage: 12 Vdc
- Max output current: 220 mA
- Number of outputs: 2
- Frequency range: 5-862 MHz
- Insertion loss (1 output): 1.5 dB
- Insertion loss (2 outputs): 4 dB
- Input voltage: 108-132 Vac
- Max power consumption: 3.6 W
- Operating temperature: 14 to 113 F
- Protection index: IP20
- Net weight: 292 g (0.64 lb)

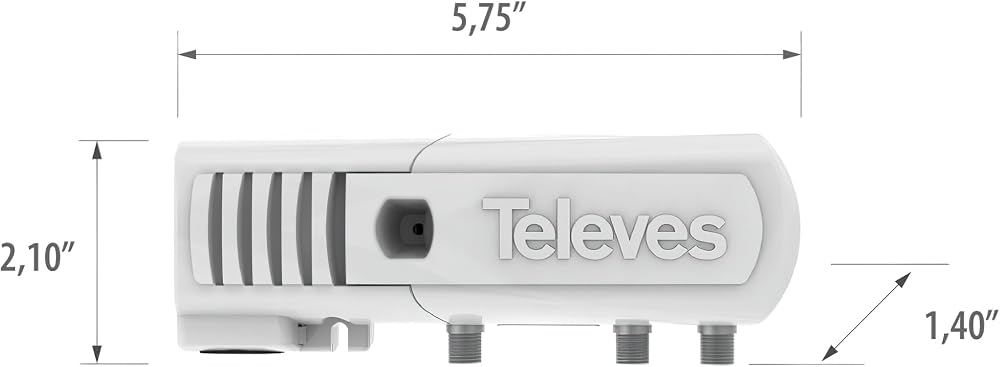

- Dimensions (W x H x D): 146 x 54 x 35 mm (5.75 x 2.13 x 1.38 in)
