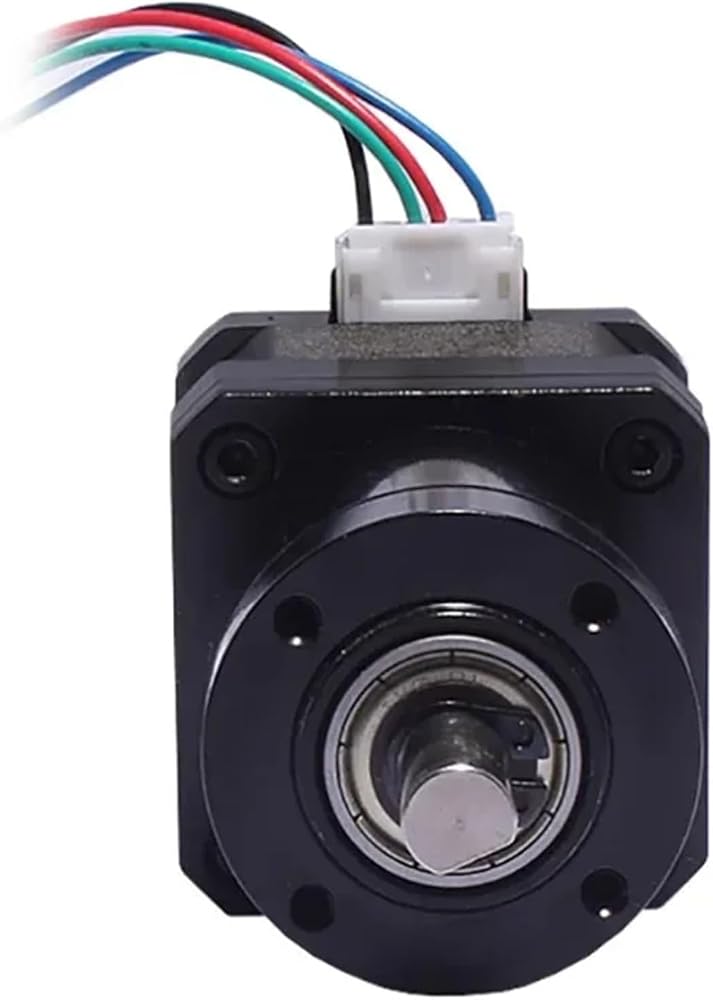

Nema17 Planetary Stepper Motor SK4234 SK4248 0.28N.M .55N. Current 1.7A Step Angle .8 °(Ratio5.18 to 1) in Kuwait

Nema17 Planetary Stepper Motor SK4234 SK4248 0.28N.M .55N. Current 1.7A Step Angle .8 °(Ratio5.18 to 1) Sk4234 Ratio13.7 to 1

KWD 49
ماركة
RNOWIU6F0
اللونSk4234
مقاسالنسبة 13.7 إلى 1
– 1 +

مميزات خاصة

  • Motor
  • Motor

وصف

Motor
==========
Output shaft method:single output shaft
Motor current:1.7A
Step angle:1.8 °
two-phase
Output method:default shaft diameter of 8mm+single flat wire
Name:42 stepper motor reducer
Step accuracy:5%
Model:SK4234/SK4248
Environmental temperature:-40 ~+50
Insulation resistance:100M500V DC
Supporting drive:DM542 or TB6600 (purchased separately)
Voltage withstand:500V AC1MIN
Insulation level:B
Surface temperature:80 MAX (at rated current)
42 Stepper motor wiring diagram:
Black line A+, green line A -, red line B+, blue line B-
Model:SK4234Torque:0.28N. mMotor length:34mm
Model:SK4248Torque:0.55N. mMotor length:48mm
