SMART SENSOR Lux meter is widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.
1. Mini lux meter with stable, safe and reliable measurement.
2. Wide measurement range 0-200,000 lux and automatic/manual range shift.
3. Measuring unit is switchable: Lux or FC.
4. MAX / MIN / Data Hold functions, high accuracy.
5. LCD display with backlight for easy operation in darkness.
6. Low battery indication & Auto power off energy saving
Brand Name
SMART SENSOR
Model
AS803
Color
Black
Material
ABS Plastic
Measuring Range
0200000 Lux
Resolution
1 Lux
Accuracy
5rdg±10dgts
Temperature Range
-10~50 / 14~122
Sampling Rate
1.5 times/sec
Measurement Repeatability
±2%
Operating Temperature
0-50 (80%RH non-condensing)
Storage Temperature
-10-50 (70%RH non-condensing)
Power Supply
3 * 1.5V AAA Batteries (Not Included)
Item Size
16.5 * 5 * 2.7cm / 6.50 * 1.97 * 1.06in
Item Weight
86g / 3.03oz
Package Size
22 * 14.5 * 3.2cm / 8.66 * 5.71 * 1.26in
Package Weight
122g / 4.30oz

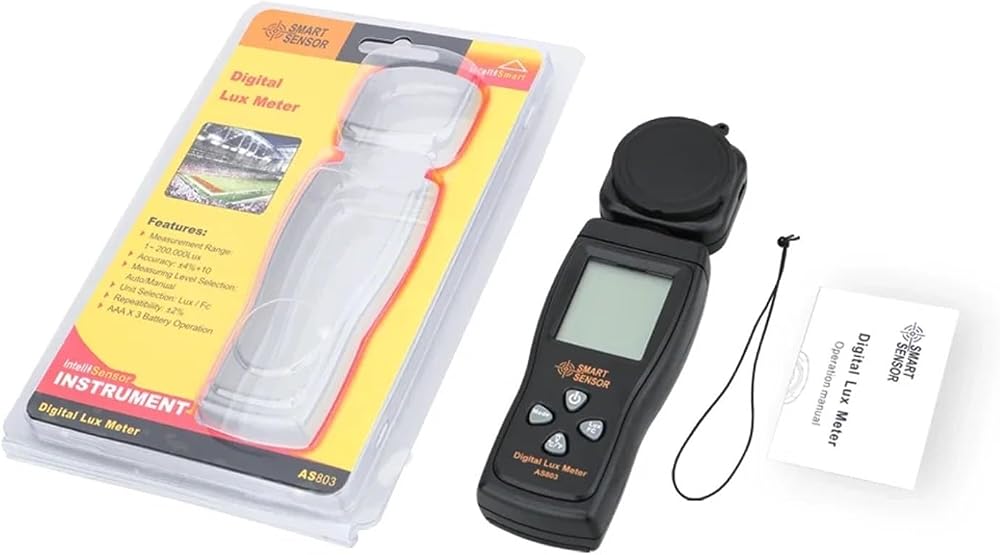

Packing Contents
1*Digital Lux Meter 1*String 1*user Manual
Operation Instruction

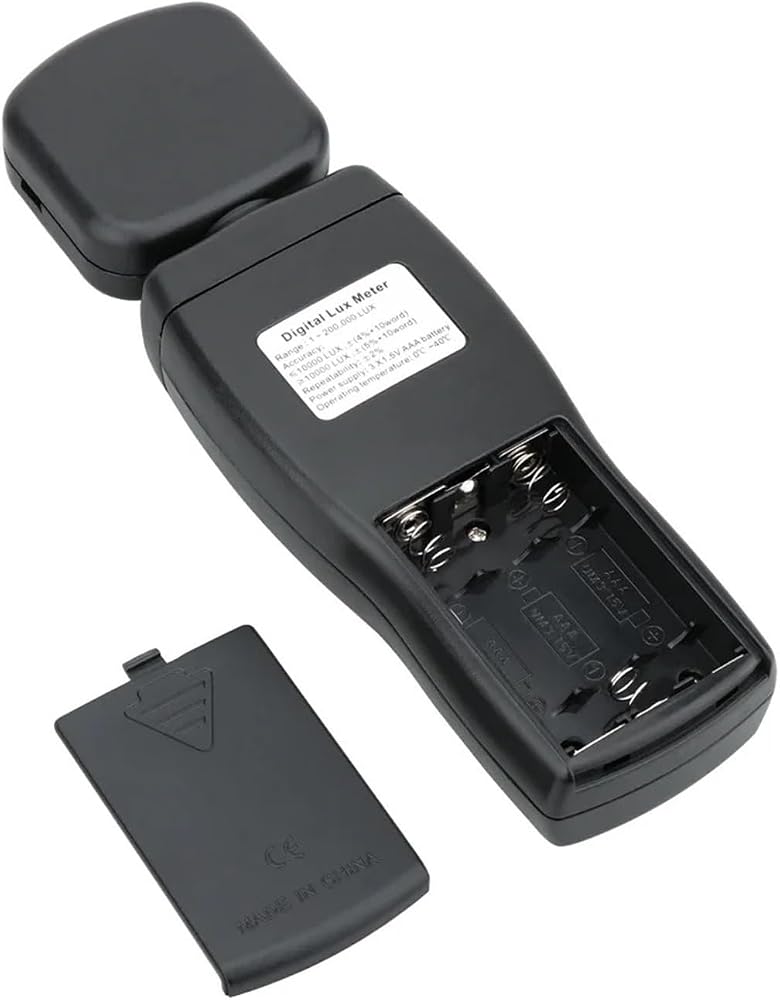

Open the battery door. Install 3*AAA Batteries.

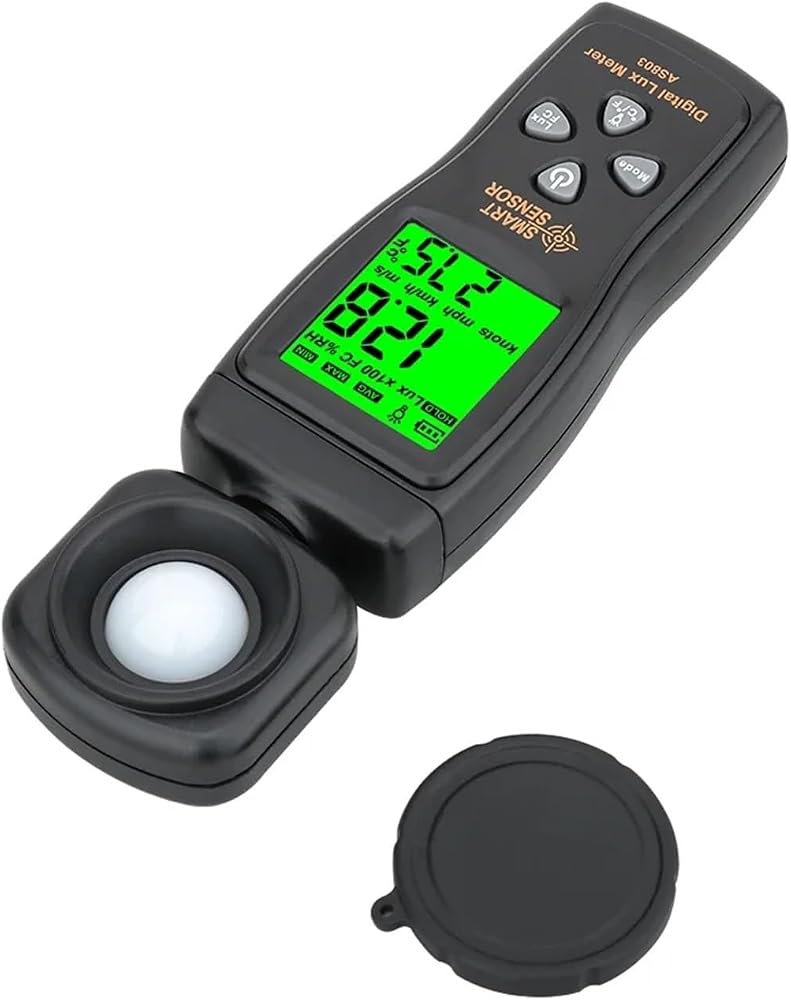

Take off the sensor cover. Depress the power button to start the light sensing measurement.
To press "mode" button, to select Max/Min/Hold Function.
The backlight will be turn on/off by depress the power button.
The unit could be turn off by depress light power button for 5 second, or the unit will be auto shut off in 5 minutes after use.
When the battery symbol is low. Please replace the batteries before further use.

Hign-concerned Chemical : None
Measure Type : J
Screw : M12*1.5
Cable Length : 1m
Type : K
Theory : Luminance tester
Display Type : DIGITAL
Power Type : AAA Battery

Model Number : AS803
Display Size : 1.9 Inches & Under

Max Measuring Temperature : 49°C & Under
Style : Handheld
Usage : Industrial
Is Smart Device : no
Measuring Range : 1~200.000lux
Accuracy : ±5%rdg +-10
Unit Selection : lux / FC
Measure Selection : Auto
Repeatability : ±2%
Sampling Frequency : 2 time/seconds
Resolution : 1lux 0.1°C
Data Hold Function /Backlight Display : yes
Max/Min Measuring/Auto Power Off : yes
Power Supply : 3*1.5V AAA battery (not include)
Digital Lux Meter : Brightness Detector
