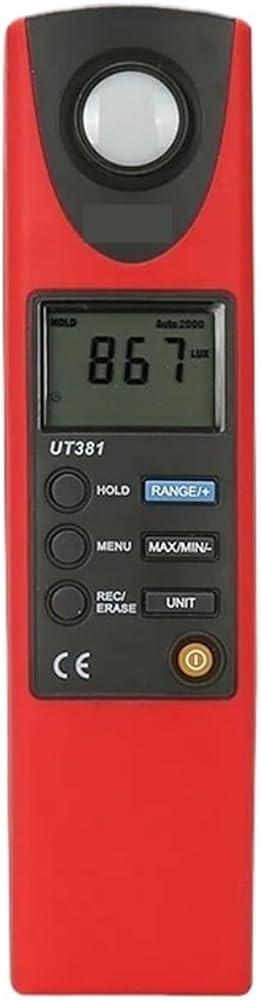

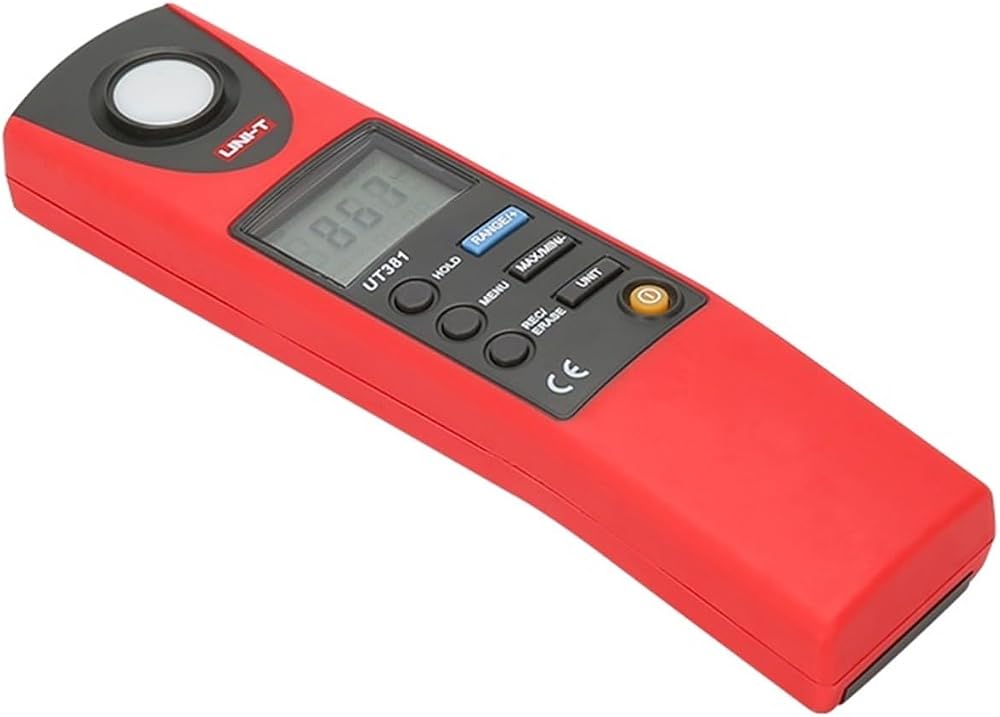

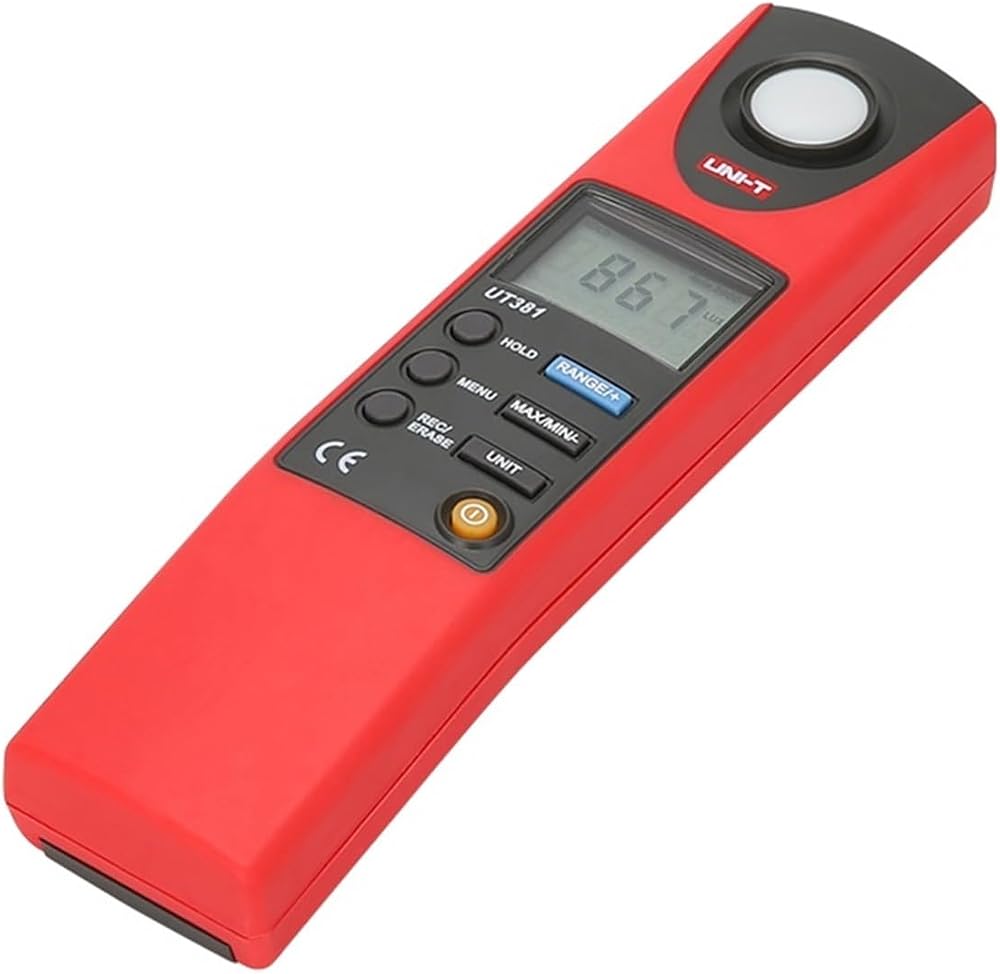

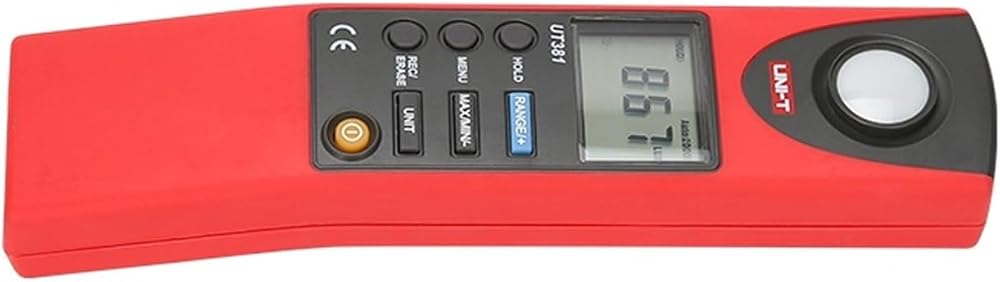

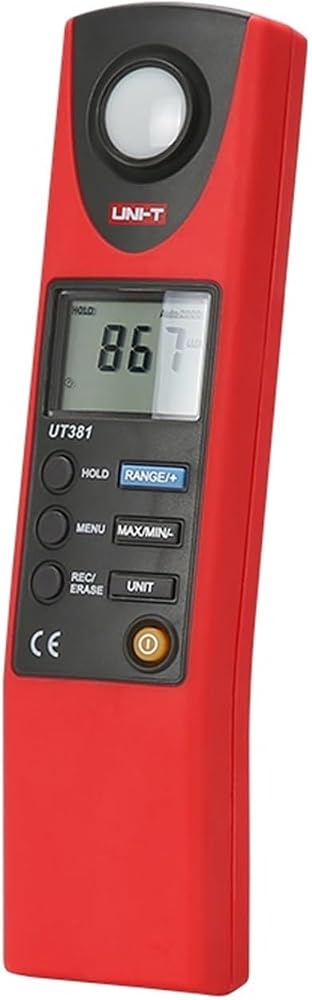

UT381 Light Meter
UT380 series light meters measure light intensity and display results in Lux or FC. It has a high sampling rate of 100/s.
UT380 series' low power consumption allows up to 200 hours of continuous operation. Results can be stored within the device and transfered to PC for further analysis, printing and storage.
Features
1. Auto/manual range, data hold
2. Auto power off (cancelable)
3. MAX/MIN modes
4. 2044 sets data storage
5. Displays time and adjustable record intervals (0.5~255s)
6. Restore to default mode
7. Lux/FC selectable
Models & Comparison
Specifications
Resolution
UT381
UT382
Illuminance measurement Lux
20 Lux
3+20)
±(3%+20)
200 Lux
±(3%+8)
±(3%+8)
2000 Lux
±(3%+8)
±(3%+8)
20000 Lux
±(3%+8)
±(3%+8)
Illuminance measurement (Fc)
2 Fc

20 Fc

200 Fc

2000 Fc

Features
Display count
2000
2000
Auto range

Data hold

Auto power off
Around 10 minutes

Low battery indication
Around 7.1V

MAX/MIN mode

Data storage
2044
2044
USB interface

Auto record time setup

Real-time clock

General Characterisitics
Power

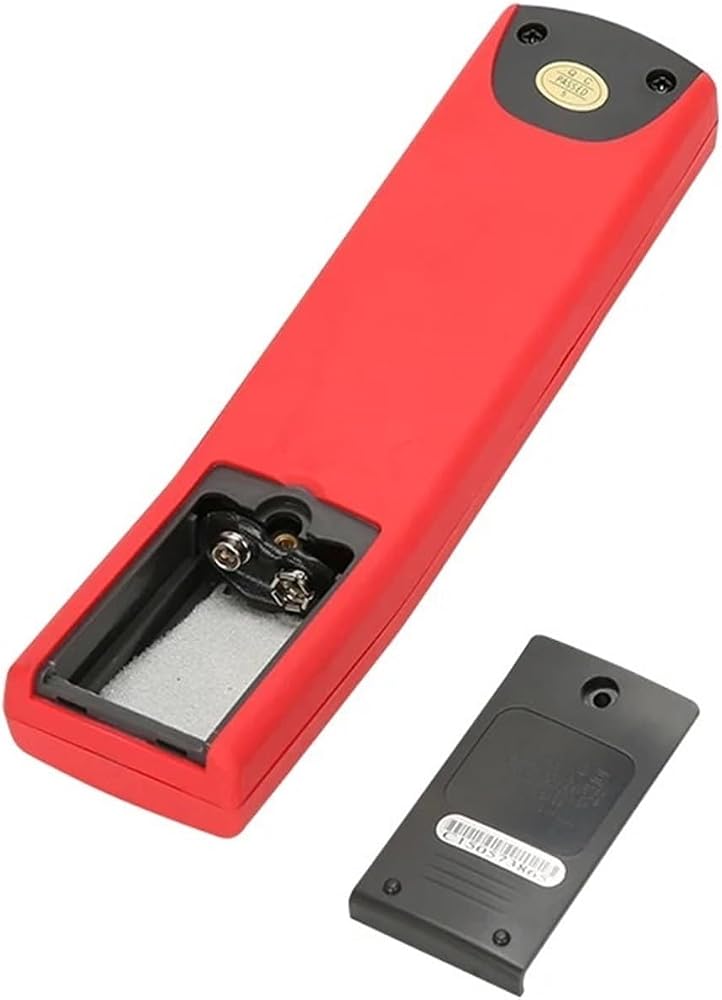

9V battery (6LF22)
Display
22.5mm x 32.5mm
Product color
Red and grey
Product net weight
185g
Product size
195mm x 45mm x 26mm
Standard accessories
Carrying bag, USB interface cable (UT382), PC software CD (UT382)
Standard individual packing
Blister, gift box, English manual
Standard quantity per carton
20pcs
Standard carton measurement
447mm x 300mm x 335mm
Standard carton gross weight
7kg
==========
Model Number : UT381 UT382
Origin : Mainland China
Certification : CE
Illuminance measurement (Lux) : 20-20000 Lux
Illuminance measurement (Fc) : 2-2000 Fc
Display count : 2000
Auto range : YES
Data hold : YES
Auto power off : Around 10 minutes
Low battery indication : Around 7.1V
MAX/MIN mode : YES
Data storage : 2044
Auto record time setup : YES
Real-time clock : YES
Product net weight : 185g
Product size : 195mm x 45mm x 26mm
