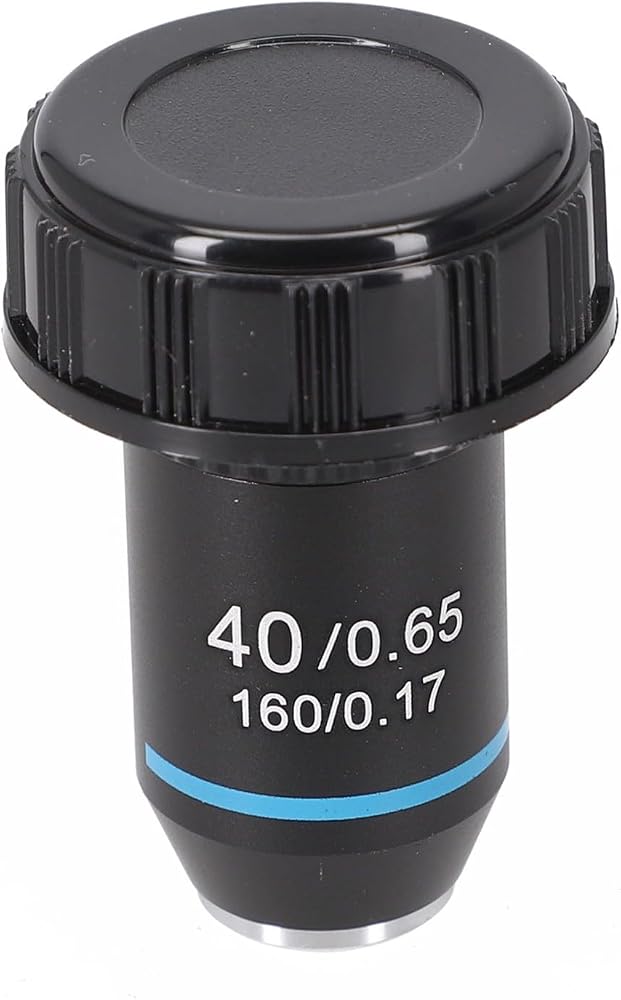

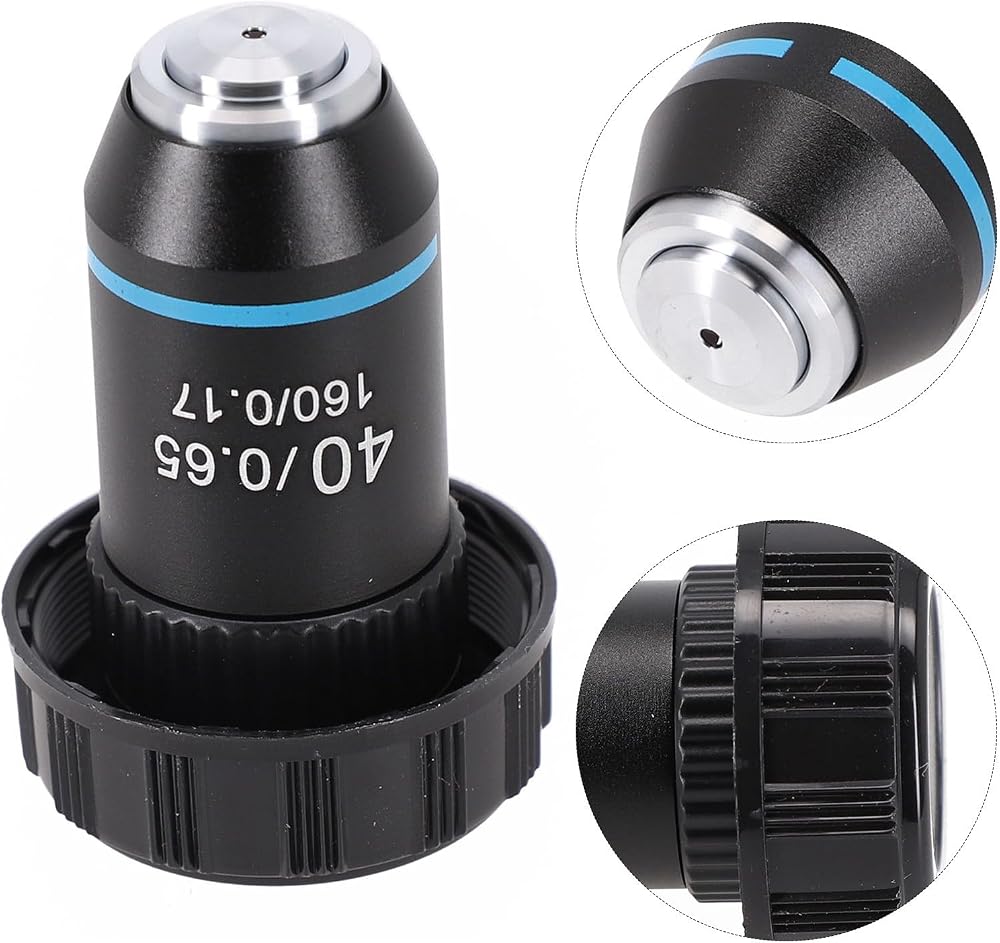

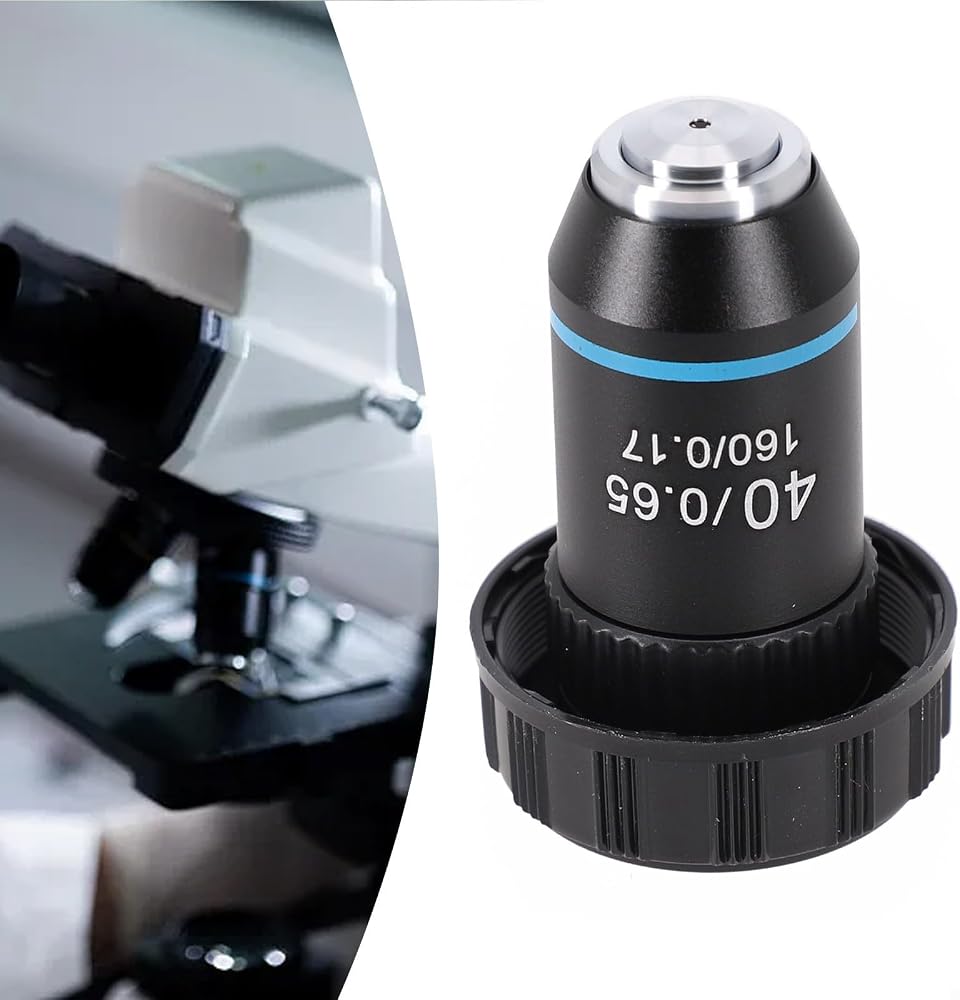

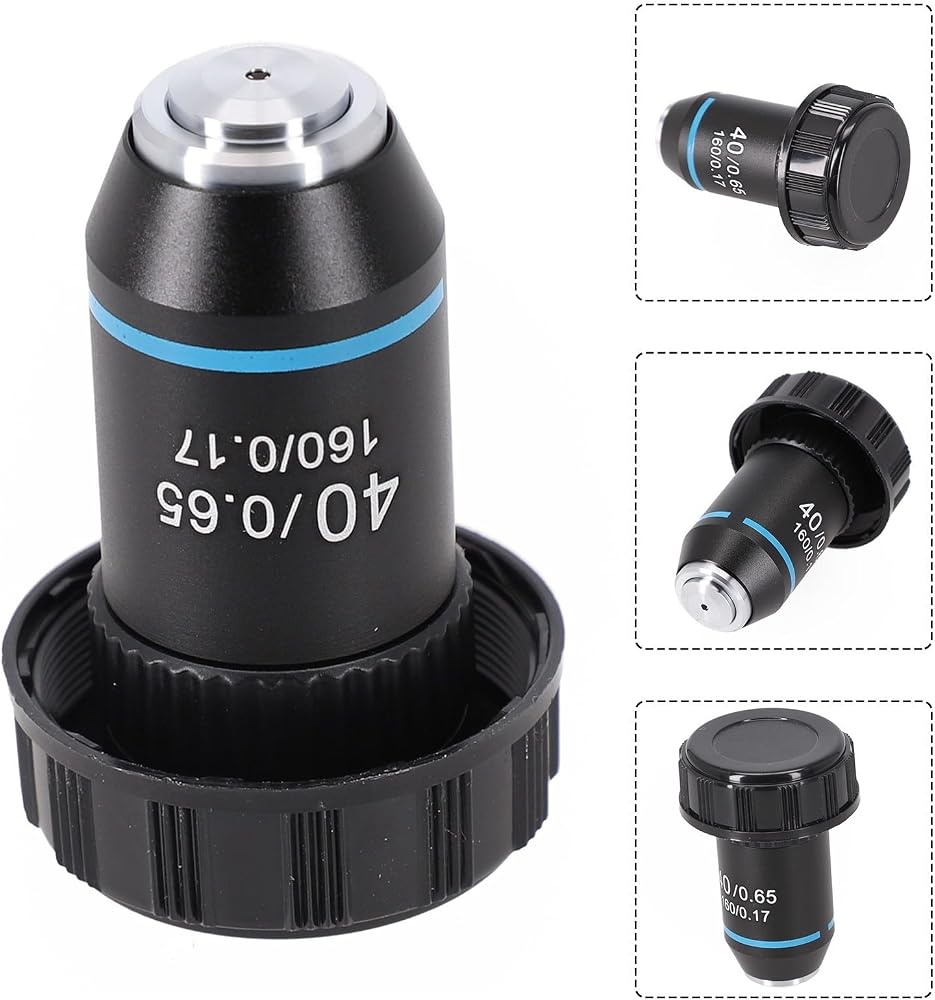

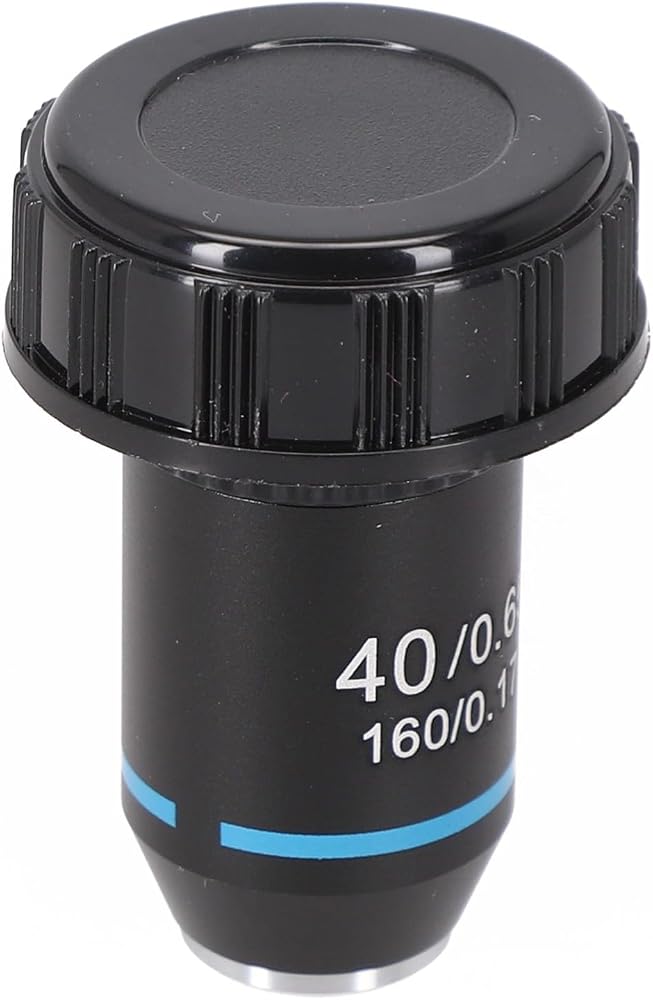

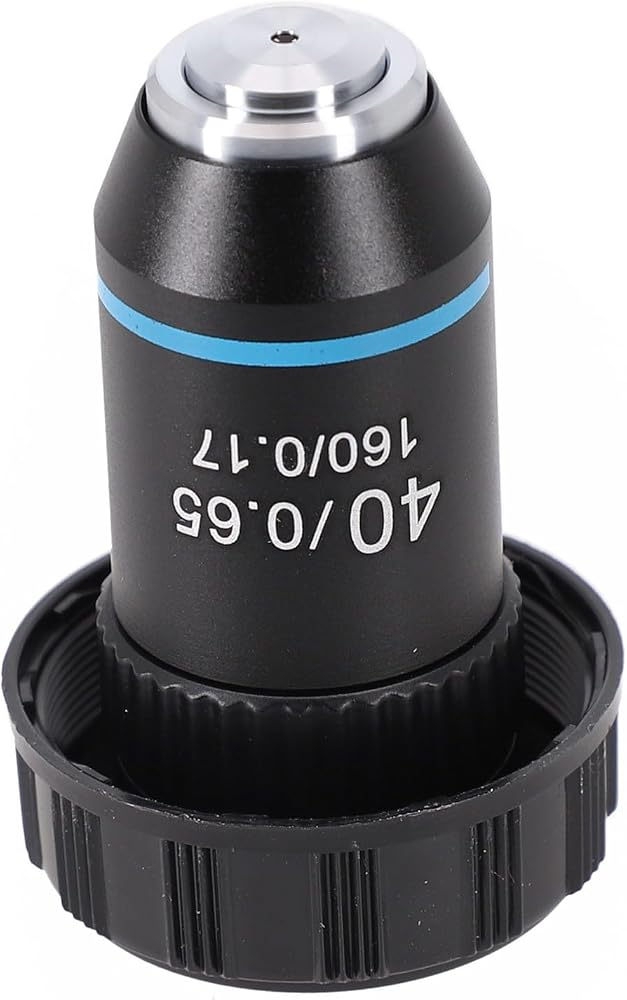

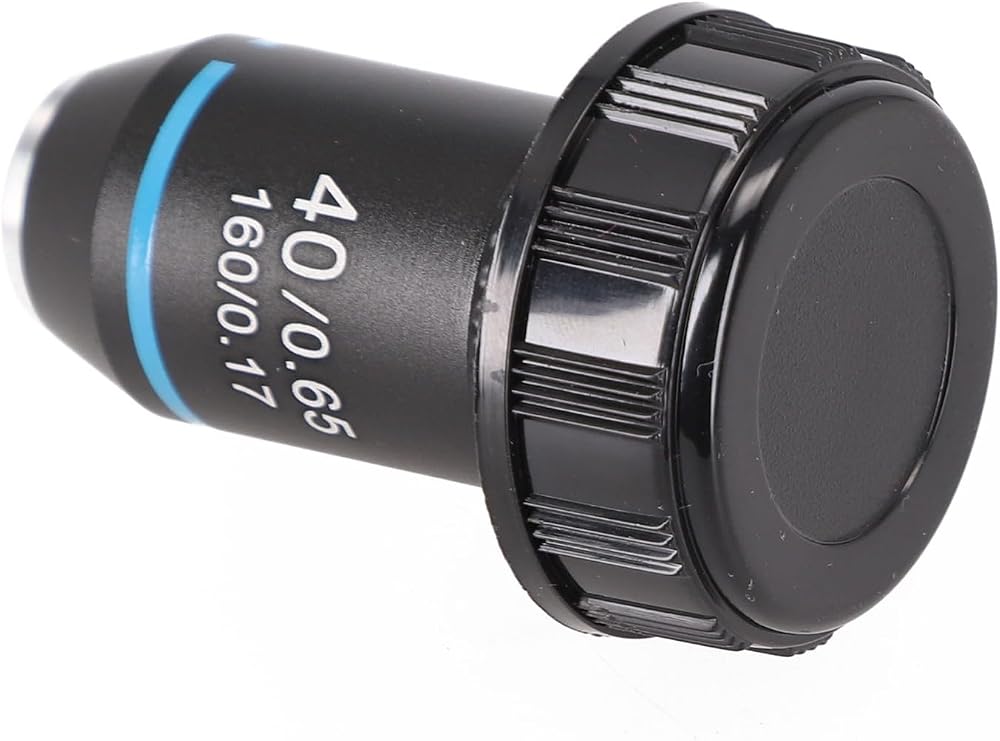

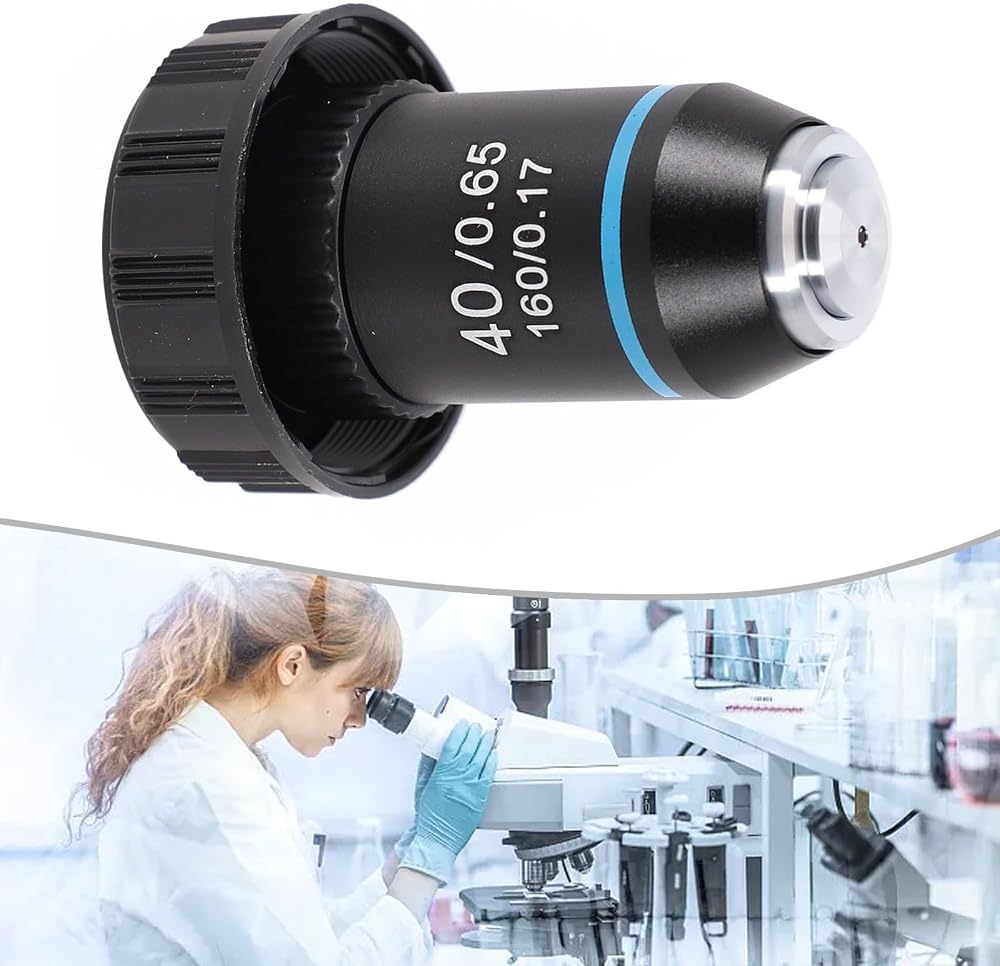

Microscope Objective Lens 20.2mm, RMS Thread Biological Lens Set, 4X 40X 100X Magnification, Oil Immersion Microscope Parts, Achromatic Lens For Lab Use, Copper Core Optical(40X)

KWD 6.500
Brand
Shophubio
Category
Microscopes
Weight
79 g
– 1 +

Special Features

  • 【 Objective Lens】The black achromatic objective lens in this 195 microscope set ensures performance.
  • 【Wide Range of Magnification】With 4X, , 20X, 40X, 60X, and 100X(S + oil) magnification options, this set covers a wide range of observation needs.
  • 【Standard RMS Interface】The objective lens features a standard RMS interface with a diameter of 2mm, making it compatible with most microscopes.
  • 【 Construction】Made with a copper core, this objective lens is built to deliver accurate and reliable results.
  • 【 Working Distances】Each magnification option in this set offers different working distances, flexibility and adaptability in microscopy applications.

Description

Black Achromatic Objective 195 Microscope Objective Lens RMS 20.2mm Objective Parts 4X 20X 40X 60X 100X

Function:
195 Microscope 20.2mm Objective Parts 4X 20X 40X 60X 100X

Features:
Interfaz estándar RMS = 20,2mm
For biological microscope
Standard cover glass thickness 0.17mm

Specification:
Type: Microscope Achromatic Objective Lens
Magnification: 4X//20X(S)/40X(S)/60X(S)/100X(S + oil)
Mount Size: 20.2mm
Standard RMS thread
Material: for copper core
Tube length: 160mm
4X: numerical aperture () 0.1; working distance 18mm
: numerical aperture () 0.25; working distance 7mm
20x (S): numerical aperture () 0.4; working distance 0.55mm
40X(S): numerical aperture () 0.65; working distance 0.53mm
60X (S): numerical aperture () 0.85; working distance 0.18mm
100X (S + oil): numerical aperture () 1.25; working distance 0.13mm

Packing list:
Objective lens*1
