1. [ACCURATE MEASUREMENT] Highly accurate light meter with accuracy of ±(4% + 10 digits) for reliable readings.
2. [VERSATILE USE] Perfect for photography, plants, factory and home, indoors or outdoors.
3. [SPLITLESS DESIGN] Available in integral or split type measurement methods for flexibility.
4. [FRIENDLY] Sampling rate of 2 times/s with 120° incident angle for efficient and accurate measurements.
5. [CONVENIENT STORAGE] Compact size and lightweight design for easy storage and carrying.
Specification:
This compact and flexible meter, measuring range up to 200,000 with Precision Machined, can be used indoor and outdoor for photography, plants, office, home, factory, etc.
Features:
【Multiple function】 Has the function of keeping reading data, displaying maximum or minimum value, automatic power off.
Wide measuring range: measuring range from 0.1 to 200,000 . Switchable measurement units: and Fc. Temperature range: -10 ~ 50 ℃ / 14 ~ 122 ℉.
【Easy to read】 The light meter has a large HD LCD screen (LCD screen size: 34mm × 31mm) to easily read the measurement results.
Lightweight and compact design: portable design and small size make the meter lightweight, easy to carry; The compact and ergonomic design makes the meter fit the hand perfectly, providing a comfortable grip feeling.
Wide application: widely used in lighting enterprises, breeding and breeding, mining enterprises, laboratories, offices, households, street lamp construction, cameras and studios, photography, etc.
Specifications:

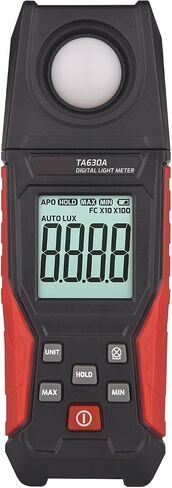

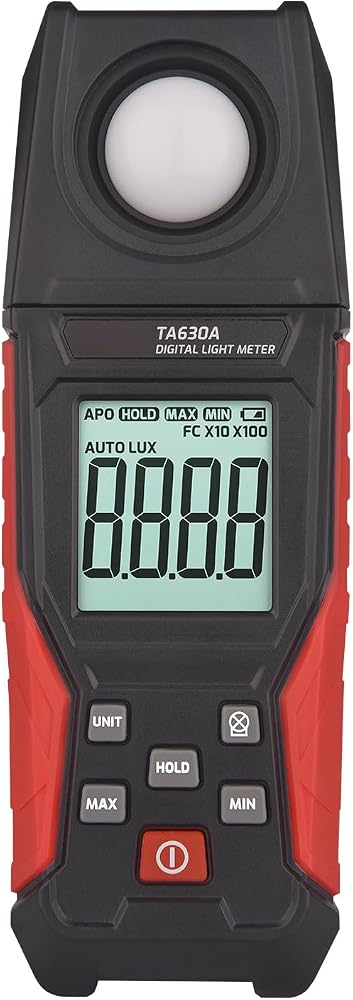

Model: TA630A, TA630B (optional)
Measuring method: integral type, split type (optional)
Material: ABS
Range: 0.1 ~ 200,000Lux/0.01 ~ 20,000Fc
Measuring level: 200/2000/20000/200000Lux
20/200/2000/20000Fc
Accuracy: ±(4% + 10 digits)
(calibrated under standard LED lamp at temperature color 2856°K)
Resolution: : <200: 0.1; ≥200: 1
FC: <20: 0.01; 20 ≤ FC<200: 0.1; HR ≥200: 1
Display: 4 digits, 1999
Light sensor: digital sensor with filter lens
Sampling rate: approx. 2 times/s
Incidence angle: 120°
Repeated test deviation: ± 2%
range: 400-700 nm
Working environment: -10 ~ 50 ℃, 80% RH, indoor altitude Storage environment: -10 ~ 50 ℃, 70% RH (battery removed)
Length: TA630B: approx. 1m
Screen size: 34 x 31 mm.
Power supply: 2 x 1.5V AAA (R03/LR03) (not included)
Item size: 167 * 59 * 34 mm / 6.57 * 2.32 * 1.34 inch
Item weight: 125g / 4.41oz
Package weight: 175g / 6.17 oz
Package size: 20 * 7.3 * 3.7 cm / 7.87 * 2.87 * 1.46 inch
Package list:
1 * digital light meter
1 * User manual (English)
