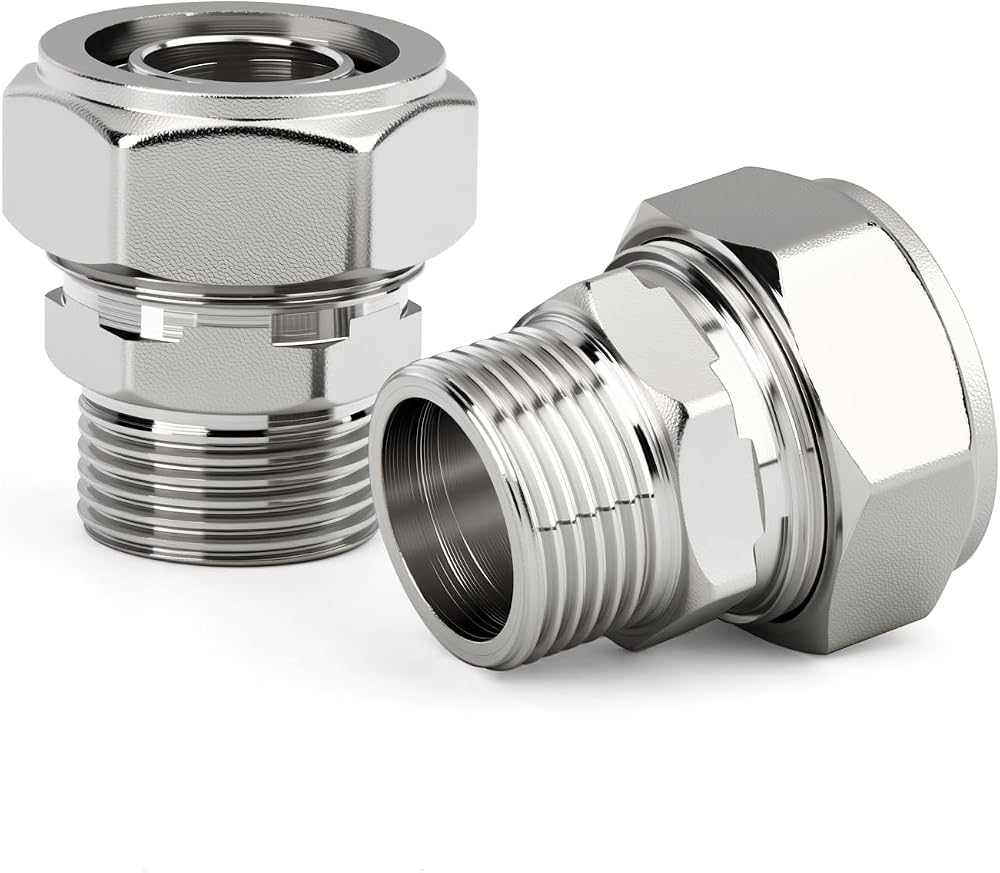

2PCS Straight Air Piping Fittings, 3/4" Tubing × 3/4" NPT Male, Double O-Ring Brass Nickel-Plated Tube Fitting for Shop Garage Compressed Air Tube System in Kuwait

قطعتان من وصلات أنابيب الهواء المستقيمة، أنابيب 3/4 بوصة × 3/4 بوصة NPT ذكر، حلقة دائرية مزدوجة من النحاس المطلي بالنيكل لنظام أنبوب الهواء المضغوط في المرآب 3/4 بوصة × 3/4 بوصة NPT ذكر

KWD 6.500
مقاسأنابيب 3/4 بوصة × 3/4 بوصة ذكر NPT
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Compression Style Design for Quick & Easy Connections: 3/4" Tubing × 3/4" NPT Male Straight fittings feature a compression-style design that allows for fast, simple connections. No gluing, soldering, or crimping required—simply tighten the nut for a secure seal.
  • Durable Nickel-Plated Brass Construction: Crafted from corrosion-resistant nickel-plated brass, these air line fittings are built for use in shop and garage environments. Engineered for long-lasting performance in compressed air systems.
  • Double O-Ring Sealing: Equipped with a double O-ring compression seal, these fittings provide reliable leak protection while allowing easy tubing removal when needed. Ideal for applications requiring maintenance or reconfiguration.
  • Pressure & Temperature Performance: Rated for 300 PSI max working pressure and operating temperatures from -65°F to 250°F.
  • Simple Installation: Bevel tubing with a reaming tool, place the nut and split ring onto the tubing, push fitting fully against the shoulder, then tighten nut finger tight plus 3/4 turn with a wrench.

وصف

Product features:
Crafted from corrosion-resistant nickel-plated brass, these air line fittings are built for use in shop and garage environments. Engineered for long-lasting performance in compressed air systems.
It has good strength and toughness and can withstand greater mechanical stress and impact.
For connecting industrial pipes or fittings with varying end types, diameters, or materials.
Product specifications:
Pipe Size: 3/4" Tubing × 3/4" NPT Male
Material :Brass-Nickel Plated
Maximum working pressure: 300 psi
Temperatures range: -65 to 250 degrees F
Simple Installation: Bevel tubing with a reaming tool, place the nut and split ring onto the tubing, push fitting fully against the shoulder, then tighten nut finger tight plus 3/4 turn with a wrench.
PTFE Tape: Used on threaded connections to help prevent leaks and improve seal reliability.
Packaging content:
2 x Straight Air Piping Fittings
1 x PTFE Tape (Thread Seal Tape)
