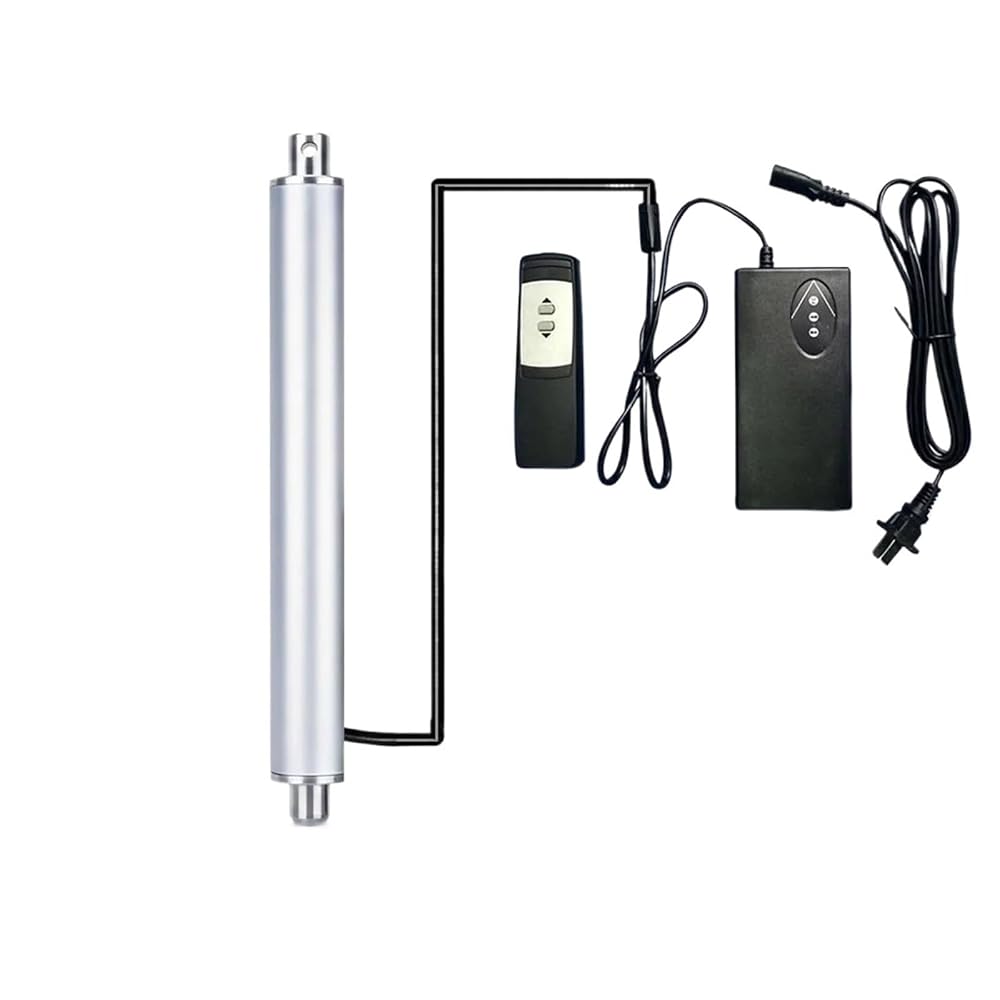

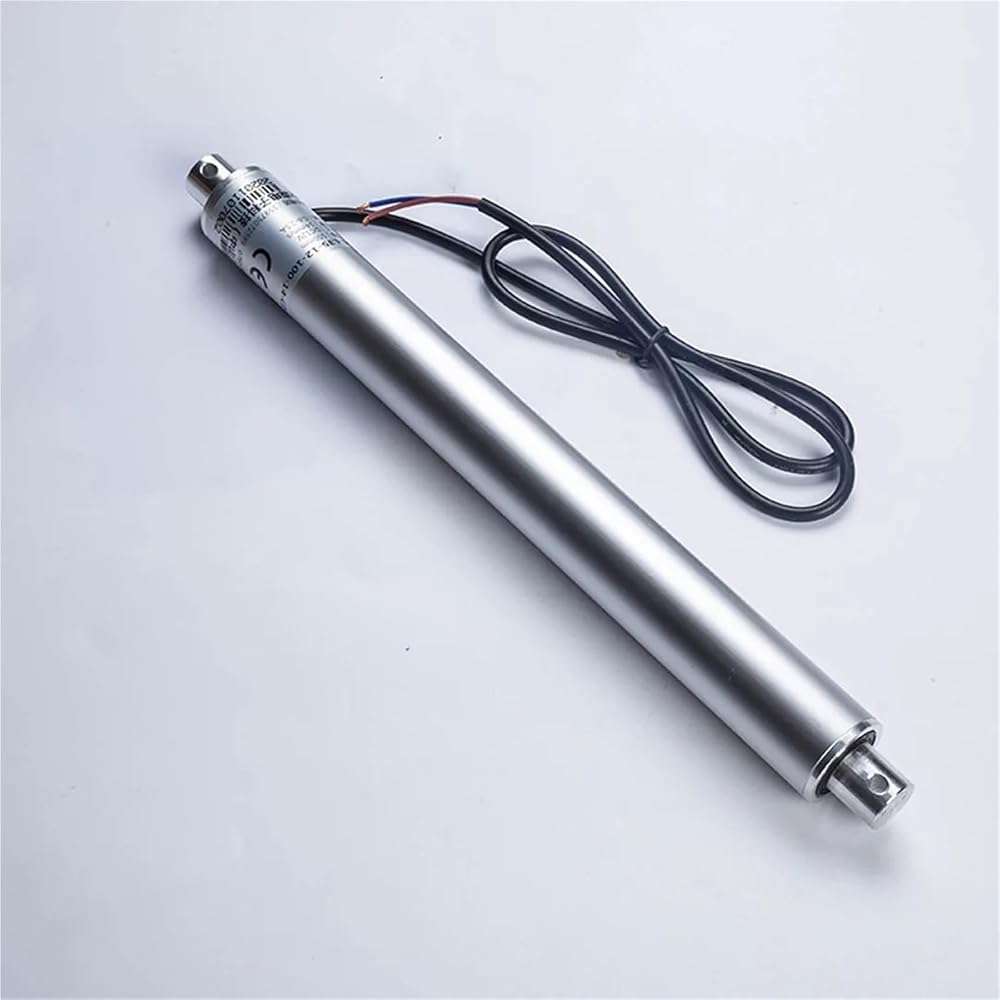

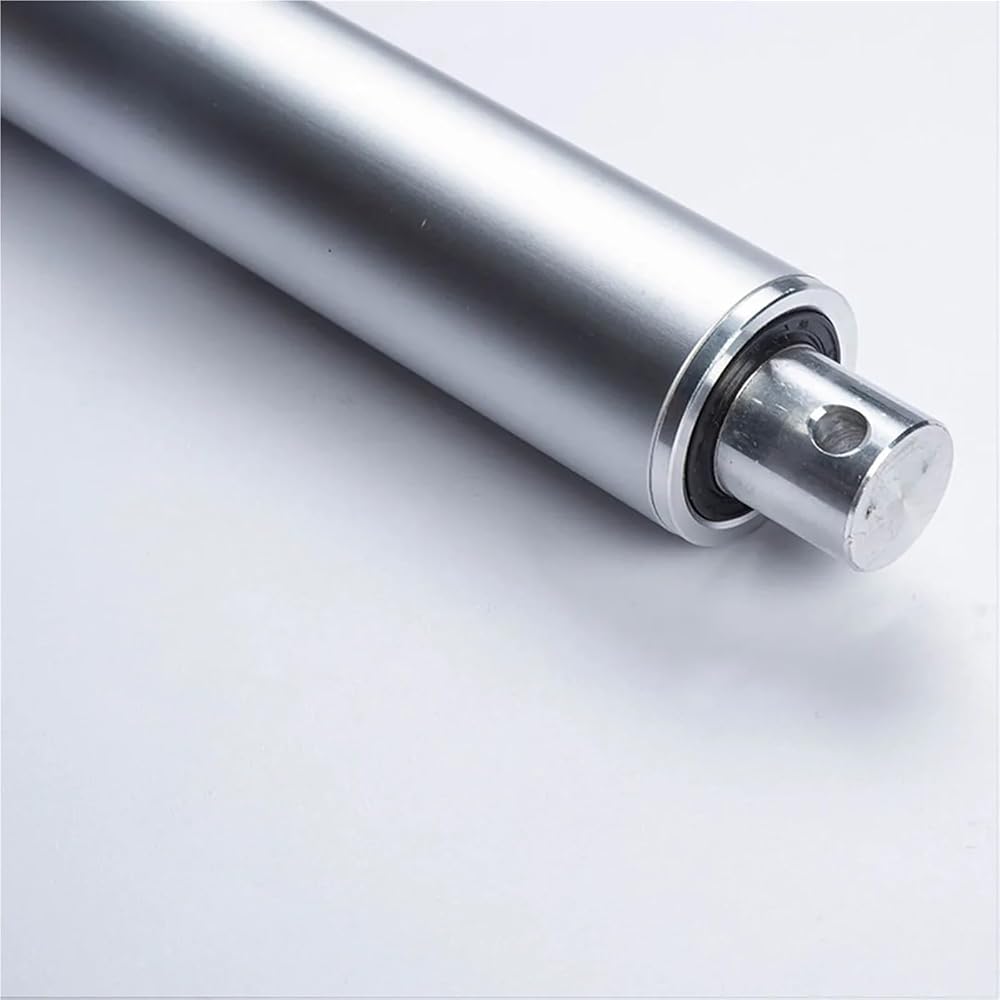

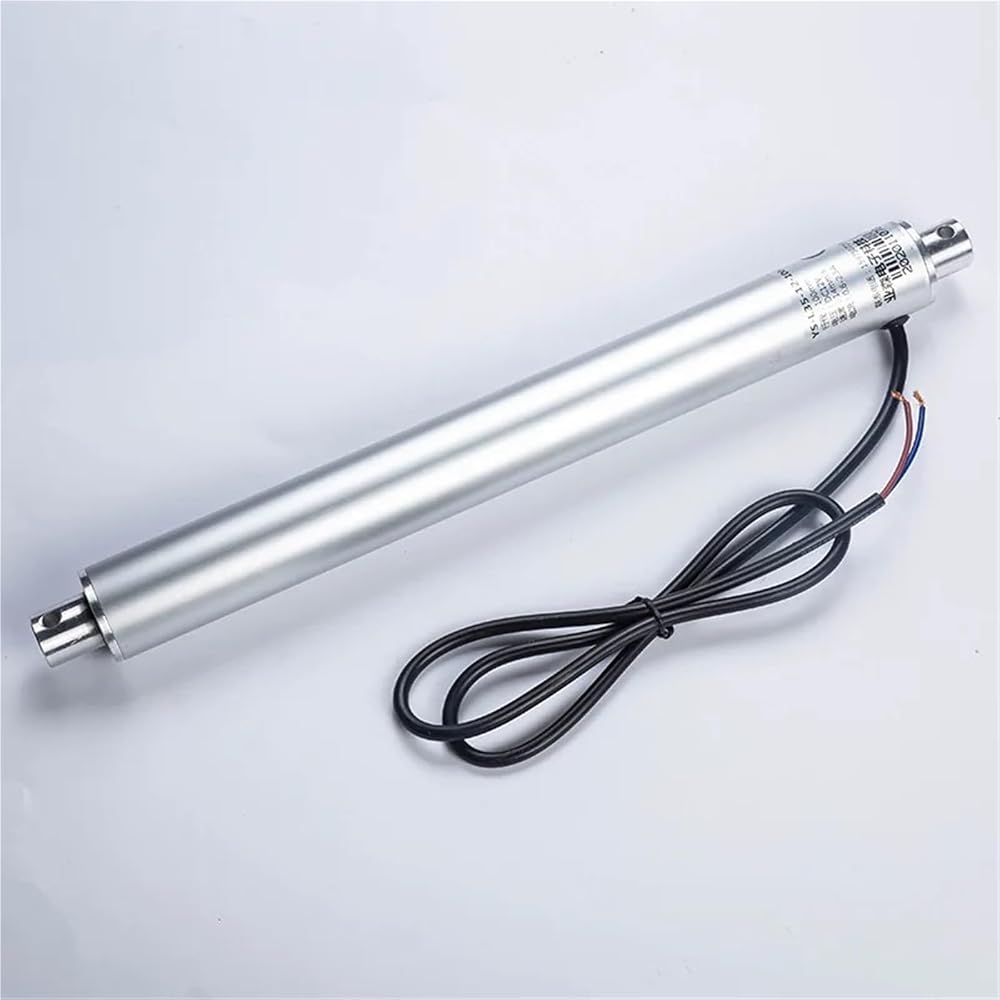

Linear Motion Guide Actuators
Rated Voltage: DC 24V
Maximum Load: 1500N (150kg)
Travel Speed: 15mm/s
Stroke Lengths: 50mm - 1000mm (Customizable options)
External Diameter: 35mm (Slim Pen Design)
Installation Distance L 253mm + Stroke (±2mm)
Working Temperature: -20°C to +70°C
[Intelligent Controller Features]
Wide Input Voltage: AC 110V / 220V (Global Compatibility).
High Power Output: DC 29V 5A (Up to 120W peak)..

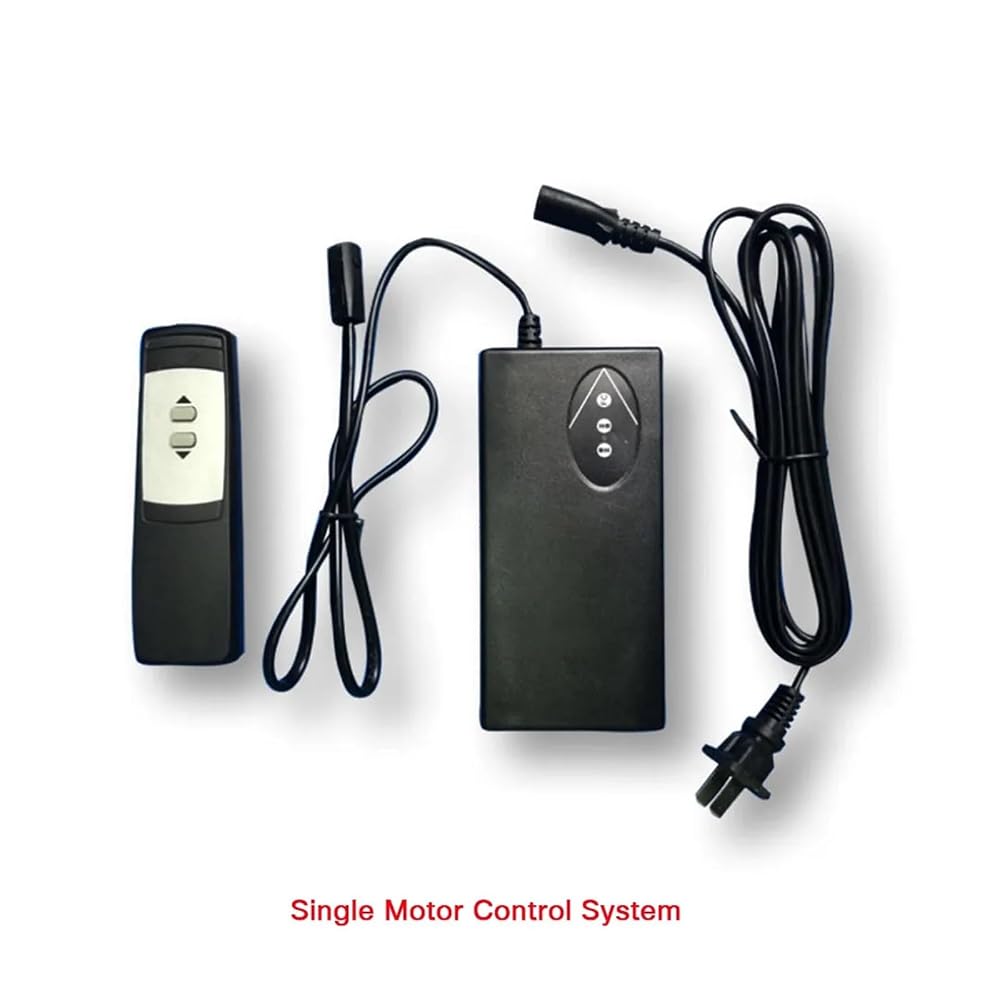

Power Supply with Remote Controller
Input voltage: AC 110V / 220V 50Hz/60Hz
Maximum output voltage: 29V DC
Maximum output current: 5A
Maximum output power: 120W
Control mode: Lock/Non-lock(Standard)
Motor plug: 2-core plug
Power plug: 2-core 8-shaped plug
Working cycle: 10% (2min for work and 18min for rest)
Maximum drive motor: 1 or 2
==========
High-concerned chemical :
Output Power : 37.5-74.6(include74.6)
Torque : Max Load:1500N(DC24V)/1200N(DC12V)
Model Number : SL-LA-35-R
Continuous Current(A) : 2A
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation :
