Attenuators

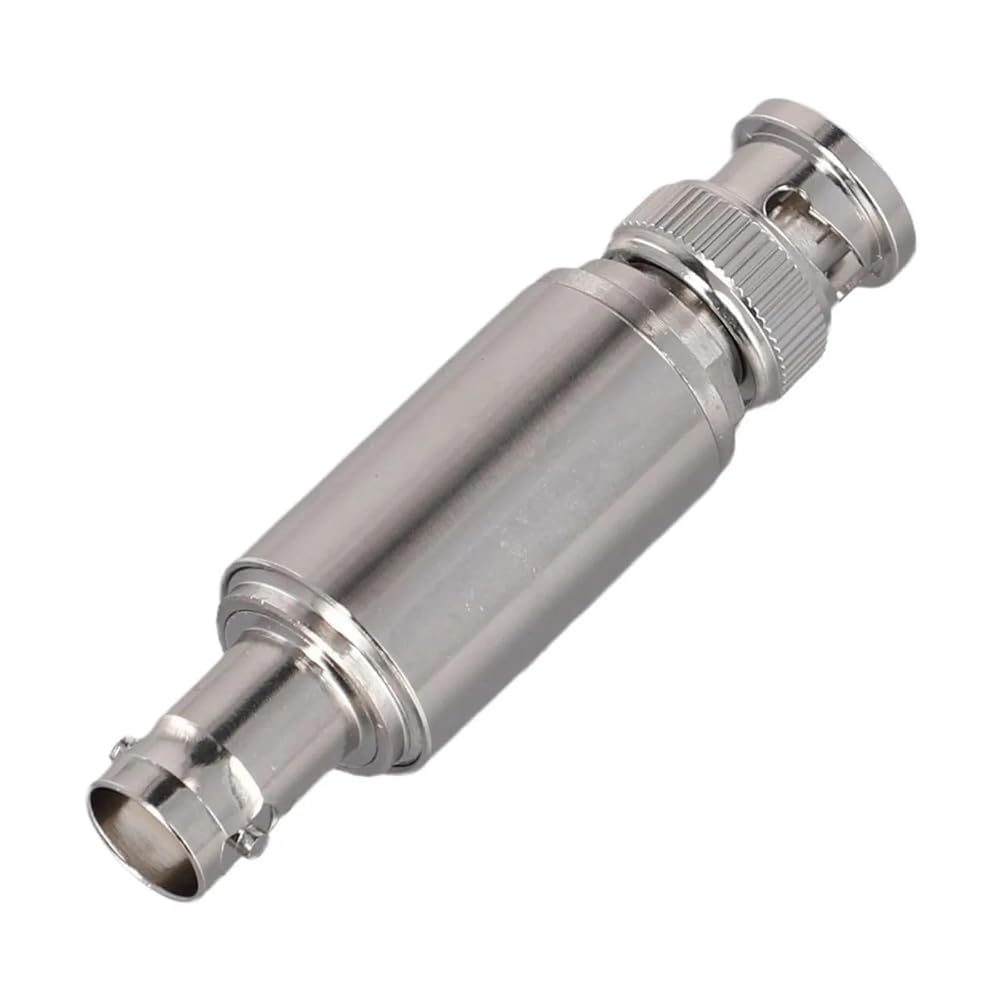

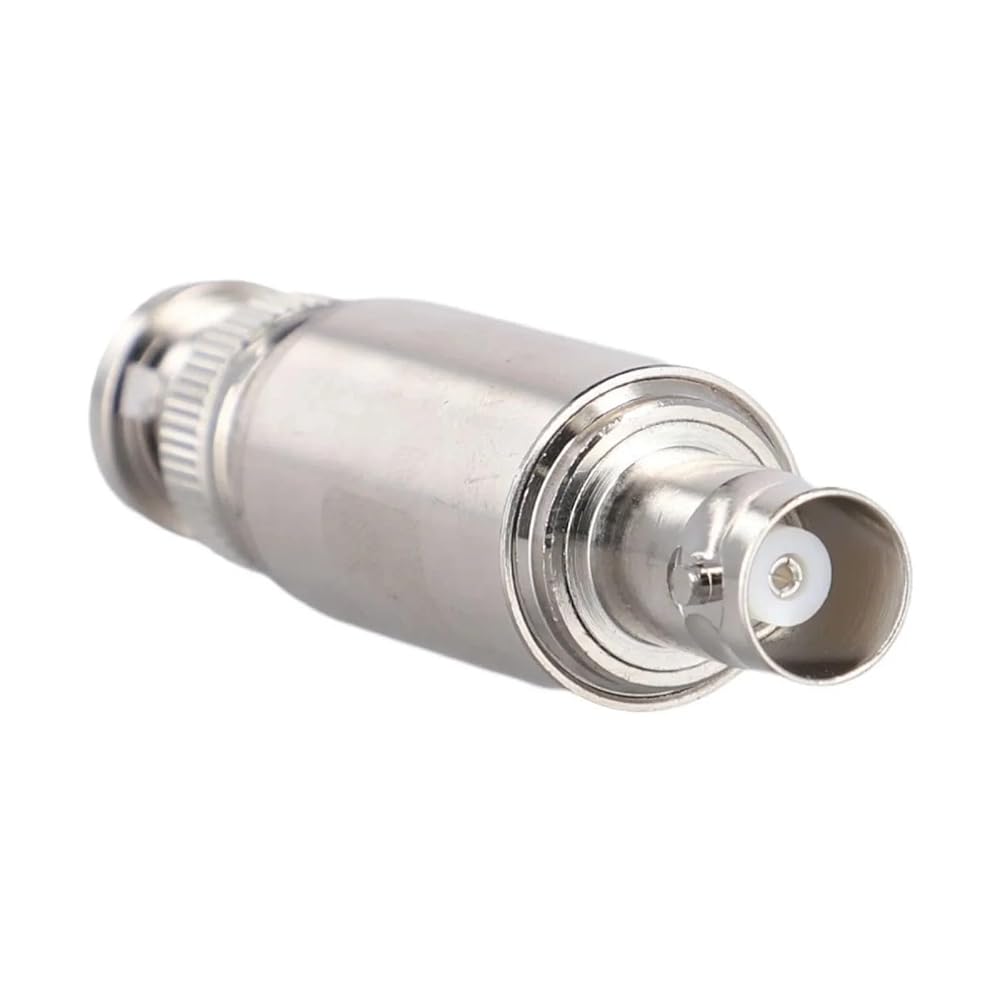

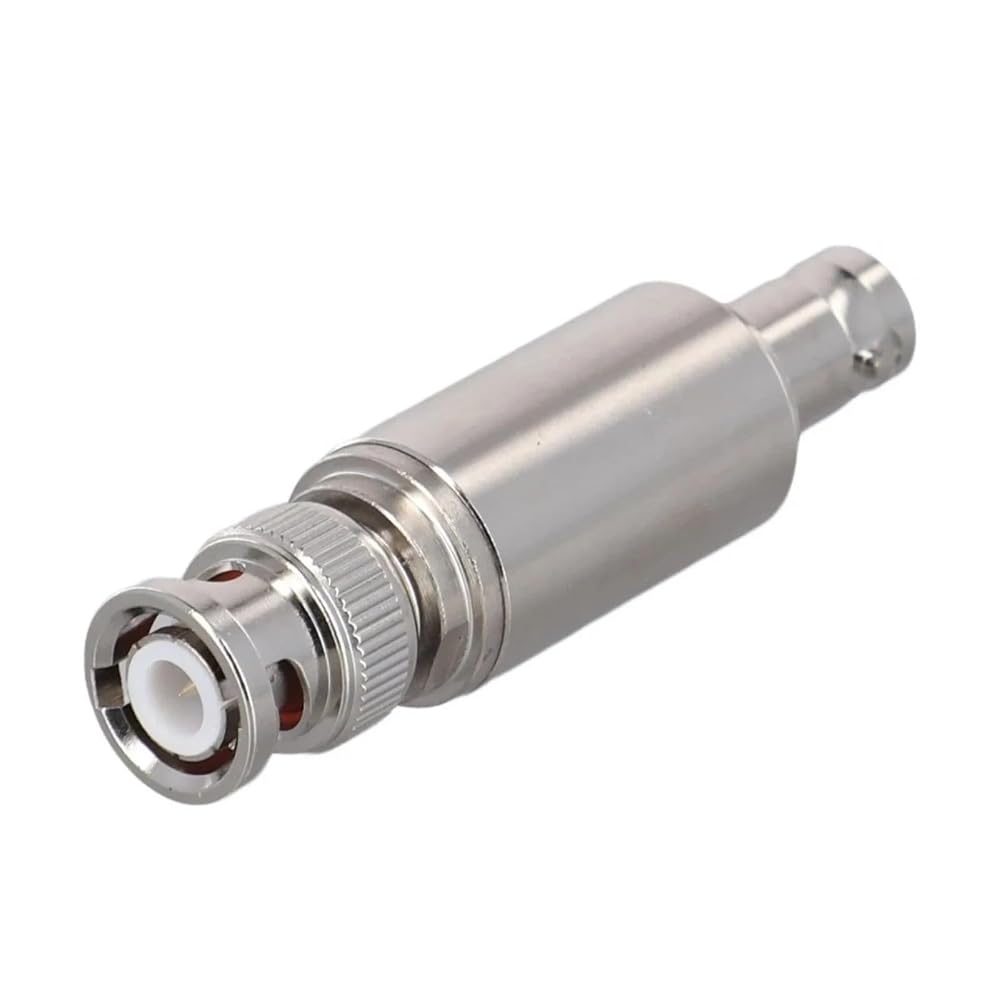

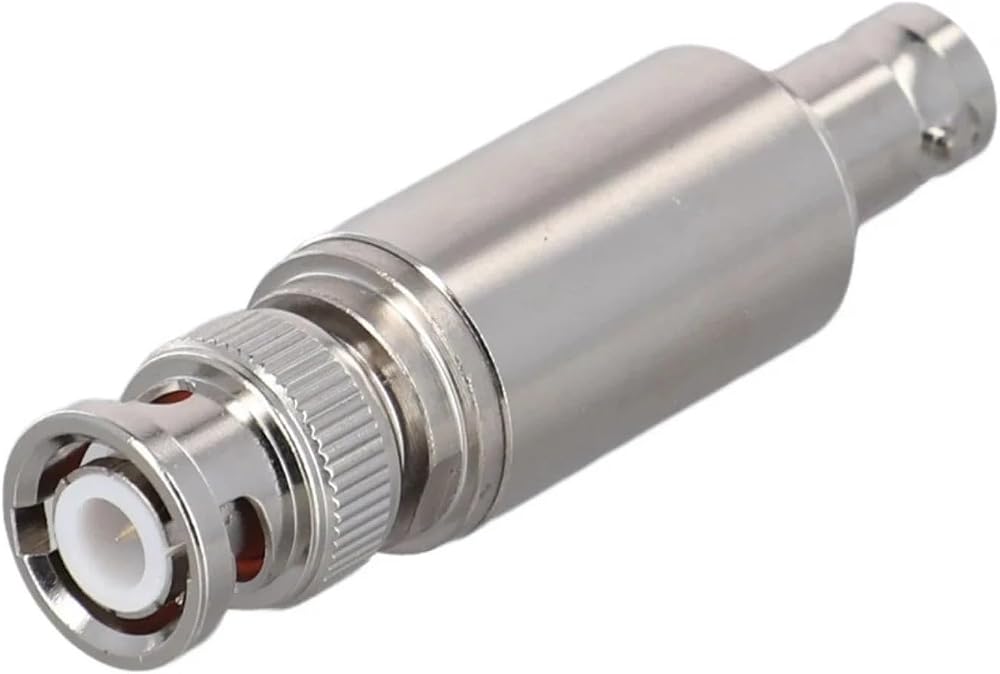

2W BNC-JK Attenuator
Power: 2W
Connector: BNC-JK
Frequency Range: DC-3GHZ/4GHZ
Attenuation: 1,2,3,5,6,10,15,20,30dB available, and 1-10dB.±0.5dB,15-40dB±1dB
VSWR (MAX): 1.2:1
Impendance: 50
Temperature Range: -55°C to +125°C
Dimension: 17*59.5mm
Weight: 63g
2W BNC-JK RF 3GHZ/4GHZ Attenuator is widely used in below fileds:
-----------------------------
==========
High-concerned chemical : None
Model Number : BC-AT02-05
Voltage : None
Origin : Mainland
Certification :
Power Rating : 2W
Connector : BNC-JK
Frequency Range : DC-3GHZ/4GHZ
Attenuation : 1-40dB available, and 1-10dB.±0.5dB,15-40dB±1dB
VSWR (MAX) : 1.2:1
Impendance : 50
Temperature Range : -55°C to +125°C
