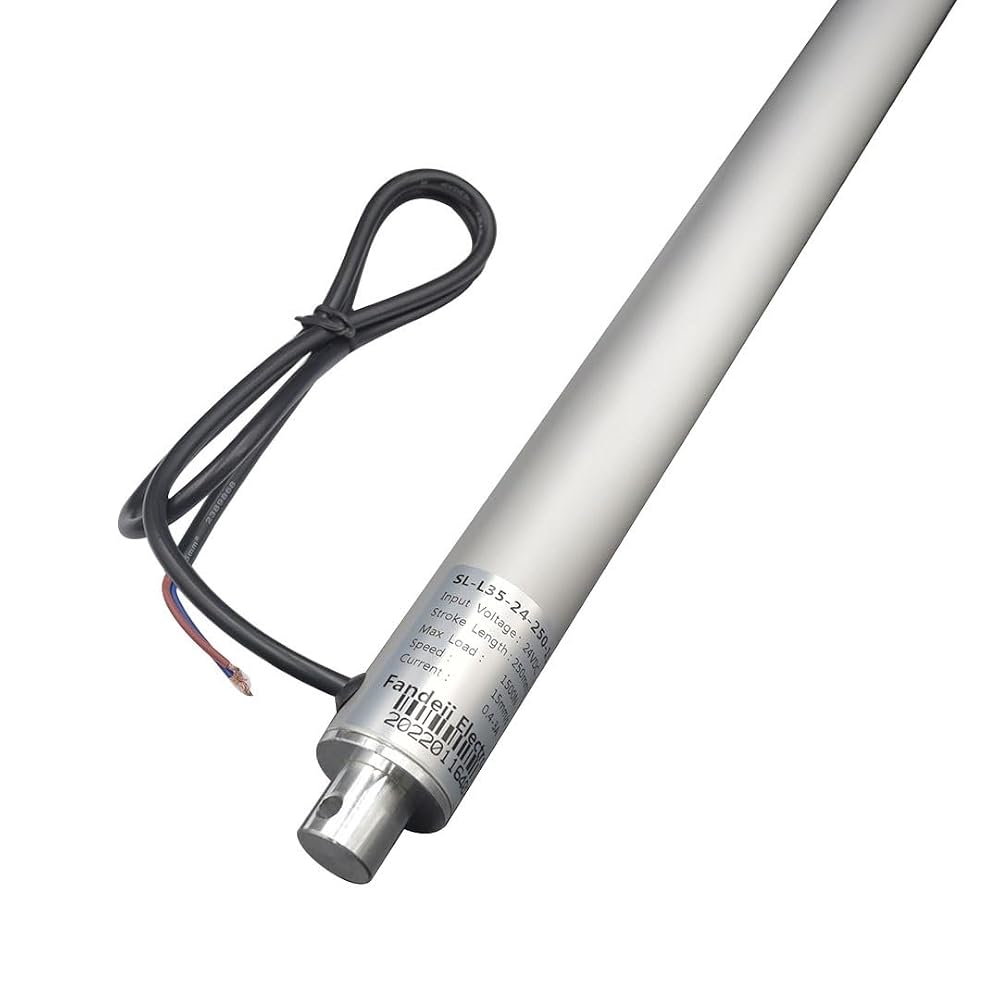

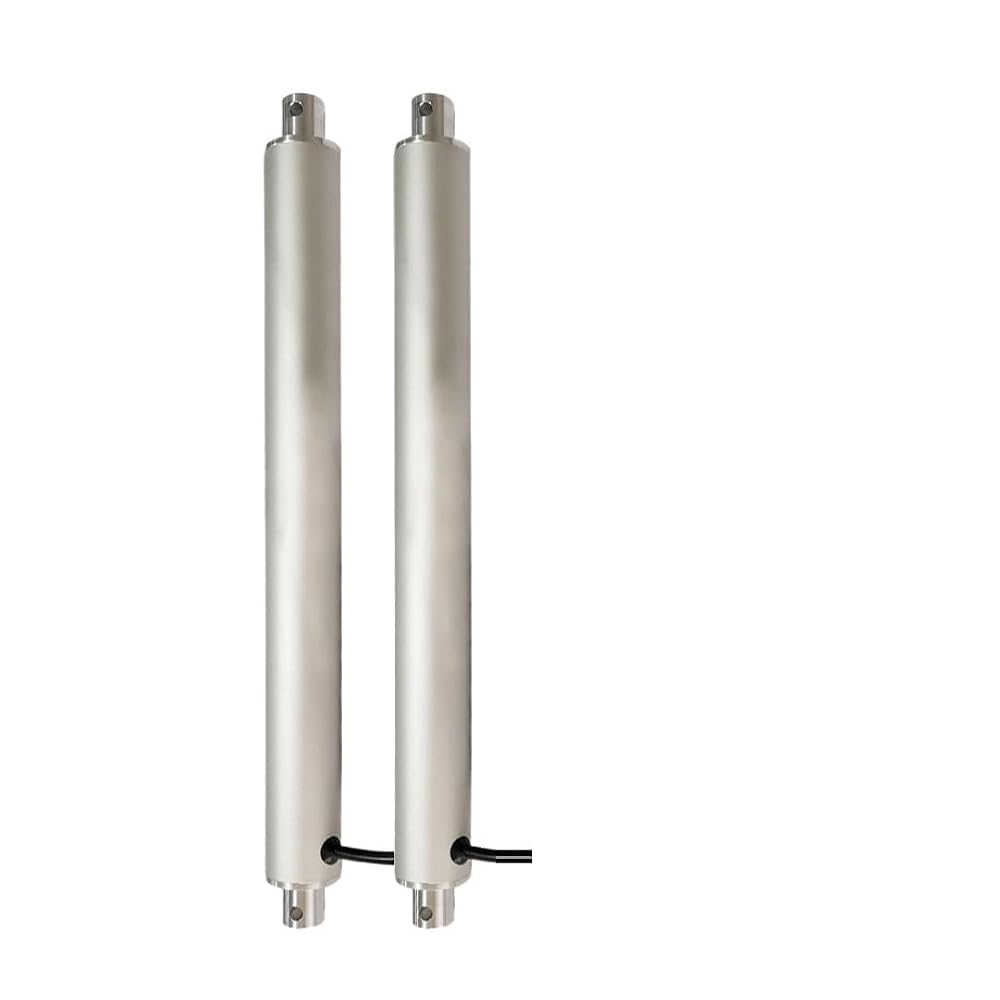

Linear Motion Guide Actuators
Product Description
More info:
Voltage: DC12V,24V
Limited switch: built-in
Stroke: 50mm-350mm
Max Load:1500N(DC24V)/1200N(DC12V), 100N-2500N(option)
Protect grade: IP56

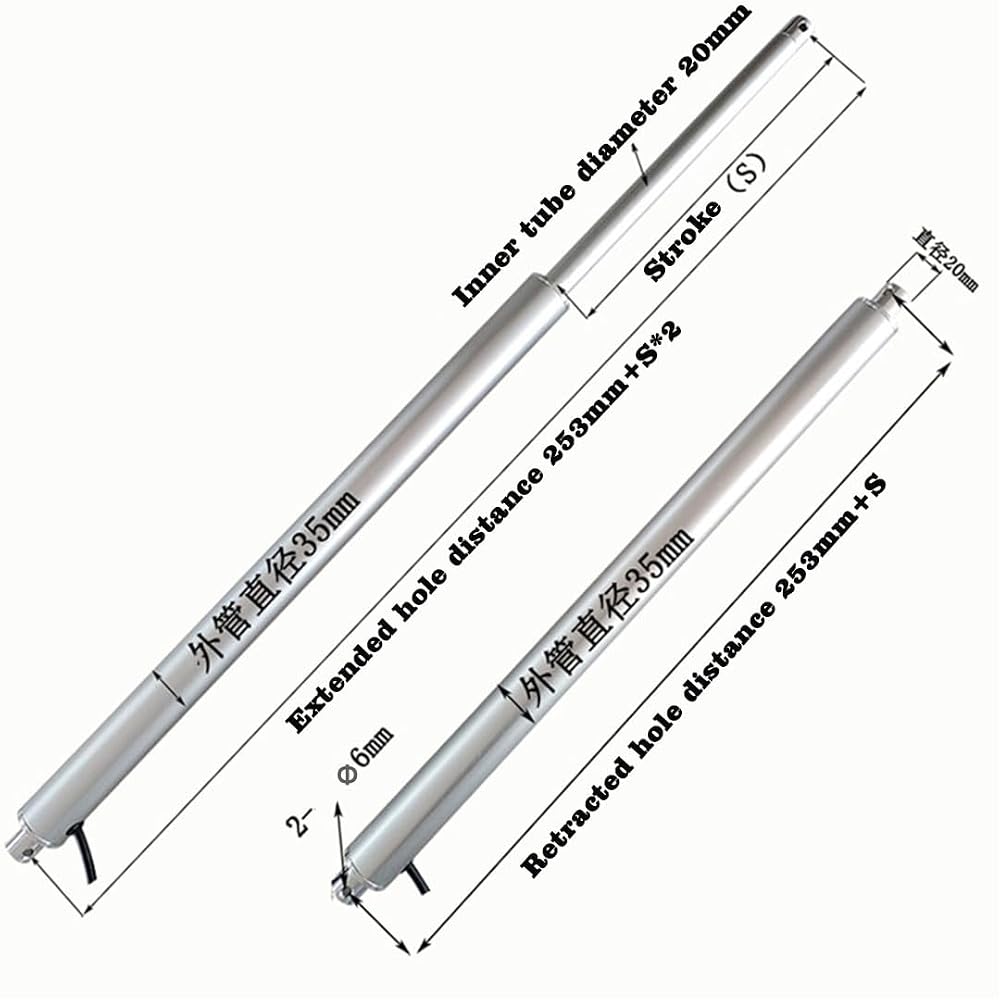

Installation hole distance: L=253+Stroke±2mm
External Diameter: 35mm
Internal Diameter: 20mm
Materia:Outer tube aluminium alloy
Inner tube stainless steel
Working frequency: 20%
Working temperature: -20~70
Package including:

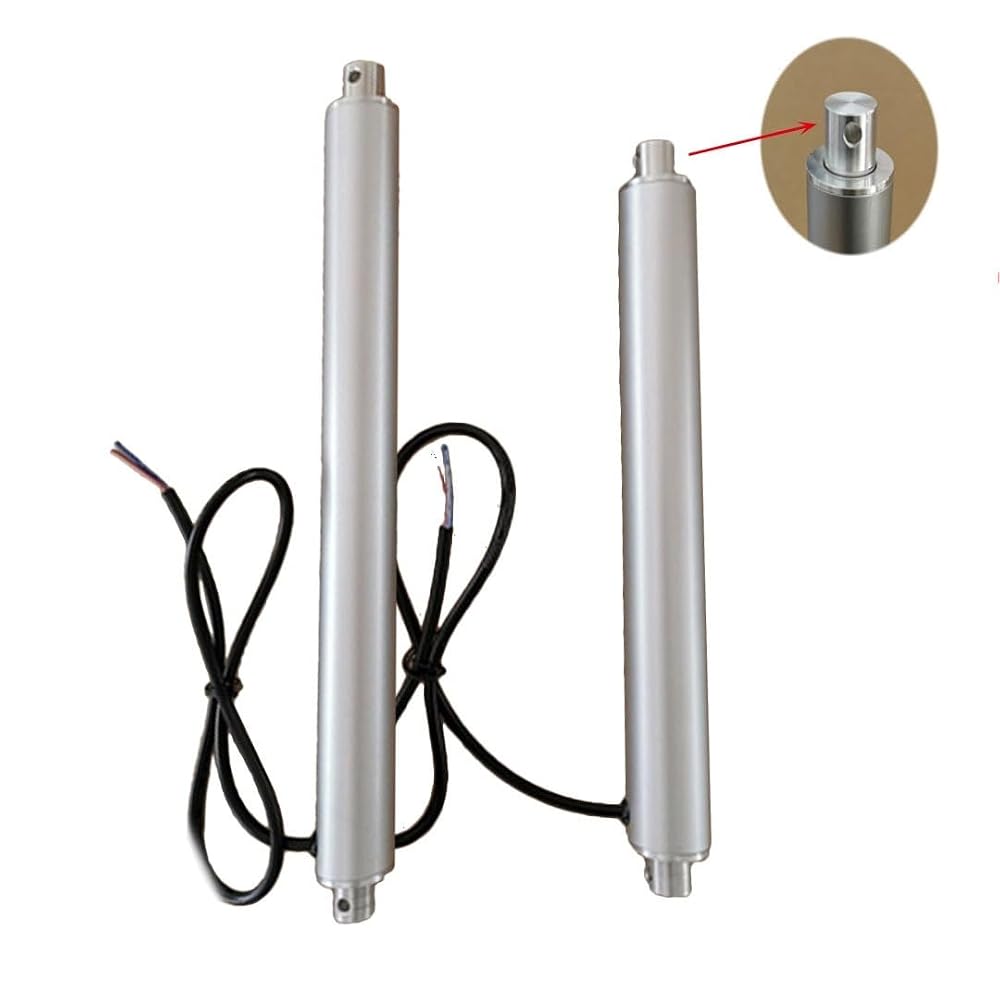

1) 2 x Linear actuator
2) 1 x Controller
3) 1 x Remote

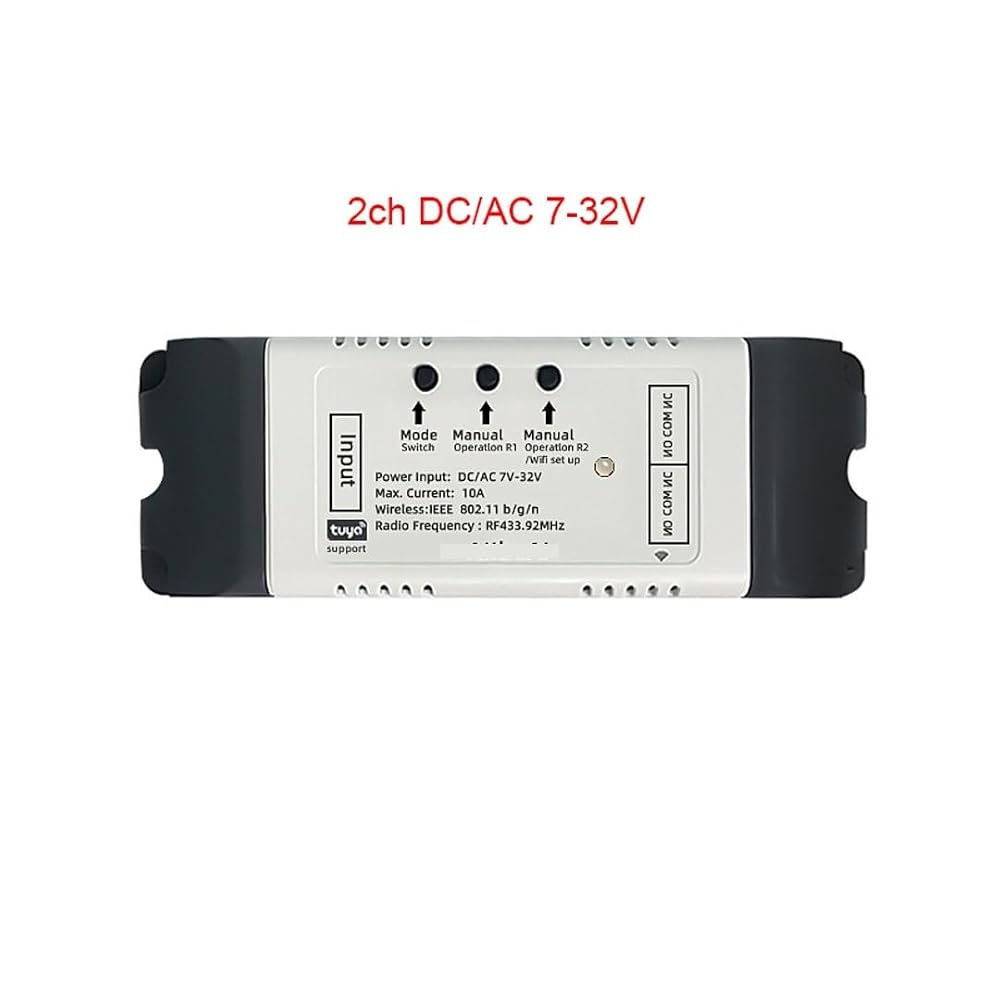

Control Model
Input voltage: DC12V/24V
Max Load: 10A
==========
High-concerned chemical :
Output Power : 37.5-74.6(include74.6)
Torque : 1500N(DC24V)/1200N(DC12V)
Model Number : SL-LA-35
Continuous Current(A) : 10A
Type : Tubular Motor
Protect Feature : Totally Enclosed
Commutation :
