QNDBK2-16 AC 5A 10A 20A 50A 100A 200A الإخراج 4 20mA سبليت الأساسية الارسال الحالي ct المشبك محول التيار الاستشعار 4-20mA (AC 300A 4-20mA QNDBK2-24) in Kuwait QNDBK2-16 AC 5A 10A 20A 50A 100A 200A الإخراج 4 20mA سبليت الأساسية الارسال الحالي ct المشبك محول التيار الاستشعار 4-20mA (AC 300A 4-20mA QNDBK2-24) in Kuwait QNDBK2-16 AC 5A 10A 20A 50A 100A 200A الإخراج 4 20mA سبليت الأساسية الارسال الحالي ct المشبك محول التيار الاستشعار 4-20mA (AC 300A 4-20mA QNDBK2-24) in Kuwait QNDBK2-16 AC 5A 10A 20A 50A 100A 200A الإخراج 4 20mA سبليت الأساسية الارسال الحالي ct المشبك محول التيار الاستشعار 4-20mA (AC 300A 4-20mA QNDBK2-24) in Kuwait

تيار متردد 20 أمبير 4-20 مللي أمبير QNDBK2-16

KWD 36
ماركة
WIOPETON
أسلوبتيار متردد 20 أمبير 4-20 مللي أمبير QNDBK2-16
– 1 +

مميزات خاصة

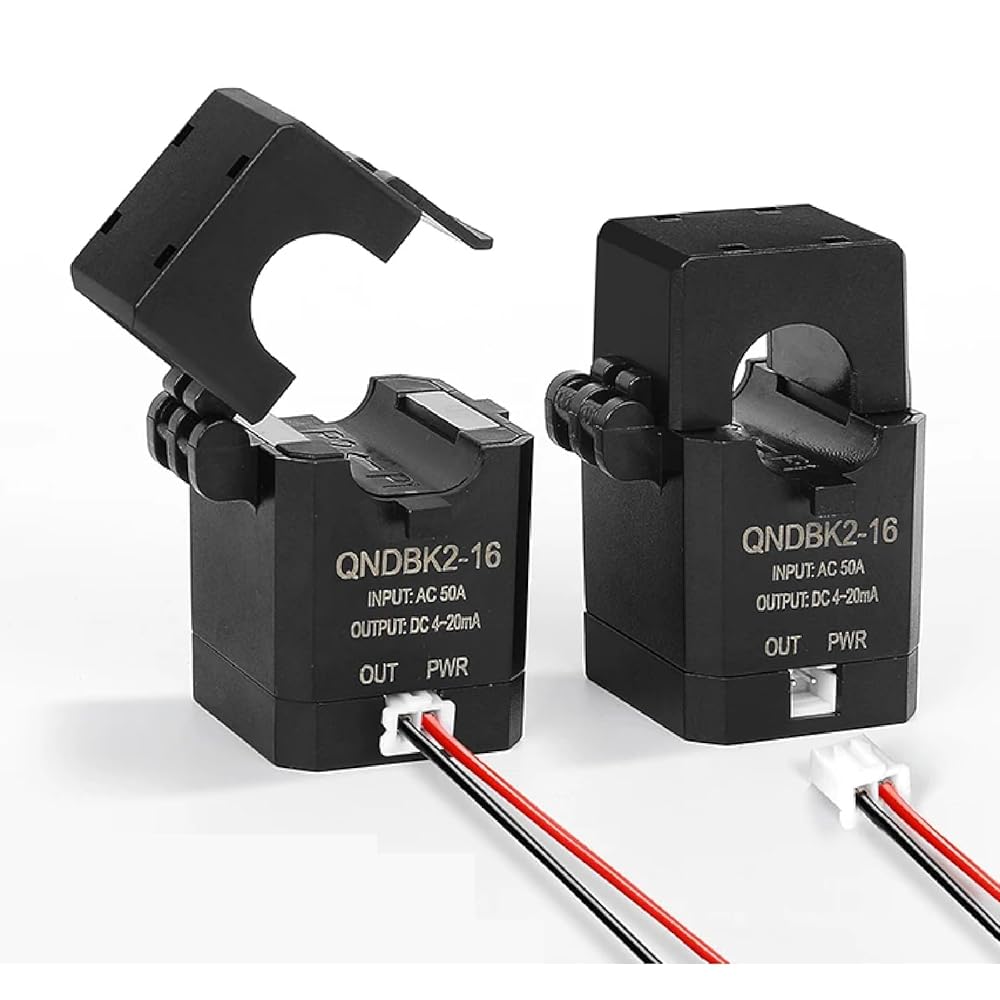

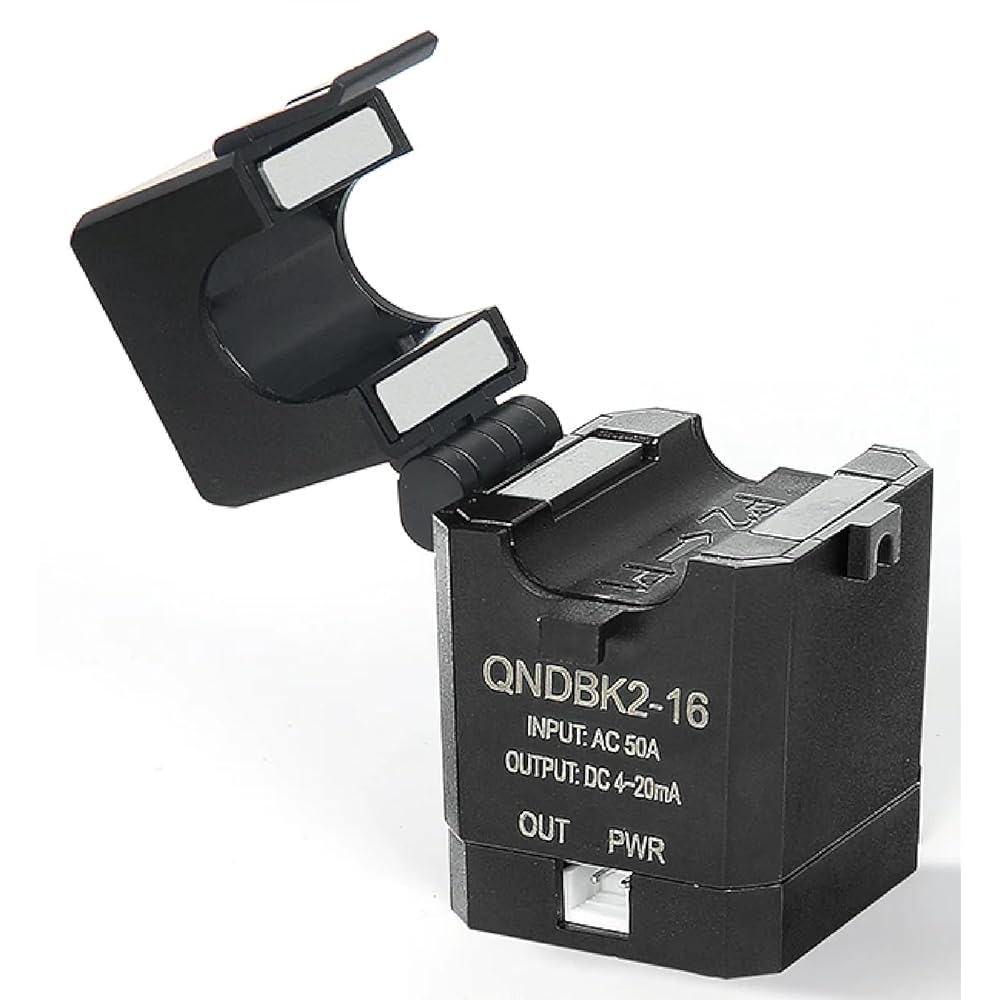

  • SPLIT CORE DESIGN: The clamp-on split core construction allows for easy installation directly onto existing wires without the need to disconnect or interrupt the circuit.
  • ACCURATE CURRENT MEASUREMENT: Features a high accuracy rating of 0.5% and linearity of 0.2%, ensuring precise and reliable AC current readings across all supported ranges.
  • WIDE MEASURING RANGE: Supports AC input currents from 1A up to 500A, making it suitable for a broad range of single-phase current monitoring applications.
  • STANDARD 4-20mA OUTPUT: Delivers a standard DC 4-20mA analog output signal, allowing seamless integration with PLCs, data loggers, and other monitoring or control systems.
  • GALVANIC ISOLATION & WIDE OPERATING RANGE: Built-in 3kV galvanic isolation enhances safety and reduces interference, with an operating temperature range of -4°F to +158°F.

وصف

The QNDBK2-16 split core current transmitter is a precision instrument designed for accurate AC current measurement and monitoring. Featuring a convenient clamp-on split core design, it can be installed directly onto existing wiring without the need to disconnect any cables, making it ideal for retrofitting into existing electrical systems. It accepts AC input currents ranging from 1A up to 500A and delivers a standard 4-20mA DC output signal, ensuring seamless compatibility with a wide variety of PLCs, data loggers, and monitoring systems. With an impressive accuracy rating of 0.5% and linearity of 0.2%, this current transformer sensor provides highly reliable and consistent readings. The built-in galvanic isolation of 3kV provides enhanced protection against electrical interference. It operates on a +24V supply voltage and functions reliably across an operating temperature range of -20°C to +70°C. Certified to CE and RoHS standards, this single-phase current transmitter is well-suited for industrial automation, energy management, and electrical monitoring applications.
