مميزات خاصة

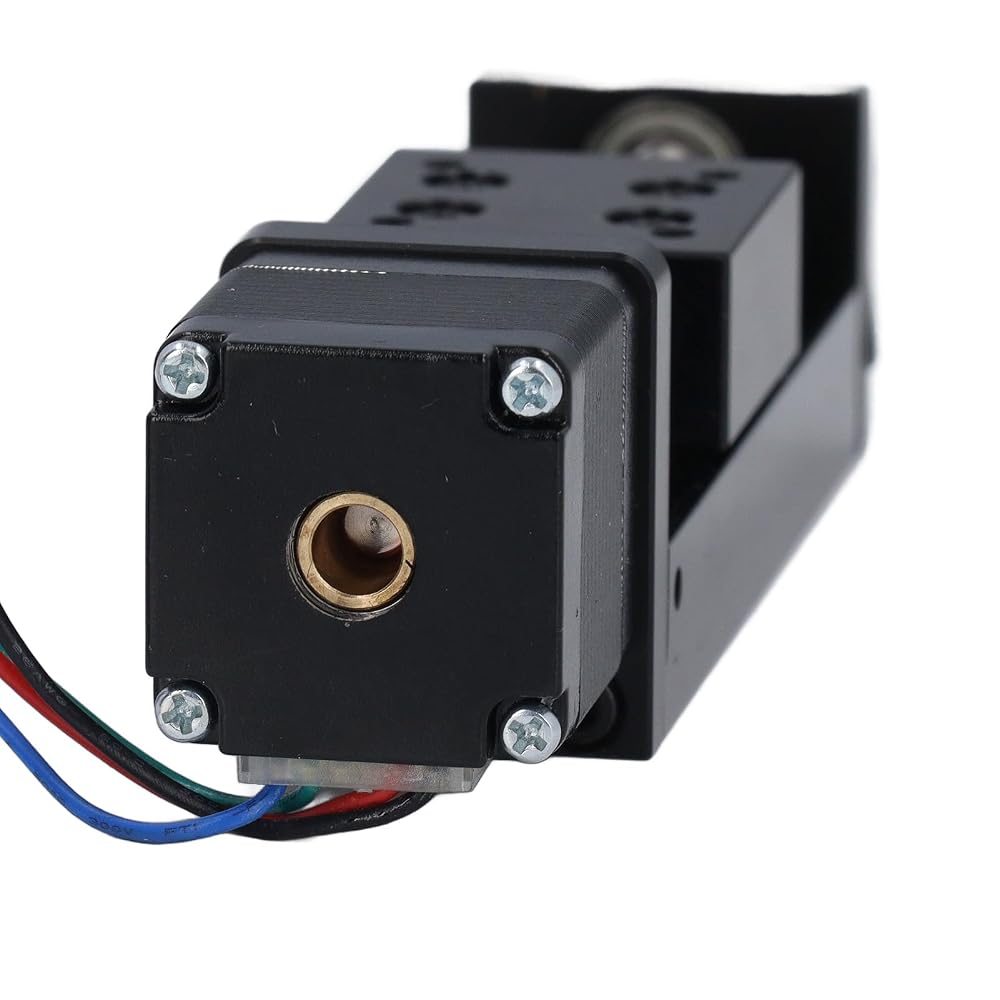

Stepper Motor Specifications: The actuator includes a 28 stepper motor with a 1.8 degree step angle, 0.6A current, and 6N.cm holding torsion. It supports operational speeds from 0 to 120mm/s for various motion tasks.
High Precision Positioning: This unit provides a horizontal load capacity of 5kg or less and a vertical load capacity of 1kg or less. The 6mm diameter screw features 0.01mm accuracy to support precise mechanical movement.

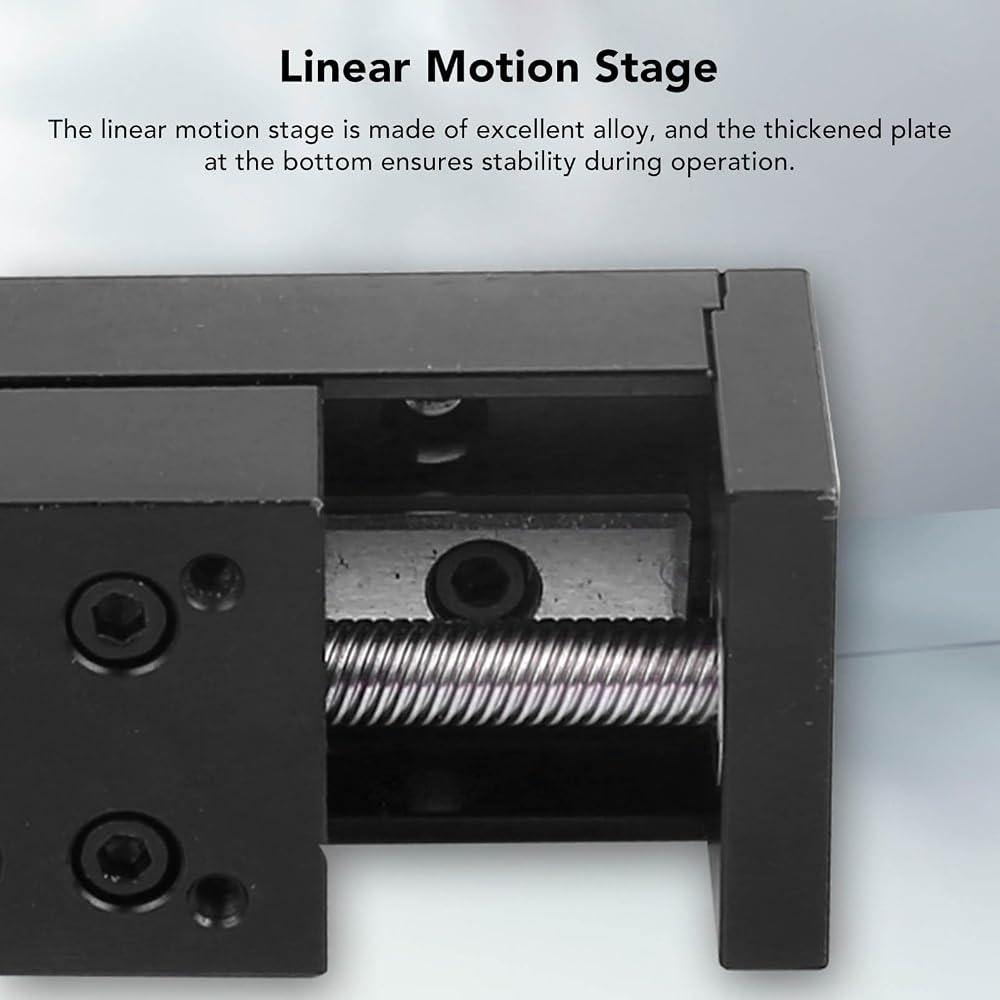

Aluminum Alloy Construction: Manufactured from aluminum alloy for rigidity and stability, the slide actuator utilizes a single rail design for low noise. The screw provides a 4mm slide distance for every motor revolution.
Industrial Application Scope: The system is designed for use in DIY CNC routers, testing equipment, and optical accuracy measurement. It provides stable movement for production machinery and mechanical equipment positioning.
Multi Axis Integration: This linear motion stage is suitable for X, Y, and Z axes configurations. It can be combined into gantry, horizontal cross, and three or four axes designs for industrial equipment.

وصف

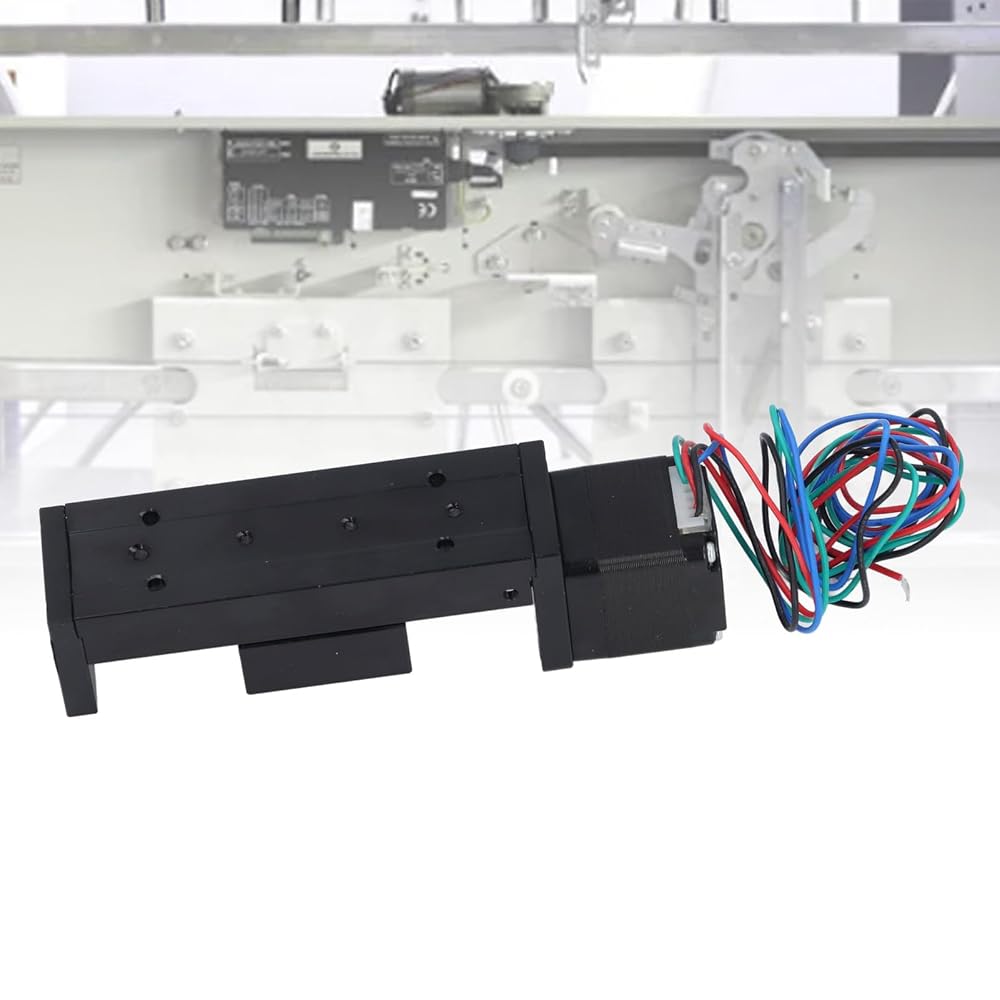

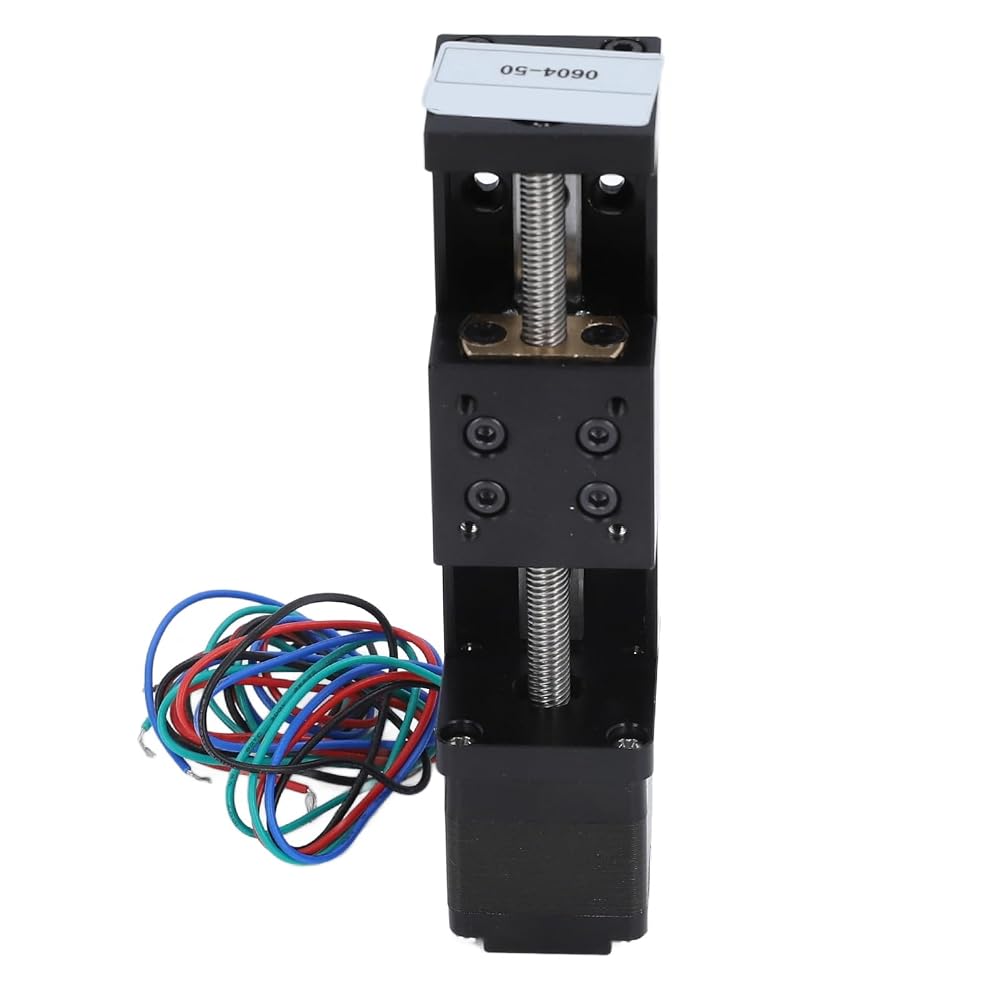

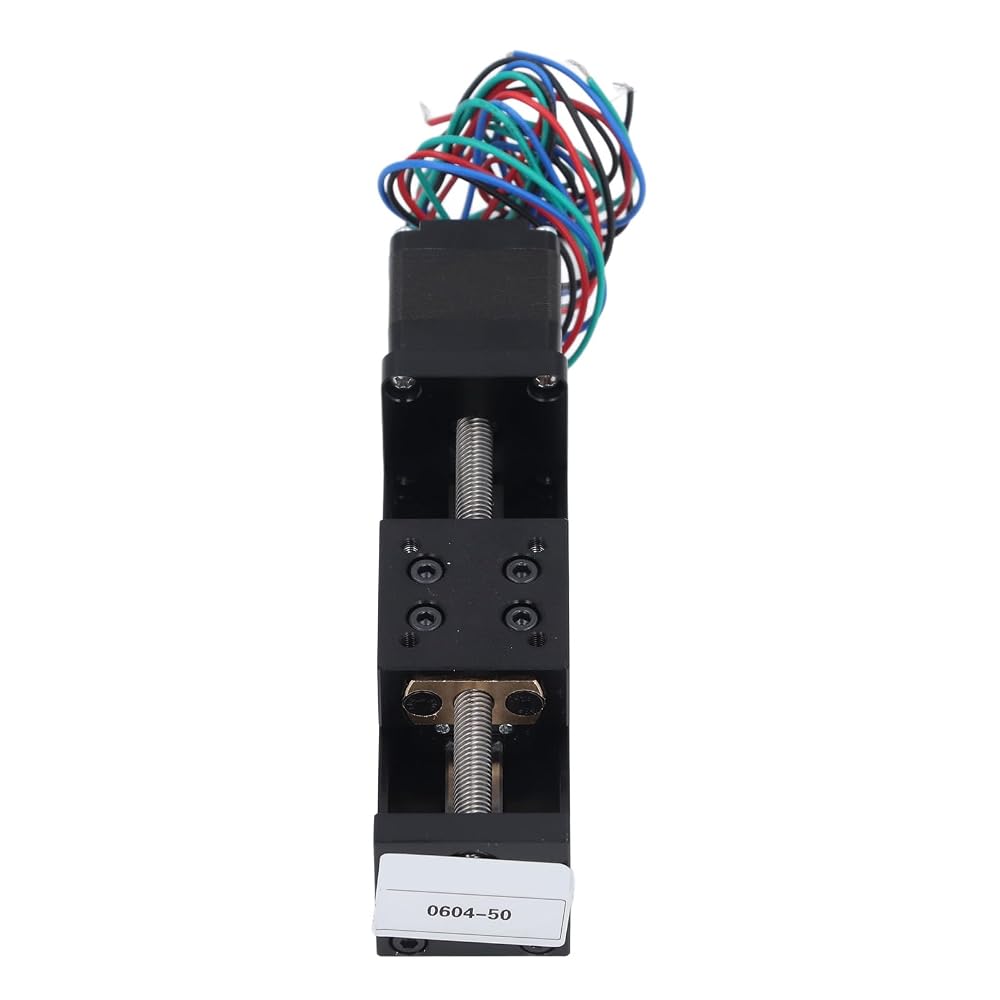

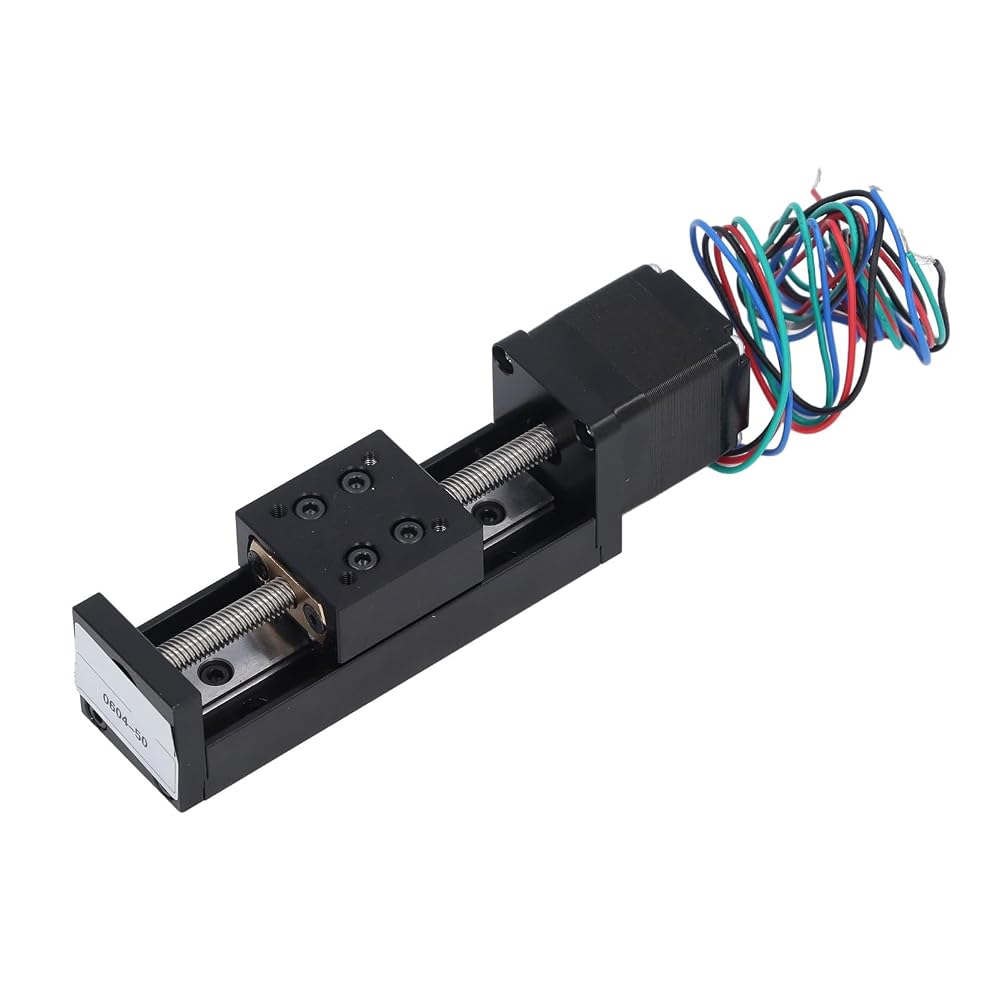

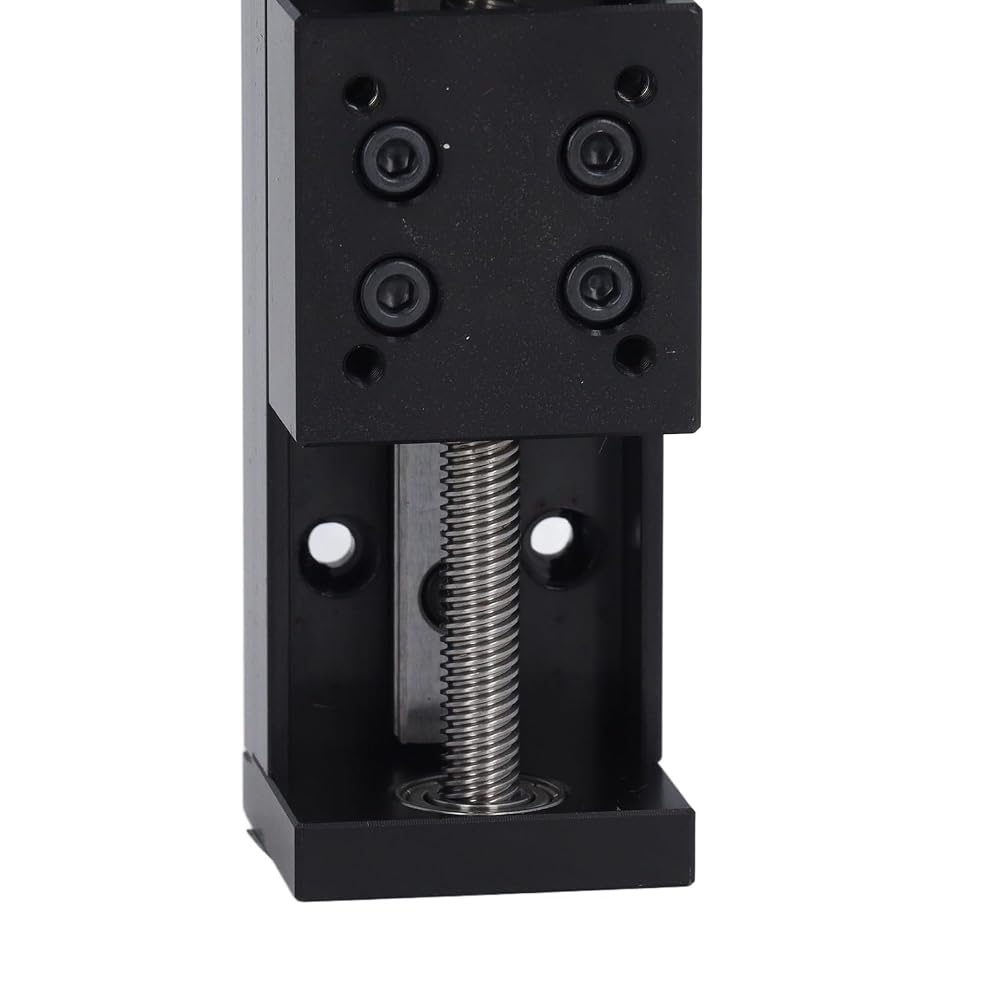

Item Type: Mini Linear Rail Guide Slide Actuator
Material: Aluminum Alloy

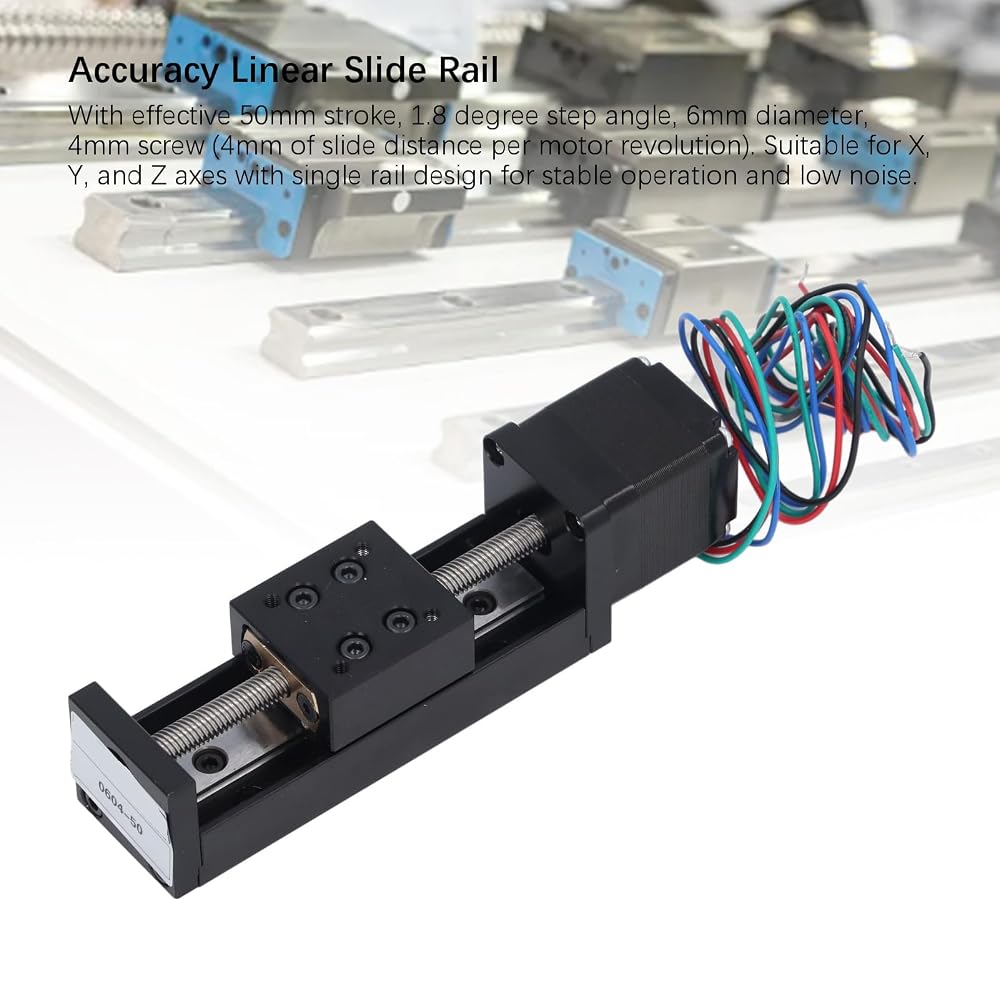

Effective Stroke: Approx. 50mm / 1.97in

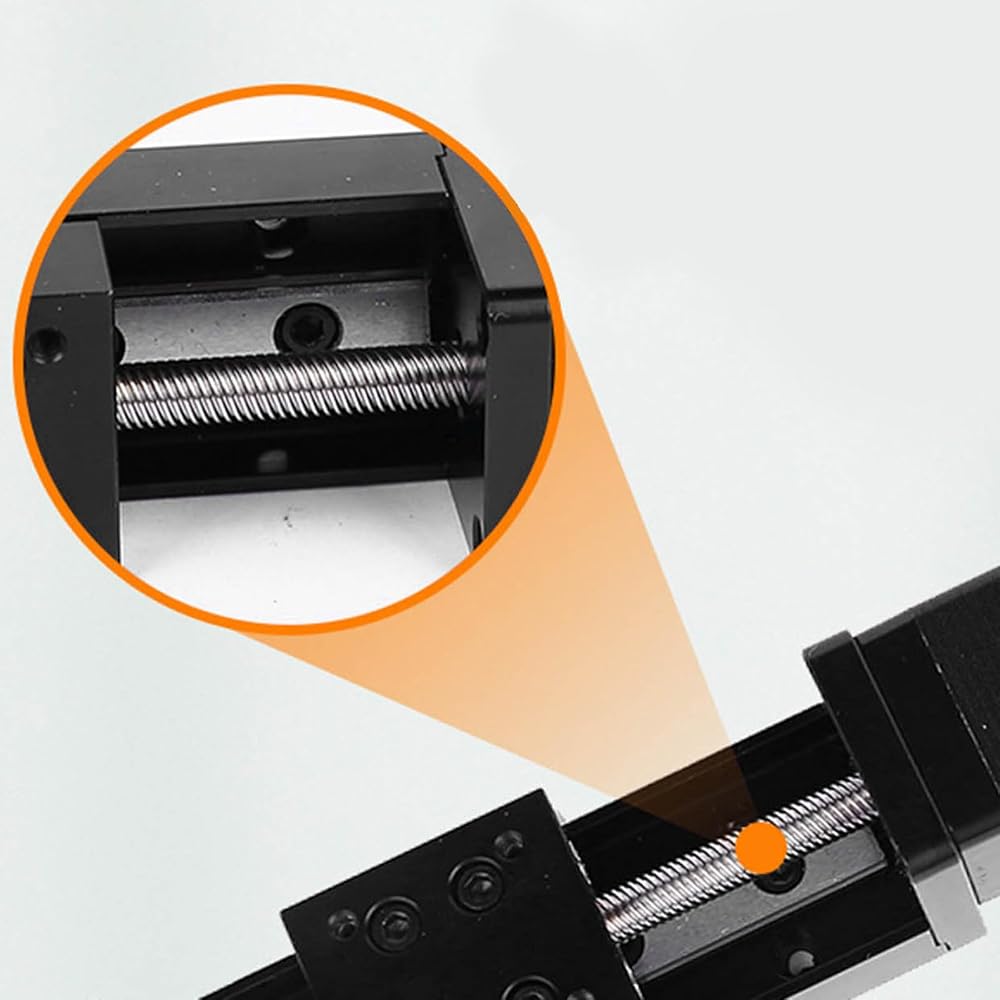

Screw Rod: T6
Helical Pitch: Approx. 4mm / 0.16in (The distance the slider moves on the screw per revolution of the motor is Approx. 4mm / 0.16in)
Screw Accuracy: ±0.01mm
Load: Horizontal Approx. 5kg / 11 lb Vertical Approx. 1kg / 2.2 lb
Positioning Accuracy: ±0.1mm
Holding Torsion: 6N.cm
Current: 0.6A
Resistance: 5.5Ω
Inductance: 3.2MH
Speed: 0 to 120mm/s
Step Angle: 1.8 degrees
Diameter: Approx. 6mm / 0.24in

Package List：
1 x Mini Linear Rail Guide Slide Actuator
