مميزات خاصة

[GLOBAL COMPATIBILITY] This Voltage Phase Sequence Protector is constructed with a standard modular design, perfectly compatible with 35mm guide rails worldwide. With its broad voltage range of 208-480VAC, this protector ensures top-notch performance, adaptable to any country's power grid, making it a must-have for safe electrical operations everywhere.
[DUAL RESET OPTIONS] The innovative reset feature accommodates both automatic and manual methods, allowing you to implement the reset function based on the operational demands of your particular situation. This adaptability promotes efficient maintenance routines, keeping your power systems running smoothly while effectively managing voltage irregularities.
[CONFIGURABLE VOLTAGE SETTINGS] Embrace the power of customization with this protector, offering adjustable overvoltage and undervoltage settings tailored to your specific machinery requirements. Coupled with an adjustable action time range of 0.1 to seconds, you have the means to calibrate the protector for maximum efficiency in protecting your electrical assets.
[COMPREHENSIVE SAFEGUARDING] This protector employs multi-faceted monitoring to against several electrical anomalies, including overvoltage, undervoltage, and phase errors. Advanced features such as phase loss detection and zero line disconnection targeting elevate this protector's capability, ensuring your machinery remains shielded from possible electrical damage.
[MULTIPLE USE CASES] The Voltage Phase Sequence Protector is incredibly versatile, ideal for applications ranging from machine tools and compressors to elevators and HVAC systems. This equipment's solid design and broad applicability ensure exemplary protection for various electrical components, establishing reliability across multiple use scenarios.

وصف

Spec:

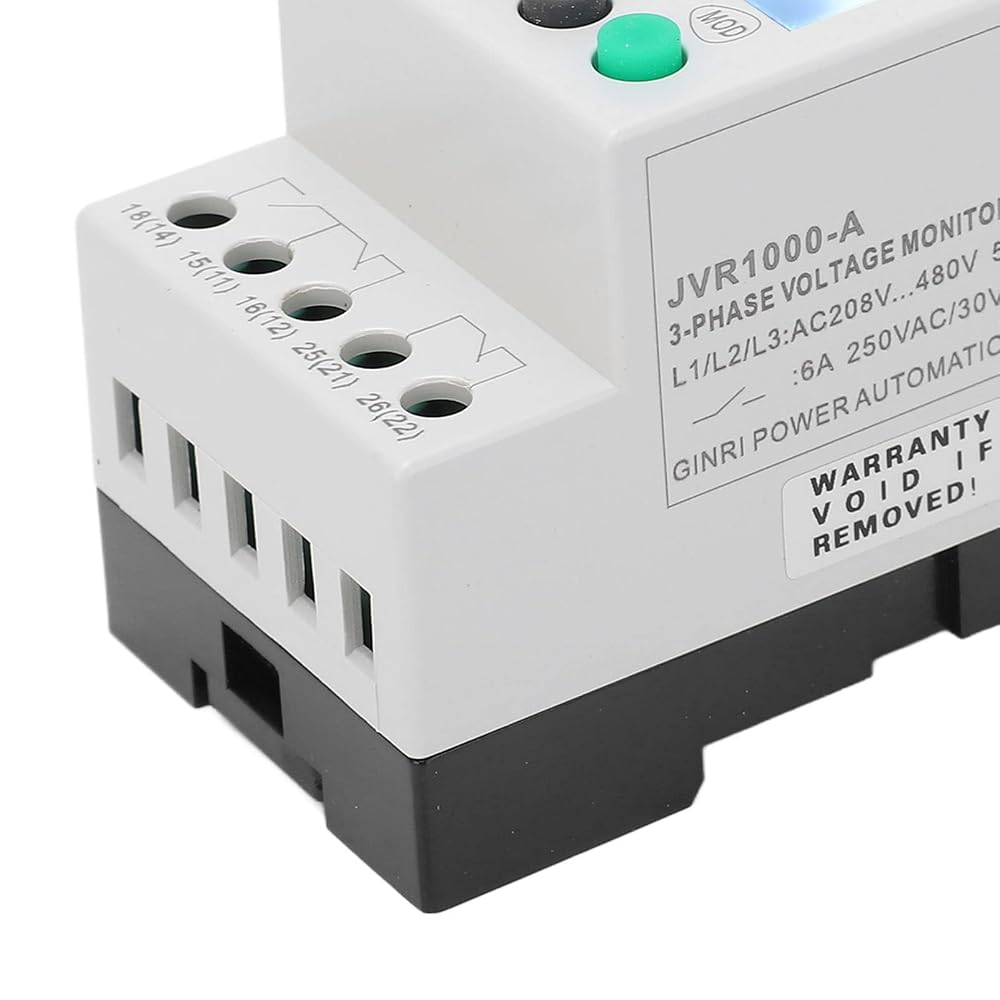

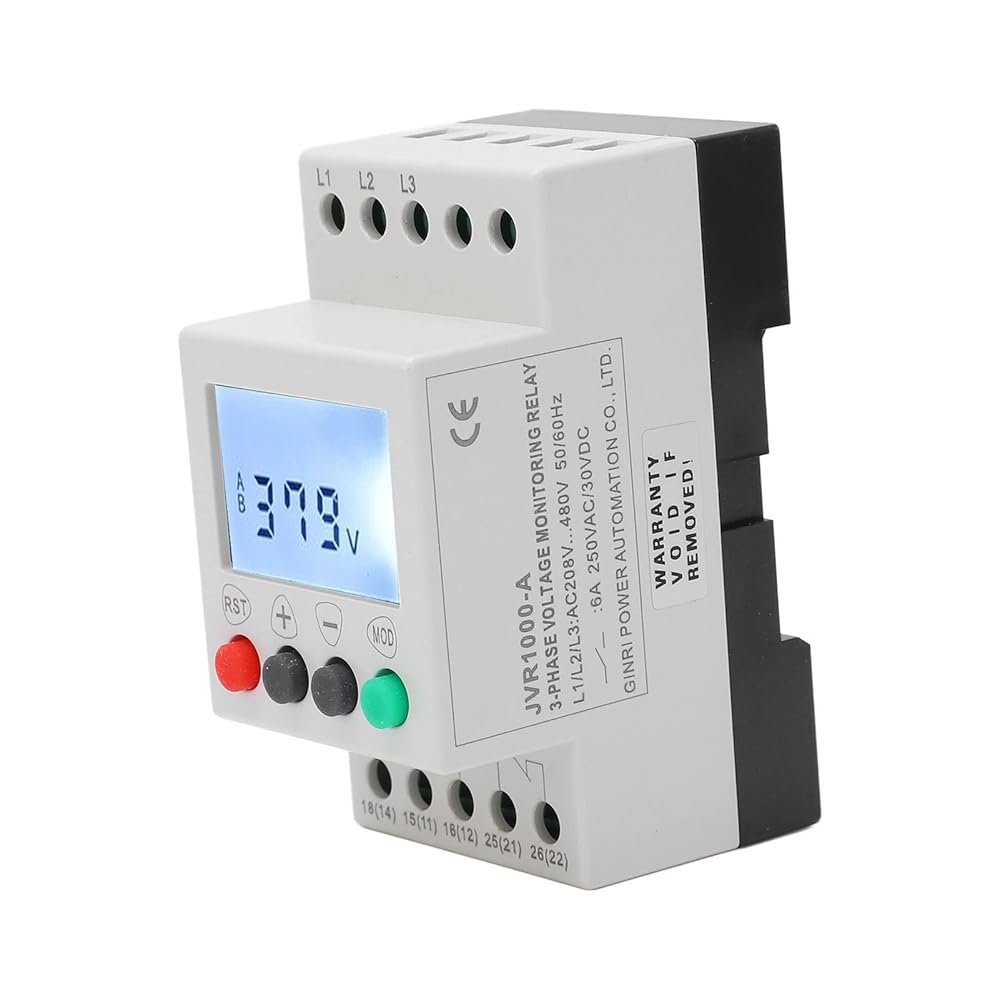

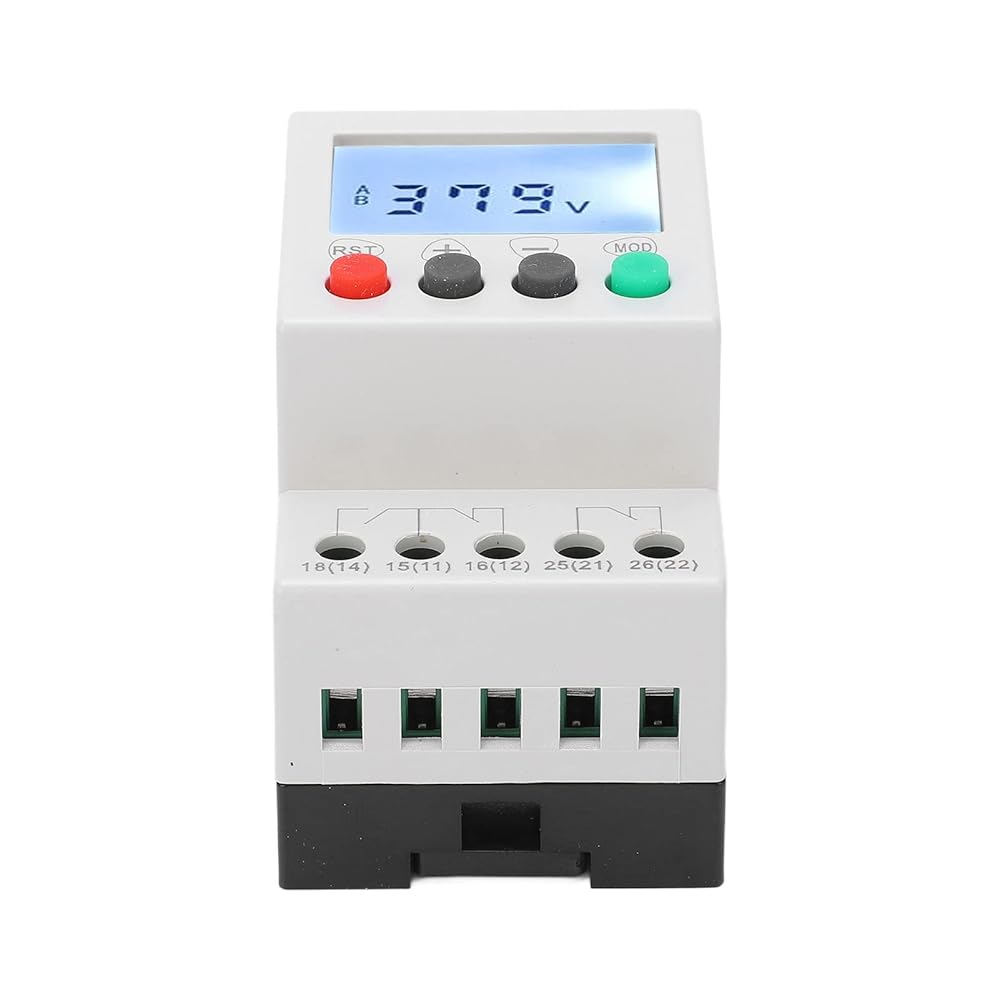

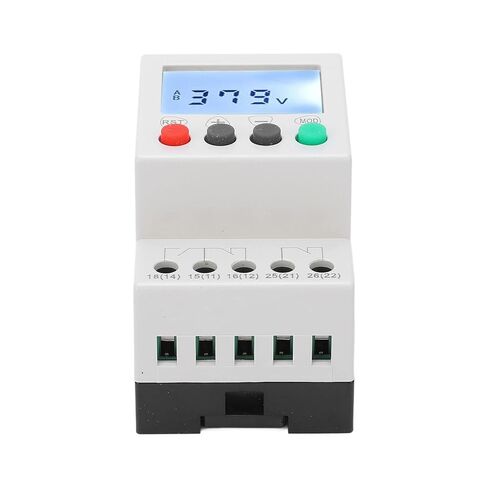

Item Type: Voltage Phase Sequence Protector
Material: ABS
Input Circuit: L1, L2, L3
Rated Supply Voltage: 208-480VAC 50/60Hz
Working Frequency: 45-65Hz
Output Type: 1CO and 1NC
Overvoltage and Undervoltage Action Time: 0.1-999s
Unbalance Rate: 1-50%
Unbalanced Hysteresis: 1-10%
Unbalanced Delay: 0.1-999s
Phase Loss Action Time: 0.1-30s
Phase Error Action Time: 0.1-30s
Power On Delay: 0-999s
Reset Mode: Auto Manual
Reset Delay: 0.1-999s

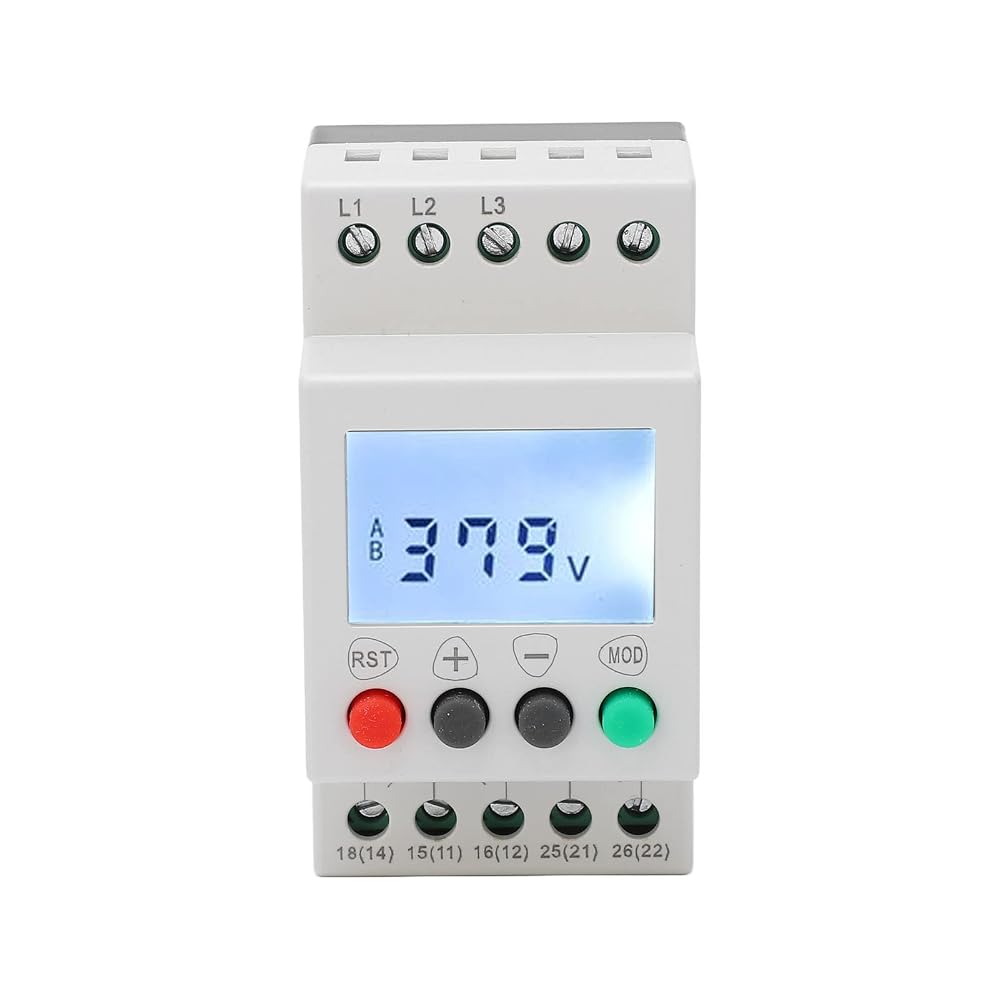

Display Mode: Chinese LCD display each action status
Contact Form: 1 group of normally open and normally closed contact, 1 group of normally closed contact
Contact Capacity: 6A 250VAC 30VDC (resistive)
Dimension(LxWxH): Approx.80x43x54mm/3.1x1.7x2.1in

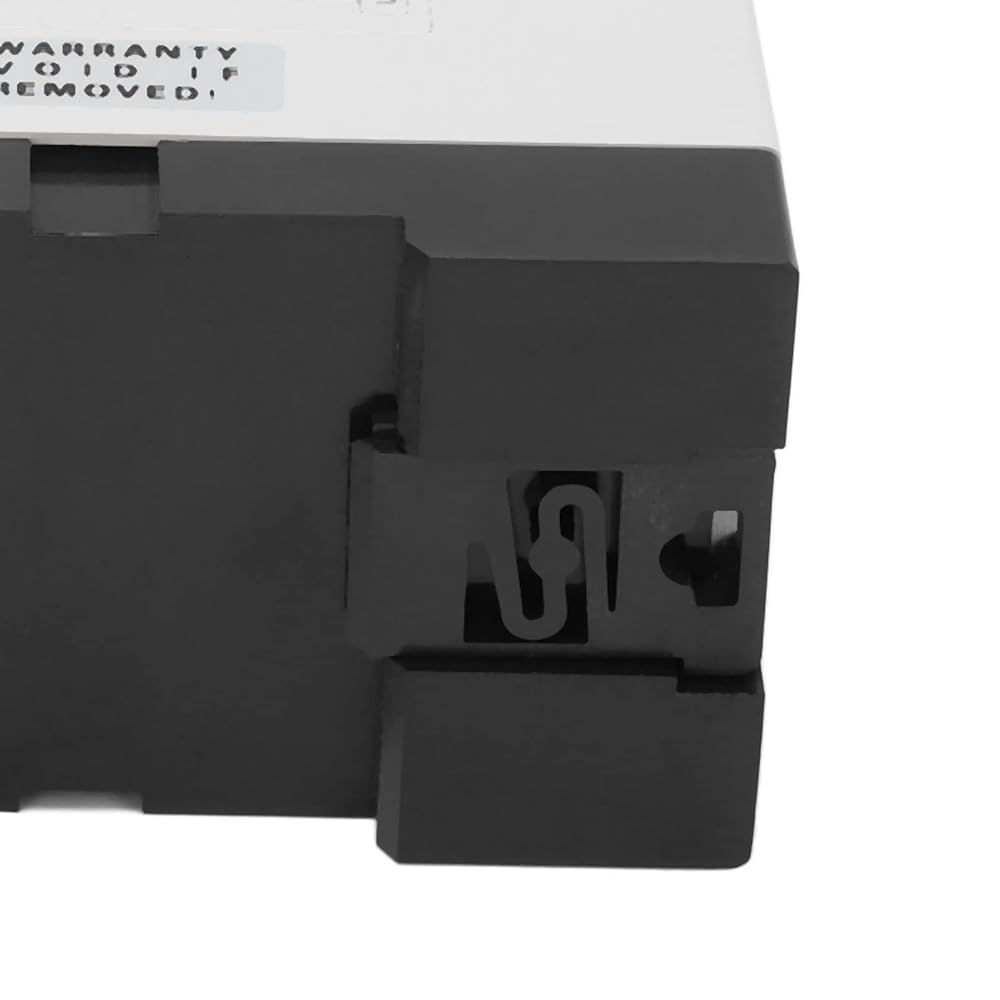

Installation Method: 35mm guide rail
Protection Class: IP20
Working Environment: -25℃ to 65℃, ≤85%RH
Mechanical Durability: 1,000,000 times
Dielectric Strength: >2kVAC 1min

packing list:
1 xVoltage Phase Sequence Protector
1 x Manual
