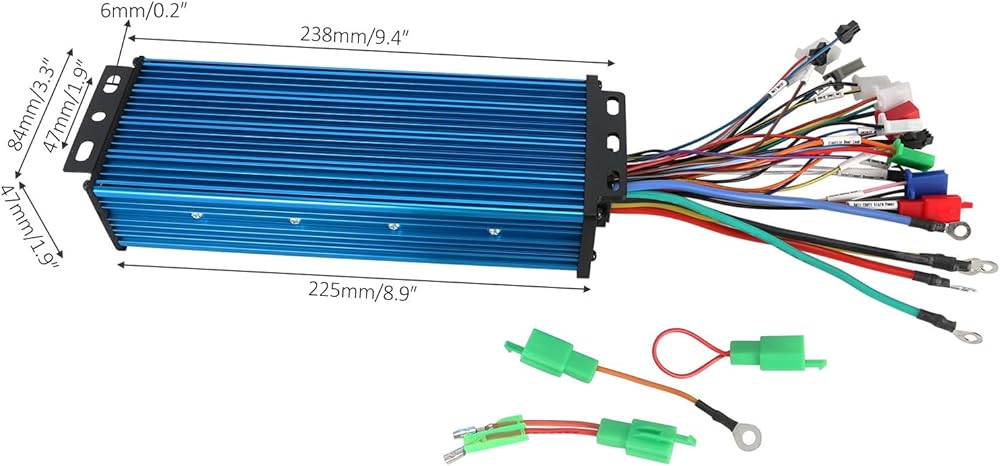

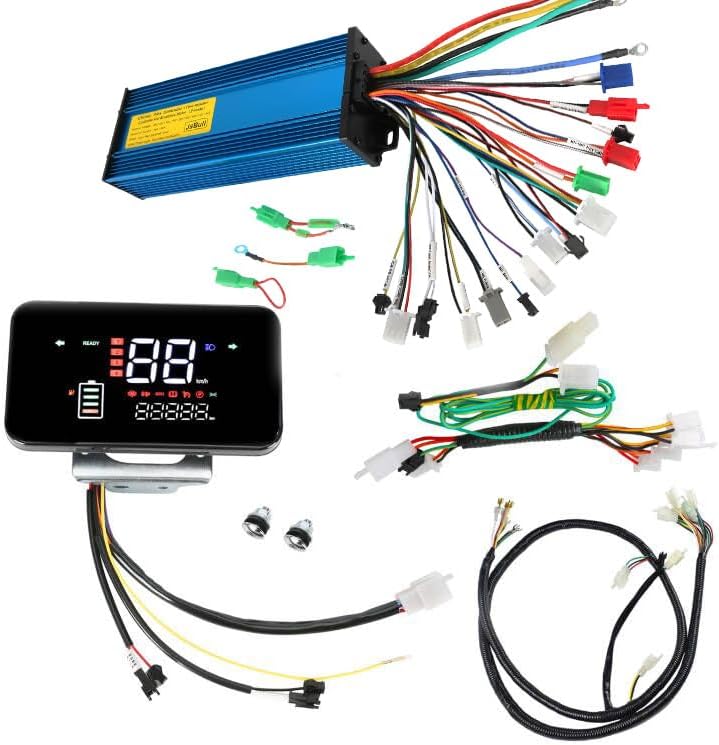

36V/48V/52V/60V/72V/84V 40A-50A 1500W-2000W-2500W Universal Brushless Controller
if motor not have hall wires,not connect hall wires also can work

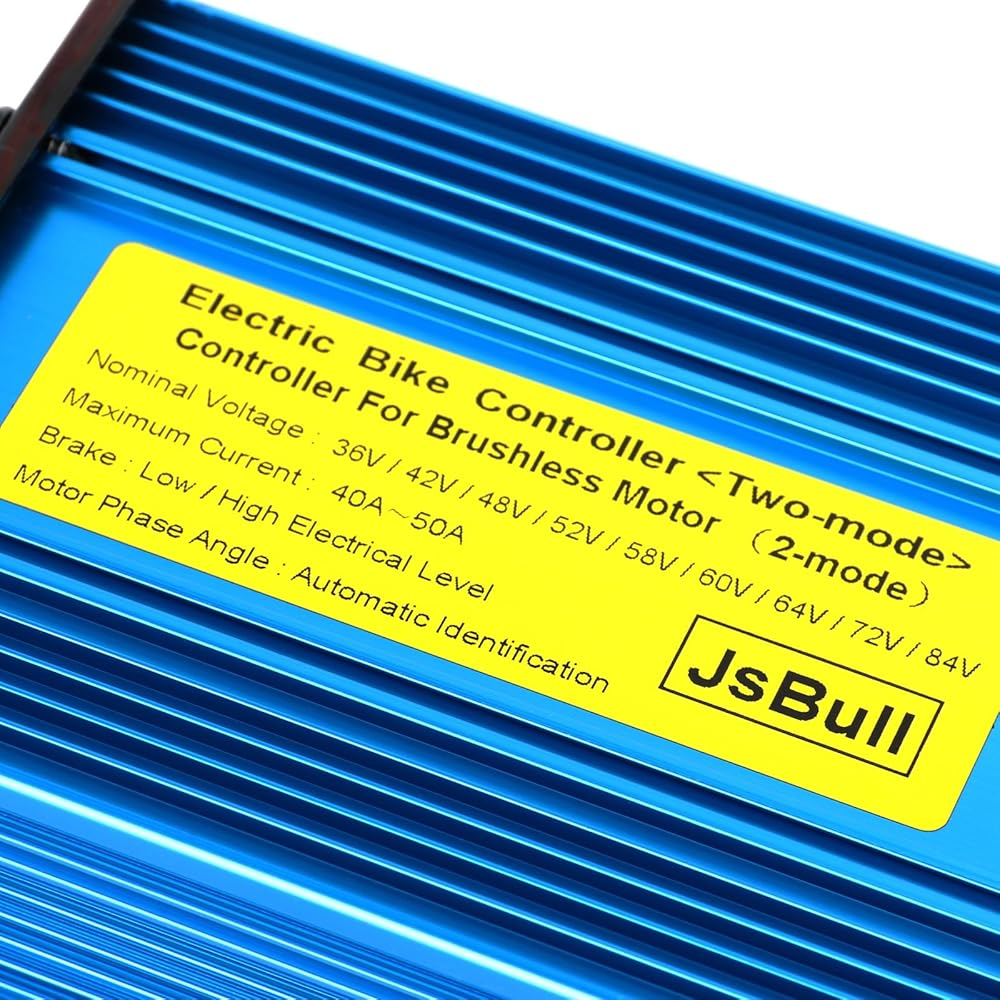

Name: Intelligent dual-mode brushless controller
Power: 1500W-2000W-2500W
Voltage: 36V-84V
Current limit: 40A-50A
Undervoltage: automatic identification
MOS tube: 18mos
Phase: automatic identification (60 ° / 120 ° all can fit)
Brakes: low brake / high brake

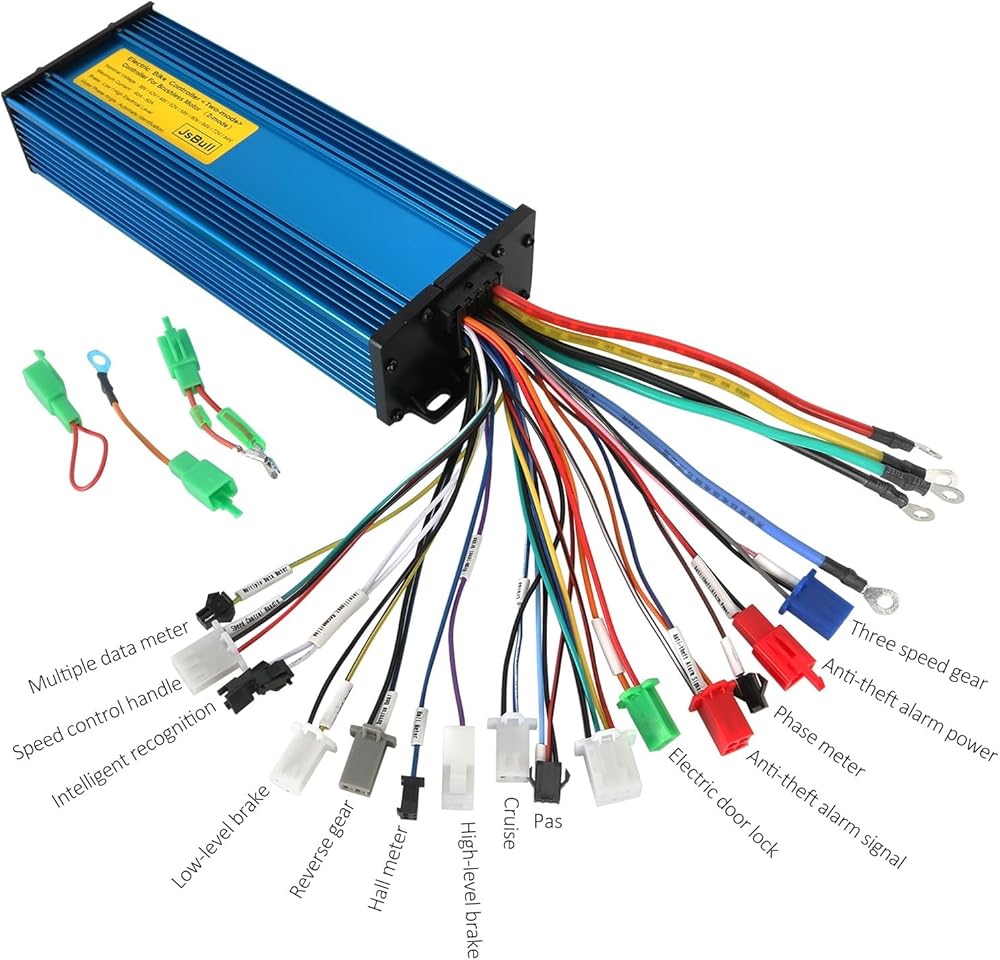

1.hall
2.cruise
3.hall meter
4.intelligent recognition（self-learning）
5.high level brake
6.phase meter
7.PAS(pedal assist)
8.reverse

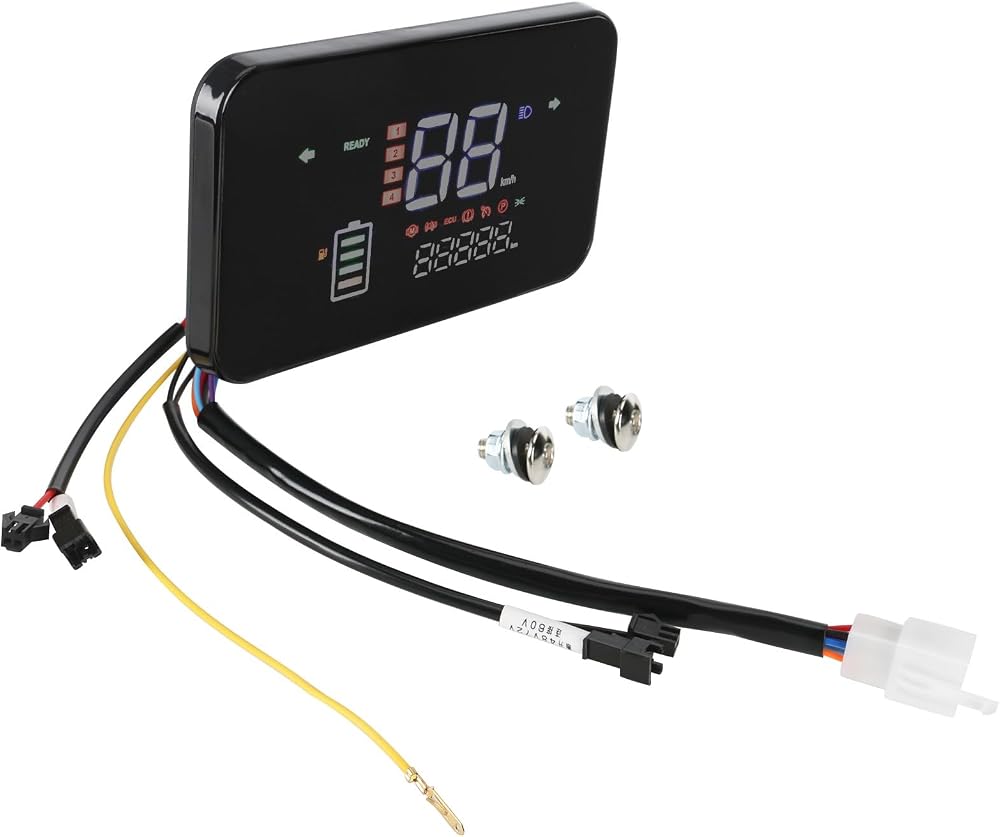

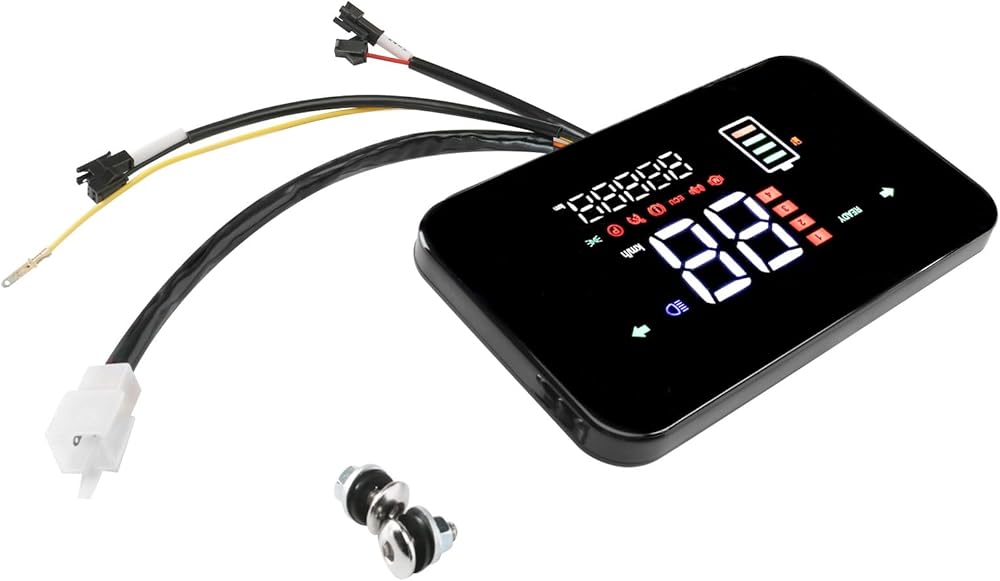

9.multiple data meter
10.low level brake
11.speed control handle （throttle）
12.electric door lock
13.three speed
14.anti-theft alarm signal
15.anti-theft alarm power
16.motor phase line
17.battery
How to connect controller？
1.connect the motor phase line(color to color）
2. connect the battery line(red:battery+ , black:battery-)
3. connect the controller throttle to throttle and need color to color connect,connect controller electric door lock to throttle electric door lock
（if throttle not have electric door lock, controller electric door lock docking,so controller electric door must connect ）
4. connect the hall line(if motor without hall line, don't need connect)
5.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again
if wheel forward ,Separate the self-learning line.)
6.other functions can be connected as needed.
