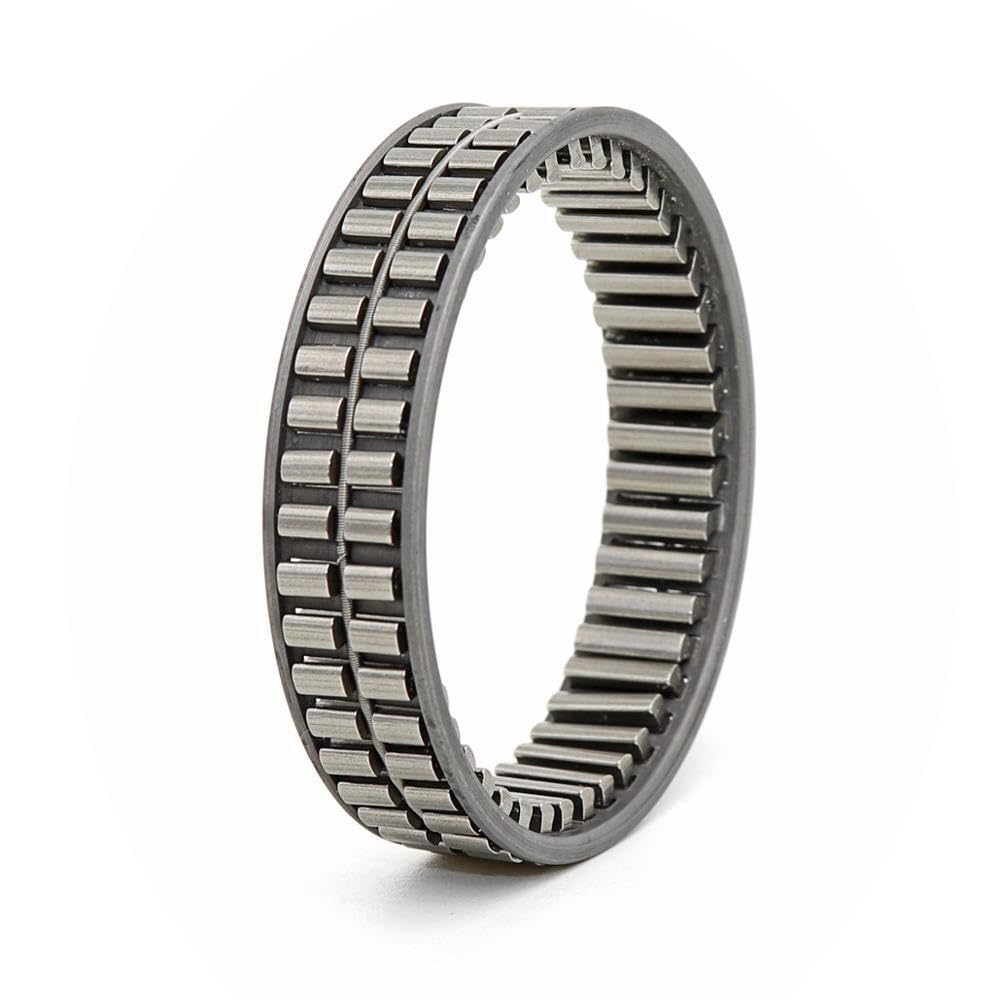

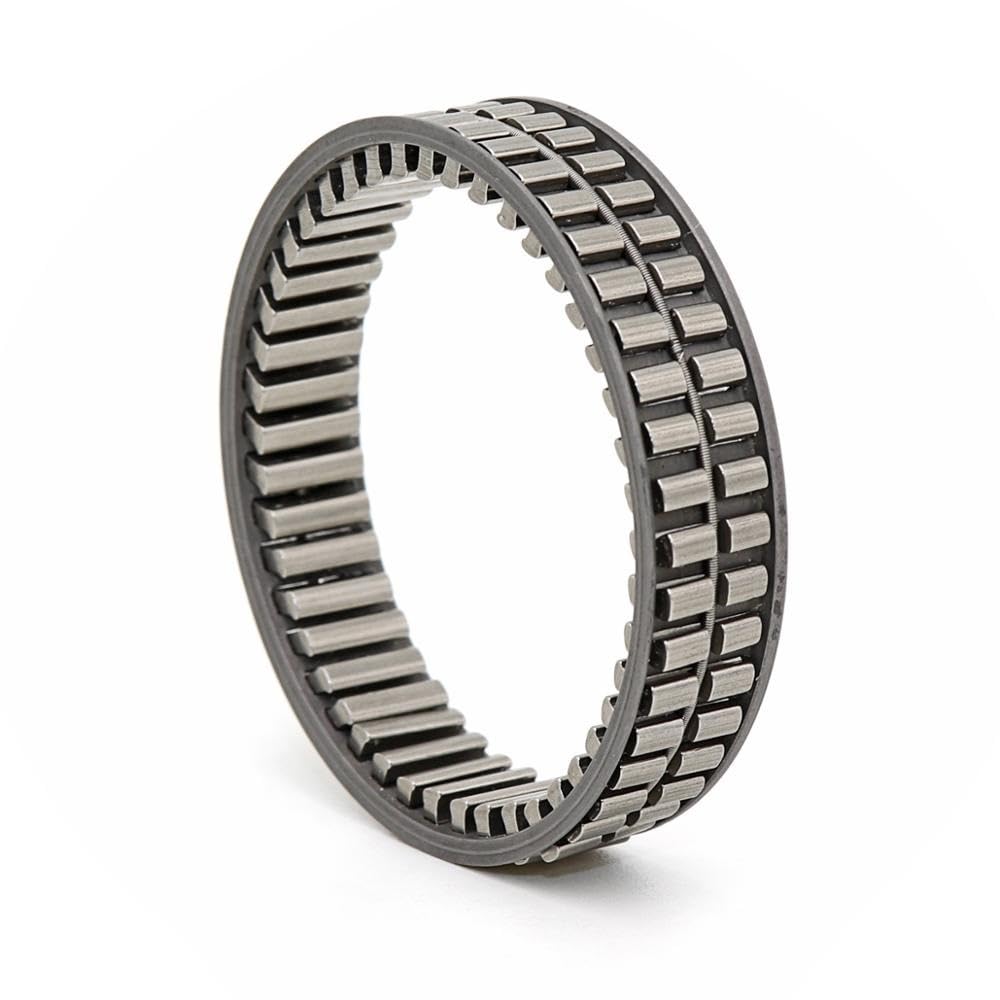

1 قطعة FE432Z2 24X32X6.3 عنصر إدراج القابض الحر FE Sprag محمل اتجاه واحد in Kuwait 1 قطعة FE432Z2 24X32X6.3 عنصر إدراج القابض الحر FE Sprag محمل اتجاه واحد in Kuwait

1 قطعة FE432Z2 24X32X6.3 عنصر إدراج القابض الحر FE Sprag محمل اتجاه واحد

KWD 14
– 1 +

مميزات خاصة

  • bearing

وصف

bearing
Low cross-section allows for reduction in size and suitable for use in limited installation spaces
Pre-lubricated. Good operating performance
Shaft h5; hub H6
Inner ring/shaft
Steel , HRC 60+4 (HV 700+100); Eht 1,3 mm; Rz = 2,5 µm
Outer ring/housing
Steel, HRC 60+4 (HV 700+100); Eht 1,3 mm; Rz 2,5 µm
The freewheel clutch insert element requires axial constraints on both sides.
Hardening and grinding of the mating parts is necessary. Chamfered
shafts and hubs ease installation.
Freewheel clutch insert elements are not self-centering. External
bearing support to define the gap between mating parts (Shaft and
housing) is necessary.
