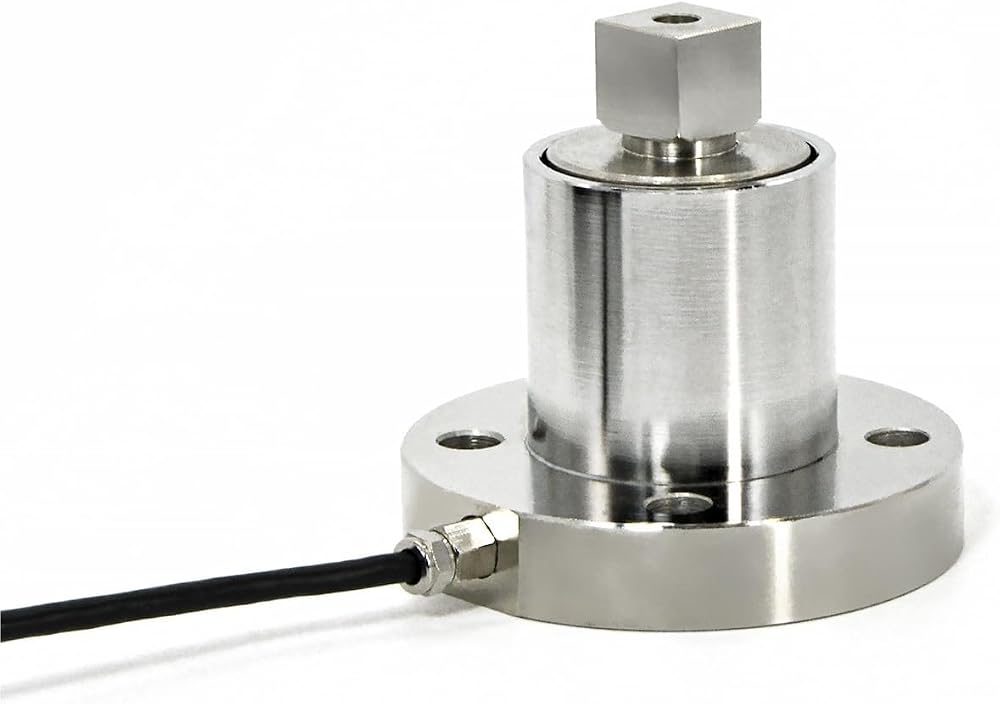

Torque Tester, Half Flange Static Torque High Precision Bidirectional Measurement Wrench Sensor Square Head(0-500Nm) in Kuwait

0-100nm

KWD 72
Color0-100Nm
– 1 +

Special Features

  • High Precision Measurement:Achieve precise torque readings with the load cell sensor's high precision bidirectional measurement.
  • Construction:The half flange static torque design ensures durability for long-term use in various environments.
  • Versatile Application:Suitable for wrench torque sensor applications, this load cell amplifier is a versatile tool for various tasks.
  • User-Friendly Interface:The load cell display offers a clear and user-friendly interface for easy data interpretation.
  • Compact and Lightweight:Despite its robust performance, the load cell sensor remains compact and lightweight for portability.

Description

Range:1,2,5,10,20,50,100,200,500,1000Nm
Sensitivity:1.0~2.0±0.1 mv/V
Comprehensive accuracy:0.1%F·S
Creep:±0.05%F·S/30min
Nonlinearity:±0.05%F·S
Lag error:±0.05%F·S
Repeatability error:±0.05%F·S
Zero temperature coefficient:±0.03%F·S/10° C
Cable:φ3x2000mm
Input impedance:735±35Ω
Output impedance:700±3Q
Insulation impedance:>2000MΩ
Excitation voltage:5~12VDC
Operating temperature range:-20~+70C
Allowable overloa: 120%F·S
Seal class:IP66
