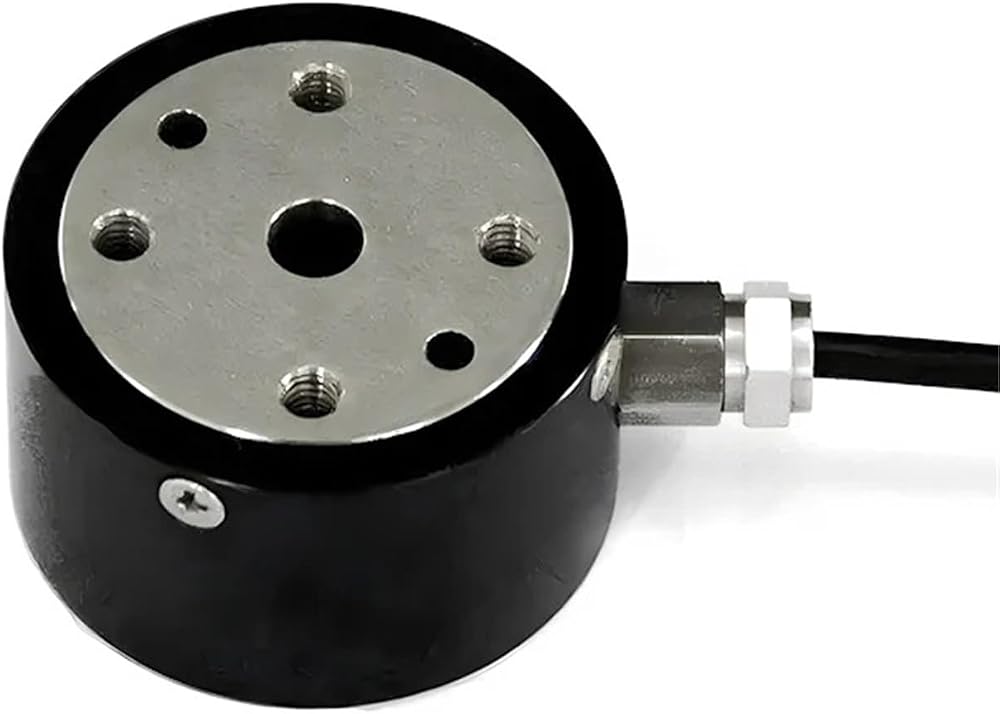

جهاز اختبار عزم الدوران، مستشعر عزم دوران ثابت عالي الدقة 1 نيوتن متر 5 نيوتن متر 10/50 نيوتن متر 100 نيوتن متر محول الالتواء الثابت القوة الهندسية للدوران المتقطع (0-10 نيوتن متر)

KWD 68.500

ماركة
KJYXAWQQ: فئة
الحركة والسرعة والقوة: وزن
1 kg

اللون0-10n.m

مقاس1

مميزات خاصة

High precision static torque sensor available in various ranges: 1Nm, 5Nm, 10/50Nm, and 100Nm for versatile applications.
metal construction ensures longevity and reliability in demanding engineering environments.
Features high sensitivity of 1.0-2.0mV/V with low hysteresis and non-linearity for accurate torque measurements.
Operating temperature range from -20 to +80 degrees, making it suitable for various industrial applications.
IP65 protection level ensures resistance to dust and water, enhancing sensor performance in challenging conditions.

وصف

Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Sensitivity : 1.0-2.0mV/V
Hysteresis : ±0.3%F.S
Non-linearity : ±0.3%F.S
Repeatability : ±0.3%F.S
Temp. influence on sensitivity : +0.05%F.S/10
Temp. influence on the zero signal : ±0.05%F.S/10
Relative creep over 30 min : ±0.3%F.S
Input resistance : 380±30/730±30
Output resistance : 350±/700±3
Insulation resistance : 5000 M
Safe Load Limited : 120%F.S
Operating temperature range : -20~+80
Reference excitation voltage : 5-12V
level of protection : IP65
