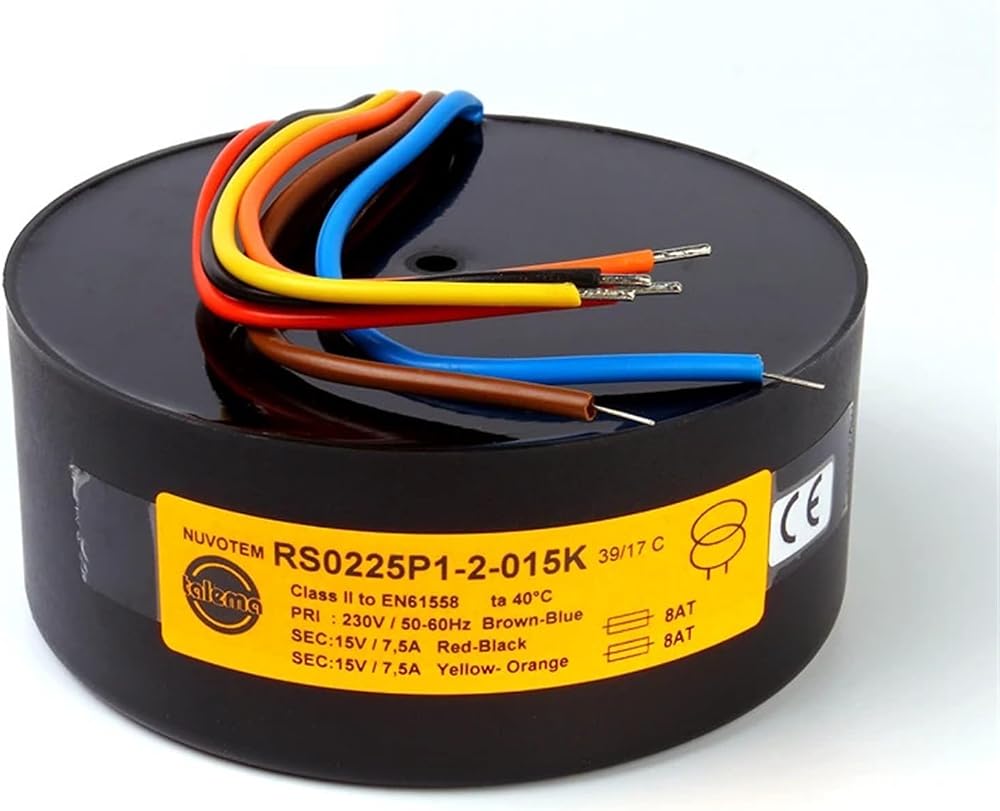

Talema Sealed 225W Dual 12V 15V 18V 25V Ring Transformer 225VA Ring Bull
Color Classification:
225W Dual 12V
225W Dual 15V
225W Dual 18V
225W Dual 25V
encapsulated toroidal transformer with a 230V AC 50/60Hz primary winding.
Rated from 15VA to 500VA, it is housed in a cylindrical housing with a center hole for single-bolt mounting. The two secondary windings can be used in series, in parallel or individually. Closed fully compliant
UL94-VO, housing material conforms to UL94-V0 standard, nylon 6.6, small size and light weight compared to traditional lamination type. Extremely low radiated magnetic field, ultra-low induced noise (humming), ultra-low
Iron loss, double insulated main conductor, low surface temperature, electrical and insulation tested.
Primary rated voltage: 230V AC
Working frequency: 48-60Hz
Rated power: 225W .
Termination Type: Copper Wire Terminated Wire
Number of outputs: 2
Maximum ambient operating temperature: +40C
Weight: 2.1 Kg
Listed Insulation: Class A (105°C)
Size: Diameter 125.8mmx Height 52.4mm
Terminal Type: Lead
Fixed hole diameter: M6
Housing material: UL94-V0, Nylon 6.6
Conductor: PVC insulated, 150mm long, 10mm galvanized bare wire
