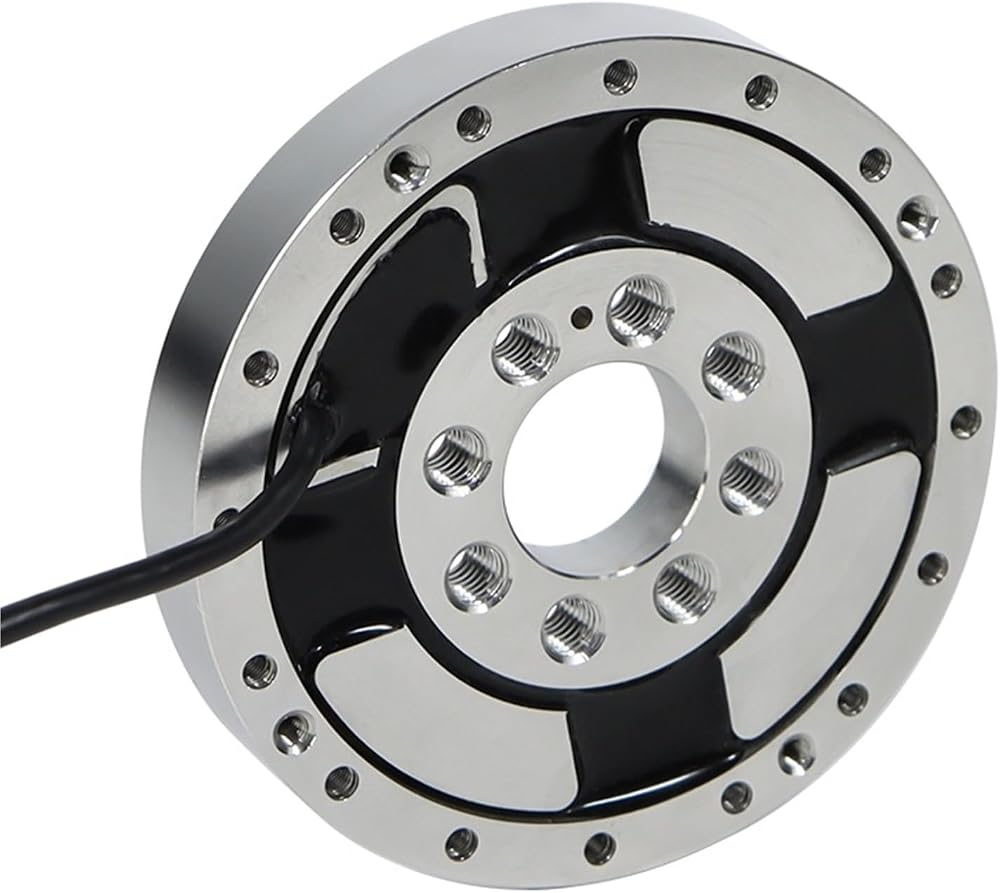

Torque Tester, Industrial Automation Control Robotic Arm Value Handling Ring Force Torque Measuring Weighing Load Cell Sensor(0-200N.M) in Kuwait

Torque Tester, Industrial Automation Control Robotic Arm Value Handling Ring Force Torque Measuring Weighing Load Cell Sensor(0-20N.M)

KWD 127
Brand
KJYXAWQQ
Weight
1.5 kg
Color0-20n.m
– 1 +

Special Features

  • High precision torque measurement range from 0-200N.m, for industrial automation applications.
  • Output sensitivity of 2.0mV/V ensures accurate readings for various force measurements.
  • Robust construction with alloy steel and aluminum alloy materials for enhanced durability and reliability.
  • Wide operating temperature range of -20 to 80°C, suitable for diverse working environments.
  • Safe overload capacity of 150% and limit overload of 200% for added safety during operation.

Description

Range: 0-200N.m
Output sensitivity: 2.0mV/V
Zero output: ±2%F.S
Nonlinearity: 0.2%F.S.
Lag: 0.1%F.S.
Repeatability: 0.1%F.S.
Creep (30 minutes) : 0.1%F.S.
Temperature sensitivity drift: 0.1%F.S./10°C
Zero temperature drift: 0.1%F.S./10°C
Response frequency: 10kHz
Material: Alloy steel/aluminum alloy
Impedance: 350Ω
Insulation resistance: ≥5000MΩ/100V DC
Operating voltage: 5-15V
Operating temperature range: -20-80°C
Safe overload: 150%
Limit overload: 200%
Cable specification: Φ3x2m
Cable ultimate tension: 98N
