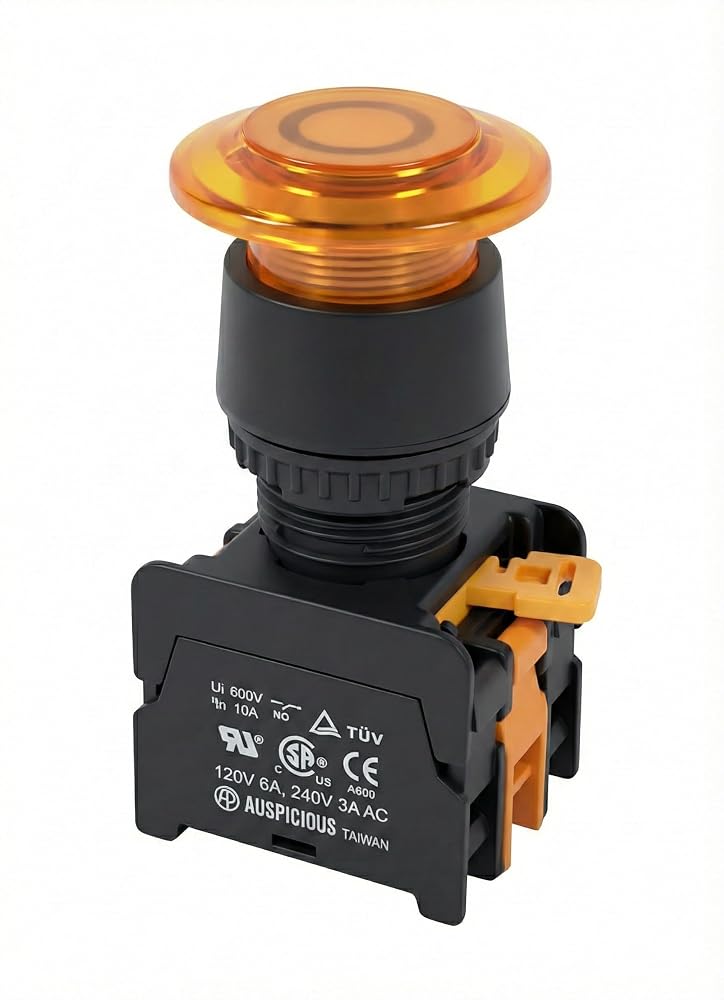

Alpinetech EPFL-22 مفتاح زر الضغط الذي يتم الحفاظ عليه مقاس 22 مم 1NO 1NC، مضاء بـ LED (أحمر 24 فولت) in Kuwait

أصفر 110 فولت

KWD 6.500
ماركة
Alpinetech
وزن
57 g
اللونأصفر 110 فولت
– 1 +

مميزات خاصة

  • Panel Cutout Hole Diameter : 22mm / 0.87"; Button Diameter : 1.5" inch (~36mm) (Mushroom Head)
  • Contact Type : 1NO, 1NC; Action Type : Latching Maintained (Push to Lock and Push to Release); Insulation Voltage: Ui 600V; Thermal Current: 1th 10A; Short-Circuit current: 1000A; Contact resistance: 50 mΩ max.
  • Additional Contact Blocks (up to 6) can be added for Different Configurations; Terminal Type: Finger Safe Screw
  • LED Lamp Voltage: 24V AC/DC
  • (Rating) AC-15: 120V 6A, 240V 3A; AC-12: 480V 1.5A, 600V 1.2A; DC-12: 120V 2.2A, 240V 0.6A, 480V 0.4A
  • Safety Standards: UL listed, CSA Certified and TUV Approved; Made in Taiwan
  • Industrial Grade for Tough Environment. (Life) Push button: 1 million operations; (Life) Contact blocks: 1 million operations; IP Enclosure: IP65
  • Modular Design for Easy Installation and Wiring

وصف

Mounting Hole Size: 22mm
Button Type: Mushroom Head
Button Color: Red
Head Diameter: 1.5" inch (~36mm)
Operation Type:Latching Maintained (Push to Lock and Push to Release
Switch Contact: 1NO (Normally Open) 1NC (Normally Closed)
Lamp Type: LED
Lamp Voltage: 24V AC/DC
Terminal Type: Screw
Ui 600V
ITH 10A
Switch Rating: AC-15 120VAC 6A, 240VAC 3A
Protection Rating: IP65
Mechanical Life: 1,000,000
Panel Thickness: 1-10mm
Depth Behind Panel: 2"
