Specification:

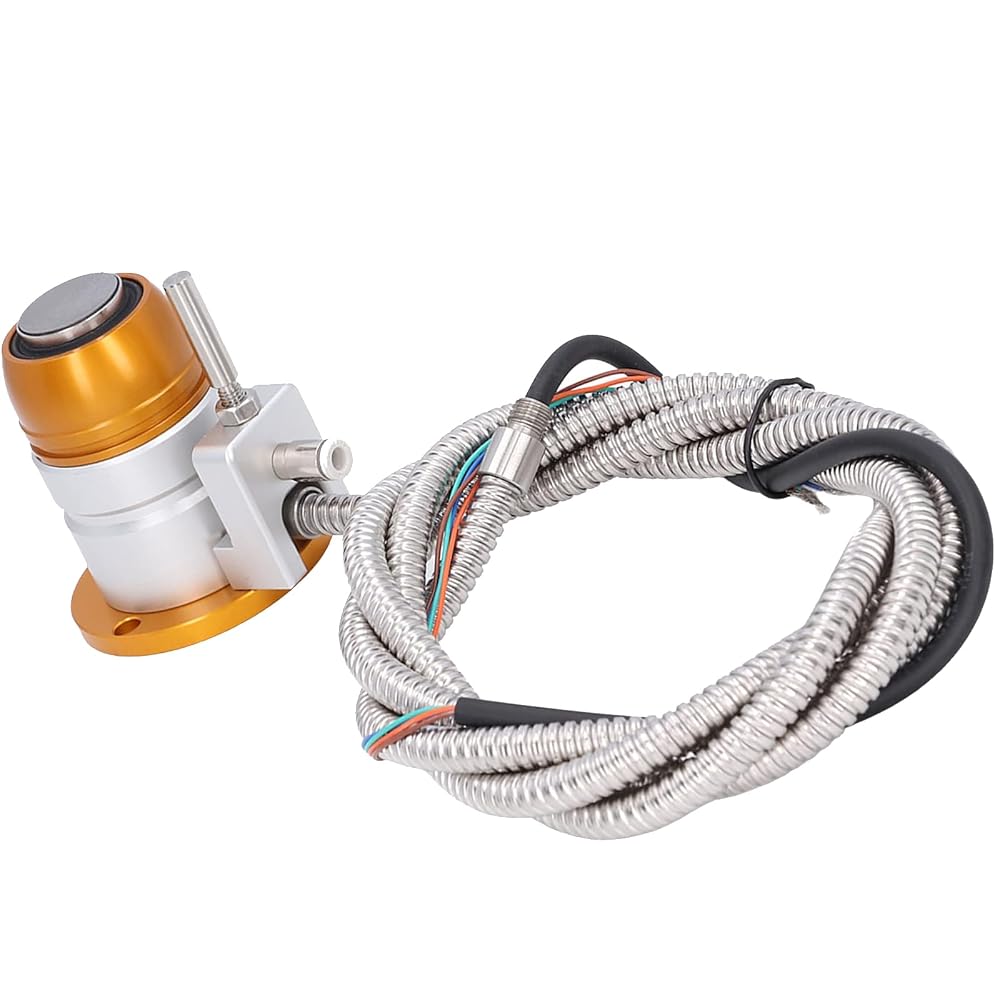

Item Type: Touch Tool Setter
Voltage: DC 24V
Current: 20MA (Maximum) (Recommended value: 10mA)

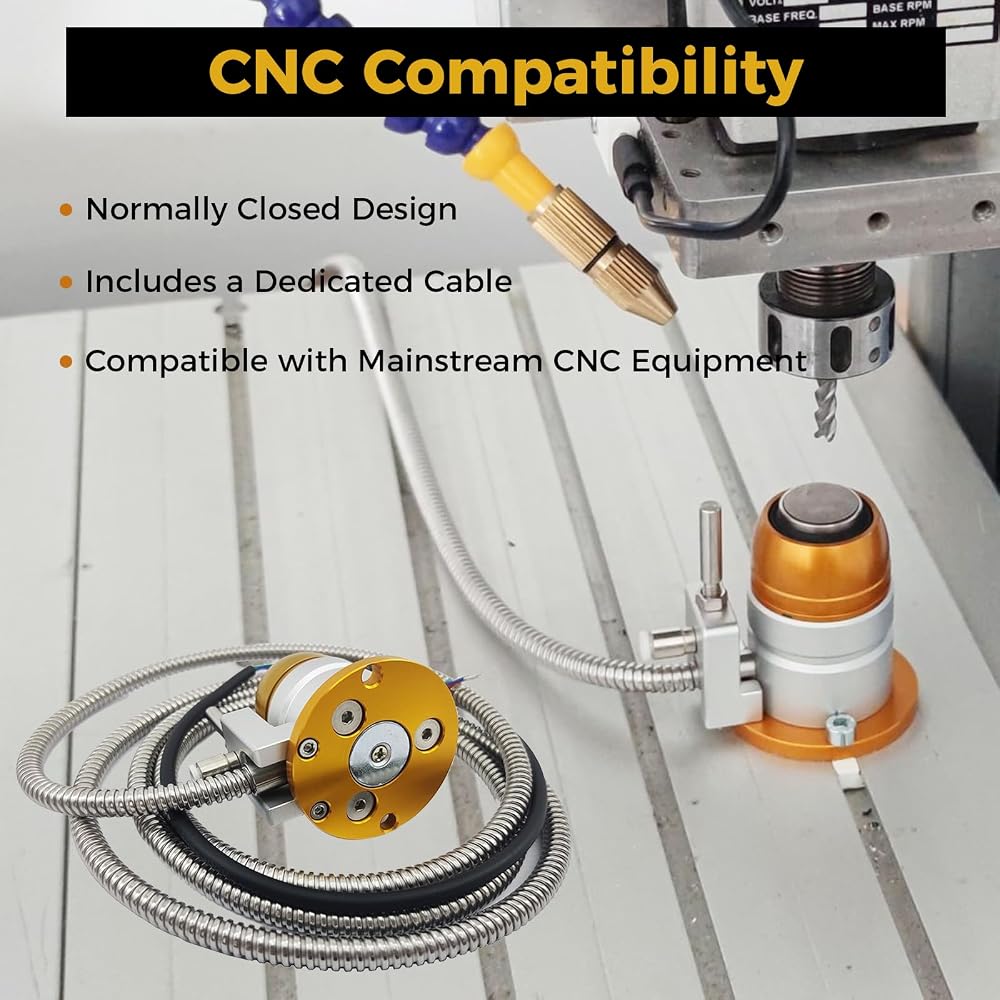

Output Mode A: NC (Normally Closed)
Pre-travel: Nearly zero

Total Stroke: Approx 4mm / 0.16in
Repeat Positioning Accuracy: 0.01mm(Operation speed: 50-200mm/min)
Overstroke Retraction:
Pre-stroke: Almost zero
Life: 3 million times
Contact Force: 2.5N(Installation state: Vertical)
Air Blowing Device: Optional Combination(as part of a combo)

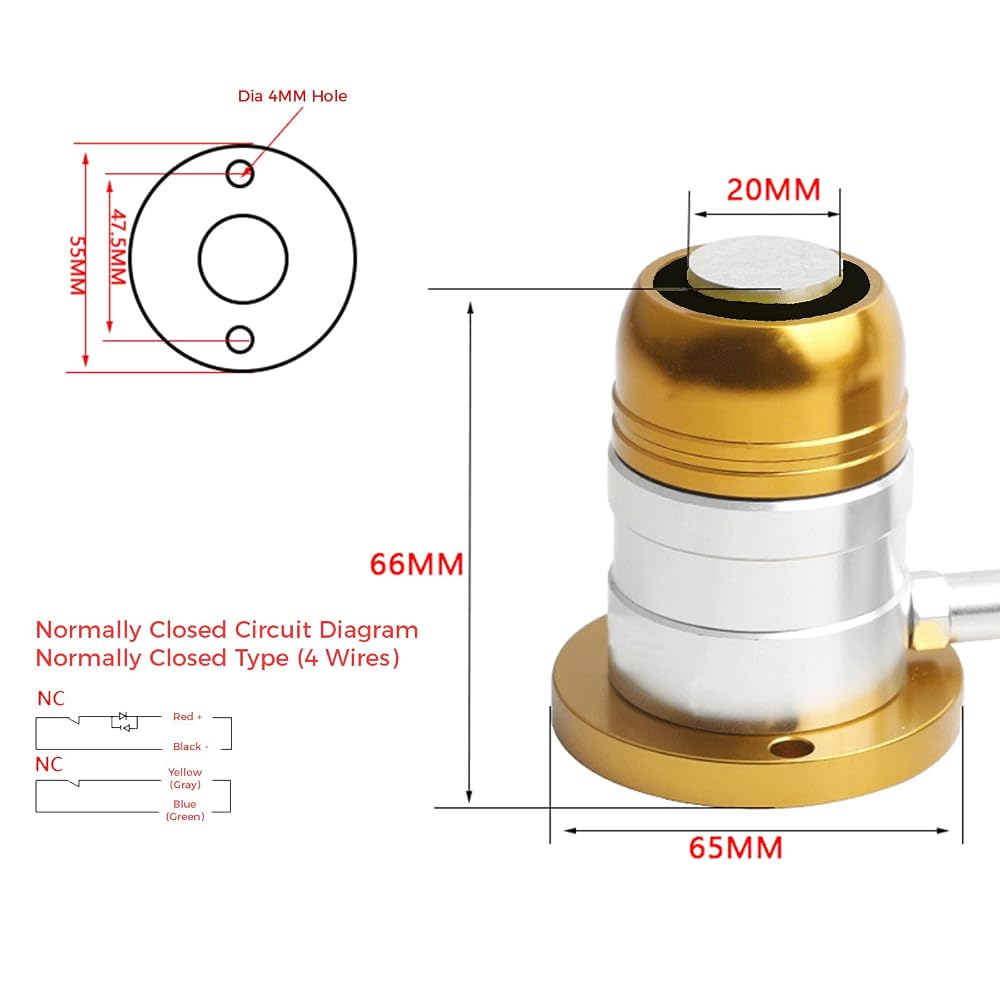

Tool Setting Surface Diameter: Approx 20mm / 0.8in
Tool Setting Surface Roughness: Ra0.8
Tool Setting Surface Flatness: ≤0.03mm

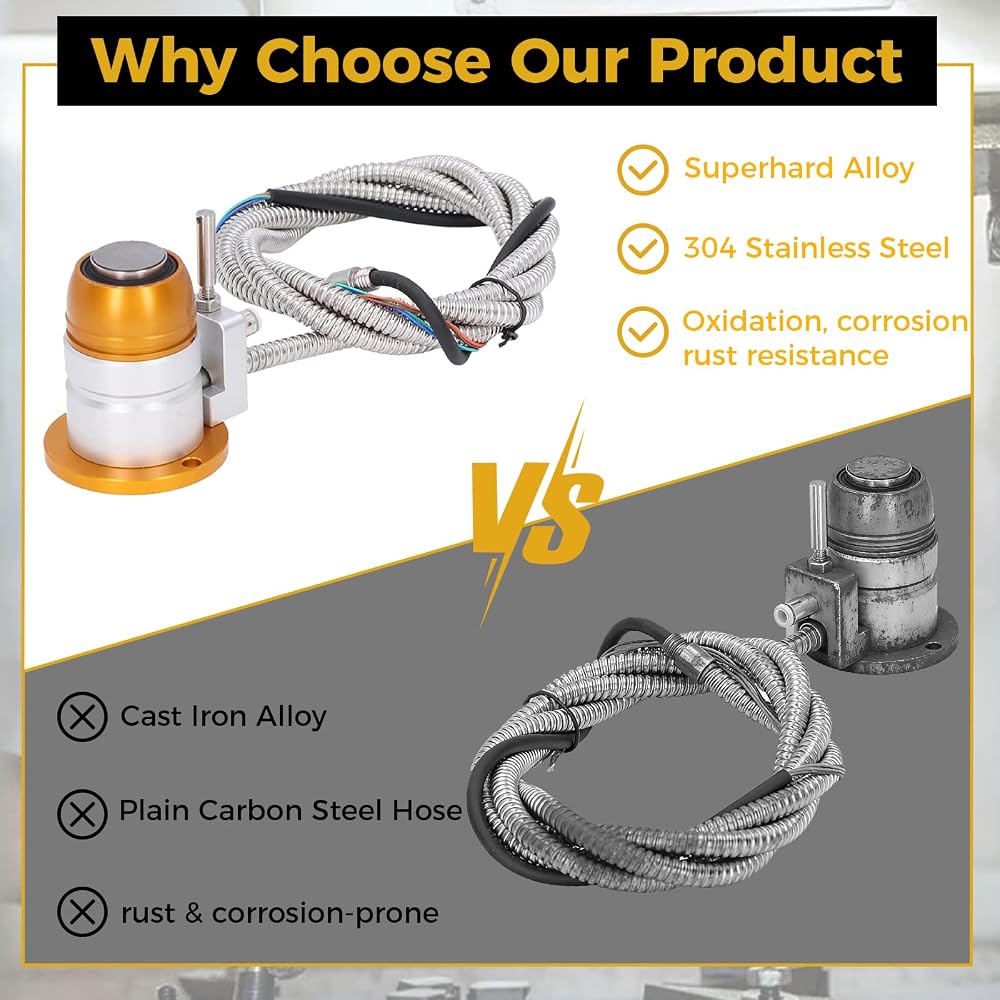

Tool Setting Surface Material: Superhard Alloy
Cable: Dia 4mm 2m 4 cores

Cable Tensile strength: 20N
Cable Minimum Bending Radius: R7
Protective Tube: 304 Stainless Steel Hose (1m), Minimum bending radius: R25

Protection Class: IEC IP67
Tool Setting Protection: Yes

LED Light: None

Package List:
1 x Tool Setter
Note:
Do not exceed the tool setter's stroke during contact, as this will damage the tool setter (stroke is 5.0MM).
When touching the tool setter's contact surface by hand, do not release it immediately, as this may damage the internal structure of the tool setter and affect its service life and contact rate.
After tool setting between the tool and the tool setter, the tool must be lifted vertically away from the contact surface; do not move it horizontally, otherwise the tool setter will be damaged.
Tool Setter Installation Instructions:

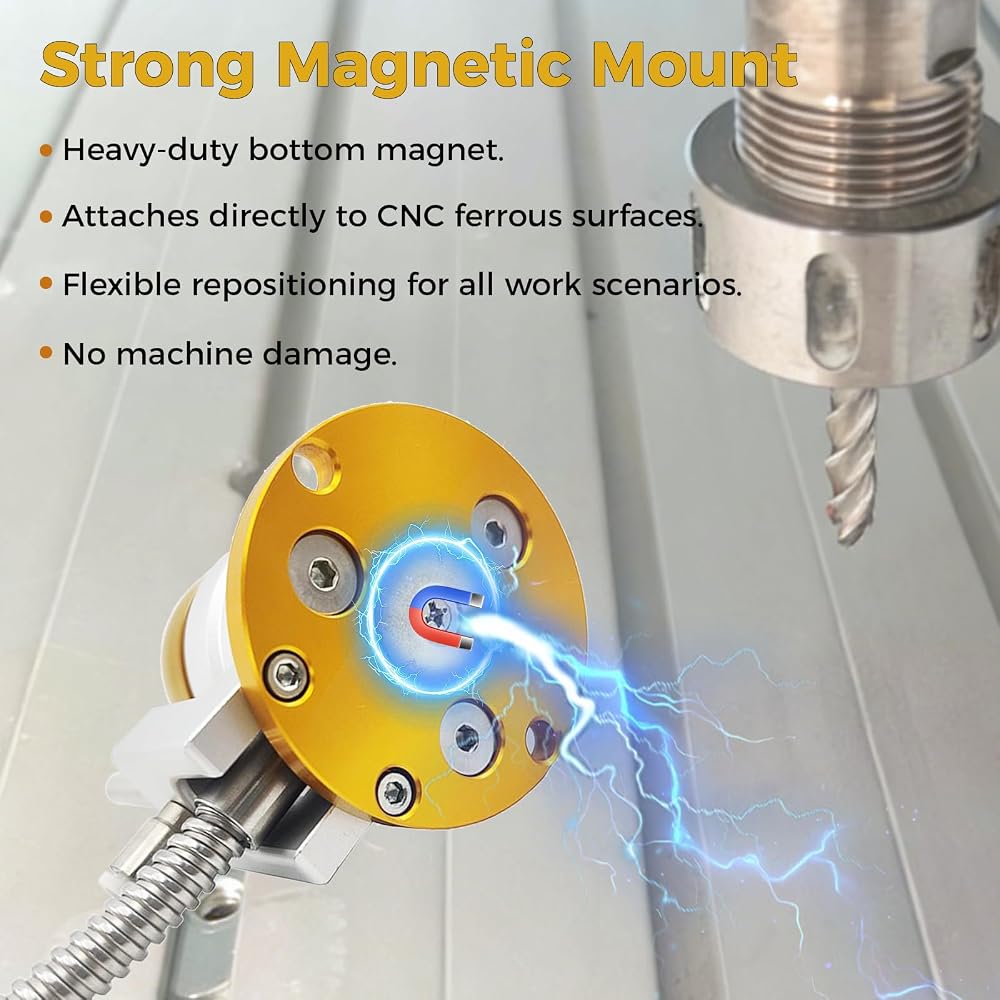

The tool must be perpendicular to the tool setter when in contact, and should touch the contact surface vertically downward. Install it in an area on the workbench with minimal iron chips to avoid affecting the tool setter's accuracy.
Rated power supply range: DC10-380V, current below 20mA. For SHIYO, the operating temperature range is -25℃ to 70℃; controlling it within this range is better.
The diameter of the tool for setting should be within 20MM. Control the tool setting speed at 50-200MM/MIN, and the tool center should align with the center of the tool setting surface.

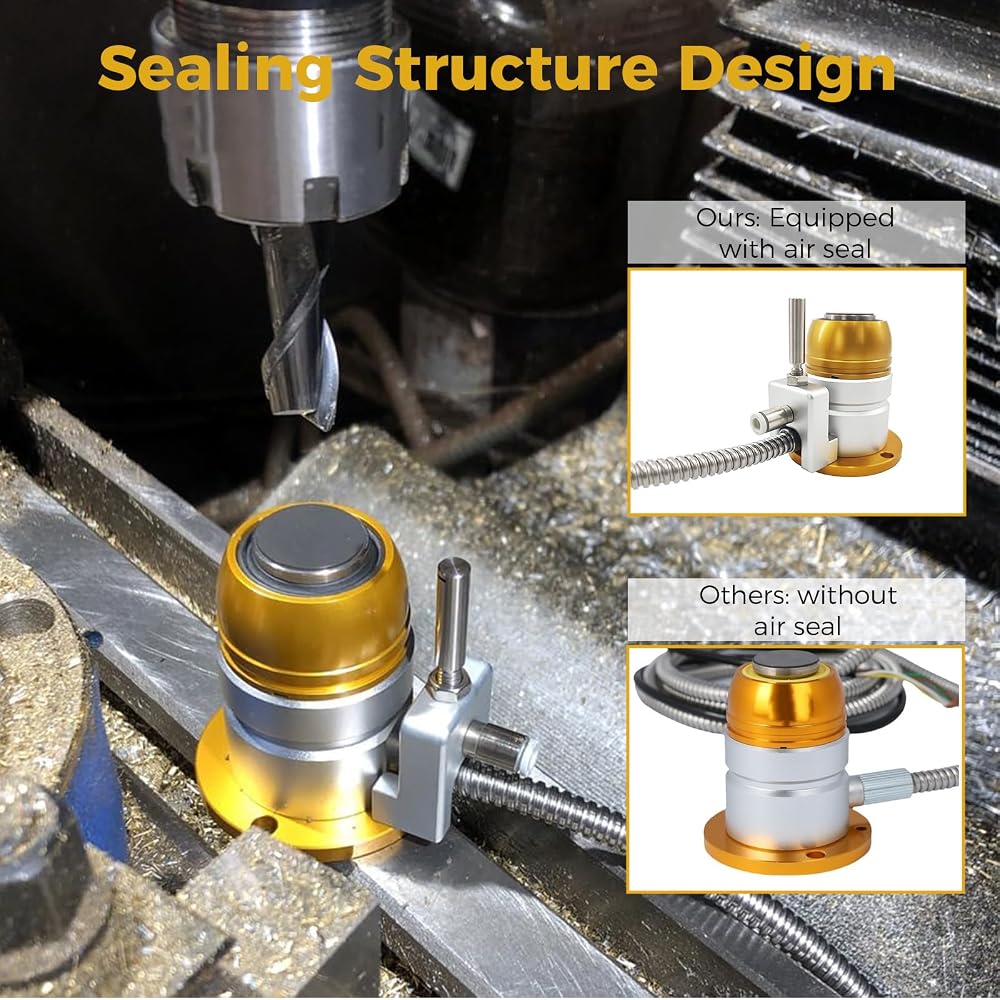

When using the air blowing function, the outer diameter of the air tube should be 6MM and the inner diameter 4-5MM. Keep the area clean during use; clean the iron chips and cutting oil attached to the contact surface.
