Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Capacity : 5~200KG

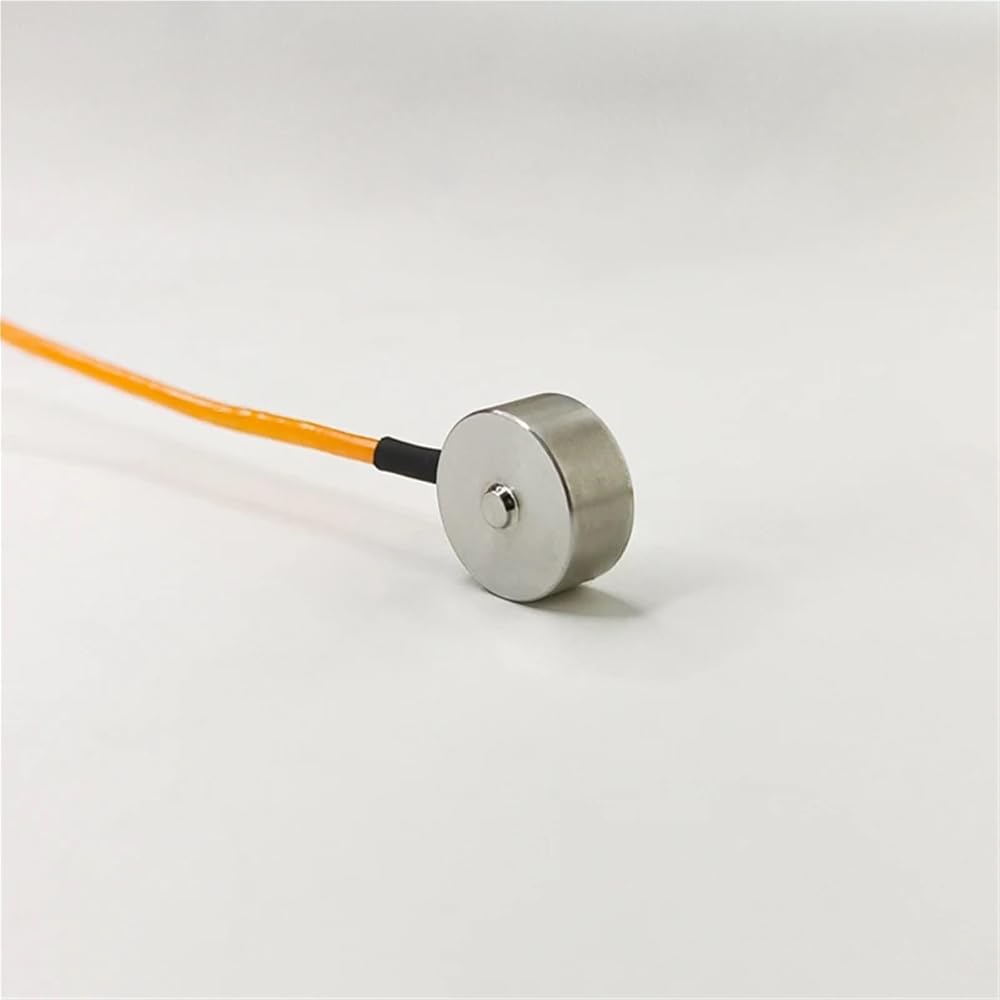

Type : Load Cell/Force Sensor
Zero Balance : ±1%F.S
Sensitivity : 0.5-1.5mV/V
Non-linearity : ±0.5%F.S
Hysteresis : ±0.3%F.S
Repeatability : ±0.5%F.S
Creep In 30 Minutes : ±0.5%F.S
Operating temp. range : -20 ~ 60
Temp. effect on Output : ±0.05%F.S/ 10
Temp. effect on Zero : ±0.05%F.S / 10
Input Impedance : 380+30
Output Resistance : 350±5 or 500±5 or 1000±5
Insulation resistance : 5000M//100VDC
Recommended Excitation : 5~12V
Safe Overload : 120%
Material : stainless steel
Output : Analog Signal
