مميزات خاصة

Versatile Application Range: This passive double balanced mixer functions as an up converter, down converter, 2 phase modulator and demodulator, or phase comparator for various frequency conversion tasks.
Low Conversion Loss: The module provides efficient signal processing with a typical conversion loss value of 4.6 dB to maintain signal integrity during frequency transduction.

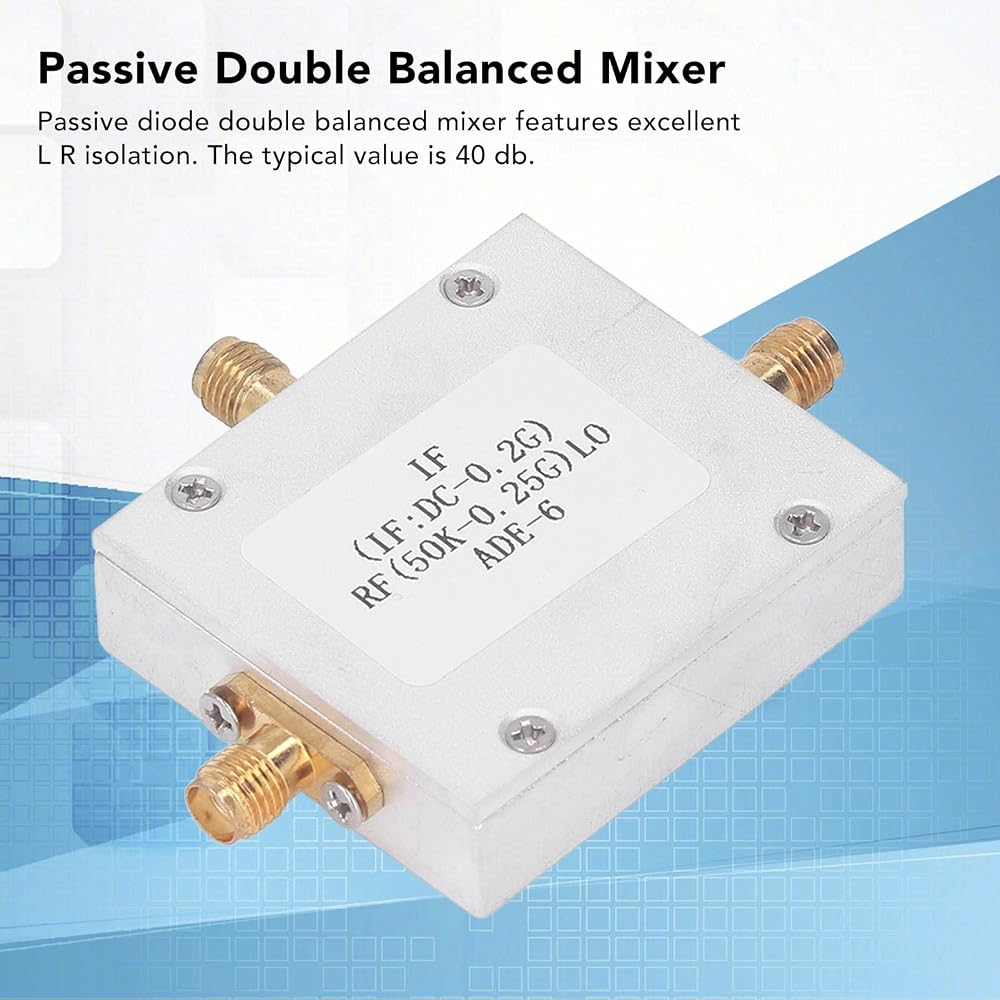

Excellent L R Isolation: Integrated passive diode components provide high isolation between L and R ports with a typical value of 40 dB for reduced signal interference.
Compact Lightweight Design: Constructed with mini components, this frequency transducers conversion module features a compact form factor for space constrained industrial applications.
Durable PCB Construction: The conversion module is manufactured using sturdy PCB material to ensure structural stability and reliable performance during operation.

وصف

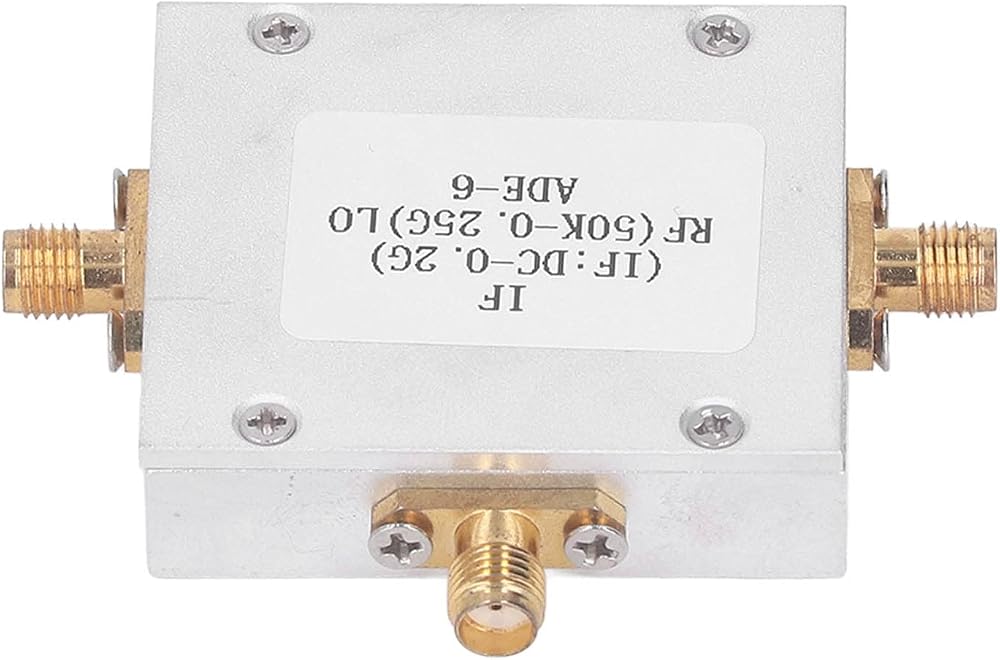

Item Type:1 x Passive Double Balanced Mixer
MAterial: PCB
Model: ADE 6
Operating Temperature: -20°C to 85°C
Storage Temperature: -55°C to 100°C
RF Power: 50MW
IF Current: 40Ma
Conversion Loss: 4.6dB
RF/LO: 0.05 to 250MHz

Package List：
1 x Passive Double Balanced Mixer

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

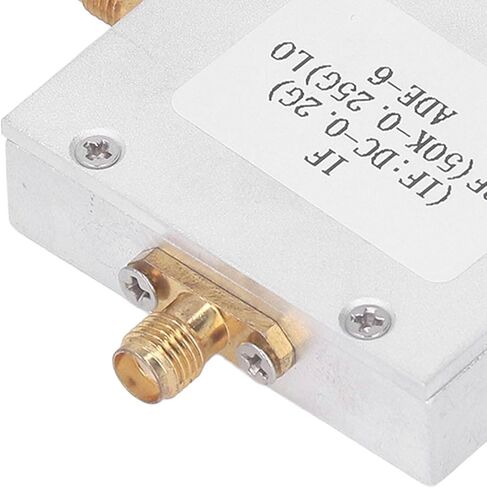

لمعالجة الإشارات لأعلى ولأسفل - وحدة تحويل محولات التردد الخطي العالي للخلاط السلبي المزدوج - خلاط ثنائي مدمج مع خسارة 4.6 ديسيبل و40 ديسيبل L R
