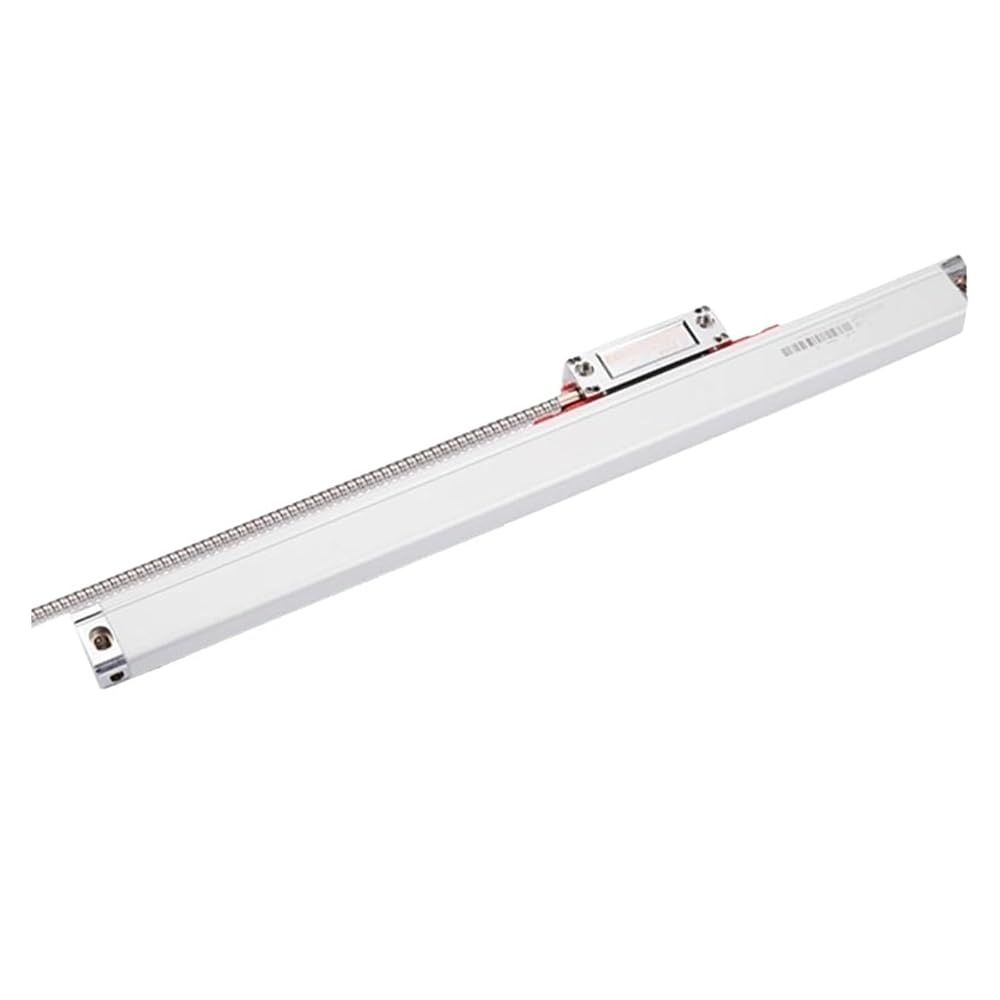

SINO KA-300 Linear Glass Scale Sensor 0.005mm TTL AB Signal KA300 470mm-1020mm Linear Displacement Optical Encoder Ruler
KA-300 is a type of encoder with wide applications. It features in optimal structure,
good appearance and high rigidity, able to meet the needs of the majority of general
machine users. The length is 70~1020mm.
Parameter
Product name: KA-300 Linear scale
Available Measure Length: 470 520 570 620 670 720 770 820 870 920 970 1020mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm) , it also have 1um
Output signal: TTL
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connector: 9 Pins
Order includes
-1pcs KA-300 scale
-1pcs scale cover
-1pcs mounting bracket
-1pcs screw bag
Model Number : KA300
Certification : CE
Product name : Linear scale
Resolution : 0.005mm
Signal period : 20um
Voltage : 5V DC
Output signal : TTL AB Signal
Cable length : 3 meter
Width*height : 21*34mm
Max of Measuring speed : 60m/min
