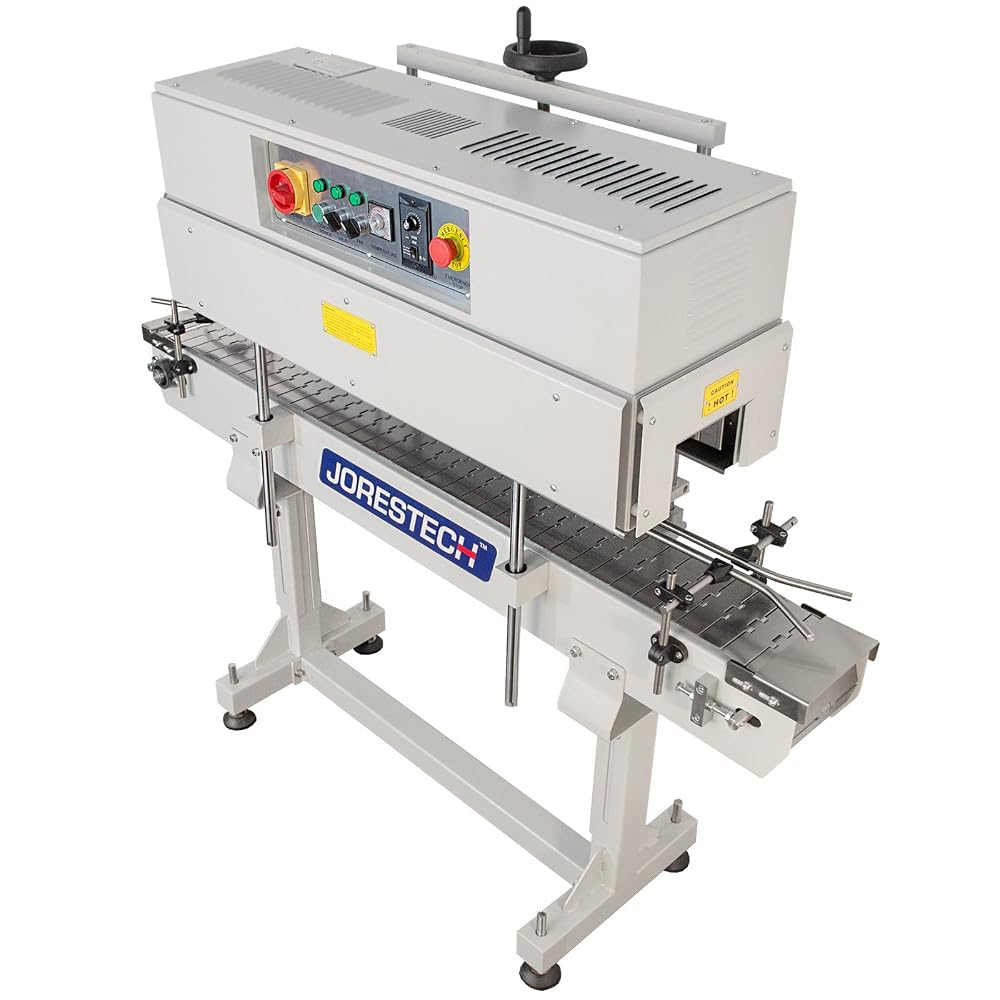

The TUN-1540 Heat Shrink Tunnel shrinks tamper-proof safety bands quickly, uniformly, and with ease. Tunnel adjusts to a wide range of containers, and includes speed and height-adjustable stainless steel flat-top conveyor.

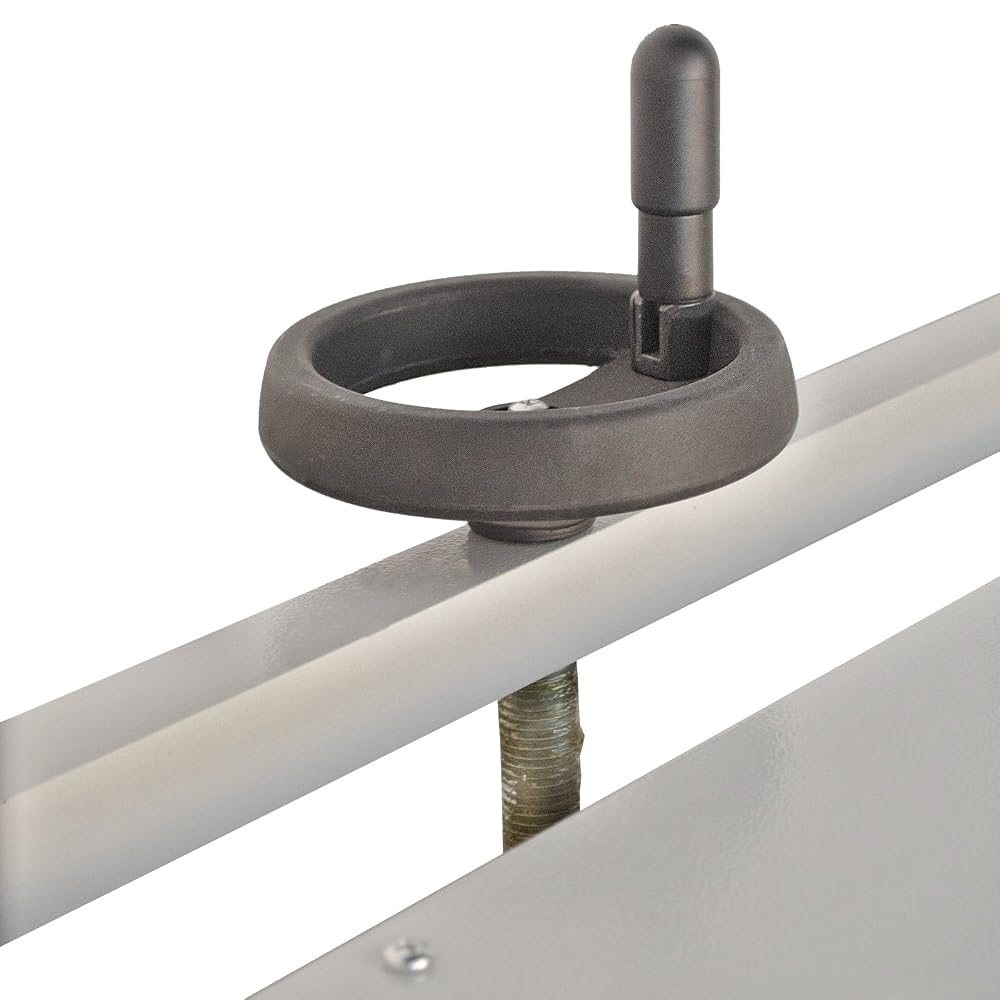

Tunnel path dimensions change height to 3.5 inches

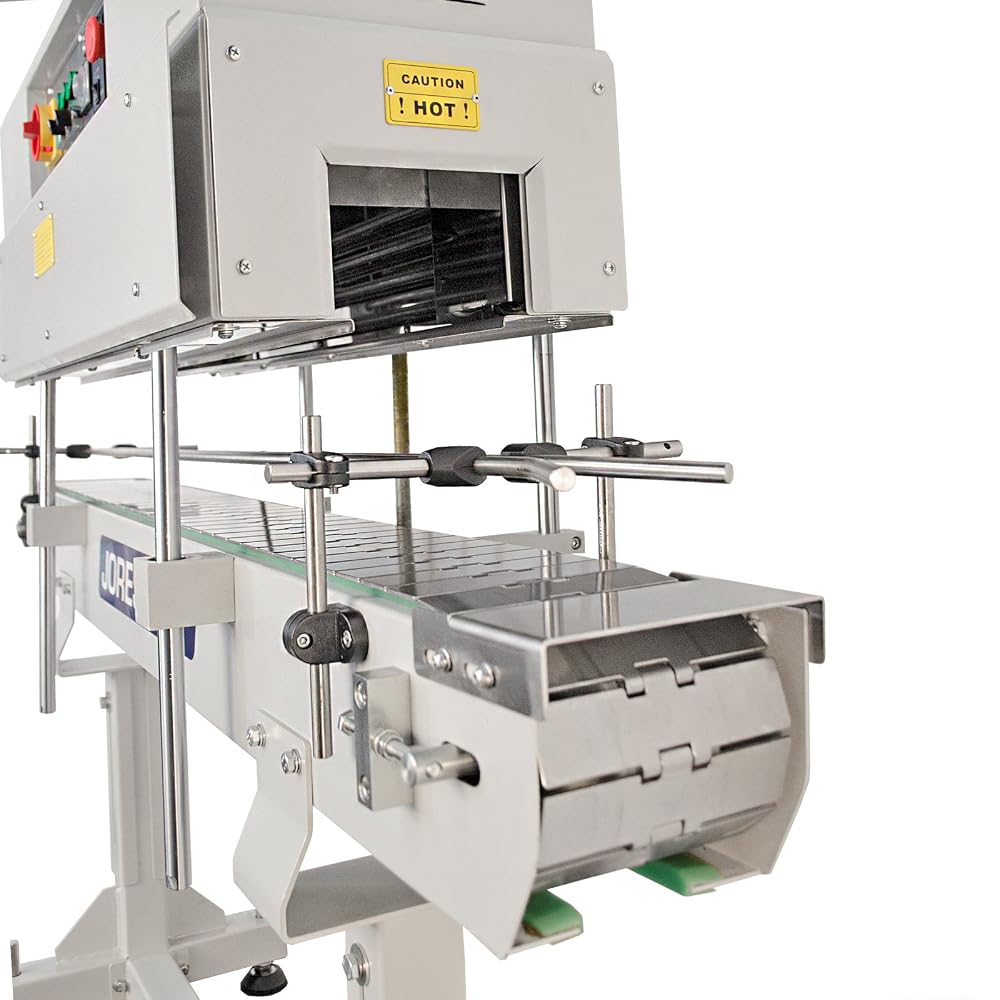

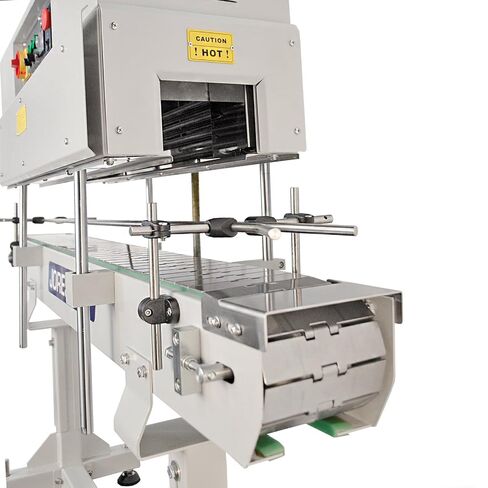

Adjustable Speed Conveyor equipped with side guides.
Conveyor height from floor adjustable from 29.6" to 36.6" (751 - 929 mm)
Conveyor Speed (0-15 m/min)
Heat temperature can be controlled from (0° to 200° C).
Conveyor Rollers Width 6" (150 mm)

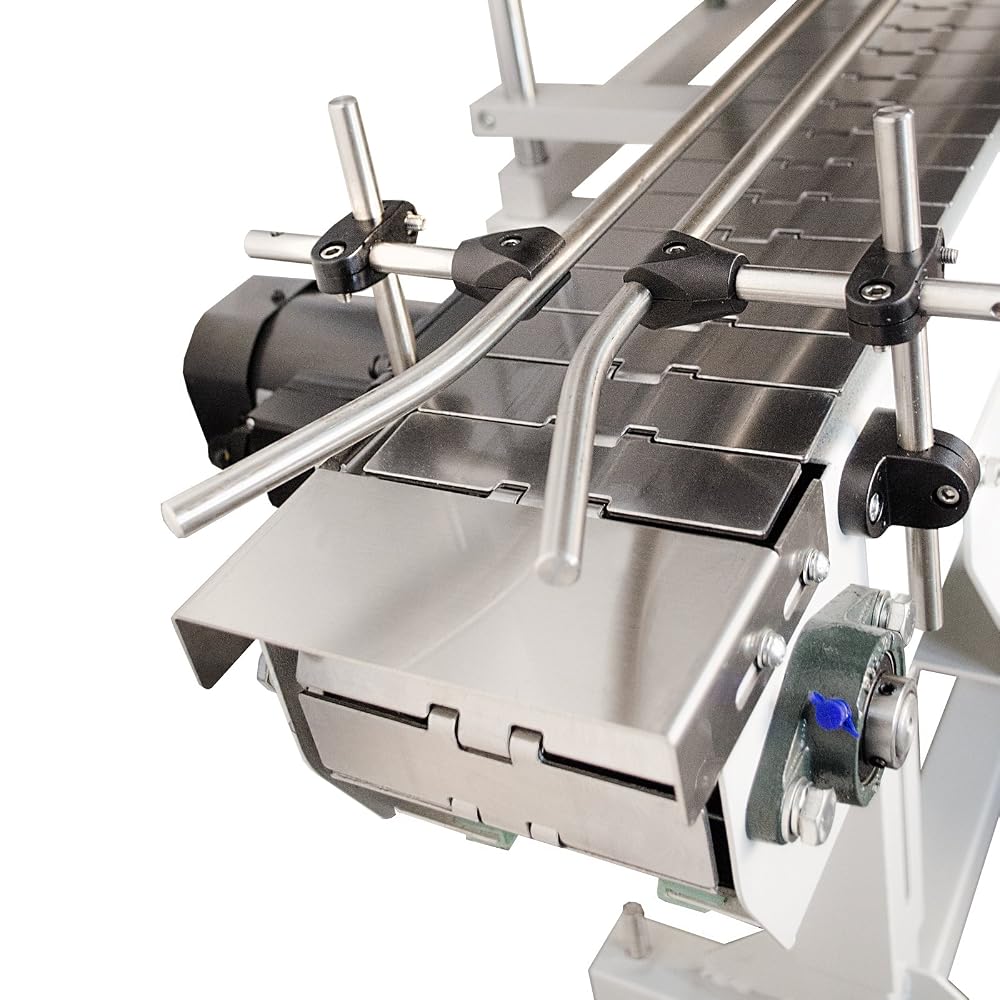

Flat Top Stainless Steel Conveyor
Work Efficiency: 2000-3000 Packages Per Hour
Voltage: 220V / 1Ph / 60Hz
Power: 7 KW / Max 31 Amps per Line

S

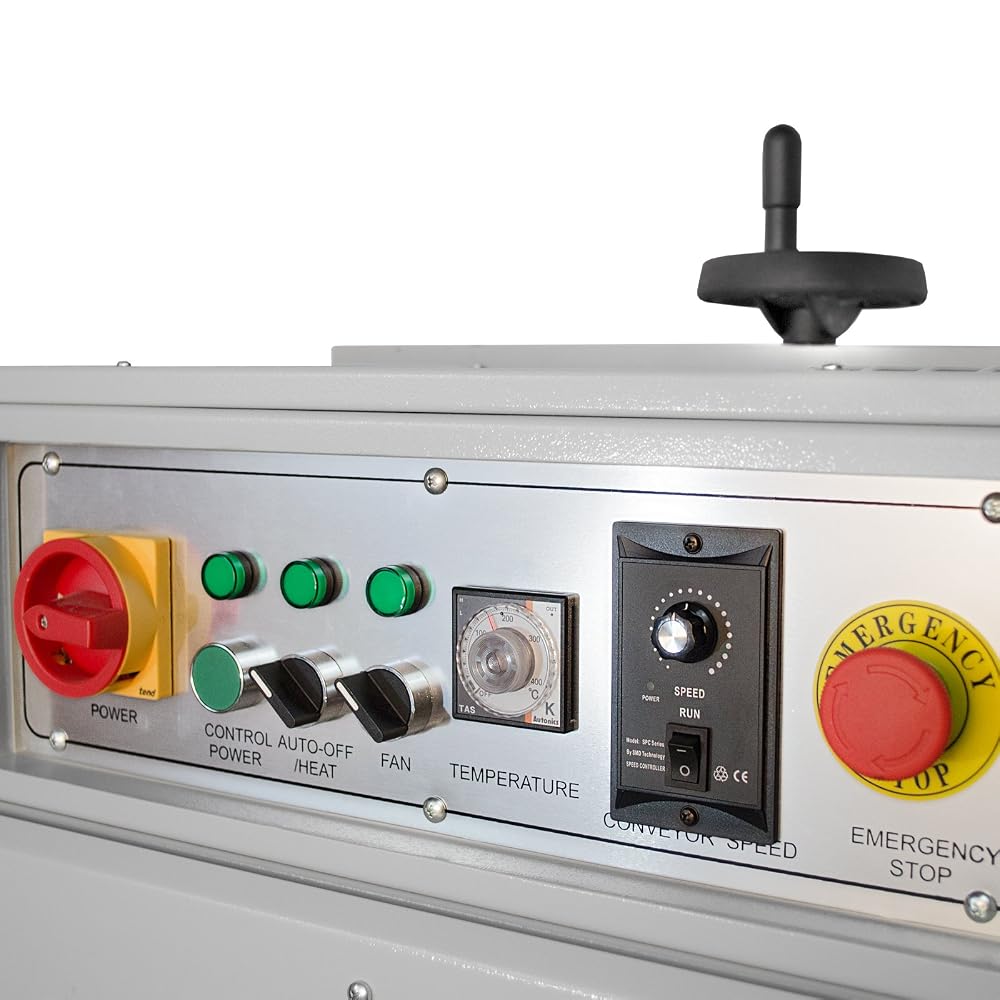

hrink Tunnel Control Panel: Main Power Switch.
Control Panel equipped with cooling fan on the bag.
Control Power On/Off Switch
Control Power Indicator Light
Heat System on/off Switch.
Heat System Indicator Light.
Air System on/off Switch.
Air System Indicator Light.
Temperature Controller (0° to 200° C).
Electronic Conveyor Speed Controller.
Emergency Stop Button
